Part Number - 350109601 Revision – A00-000 Wireless Resident Monitoring Solutions Emergency Call Button Operational Instructions The HomeFree system was designed to monitor special needs and Dementia individuals in the care center environment. The Emergency Call Button is one of the many unique elements of this system. The Emergency Call Button is a small, lightweight push button unit worn by the resident / nurse that alerts care center staff members whenever the resident / nurse activates an emergency call alert. The Emergency Call Button can be worn as a pendent, watch style or clip-on. The Emergency Call Button is not for use outside the monitored area. Activating the Emergency Call Button: The Emergency Call Button is turned off by the manufacturer before shipment and must be activated before use. To activate, hold the Emergency Call Button firmly in your hand and press the panic button continuously for 2 seconds. The LED indicator flashes indicating that the Emergency Call Button is in active mode. Panic Button LED Indicator Part Number - 350109601 Revision – A00-000 Once in active mode, the Emergency Call Button sends a status message to the monitoring station (every 60 minutes) indicating the current battery status as well as the location of the Emergency Call Button. This status message is sent until the Emergency Call Button is deactivated. Activating a Panic Alert Press the panic button. The LED indicator flashes indicating that the Emergency Call Button is in panic alert mode. Once in panic alert mode, the Emergency Call Button sends a panic alert message (every 20 seconds) to the monitoring station. This message is sent until the panic alert is deactivated. Deactivating a Panic Alert Press the panic button 6 times in quick succession (within 5 seconds). The LED indicator lights up for 3 seconds indicating that the panic alert has been deactivated. Even though the panic alert has been deactivated, the Emergency Call Button is still in active mode. Therefore, the Emergency Call Button still sends a status message to the monitoring station. This status message is sent until the Emergency Call Button is deactivated. Deactivating the Emergency Call Button Holding the Emergency Call Button firmly in your hand, press the panic button continuously for 10 seconds. The LED indicator lights up for 3 seconds. During this 3-second period, press the panic button 2 times in succession. The Emergency Call Button is now in deactivated mode (turned off). Part Number - 350109601 Revision – A00-000 FCC Notices Note: The following is applicable only to the 318MHz version of this product. FCC ID: QUX-PB-830 FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15 STATEMENT The equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna, 2. Increase the separation between the equipment and the receiver, 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, 4. Consult the dealer or an experienced radio/TV technician for help. In case of any problems please contact your local service provider: HomeFree Systems Inc. Phone: 1-800-606-0661 Outside US call: +927-3-7671900 E-mail:[email protected] Web Site: www.homfreesys.com

PB-830 Block Diagram The following block diagram illustrates the functional areas within the PB-830.

FCC Confidentiality Form 23/02/10 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. HomeFree would like the following documents regarding this submission for FCC ID: QUX-PB-830 to be kept confidential.
Permanent Confidentiality: Schematics
Short-term Confidentiality (180 days): Installation Manual The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want this document to be accessible to the general public. Sincerely, Gil Gemer CTO

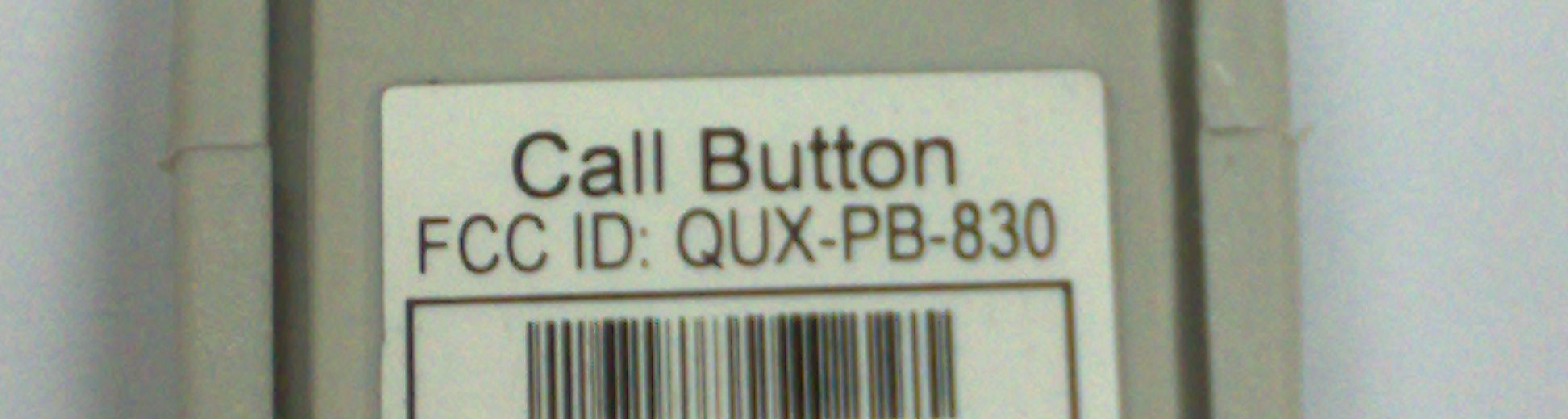

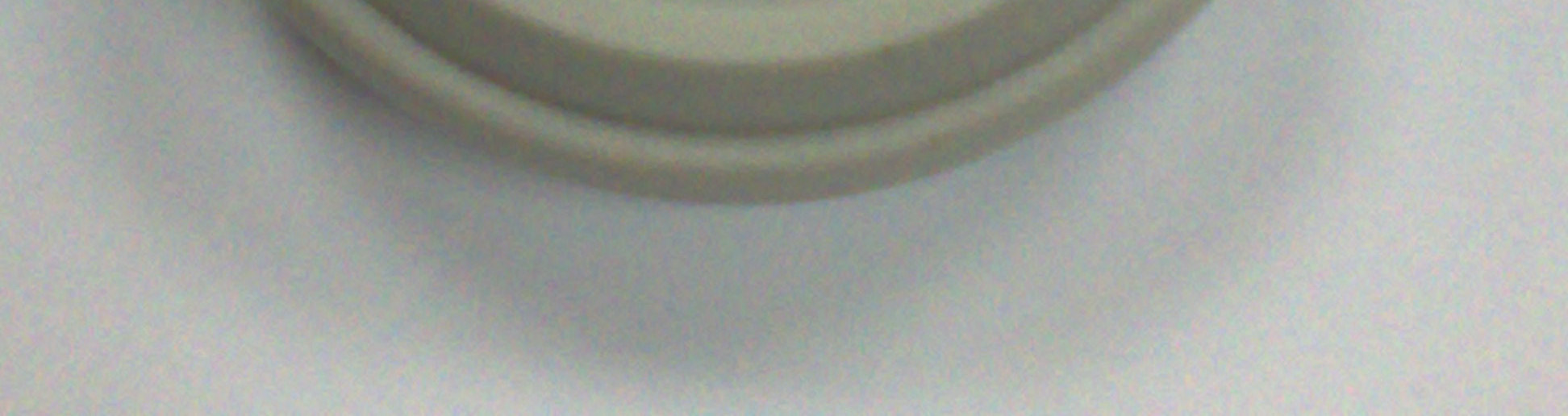

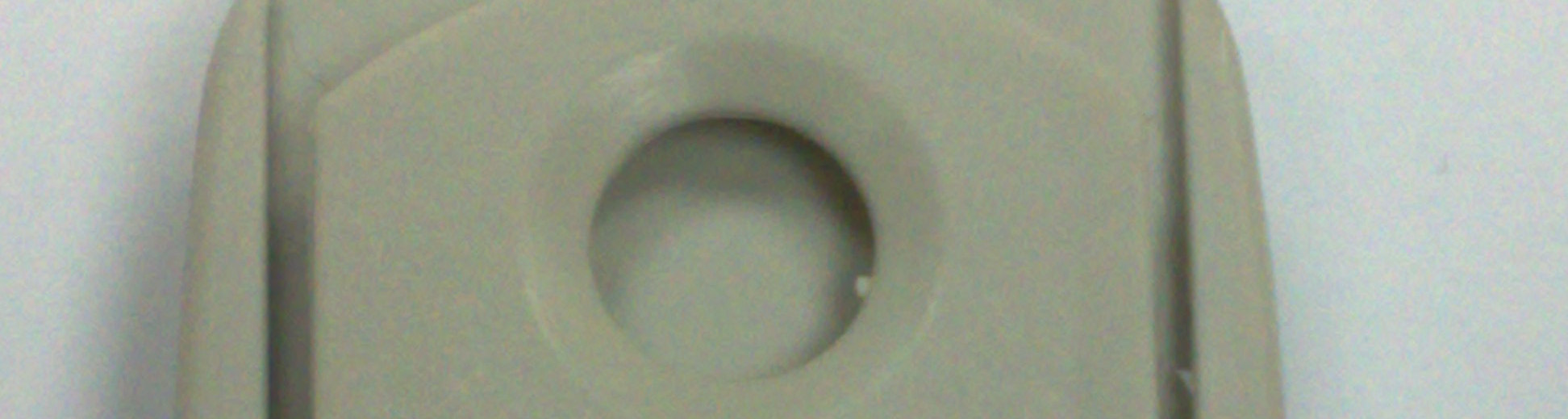

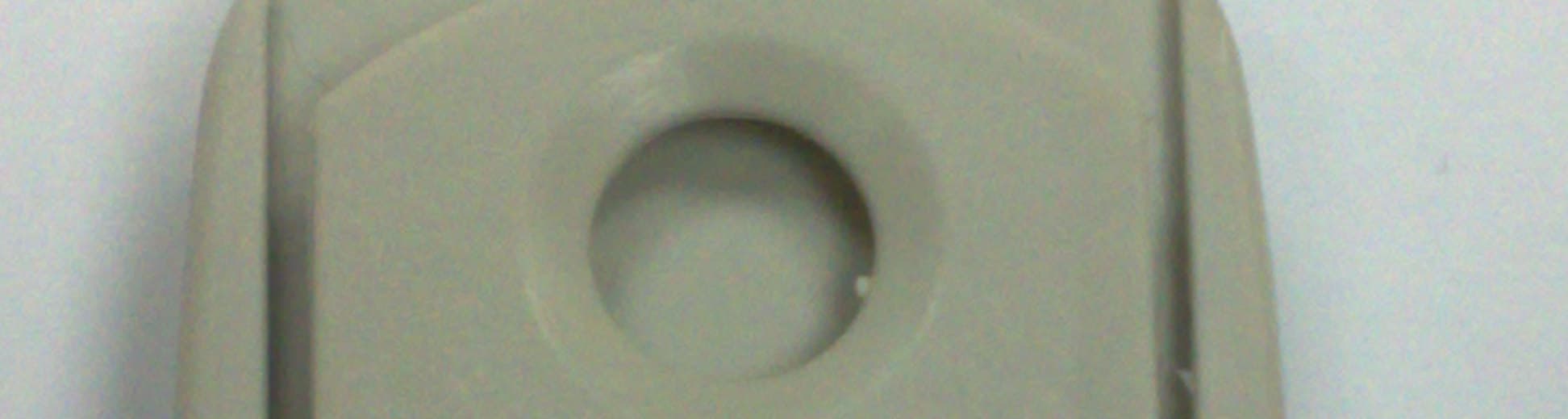

PB-830 External Photographs Figure 1: PB-830 (Top) Figure 2: PB-830 (Bottom) Figure 3: PB-830 (Front) Figure 4: PB-830 (Back) Figure 5: PB-830 (Right) Figure 6: PB-830 (Left)

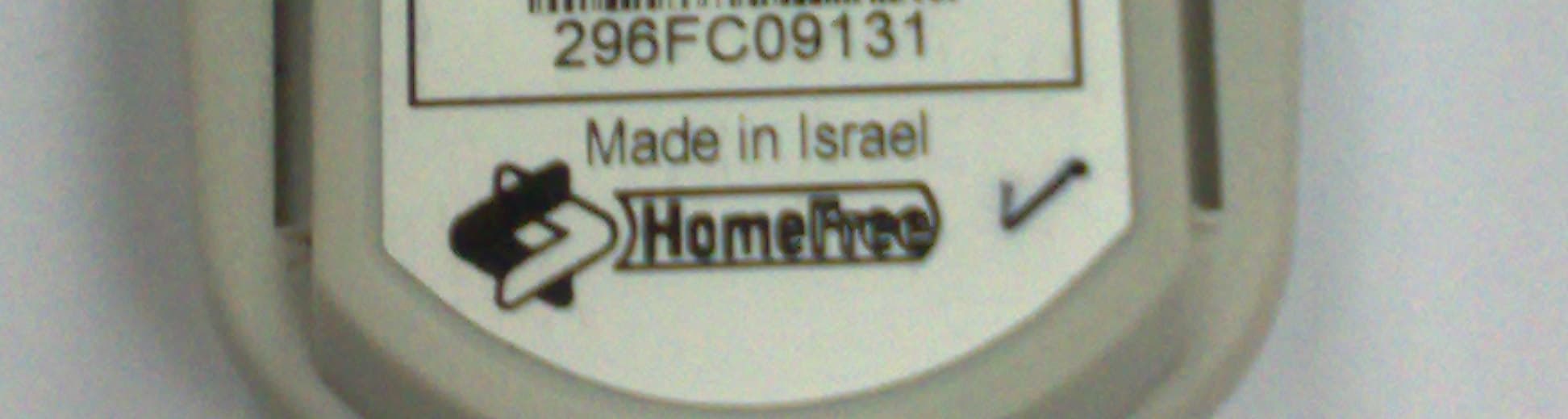

FCC ID: QUX-PB-830 Call Button R0. 6 296FC????? Call Button FCC ID: QUX-PB-830 IIII II III II Made in Israel IIII II III II 296FC????? Made in Israel

Label Location QUX-PB-830

R0. 6 Pull Tag FCC ID: QUX-PB-830 IIII II III II 296FC????? Made in Israel Made in Israel 296FC????? IIII II III II FCC ID: QUX-PB-830 Pull Tag

PB-830 Internal Photographs Figure 1: PB-830 (Cover Open) Figure 2: PB-830 PCB (Top) RF Antenna Figure 3: PB-830 PCB (Bottom)

PB-830 Panic Button Operational Description The PB-830 panic button is a small, lightweight push button unit worn by patients and caregivers and is designed to generate a panic event in the area monitoring system when an alarm is activated. The PB-830 comprises a printed circuit board (PCB) which includes an RF transmitter module with an integral antenna and a microcontroller that controls its operation. The PB-830 is powered by two 3V lithium batteries. After turning the unit on, the PB-830 sends three 5ms transmissions with a 150ms interval separating transmissions. After which, one 5ms supervision signal is sent per hour. In the event of an alarm, the PB-830 transmits a sequence of "Strong" and "Weak" signals shown in the diagram below until manual reset is performed. Each sequence of signals is separated by a randomly chosen interval of 9-11 seconds.

DATE: 07 October 2009 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Home Free Equipment under test: Call Button and Pull Tag PB-830 Written by: _____________________________ Test Report E93370.00 Home Free Page 1 of 45 D. Shidlowsky, Documentation Approved by: _____________________________ I. Raz, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. FCC ACC M Ver 1.1 05Mayl 2000 Test Report E93370.00 Home Free Page 2 of 45 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Home Free Call Button and Pull Tag PB-830 FCC ID: QUX-PB-830 This report concerns: Original Grant: x Class I change: Class II change: Equipment type: Part 15 Security/Remote Control Transceiver 47CFR15 Section 15231 (a-d) Measurement procedure used is ANSI C63.4-2003. Application for Certification: prepared by: Koby Cohen Home Free 2 Habarzel St. Tel-Aviv, 61131 Israel Tel: +972-3-647-8871 Fax: +972-3-647-8872 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information.................................................................................5 1.2 List of Accreditations .........................................................................................6 1.3 Product Description ...........................................................................................7 1.4 Test Methodology..............................................................................................7 1.5 Test Facility .......................................................................................................7 1.6 Measurement Uncertainty .................................................................................7 2. SYSTEM TEST CONFIGURATION--------------------------------------------------------------------- 8 2.1 Justification........................................................................................................8 2.2 EUT Exercise Software .....................................................................................8 2.3 Special Accessories ..........................................................................................8 2.4 Equipment Modifications ...................................................................................8 2.5 Configuration of Tested System ........................................................................8 3. TEST SET-UP PHOTO------------------------------------------------------------------------------------- 9 4. AVERAGE FACTOR CALCULATION ----------------------------------------------------------------10 4.1 Test Instrumentation Used ..............................................................................11 5. PERIODIC OPERATION ---------------------------------------------------------------------------------12 5.1 Specification ....................................................................................................12 5.2 Requirements ..................................................................................................12 5.3 Results.............................................................................................................12 5.4 Test Instrumentation Used ..............................................................................16 6. FIELD STRENGTH OF FUNDAMENTAL ------------------------------------------------------------17 6.1 Test Specification ............................................................................................17 6.2 Test Procedure................................................................................................17 6.3 Measured Data................................................................................................17 6.4 Test Instrumentation Used, Field Strength of Fundamental ...........................21 7. RADIATED EMISSION, 9 KHZ – 30 MHZ -----------------------------------------------------------22 7.1 Test Specification ............................................................................................22 7.2 Test Procedure................................................................................................22 7.3 Measured Data................................................................................................22 7.4 Test Instrumentation Used, Radiated Measurements ....................................23 7.5 Field Strength Calculation ...............................................................................24 8. SPURIOUS RADIATED EMISSION -------------------------------------------------------------------25 8.1 Test Specification ............................................................................................25 8.2 Test Procedure................................................................................................25 8.3 Test Data .........................................................................................................26 8.4 Test Instrumentation Used, Radiated Measurements ....................................29 9. BANDWIDTH ------------------------------------------------------------------------------------------------30 9.1 Test procedure ................................................................................................30 9.2 Results table....................................................................................................32 9.3 Test Equipment Used......................................................................................33 Test Report E93370.00 Home Free Page 3 of 45 FCC ACC M Ver 1.1 05Mayl 2000 10. 11. APPENDIX A - CORRECTION FACTORS -----------------------------------------------------34 10.1 Correction factors for CABLE .....................................................................…

Text truncated - open the document above for the full version.

PB-830 Test Setup Photograph
