QUX-VST-800Home Arrest Tag

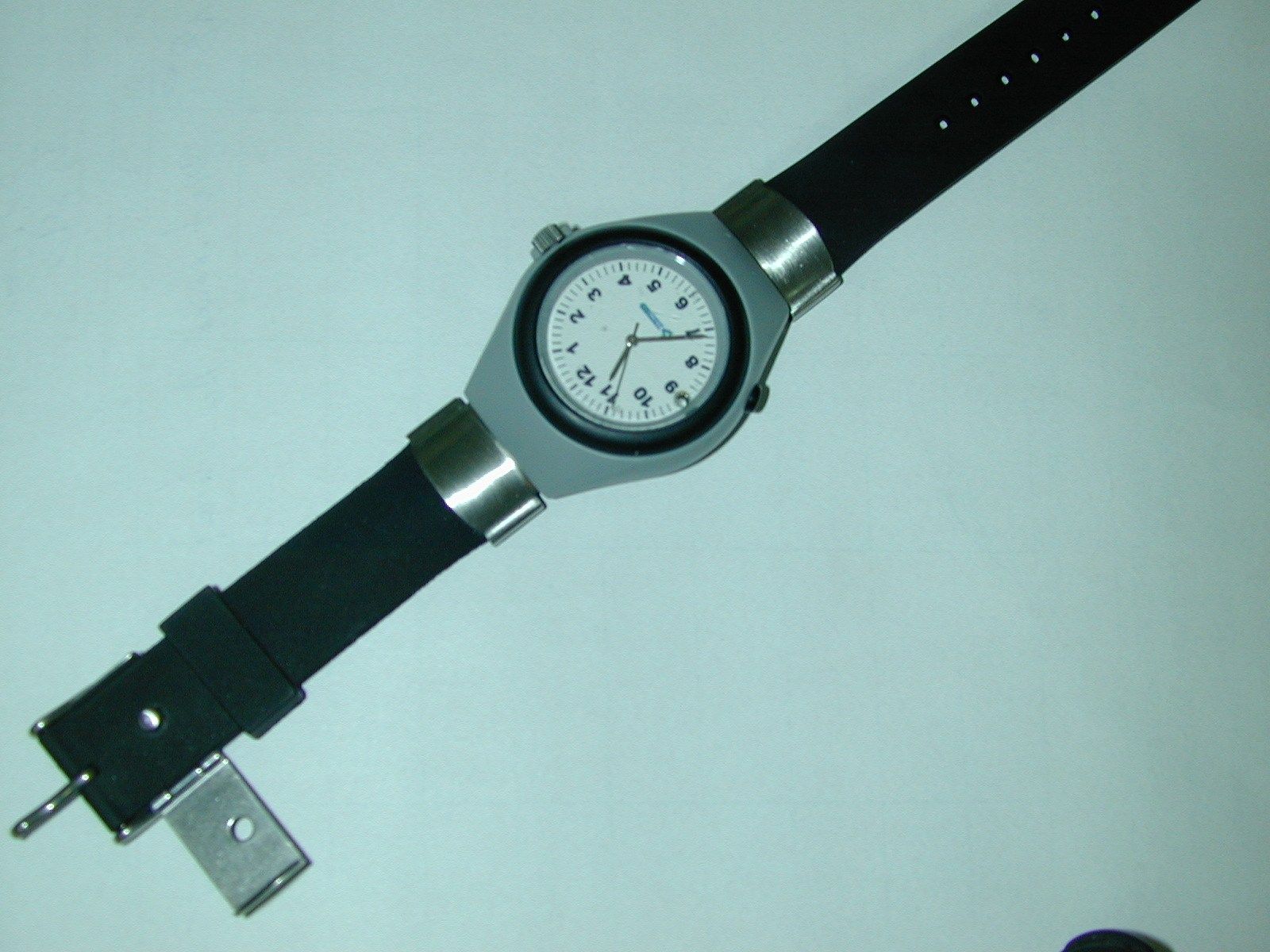

Personal Watcher QUX VST 800 / VST 800-2 USER MANUAL 10 December 2002 HomeFree Systems Ltd VST 800 User Manual 1 Table of Contents 1. Foreword....................................................................................2 2. Installing the Personal Watcher.................................................3 3. Setting Time...............................................................................4 4. Triggering an Alarm..................................................................5 5. General Rules for the Client......................................................6 6. Maintenance Instructions...........................................................7 6.1. Replacing Batteries....................................................................7 6.2. Cleaning Instructions.................................................................9 6.3. Straps Replacement..................................................................10 7. FCC Notices.............................................................................11 HomeFree Systems Ltd VST 800 User Manual 2 1. Foreword The Personal Watcher (VST 800) is a wristwatch, which contains an integral transmitter. The transmitter is transmitting identification signals, which are used to either locate the client’s location within an area covered by a local positioning system, or monitor his/her location and movement status at home. The Personal Watcher enables the user to send a distress alarm signal with a simple press of a button. The Personal Watcher (VST 800) is transmitting on an American FCC tested and approved frequency, whereas the European version (VST 800-2) is transmitting on an European tested and approved frequency. From a user interface and function point of view the two models are identical; therefore this user manual serves both versions. HomeFree Systems Ltd VST 800 User Manual 3 2. Installing the Personal Watcher Turn on the Personal Watcher by pressing the red ON button on the electronic key. Press the electronic key’s RED button down for one second - the red light turns steadily ON for two (2) seconds. If the startup command has been successfully received, the red light on the Electronic Key will flash for two (2) seconds. Note that if the transmitter has failed to receive the startup command the red light will turn off after the initial two (2) seconds ON. If the Electronic Key battery is low the red light will immediately flash for two (2) seconds, once the red button is pressed. (No command is sent to the transmitter). Place the Personal Watcher on its side, on a non-metal surface, for 30 seconds. Wrap the Personal Watcher’s strap around the wrist, as done with any wristwatch. Once the strap is closed, secure it by fastening the metal clip. If required, slip the strap holder to hold the lose edge of the strap. Note: An alarm signal is sent to the central monitoring computer whenever the strap is open, cut, or the Personal Watcher is removed from the wrist without opening or cutting the strap. HomeFree Systems Ltd VST 800 User Manual 4 3. Setting Time To set the Personal Watcher’s time: 1. Pull the knob, positioned at 3 o’clock (use a finger nail to apply an outbound pressure on upper side of the knob) 2. Turn the knob until the watch hands reach the desired position. 3. Push the knob back into its secured position. HomeFree Systems Ltd VST 800 User Manual 4. Triggering an Alarm 1. Press the 8 o’clock pushbutton for 2 seconds. 2. A red light is illuminated inside the watch, as a confirmation that your press has been registered. 3. A distress signal is immediately sent to the central monitoring system. An alert message is displayed to the nurse on the system’s monitor, and in parallel a message is sent to her pager. 5 HomeFree Systems Ltd VST 800 User Manual 6 • • • 5. General Rules for the Client The Personal Watcher is a waterproof wristwatch and there is no need to remove it when taking a bath or a shower. You can even wear it when swimming and diving in a swimming pool or taking a sauna bath. Turn the Personal Watcher’s transmission off when admitting to a hospital, either for a visit or for hospitalization, since the transmitted signal may affect other medical instrumentation. Turn the Personal Watcher’s transmission off when boarding a flight, since the transmitted signal may affect the aircraft’s avionics thus impairing flight safety. Turning the Personal Watcher’s transmission off should be done by an authorized personnel, as follows: Press the electronic key’s BLACK button down for one second, the red light turns steadily ON for two (2) seconds. If the shut down command has been successfully received, the red light on the Electronic Key will flash for two (2) seconds. Note that if the transmitter has failed to receive the shut down command the red light will turn off after the initial two (2) seconds ON. No periodic transmission If the Electronic Key battery is low the red light will immediately flash for two (2) seconds, once the black button is pressed. (No command is sent to the transmitter). HomeFree Systems Ltd VST 800 User Manual 6. Maintenance Instructions 6.1. Replacing Batteries Transmitter Battery Replacement Lay the Personal Watcher on a table, with its back cover facing you. • • • • • Gently unscrew the back cover’s four screws and remove the cover. Gently remove the battery holder. Gently pull out the used battery and insert the new one. Use only CR2025 Lithium batteries (3V, 170mAH), made by Mitsubishi, Energizer, Renata, or any other UL recognized CR2025 batteries. CAUTION Risk of explosion if battery is replaced by an incorrect type! Dispose of used batteries according to the instructions! • Gently place the battery holder back to its original position. 7 HomeFree Systems Ltd VST 800 User Manual 8 • • • • • • • • • Place the back cover at its original position and gently screw the four screws. Test the Personal Watch for transmission. Watch Battery Replacement Lay the Personal Watcher o…

Text truncated - open the document above for the full version.

The VST-800 - block diagram Microcontroller Rf Transmitter Asic Lithium Battery Resonator 2Mhz Crystal 14.7456 Mhz

TCB Confidentiality Form 09/02/2003 EMCCert DR. RAŠEK Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9331 Fax: +49-9194-7964-84 E-mail: [email protected] URL: http://www.emcc.de Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Elmo Tech would like the following document regarding this submission for FCC ID: QUX-VST-800 and LSQ- VST-800 to be kept confidential. Schematics: 1 Page. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want this document to be accessible to the general public. Sincerely, Gil Gemer VP R&D

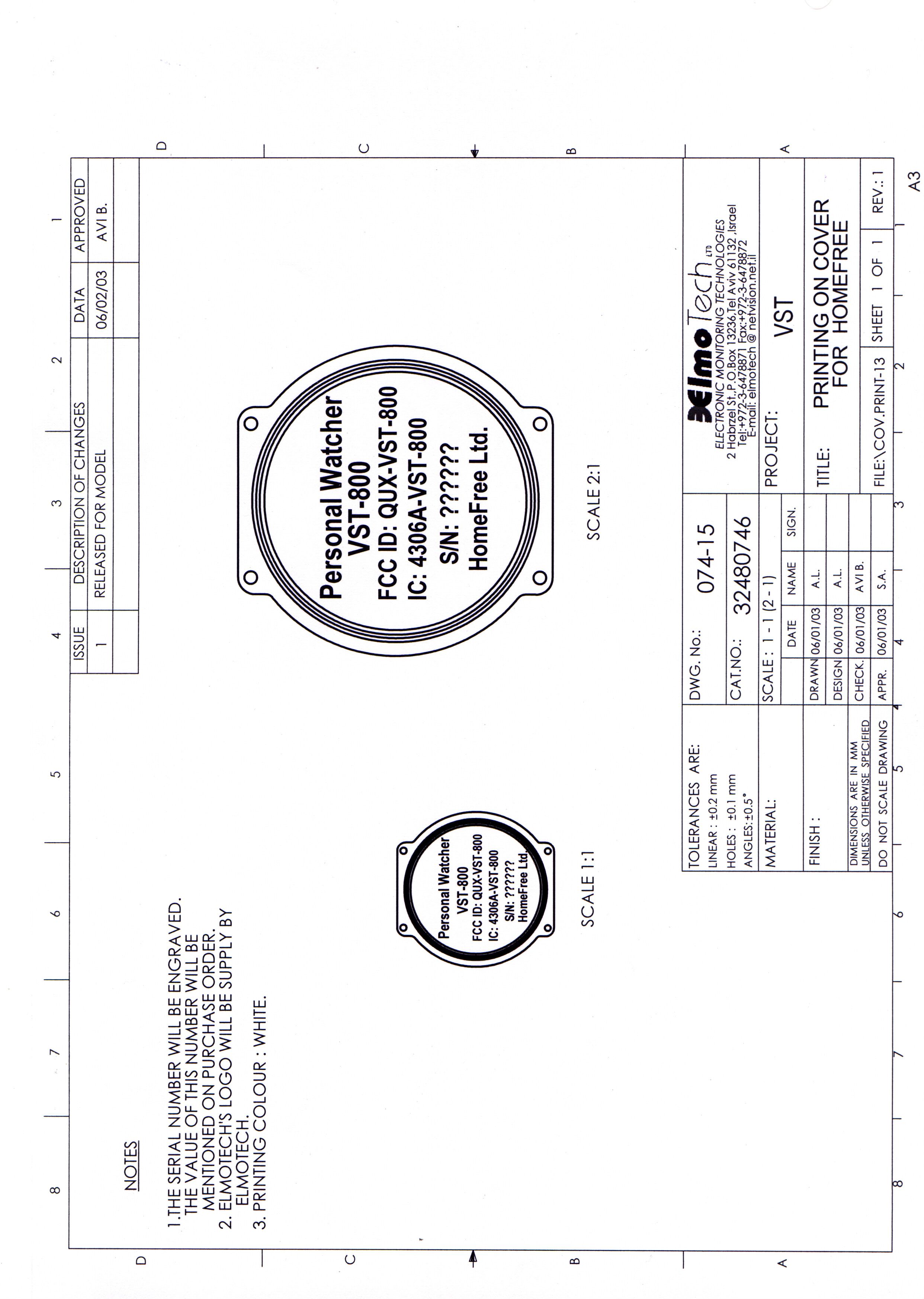

FCC ID: QUX-VST-800 Date: February 2003 LABEL The label shown below will be glued on the bottom side of the Home Arrest Tag. The label dimensions are 19.6 x 20.3 (mm). The serial number will be mentioned in purchase order. Material description: 1) Face film is premium quality, 50 micron cast vinyl film, laminated with plastic foil. 2) Adhesive is permanent adhesive, acrylic based. 3) Backing paper is one side coated white kraft paper, 140 g/m. The FCC part 15, §15.105 statement is placed in User Manual, pages 11, 12. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Page 1 of 1

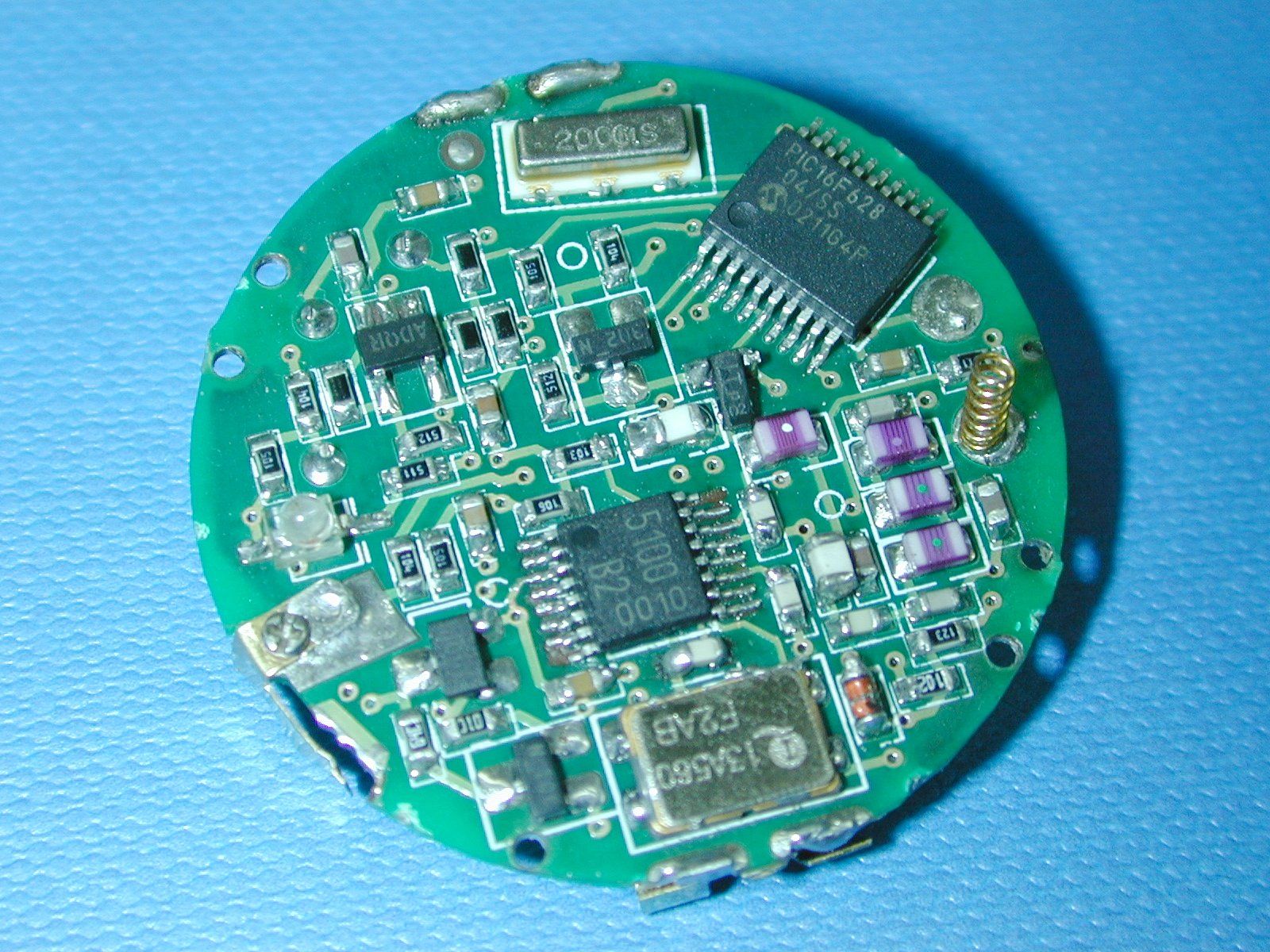

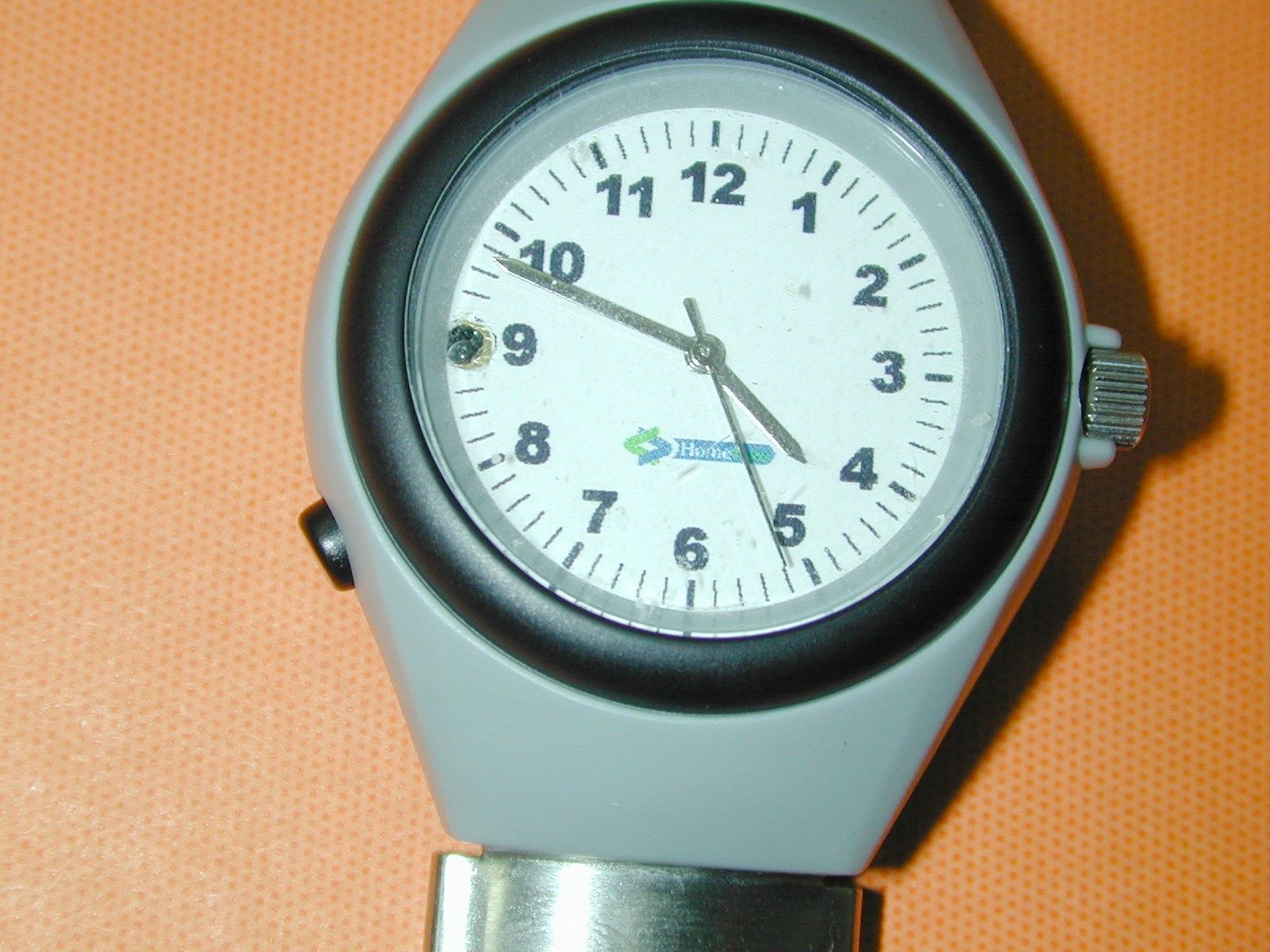

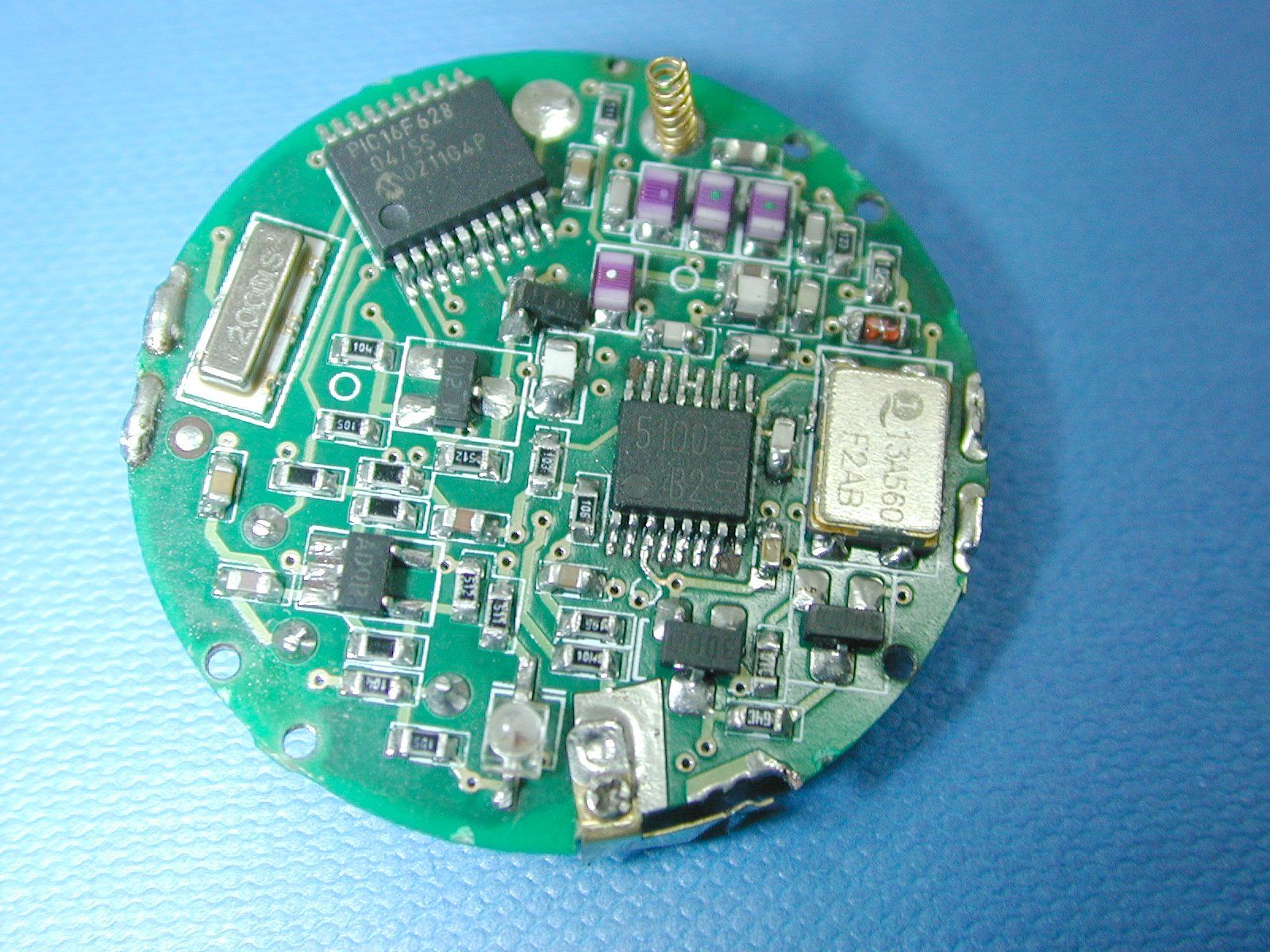

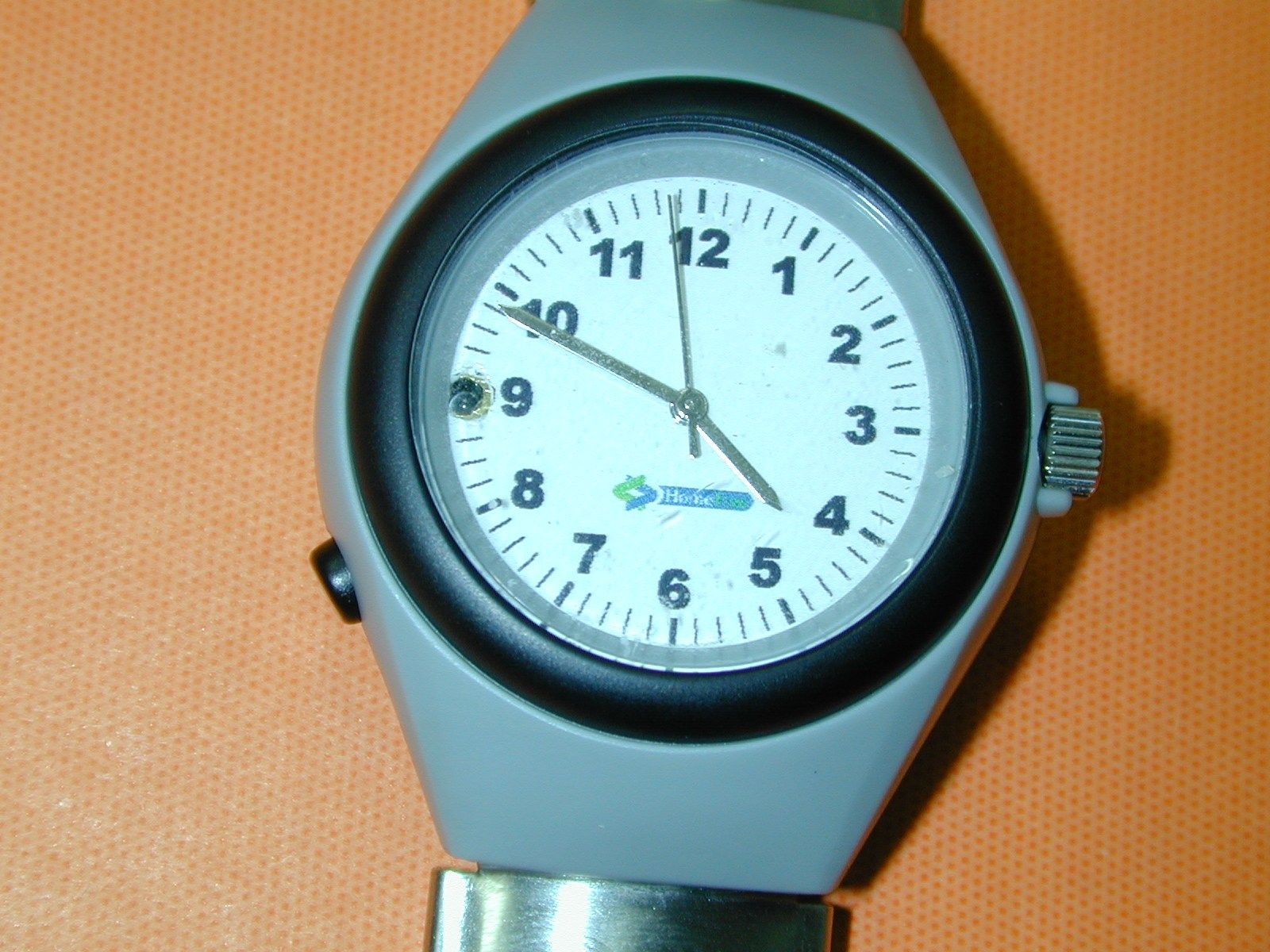

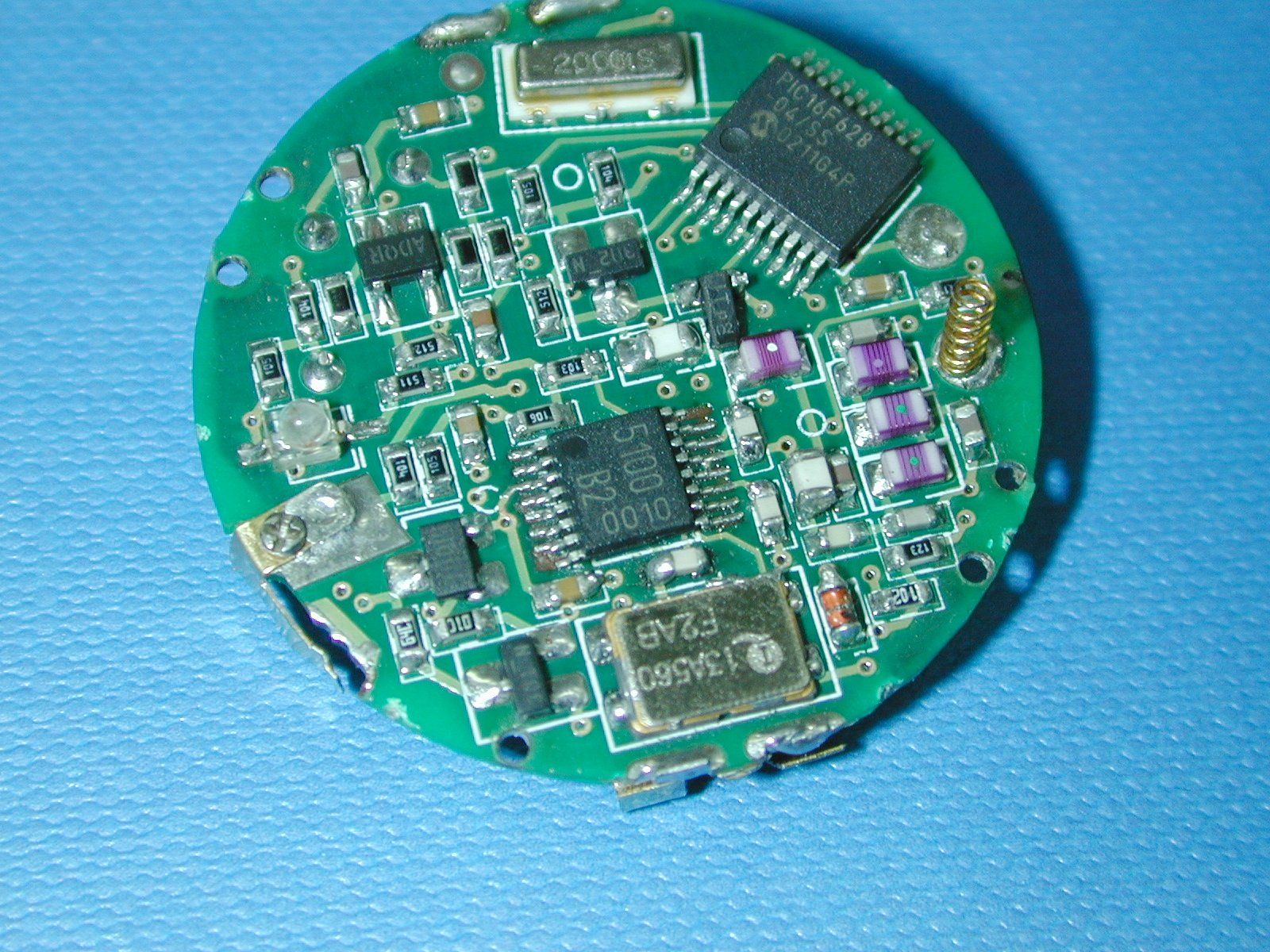

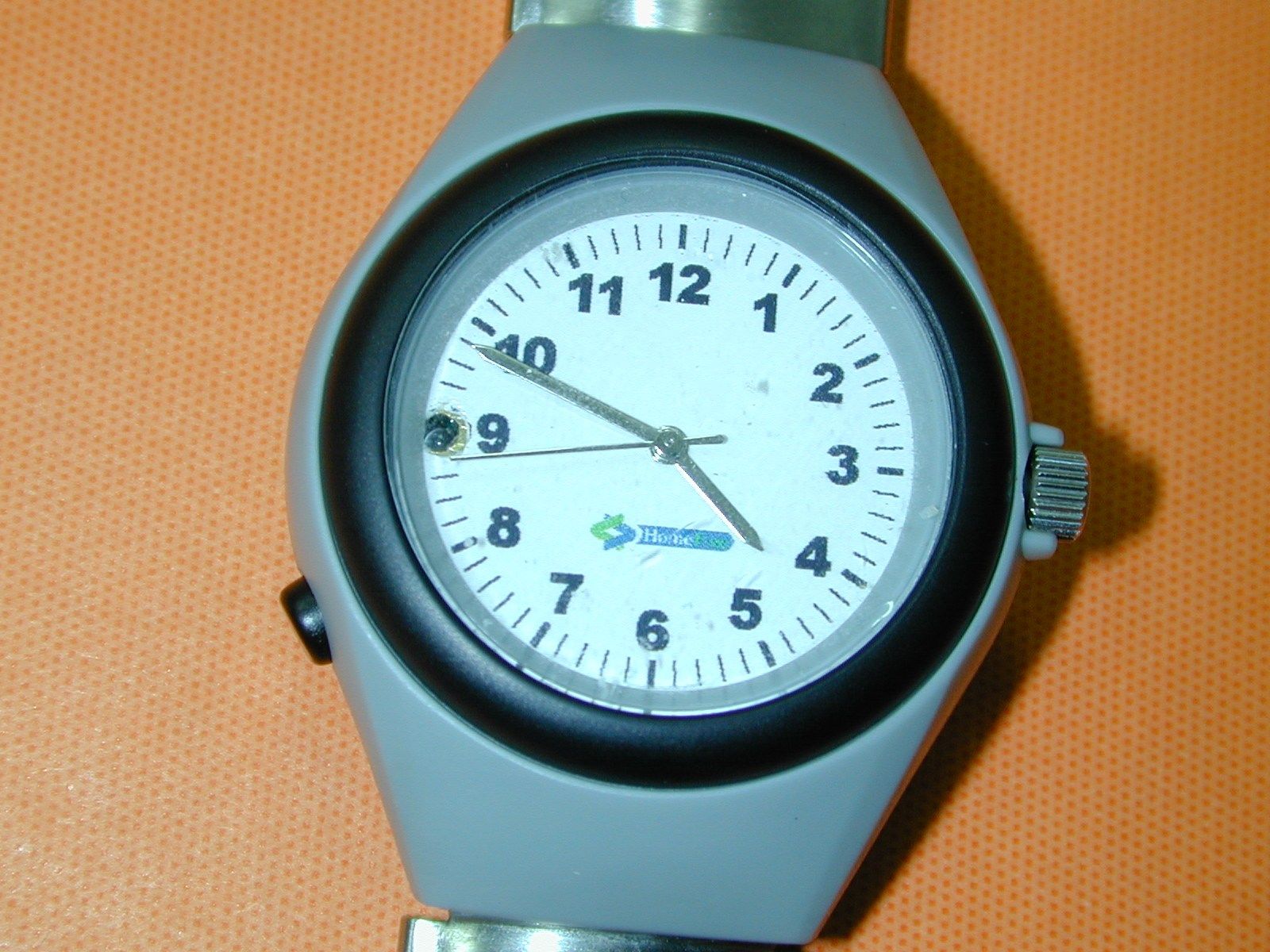

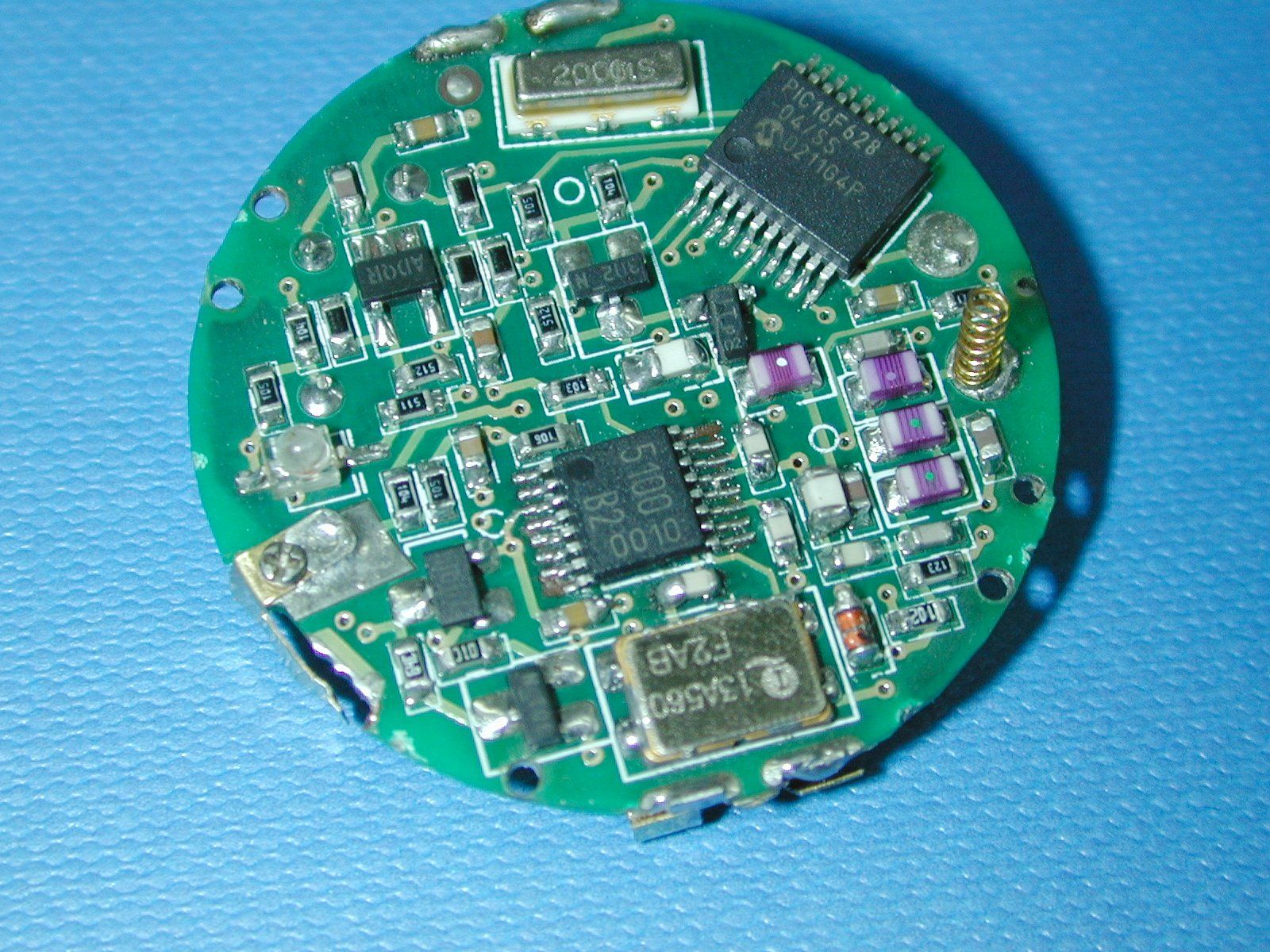

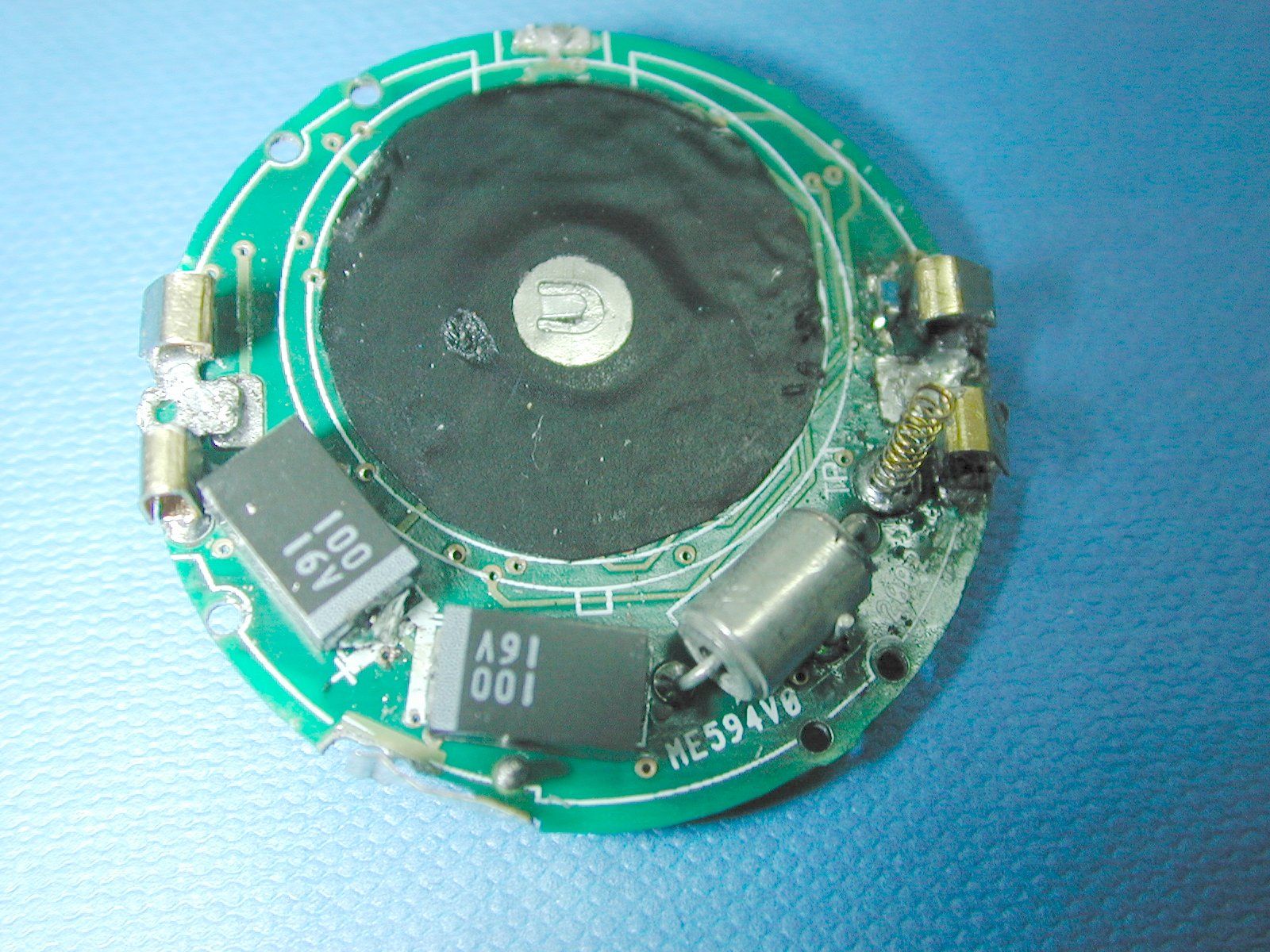

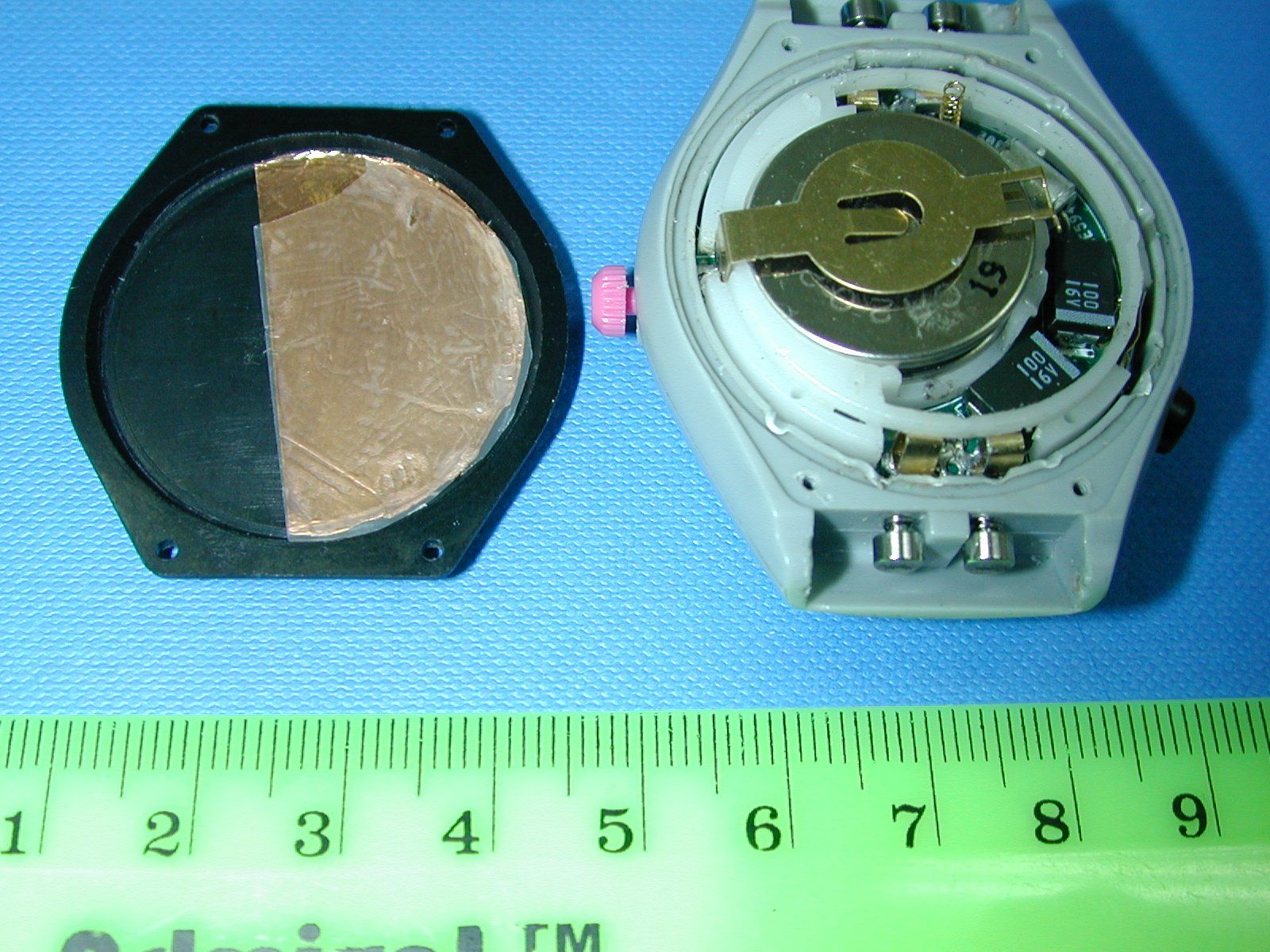

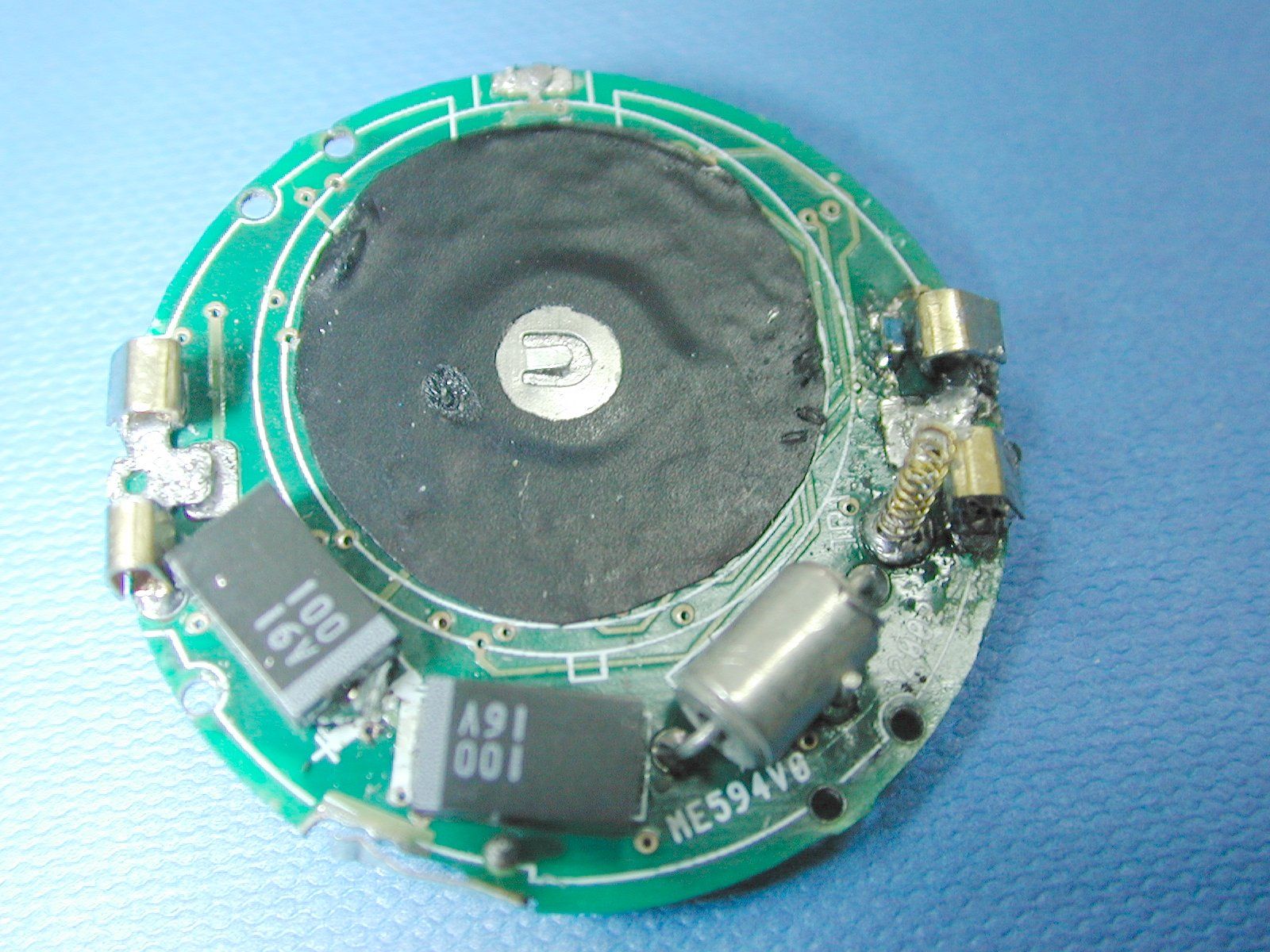

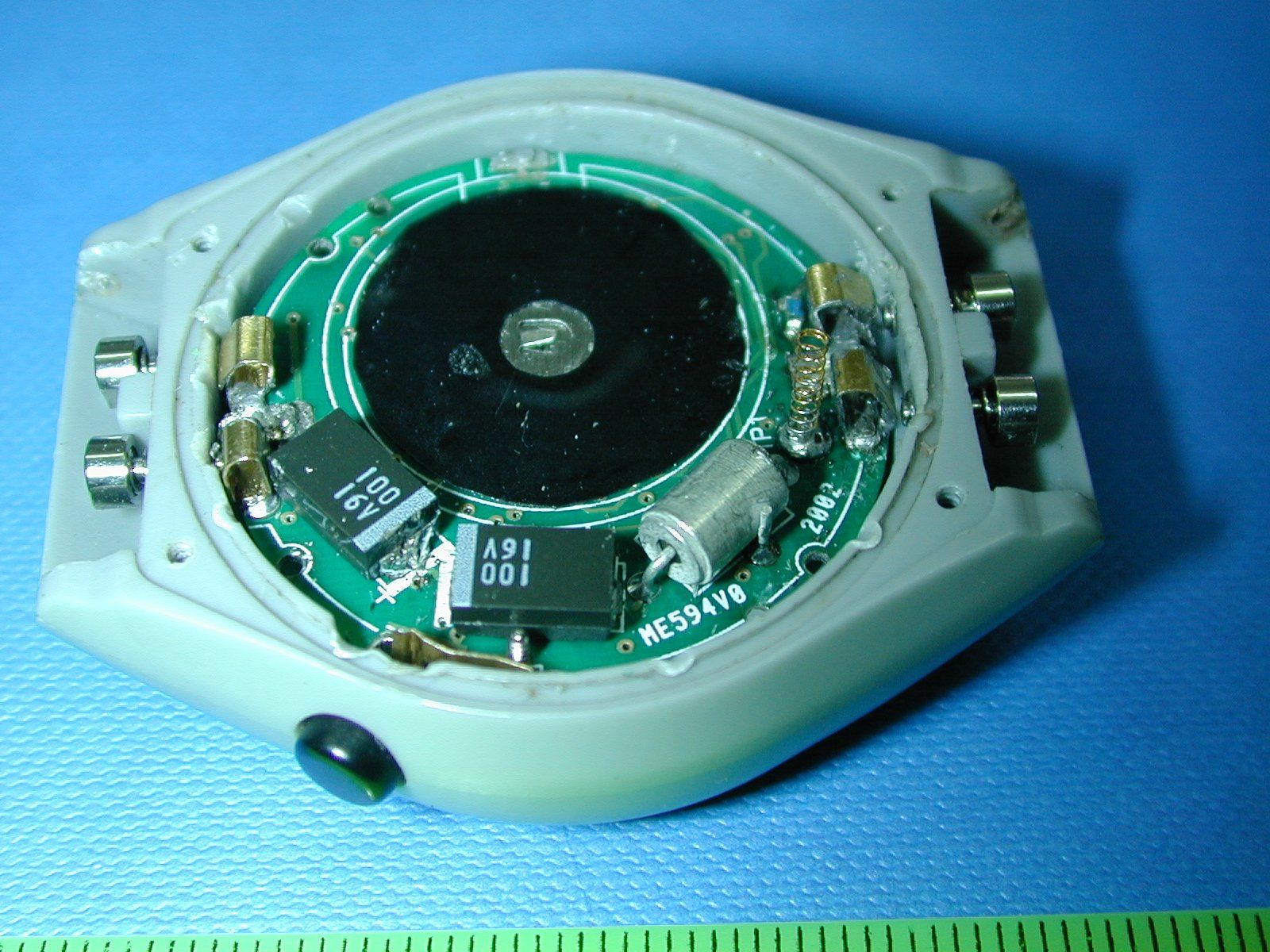

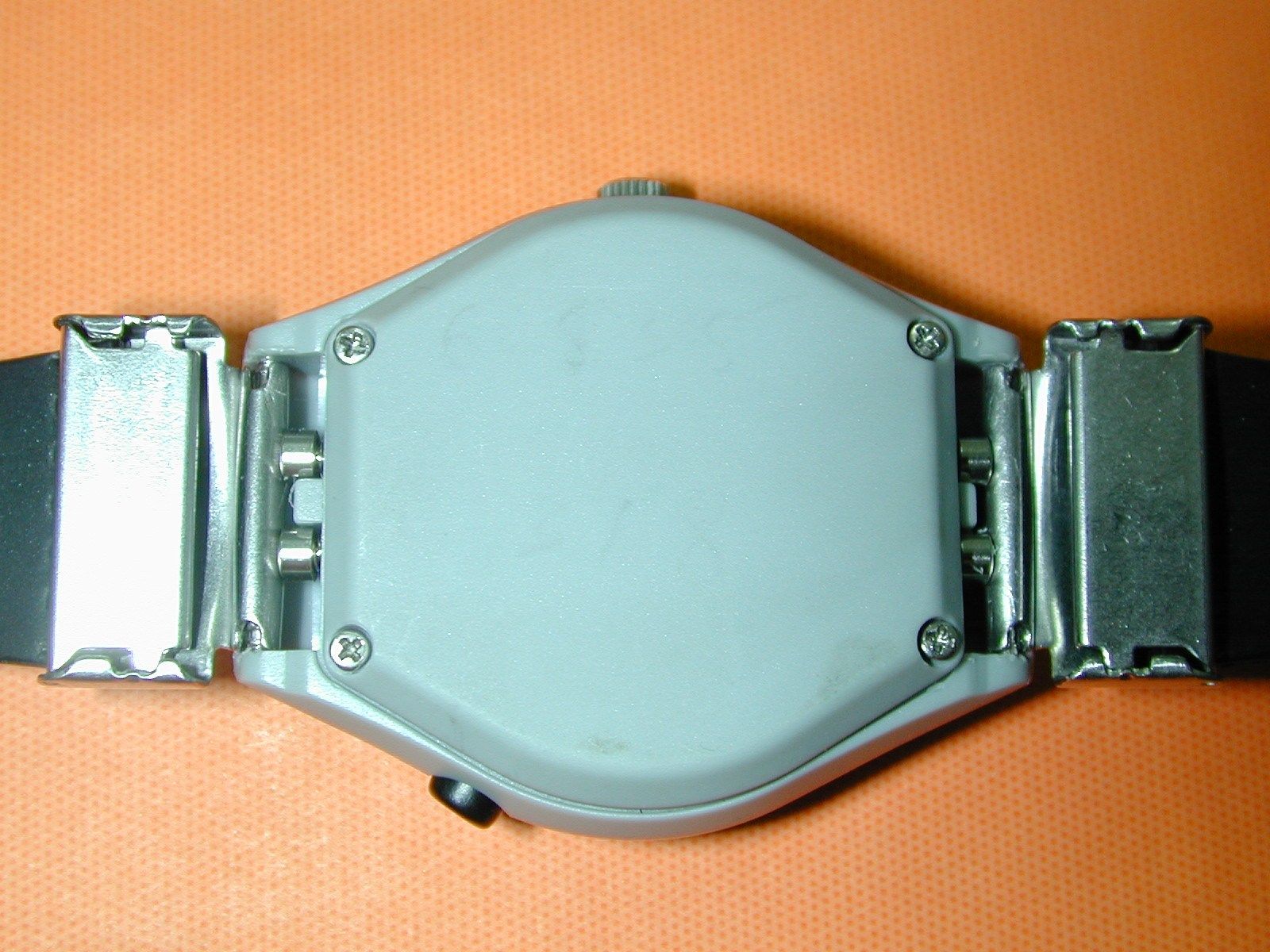

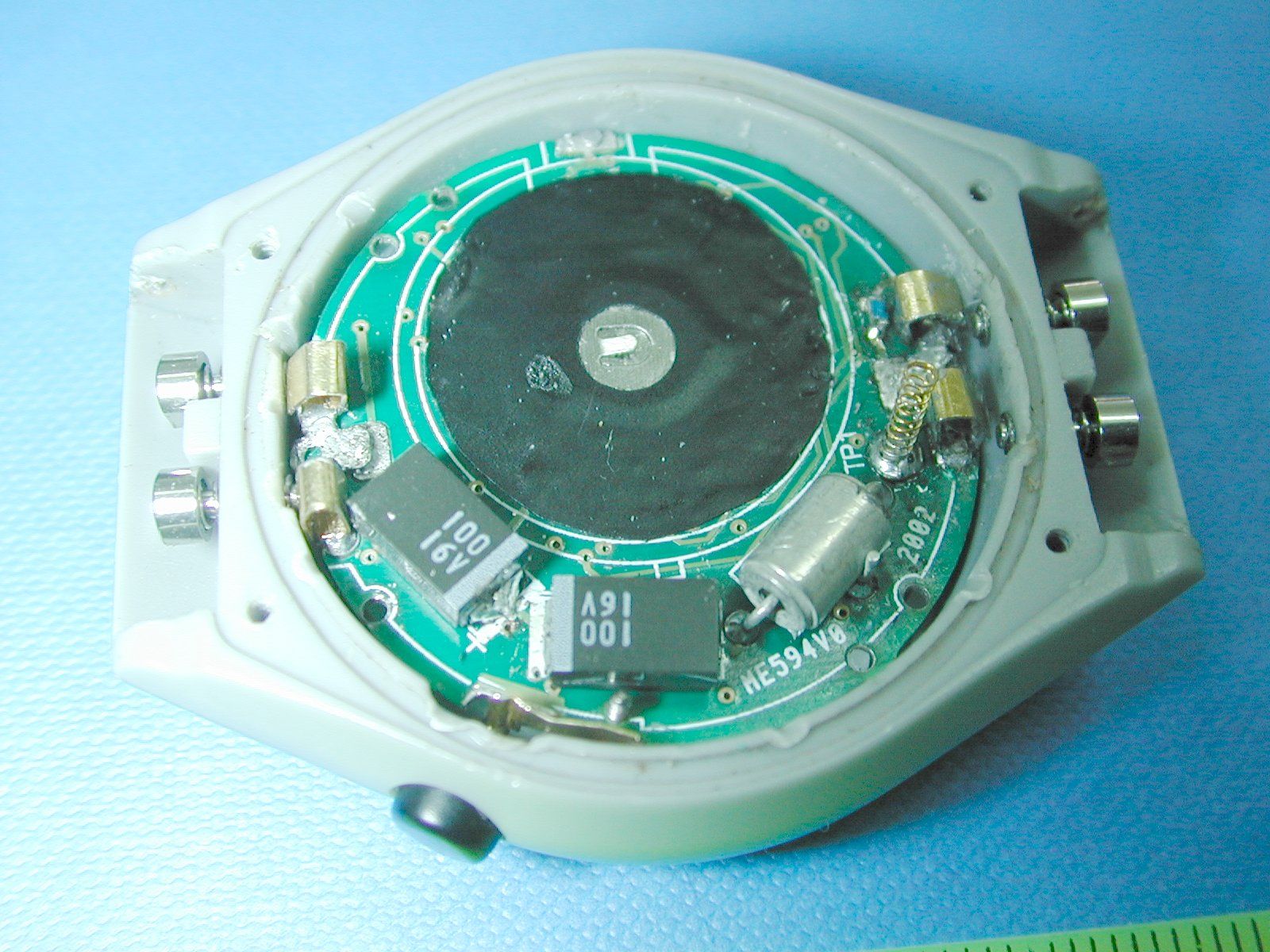

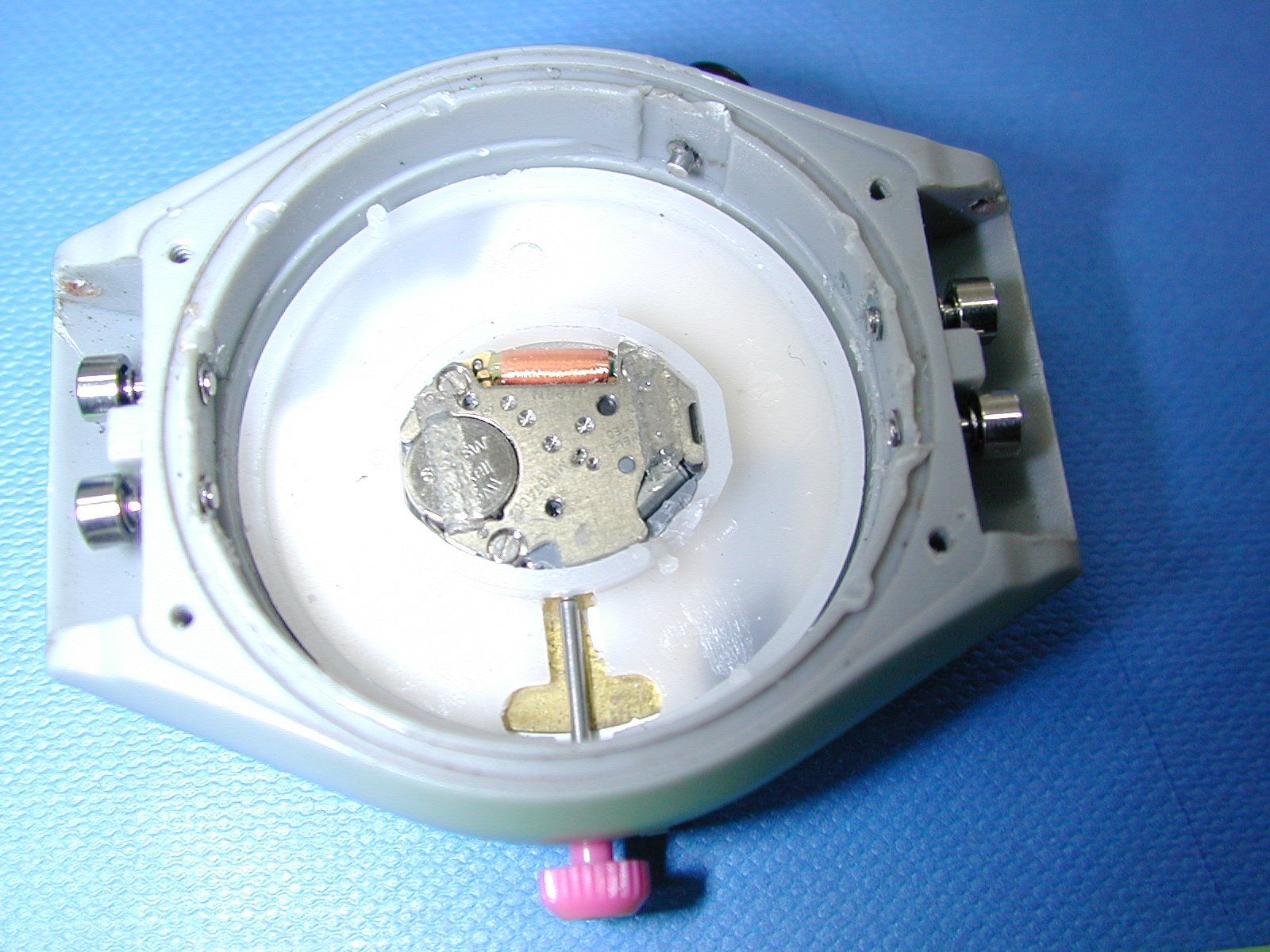

VST 800 Home Arrest Tag Operational Description The VST 800 patient Tag is a wristwatch-like unit worn on the wrist of an Alzheimer patient. The Tag is a battery-operated unit. The tag comprises one Printed Circuit Board (PCB) which includes a RF transmitter module with an integral antenna, and a microcontroller, which controls its operation. The VST 800 has one RF channel. It is 318.0 MHz carrier with FSK modulated. The Tag is turned on and off by a nurse, using an electronic key which is temporarily attached to the tag strap. While turned-on the Tag transmits a 5mSec identification & status signal and then it stops transmission. As a life safety equipment the Tag transmits the next signal about 10 seconds after the last signal transmission – any interruption in the reception of the transmitted signal (which might indicate a lost Alzheimer patient) may put the patient life at risk – the central monitoring system sends an immediate alert to the nurse in-charge, which should take immediate actions to find the lost patient. If the patient is in distress, he may push a panic button, which is embedded in the wristwatch tag, thus triggering a transmission of a panic signal. The panic signal is comprised of three pairs of 5mSec transmissions (each pair contains one regular power transmission and one weak signal transmission), with 50-200mSec random interval between these six transmissions. Therefore, the panic alert transmission stops after 250- 1000mSec (5 intervals between the 6 transmissions X 50 to 200 mSec).

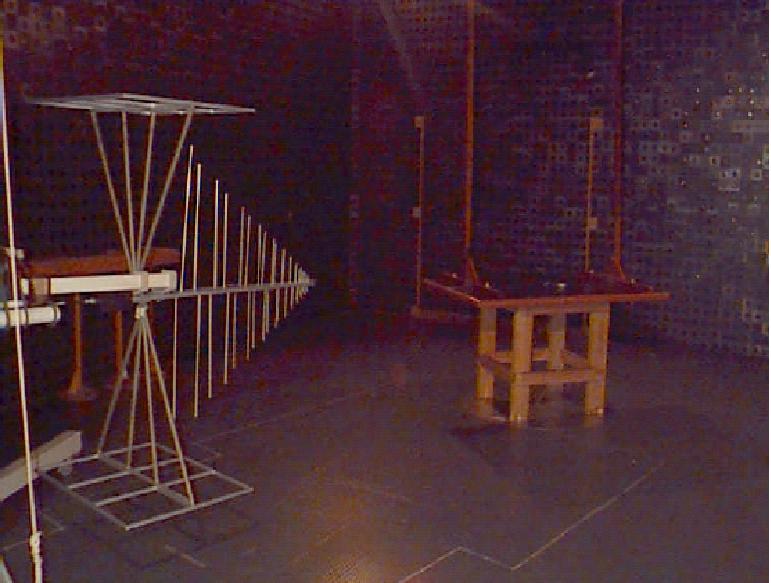

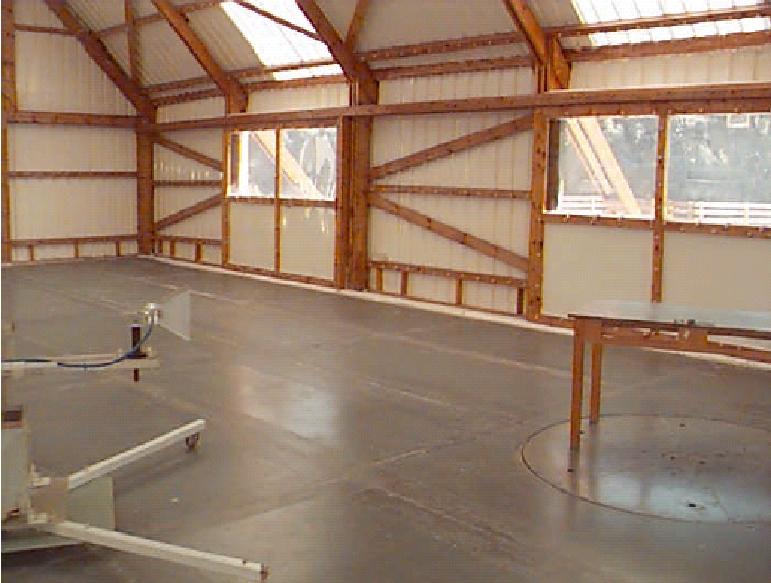

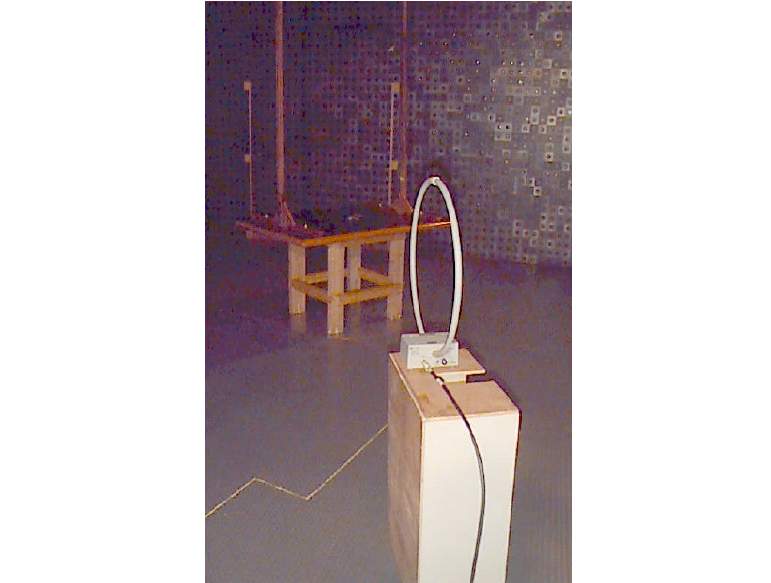

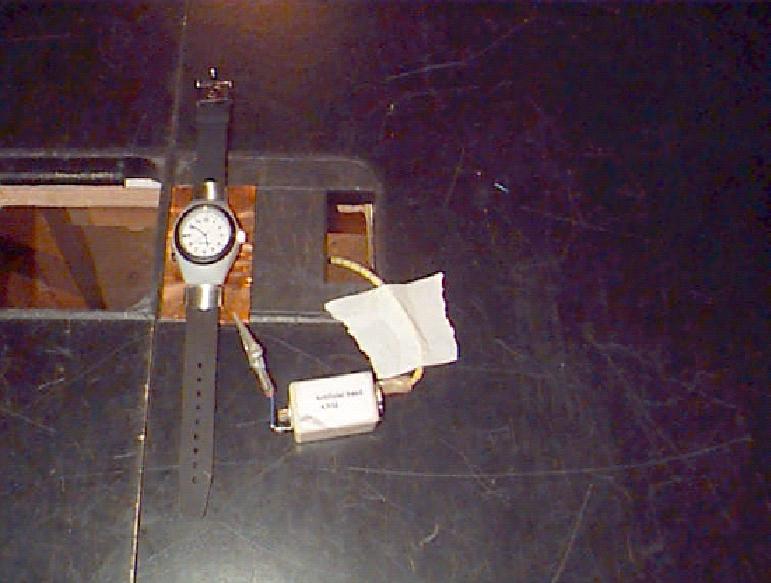

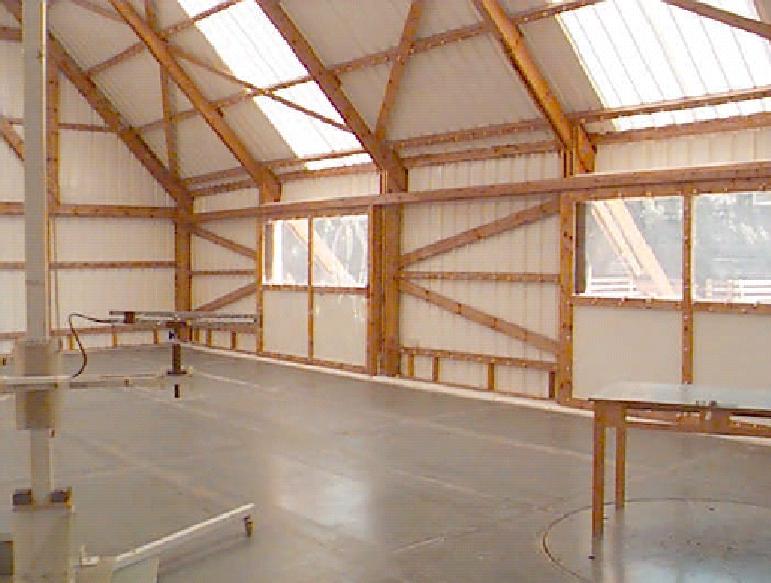

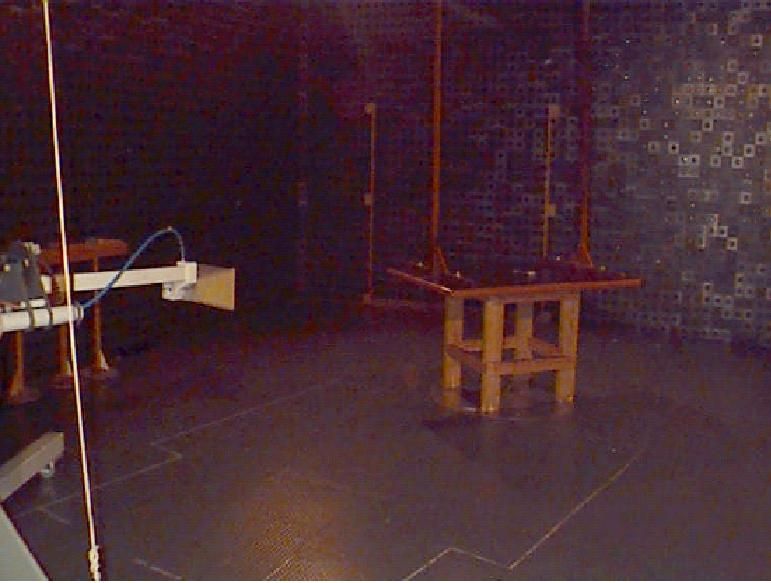

This report is in conformity with ISO/IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report must not be reproduced in any form except in full with the approval of Hermon Laboratories Ltd. Page 1 of 42 Document ID: HOMRAD_FCC.15299.doc Date of Issue: December 2002 HERMON LABORATORIES Electrical Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] RADIO TEST REPORT ACCORDING TO 47 CFR Part 15 SUBPART C §15.231, §15.205, §15.209 and SUBPART B for HomeFree Systems Ltd. EQUIPMENT UNDER TEST: Personal watcher Model: VST 800 Page 2 of 42 Document ID: HOMRAD_FCC.15299.doc Date of Issue: December 2002 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] Contents 1 Project information...........................................................................................................................................................................3 2 Summary of tests..............................................................................................................................................................................4 3 EUT specification..............................................................................................................................................................................5 3.1 EUT DESCRIPTION.........................................................................................................................................................................5 3.2 EUT TEST CONFIGURATION...........................................................................................................................................................5 3.3 TRANSMITTER DESCRIPTION...........................................................................................................................................................6 4 Test results..........................................................................................................................................................................................7 4.1 BANDWIDTH OF EMISSION ACCORDING TO § 15.231 (C)...............................................................................................................7 4.2 FIELD STRENGTH OF FUNDAMENTAL, § 15.231.............................................................................................................................8 4.3 FIELD STRENGTH OF SPURIOUS RADIATION, § 15.231, § 15.205................................................................................................9 4.4 UNINTENTIONAL RADIATED EMISSIONS TEST ACCORDING TO §15.109........................................................................................11 Appendix A Plots.................................................................................................................................................................................12 Appendix B Test setup photographs..............................................................................................................................................21 Appendix C Test equipment used for tests..................................................................................................................................27 Appendix E Test equipment correction factors...........................................................................................................................28 Appendix E General information.....................................................................................................................................................41 TEST FACILITY DESCRIPTION......................................................................................................................................................................41 ABBREVIATIONS AND ACRONYMS...............................................................................................................................................................41 SPECIFICATION REFERENCES....................................................................................................................................................................41 FCC EQUIPMENT CODES AND DESCRIPTIONS...........................................................................................................................................42 Page 3 of 42 Document ID: HOMRAD_FCC.15299.doc Date of Issue: December 2002 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] 1 Project information Description of equipment under test Test item Personal watcher Manufacturer ElmoTech Ltd. Type (Model) VST 800 Transmitter operating frequency 318 MHz Equipment FCC code 1 DSC Applicant information Applicant’s responsible person Mr. Alex Rachman, Project Manager Company HomeFree Systems Ltd. P.O. Box 13236 Address 2, Habarzel street, 5 th floor City Tel Aviv Postal code 61132 Country Israel Telephone number +972 36478871 Telefax number +972 36478872 Test performance Project number: 15299 Location Hermon Laboratories Receipt date October 7, 2002 Test started October 7, 2002 Test completed October 27, 2002 Purpose of test Apparatus compliance verification in accordance with emission requirements Test specifications 47CFR Part 15, subpart C, §15.231, §15.205, §15.209, and subpart B §15.109 1 FCC Equipment codes – see Appendix D Page 4 of 42 Document ID: HOMRAD_FCC.15299.doc Date of Issue: December 2002 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] 2 Summary of tests Parameter Subclause C NC NT NA Tested by Date tested …

Text truncated - open the document above for the full version.
