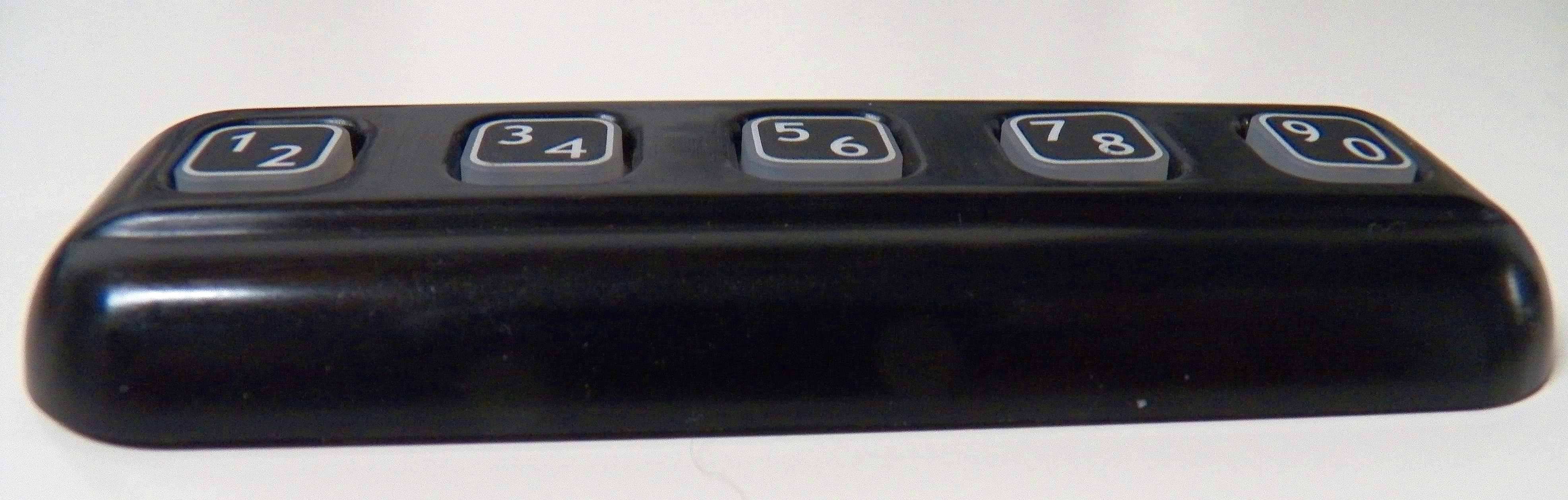

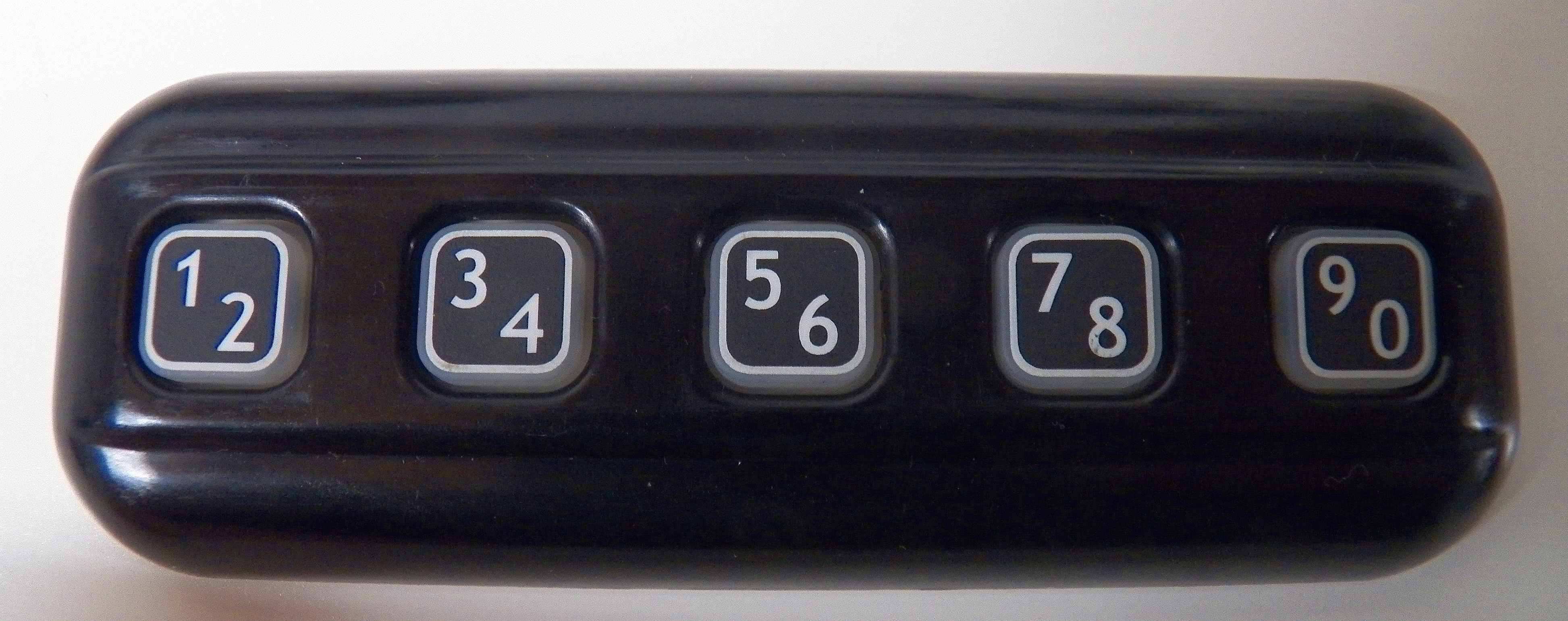

QV4-LRL053RF KEYPAD

Programming a Personal Entry Code (if desired) NOTE: If you lose your code card, please contact your Ford/Lincoln dealership for factory code retrieval. NOTE: Do not set a personal code that uses five of the same number. Do not set a personal code that uses five numbers in sequential order. There is a maximum of two access codes; the factory set code and one personal code. If you reprogram the personal code the prior personal code will be erased. Enter the factory set code, as indicated on your Code Card. Within five seconds of entering the factory code, press and hold the 1/2 button for 1 second, the 9/0 button will flash twice to confirm the keypad is in programming mode. Within five seconds, enter your desired personal 5-digit code. Each digit must be entered within five seconds of the previous digit. The vehicle doors will unlock-lock-unlock to confirm that your personal code has been programmed to the keypad and the 9/0 button will flash twice to confirm that the keypad has exited programming mode. To Remove a Personal Code, (if desired) Enter the factory code, then within five seconds press and hold the 1/2 buttons, for 5 seconds. The vehicle will unlock, lock and then unlock to confirm that your personal code has been removed. The 9/0 key will flash four times (2 quick then 2 slow) to confirm that your personal code has been removed. Release the 1/2 button. Owner's Instructions Using the Keypad NOTE: Refer to the "Locks and Security" section of your vehicle Owner's Guide for operation of remote transmitters during RUN/START. Remote transmitter operation in RUN/START key position is model dependent. To unlock the driver’s door, enter your personal 5-digit code or the factory set code. Each digit must be pressed within five seconds of each other. To unlock all doors, press ¾ button within five seconds of entering a valid keypad code. To lock all doors, press the 78 and the 9/0 keys simultaneously. You do not have to enter a 5-digit code. To unlock the trunk or hatch, if equipped, press the 5/6 button within five seconds of entering a valid keypad code. (Integrated Keyfob Transmitter vehicles may require the 5/6 button to be pressed twice). Anti-Scan Mode If the wrong code has been entered 7 times (35 consecutive button presses) the keypad is disabled for one minute and the keypad lights will flash during this time. Low Power Warning If you unlock the door with the keypad and the locks cycle one additional time, it is time to replace the unit. The battery is not replaceable. Place this card with the vehicles owner's manual. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Programmation d'un code d'accès personnel (si désiré) NOTA : Si vous perdez votre carte de code, veuillez contacter votre concessionnaire Ford / Lincoln pour la récupération du code d'usine. NOTA : Ne choisissez pas un code personnel qui utilise cinq fois le même chiffre. Ne choisissez pas un code personnel qui utilise cinq chiffres en ordre séquentiel. Il existe un maximum de deux codes d'accès : le code d’usine et le code personnel. Si vous reprogrammez le code personnel, le code personnel précédent sera effacé. Entrez le code d'usine, comme il est indiqué sur votre carte de code. Dans les cinq secondes qui suivent, appuyez sur la touche 1/2 et maintenez-la enfoncée pendant 1 seconde, et la touche 9/0 clignotera alors deux fois pour confirmer que le clavier est en mode de programmation. Dans les cinq secondes qui suivent, entrez votre code personnel à 5 chiffres choisi. Chaque chiffre doit être entré dans les cinq secondes suivant l’entrée du chiffre précédent. Les portes du véhicule effectueront un cycle de déverrouillage-verrouillage-déverrouillage pour confirmer que votre code personnel a été programmé, et la touche 9/0 clignotera deux fois pour confirmer que le clavier a quitté le mode de programmation. Suppression d'un code personnel (si désiré) Entrez le code d'usine, puis dans les cinq secondes qui suivent, appuyez et maintenez les touches ½ pendant 5 secondes. Le véhicule effectuera un cycle de déverrouillage, verrouillage et déverrouillage pour confirmer que votre code personnel a été supprimé. La touche 9/0 clignotera quatre fois (2 clignotements rapides, puis 2 clignotements lents) pour confirmer que votre code personnel a été supprimé. Relâchez la touche 1/2. Instructions d'utilisation Utilisation du clavier NOTA : Reportez-vous à la rubrique appropriée du Guide du propriétaire du véhicule pour le fonctionnement des télécommandes dans les positions CONTACT / DÉMARRAGE du commutateur d’allumage. Le fonctionnement de la télécommande avec le commutateur en position CONTACT / DÉMARRAGE dépend du modèle du véhicule. Pour déverrouiller la porte du conducteur, entrez votre code personnel à 5 chiffres ou le code d'usine. Chaque chiffre doit être entré dans les cinq secondes du chiffre précédent. Pour déverrouiller toutes les portes, appuyez sur la touche ¾ dans les cinq secondes qui suivent l’entrée du chiffre de code de clavier valide précédent. Pour verrouiller toutes les portes, appuyez sur les touches 7/8 et 9/0 en même temps. Vous n'avez pas besoin d'entrer un code à 5 chiffres. Pour déverrouiller le coffre ou le hayon, selon l’équipement, appuyez sur la touche 5/6 dans les cinq seconde…

Text truncated - open the document above for the full version.

1577 Star-Batt Dr. Rochester Hills, MI USA 48309 Phone: 1.248.844.9373 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of QV4-LRL053. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: LRL053Schem.pdf LRL053OpDes.pdf LRL053BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David J. Pearson

FCC PART 15.231 AND IC RSS-210 (i8) TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant ENTERPRISE ELECTRONICS, L.L.C. Address 1577 STAR-BATT DRIVE ROCHESTER HILLS MI 48309 USA FCC ID QV4-LRL053 IC 4545A-LRL053 Product Description RF KEYPAD Date Sample Received 7/9/2013 Date Tested 7/11/2013 Tested By NAM NGUYEN Approved By NAM NGUYEN Timco Report No. 1193AUT13TestReport.docx Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Testing Certificate # 0955-01 APPLICANT: ENTERPRISE ELECTRONICS, L.L.C. FCC ID: QV4-LRL053 IC: 4545A-LRL053 REPORT: E\ENTERPRISE_QV4\1193AUT13\1193AUT13TestReport.docx Page 2 of 17 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS ...................................................................................................... 3 REPORT SUMMARY ........................................................................................................ 4 TEST ENVIRONMENT ..................................................................................................... 4 TEST SETUP ................................................................................................................... 4 DUT SPECIFICATION ...................................................................................................... 5 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) ...................... 6 TEST EQUIPMENT LIST .................................................................................................. 7 TEST PROCEDURES ....................................................................................................... 8 RADIATION INTERFERENCE .......................................................................................... 9 CALCULATION OF DUTY CYCLE .................................................................................. 11 OCCUPIED BANDWIDTH .............................................................................................. 15 POWER LINE CONDUCTED INTERFERENCE ............................................................... 17 APPLICANT: ENTERPRISE ELECTRONICS, L.L.C. FCC ID: QV4-LRL053 IC: 4545A-LRL053 REPORT: E\ENTERPRISE_QV4\1193AUT13\1193AUT13TestReport.docx Page 3 of 17 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Nam Nguyen Project Manager/Testing Technician Date: July 12, 2013 APPLICANT: ENTERPRISE ELECTRONICS, L.L.C. FCC ID: QV4-LRL053 IC: 4545A-LRL053 REPORT: E\ENTERPRISE_QV4\1193AUT13\1193AUT13TestReport.docx Page 4 of 17 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.231, Pt 15.209, Pt 15.207, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: ENTERPRISE ELECTRONICS, L.L.C. FCC ID: QV4-LRL053 IC: 4545A-LRL053 REPORT: E\ENTERPRISE_QV4\1193AUT13\1193AUT13TestReport.docx Page 5 of 17 mdea 09.20.2007 DUT SPECIFICATION Applicant ENTERPRISE ELECTRONICS LLC Description RF KEYPAD FCC ID QV4-LRL053 IC 4545A-LRL053 Model Number LRL053 Frequency Range 314.95 MHz (EARWIG) 315.00 MHz (SHARK) DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: ENTERPRISE ELECTRONICS, L.L.C. FCC ID: QV4-LRL053 IC: 4545A-LRL053 REPORT: E\ENTERPRISE_QV4\1193AUT13\1193AUT13TestReport.docx Page 6 of 17 mdea 09.20.2007 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) Item Description Yes No 1 Does this device transmit a signal that is only used to control another device? Yes 2 Does this device send data with this control signal? No 3 Does this device send data? Data is, things like: temperature, wind direction, fluid amount, rate of flow, etc. No 4 Does this device transmit continuously or automatically? No 5 If manually operated does this device stop transmitting within 5 seconds of releasing the button? Yes 6 If automatically operated does it deactivate 5 seconds after activation? NA 7 Does it transmit at regular predetermined intervals? No 8 Does it poll or send supervisory information? No If yes does it do a system integrity check? How often? 9 Is this a fire, security or safety of life device? No If YES does the device stop transmitting after the alarm condition is satisfied? 10 Duty cycle: Maximum on-time? 50% If YES, on-time in 100 ms? If Other, please specify here 250μs On time in 500μs 11 Modulation technique: Please specify the modulation of th…
