QW6MR-L900MP3 Player

A A B B C C D D 11 22 33 44 TitleSize No. Rev. File Date Time of Module Circuit : C:\CSI4\JOB\MR-L900\MR-L900_BLOCK_DIAGRAM.SCHA4 .docno. .rev. C:\...\MR-L900\MR-L900_BLOCK_DIAGRAM.sch 2004/04/09 11:39 1 1 note1note2note3note4note5 FLASH_MEMORY CONTROLCONTROL SRAM AD_KEY_IN POWER_ON VDD LINE_IN-DET. HANDPHONE_DET. SD-CARD_CONTROL LCD_CONTROL X-TAL 32.768KHz 2.7VDD DDC TR 1.5VREG. CODEC HP-JACK H/M JACK LINE_IN JACK HP_OUT C-MIC_IN LINE_IN FM-ANT 1.9VREG. A/D_CONTROLD/A_CONTROL ANTVDD TUNER_CONTROL FM_POWER_CON SD_CARD VDD HPVDD SRAM Encoder/Decoder with MCU Single Chip Digital Audio TUNER_PACK D+,D- C-MIC DCVDD DBVDD FLASH_MEMORY 3.3VREG. USB_INTERFACE D+,D- USB_JACK VBUS GRAPHIC_LCD DC_1.5V MR-L900 BLOCK DIAGRAM

DIGITAL AUDIO PLAYER MODEL NO : MR-L900 FCC ID : QW6MR-L900

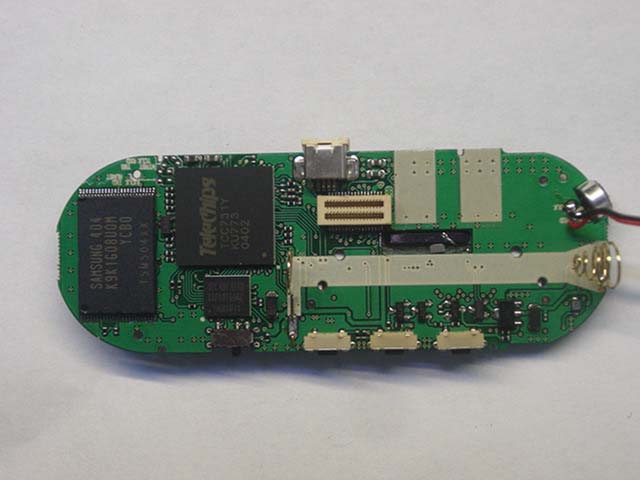

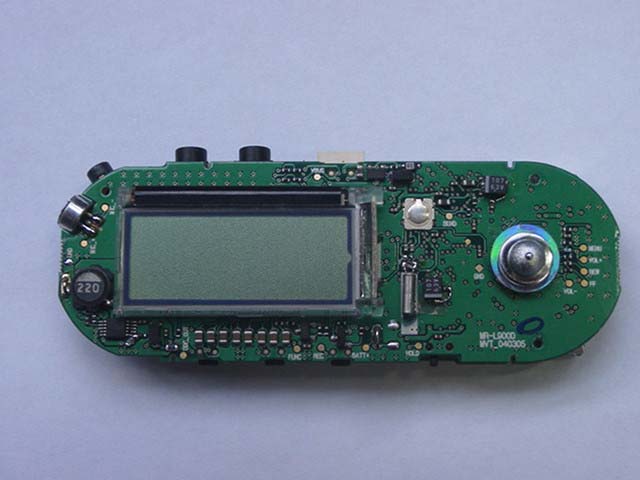

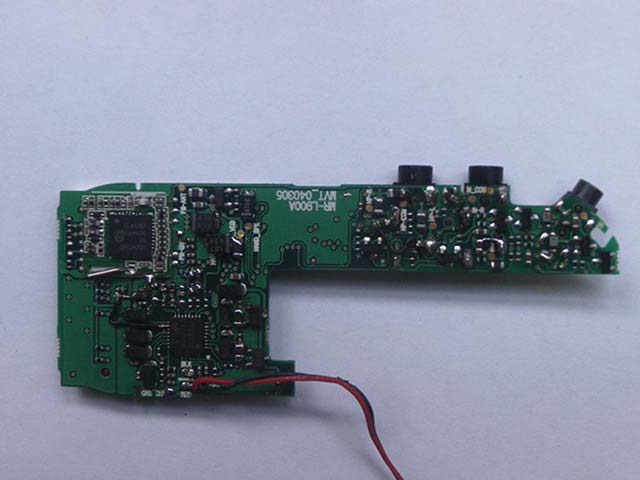

<FULL INNER SIDE OF EUT> <FRONT SIDE OF MAIN BOARD> <REAR SIDE OF MAIN BOARD> <FRONT SIDE OF MEMORY SLOT BOARD> <REAR SIDE OF MEMORY SLOT BOARD>

EMI TEST REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC04-0019 Equipment : MP3 Player Name of basic model : MR-L900 Family model : MR-L900C, MR-L900D, MR-L900E, MR-L900F Manufacturer : CENIX DIGICOM CO., LTD. Applicant : CENIX DIGICOM CO., LTD. Tested date : 2004. 4. 6 – 4. 7 Issued date : 2004. 4. 9 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) /Digital devices & peripherals Test Procedure and Items: - AC Power line Conducted emissions measurement : ANSI C63.4-1992 - Radiated emissions measurement : ANSI C63.4-1992 Tested by: GWEON, HUR Approved by: SANG-KYU, LEE The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. EMC RESEARCH INSTITUTE EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 2 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 CONTENTS 1. CLIENT INFORMATION 2. LABORATORY INFORMATION 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT 3.2 Additional information about the EUT 3.3 Peripheral equipment 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL 4.1 Operating environment 4.2 Test set-up and test procedures 4.3 Operation Conditions 4.4 Test instrument 4.5 Test results (Test mode: Upload & Download mode) 5. RADIATED DISTURBANCE: 30MHz – 1000MHz 5.1 Operating environment 5.2 Test set-up 5.3 Test conditions 5.4 Test instrument 5.5 Test results (Test mode: Upload mode) 5.6 Test results (Test mode: Download mode) 5.7 Test results (Test mode: Play mode) 5.8 Test results (Test mode: FM Tuner mode) APPENDIX (None) EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 3 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 1. CLIENT INFORMATION The EUT has been tested by request of : Company : CENIX DIGICOM CO., LTD. Address : #584-4 PAJANG-DONG, JANGAN-KU, SUWON-CITY, KYUNGGI-DO, KOREA Name of contact : Keun-Woo, Park Telephone : +82-31-245-2900 Facsimile : +82-31-251-6425 2. LABORATORY INFORMATION The 10m full-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : MP3 Player Model name : MR-L900 Brand name : - Manufacturer : CENIX DIGICOM CO., LTD. Address : #584-4 PAJANG-DONG, JANGAN-KU, SUWON-CITY, KYUNGGI-DO, KOREA Telephone : +82-31-245-2900 Facsimile : +82-31-251-6425 Country of origin : KOREA Rating : DC 1.5V EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 4 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 3.2 Additional information about the EUT Class B, Family Models List: Basic Model Variant Model Differential point MR-L900C Model name MR-L900D Model name MR-L900E Model name MR-L900 MR-L900F Model name 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture PC MTC2 00043-535-216-229 Dell Asia Pacific Sdn. Mouse M-S48a LZS01267642 Logitech Keyboard SDM4510UH 4M030902 - Printer C6427A CN13V1B1SZ HP Monitor PN15VT P181H80R807018 - EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 5 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 22.0 °C Relative Humidity : 32.0 % 4.2 Test set-up and test procedures The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.4m above the metallic, grounded floor. The distance to other metallic surface was at least 0.8m. Amplitude measurements were performed with a quasi-peak detector and an average detector. 4.3 Operation Conditions Upload & Download mode, play mode 4.4 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 100022 R&S 2004. 06. 16 x ESH3-Z5 100029 R&S 2004. 11. 11 x L.I.S.N. ESH3-Z5 100031 R&S 2005. 01. 06 x Shield room 8 × 6 × 3.3m/H - - - x AC Main LISN LISN PC Printer EUT Keyboard Monitor Earphone Mouse EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 6 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 4.5 Test results (Test mode: Upload & Download mode) Date of test: Apr 06, 2004 An overview sweep performed with peak detector & average detector are included in the report as test reports. Frequency Tested LISN Meter Limits Range Freq. Reading QP AV QP AV [MHz] [MHz] [dBuV] [dBuV] 0.180 N 41.5 41.9 64.5 54.5 0.186 N 38.1 38.7 64.2 54.2 0.291 N 29.5 27.5 60.4 50.4 1.032 N 30.9 31.5 56.0 46.0 1.449 N 32.3 31.8 56.0 46.0 1.548 N 33.1 32.4 56.0 46.0 2.271 N 31.5 30.6 56.0 46.0 2.373 N 33.3 30.1 56.0 46.0 2.997 N 25.9 26.8 56.0 46.0 0.15 - 30(MHz) 5.370 N 26.1 23.8 60.0 50.0 <5 : mean less than 5dB Other frequency keep over 20dB margin. Result: Pass The measured emissions level of the EUT have found the below of the specified limit. EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 7 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 [Live line] [Neutral line] EMC RESEARCH INSTITUTE File No. ERI-FCC04-0019 Page 8 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 5. RADIATED DISTU…
