QWB-REM1003KEYFOB

Aerolink Preliminary Manual 8/26/2006 The Aerolink receiver and keyfob is a simple 5-button radio-frequency (RF) wireless remote control for the Apple iPod®. CONTENTS This Users’ Guide 5-button Aerolink transmitter Aerolink receiver 3-volt Lithium battery (CR2032) REQUIREMENTS Apple iPod (w/dock connector) Headphones, powered speakers, or stereo receiver Please follow these simple setup instructions -INSTALLING THE KEYFOB BATTERY- 1. Carefully separate the top and bottom halves of the keyfob. A thin piece of plastic or a small screwdriver works best. 2. Insert the battery into the pc board, with the “+” symbol facing up towards the metal battery bracket. 3. Replace the green pc board within the fob, and snap the two keyfob halves back together. (It’s a tight fit, so take your time.) -CONNECTING THE RECEIVER TO THE iPod- 1. Insert the receiver into the 30pin dock connector of the iPod, making sure it is firmly seated. NOTE: The receiver draws its power from the iPod, even when the iPod is off. If the iPod is not to be used for a while, or is not being charged, unplug the receiver to prevent draining the iPod battery. -SYNCING THE RECEIVER AND KEYFOB- It is not necessary to sync the keyfob and receiver to be able to use them. If however you wish to exclusively pair the keyfob to the receiver, please follow these instructions: 1. Make sure that your iPod is charge and on. 2. Attach the receiver to the iPod’s bottom (dock) connector 3. On the keyfob, press and hold the play/pause button (4) for 10 seconds, then release. The receiver should now have “learned” the keyfob. If the receiver and iPod fail to operate properly at this point, try repeating the sync procedure. Note that each receiver can work with up to 5 keyfobs, and each keyfob can work with any number of receivers. BASIC OPERATION: 1 Volume Up 2 Previous Track (hold for Fast Rewind) 3 Volume Down 4 Play / Pause (hold to turn iPod off) 5 Next Track (hold for Fast Forward) LOCKING THE KEYFOB To prevent the keyfob from transmitting, for example, when it is in your pocket, you can lock the keypad. Once the keypad is locked, the keyfob will not control your iPod until it is unlocked. 1. Move the slide switch on the side of the keyfob so that the red dot is showing. The keyfob is now locked and will not transmit. UNLOCKING THE KEYFOB 1. Move the slide switch on the side of the keyfob so that the red dot is NOT showing. The keyfob is not unlocked and will transmit when you depress any button. TROUBLESHOOTING If there is no iPod activity using the RemoteRemote you should try these troubleshooting tips: 1. Is the iPod battery charged and the iPod otherwise operational? 2. Is the keyfob battery installed correctly? 3. Does the keyfob battery need to be replaced? 4. Is the keyfob locked? If so, unlock it as noted previously. 5. Is the receiver correctly and firmly seated to the iPOD? 6. If these steps still don’t help, please contact us at “[email protected]”. EMC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this product not authorized by Engineered Audio, LLC. could void the EMC compliance and your right to operate the product. For more specific FCC or CE compliance information, please visit www.engineeredaudio.com. WARRANTY STATEMENT This Engineered Audio, LLC product, under normal use, will be free from defects in material and workmanship for 12 months from the date of purchase. Engineered Audio will, at its sole discretion, repair or replace a product that is found to be defective. This warranty shall be void if, in the sole opinion of Engineered Audio, a product failure is the result of misuse, abuse, or modification. Printed in the USA EA-xxx-xx-x Engineered Audio, LLC. 15924 Sandalwood Creek Saint Louis, Missouri 63011 USA please visit us online at: www.engineeredaudio.com ©2006 Engineered Audio, LLC. Aerolink is a trademark of Engineered Audio, LLC. iPod is a trademark of Apple Computer, Inc.

Microcontroller (HC908QT1) Keyfob block diagram SAW Resonator based LC Transistor Oscillator P O W E R (Internal 3.2Mhz osc) (Nominal 433.92Mhz OOK Transmit Freq.) (5 Pushbutton Keys) (3v Lithium Batt.) Power switch Keyfob Transmit Timing Manchester Encoding. The Aerolink keyfob uses Manchester Encoding to “encode” its data before transmission. For the Keyfob, the period of each bit is 500uS, with a “1” being high for the first 250uS, and then low for the next 250uS of a period. A “0” is indicated by a low for the first 250uS, followed by a high for 250uS. 110 1 1 0 1 500uS 0 500uS A complete frame of transmitted data consists of a “Front Porch” (0.5mS high, followed by 0.5mS low, followed by 2.0ms high), Serial Number (8 bits), Command Byte (8 bits), and ending with a CRC check byte (8 bits). Further, if the user holds a key down, it will repeat this pattern every 100ms So, the total number of transmitted bits is 8+8+8 = 24. Total data period is 2.0ms (Front Porch ) + 24 * 500uS = 14ms Total high (on) time approximately 2.5ms (Front Porch) + 24 * 250uS = 8.5ms.

Aerolink Keyfob Circuit Description The Aerolink Keyfob is a simple On/Off Keyed keyfob-style transmitter with an internal, integrated pcb-trace style antenna. The keyfob receives its power from a small 3v Lithium button cell battery (type CR2032). When the power switch is off, there will be no activity when pushing any of the buttons. However, when the power switch is on, the keyfob is normally in sleep mode until the user presses one of 5 buttons, which wakes the microcontroller. The microcontroller, operating at 3.2Mhz, wakes up and sends out manchester encoded data to the transmitter section. The transmitter section consists of a SAW resonator stabilized printed circuit LC tuned-tank transistor oscillator operating at a nominal frequency of 433.92Mhz.

A A B B C C D D E E F F G G H H 11 22 33 44 55 66 Rev 1.0 keyfob transmitter 03/10/06 Engineered Audio 15924 Sandalwood Creek Wildwood, Missouri 63011 TITLE: B Rel. date chk'd by Des. chk Date Drawn by PT#: Page size SHT 1 OF 1 PTA3 PTA4 PTA5 PTA2 PTA1 PTA0 Vdd Vss 4 3 2 1 5 6 7 8 IC1 M68HLC908QT1 SW1 Vol+ SW2 FF SW3 Rew SW4 Vol- SW5 Play DGND Vcc C1 0.1uF MMBTH10LT1 Q1 R2 100 DGND R1 100K SAW 433.92 Mhz C2 0.1uF DGND 1 pF C4 4pf C3 PCB trace L1 DGND Vcc BAT1 3.0v SW6

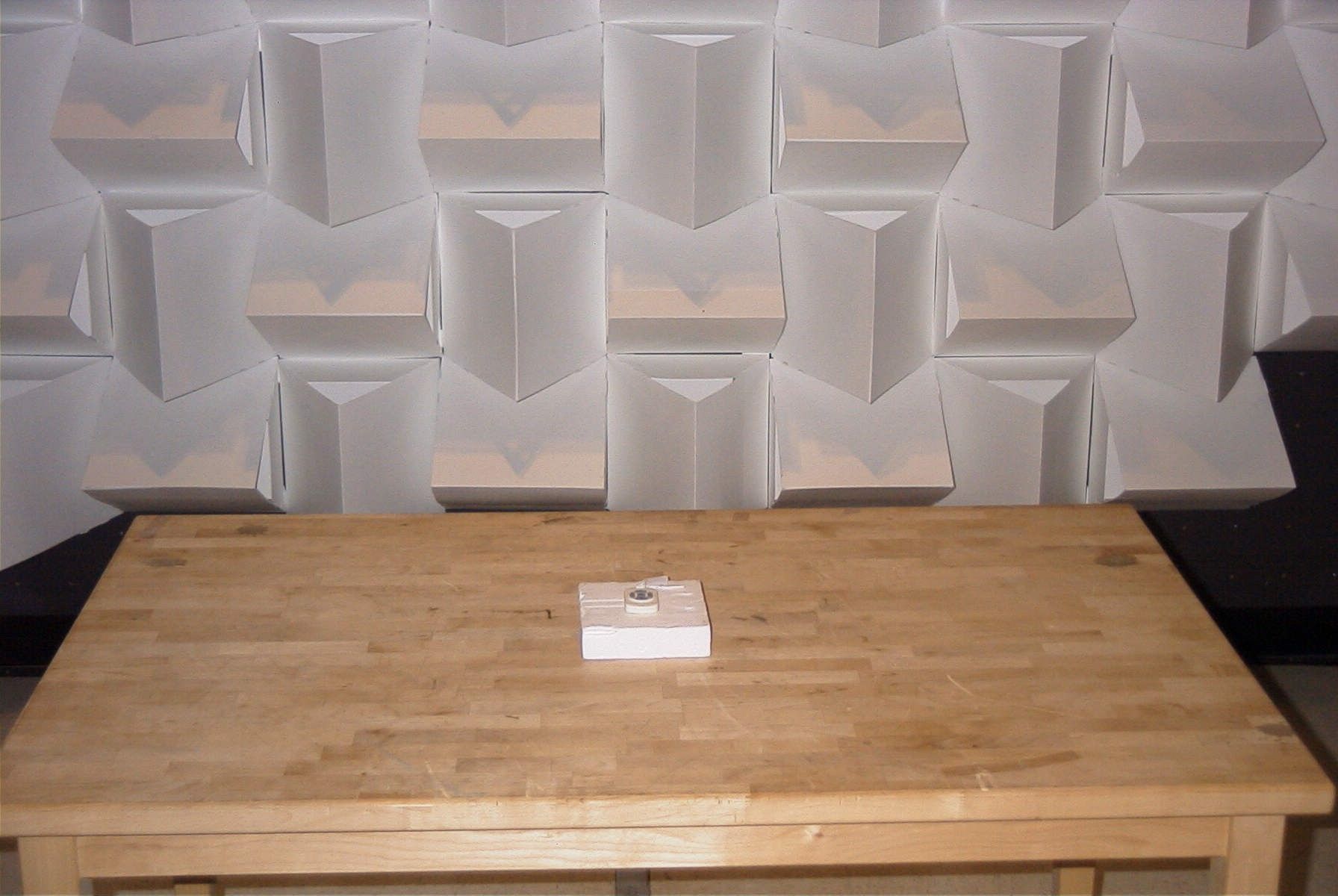

FCC TEST REPORT PART 15.231 APPLICANT ENGINEERED AUDIO, LLC ADDRESS 15924 SANDALWOOD CREEK WILDWOOD MISSOURI 63011 USA FCC ID QWB-REM1003 PRODUCT DESCRIPTION SECURITY REMOTE CONTROL DATE SAMPLE RECEIVED 9/6/2006 DATE TESTED 9/7/2006 TESTED BY NAM NGUYEN APPROVED BY MARIO DE ARANZETA TIMCO REPORT NO. E\ENG_AUDIO\2562UT6\2562UT6TestReport.doc TEST RESULTS PASS FAIL TOTAL PAGES 16 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: ENGINEERED AUDIO, LLC FCC ID: QWB-REM1003 REPORT: E\ENG_AUDIO\2562UT6\2562UT6TestReport.doc Page 2 of 16 TABLE OF CONTENTS GENERAL INFORMATION......................................................... 3 COMPLIANCE WITH PART 15.231(a)........................................... 4 EMC EQUIPMENT LIST.......................................................... 5 TEST PROCEDURE............................................................ 6 RADIATION INTERFERENCE................................................... 7 CALCULATION OF DUTY CYCLE................................................ 9 OCCUPIED BANDWIDTH....................................................... 14 APPLICANT: ENGINEERED AUDIO, LLC FCC ID: QWB-REM1003 REPORT: E\ENG_AUDIO\2562UT6\2562UT6TestReport.doc Page 3 of 16 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. FCC ID QWB-REM1003 Product Description SECURITY REMOTE CONTROL Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Test standards FCC Part 15, Subparts C & ANSI C63.4 – 2003 Modification to the DUT No modification was made to the DUT during testing. Test exercise (e.g software description, test signal, etc.) The EUT was set in continuous transmit mode of operation. Test Facility All tests were carried out at Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669. APPLICANT: ENGINEERED AUDIO, LLC FCC ID: QWB-REM1003 REPORT: E\ENG_AUDIO\2562UT6\2562UT6TestReport.doc Page 4 of 16 COMPLIANCE WITH PART 15.231(a) Part 15.231(a): • Continuous operation: No • Control signal only: No • Data transmission with a control signal No Description of control signal: a short transmission to control an iPod Part 15.231(a)(1): • Manually operated device: Yes • Does it meet the 5s deactivation requirement after the switch is being released: Yes Description: Part 15.231(a)(2): • Automatically operated device: No • Does it meet the 5s deactivation requirement after being activated: N/A Description: Part 15.231(a)(3): • Periodic transmission at regular predetermined intervals: No Description: • Polling or supervision transmissions, including data, to check system integrity check requires a total transmission time not exceeding 2s per hour: N/A Part 15.231(a)(4): Operation involving fire, security, or safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition. Does the transmitter meet the above condition? N/A APPLICANT: ENGINEERED AUDIO, LLC FCC ID: QWB-REM1003 REPORT: E\ENG_AUDIO\2562UT6\2562UT6TestReport.doc Page 5 of 16 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 12/8/04 12/8/06 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 12/8/06 Analyzer Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 12/8/04 12/8/06 Analyzer Open- Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 APPLICANT: ENGINEERED AUDIO, LLC FCC ID: QWB-REM1003 REPORT: E\ENG_AUDIO\2562UT6\2562UT6TestReport.doc Page 6 of 16 TEST PROCEDURE RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a Agilent spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 98ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found,…
