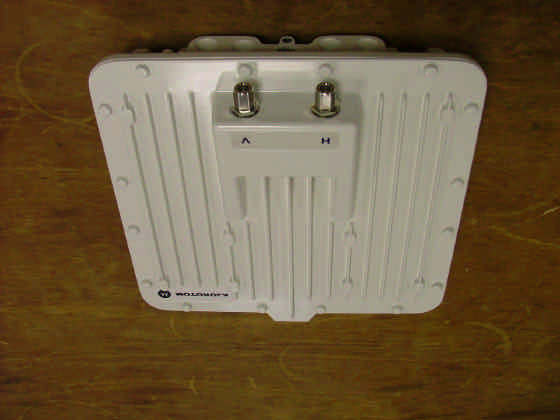

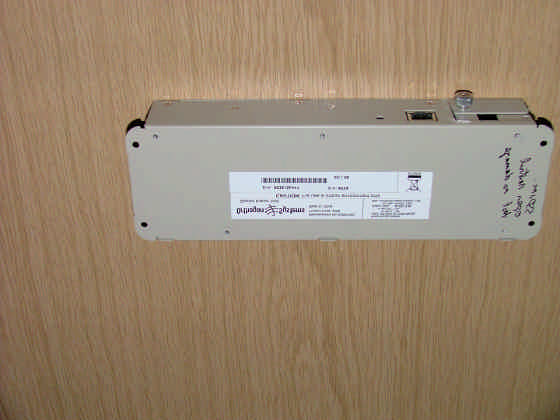

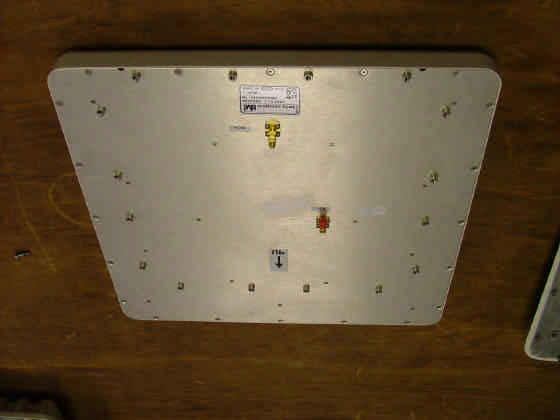

QWP49XXPoint to Point Wireless Ethernet Bridge

PTP 400 Series User Guide MOTOROLA POINT-TO-POINT WIRELESS SOLUTIONS 1 MOTOROLA, Inc. Point-to-Point Wireless Bridges – PTP 400 Series Software Release xx400-08-xx System User Manual September 18 th , 2006 Ref: PHN-0872-02.04 Copyright Information This document is the confidential property of Motorola, Inc. and without its prior written consent may not be copied or released to third parties. MOTOROLA, the stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat & Tm. Office. PTP 400 is a trademark of Motorola, Inc. All other product or service names are the property of their respective owners. © 2006 Motorola, Inc. All rights reserved. Hhttp://www.motorola.com Compliance General Changes or modifications not expressly approved by Motorola could void the user’s authority to operate the system. NOTE: This system has achieved Type Approval in various countries around the world. This means that the system has been tested against various local technical regulations and found to comply. The frequency band in which the system operates is ‘unlicensed’ and the system can be used provided it does not cause interference. Further, it is not guaranteed protection against interference from other products and installations. 2 The system has basically been shown to comply with the limits for emitted spurious radiation for a Class B digital device F 1 , pursuant to Part 15 of the FCC Rules in the USA as well as comparable regulations in other countries. These limits have been designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the Outdoor Unit (ODU). • Increase the separation between the equipment and ODU. • Connect the equipment into a power outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Deployment and Operation The Radio Regulations of various countries’ limits constrain the operation of radio products generally. In particular the local regulator may limit the amount of conducted or radiated transmitter power and may require registration of the radio link. The power transmitted by the PTP 400 Series Bridge is controlled by the use of Region-specific License Keys. The following examples show how the regulatory limits apply in some specific countries at the current time. Operators should note that regulations are subject to change. Contact your supplier/installer to ensure that your product is set for the correct License Key for your Country/Region and to ensure that you have fulfilled all the local regulatory requirements, especially if you are intending to use a link with external antennas. Footnotes to the table below indicate countries where registration of the link is currently mandatory. 1 Class B Digital Device, A digital device that is marketed for use in a residential environment notwithstanding use in commercial, business and industrial environments. 3 Regulations applicable to 4.9 GHz PTP 400 Series Bridge variant (49400) Examples of Regulatory Limits at 4.9GHz Power/Radiated Power/Region Setting Non-FCC and Non-ETSI Operation not currently allowed FCC FCC Part 90 Canada RSS-211 ETSI Operation not currently allowed Note that this product is specifically intended for professional installation. The integrated antenna version may be installed as shipped from Motorola. The Connectorised version must have the Maximum Transmit Power setting reduced if it is installed with antennas having a directional gain of >26dBi (net of cable losses). The reduction is 1dB for every 1dB that the antenna gain (net of cable losses) exceeds 26dBi. See Section  H8.3.1” HSystem Configuration Page” and Section  H8.3.5.3 “ HWireless Configuration” for details on adjusting the Maximum Transmit Power. 4 Regulations applicable to 5.4 GHz PTP 400 Series Bridge variant (54400) Examples of Regulatory Limits at 5.4GHz Power/Radiated Power/Region Setting Non-FCC and Non-ETSI F 2 Equipment can be operated in any mode, best results will be obtained using Region 8 settings (Region 7 if DFS is required) FCC Operation not currently allowed ETSI Under ETSI Regulations, operation of this product is only allowed with a License Key for Region 9 (27dBm EIRP with Radar Detection) General Notice Applicable to Europe This equipment complies with the essential requirements for the EU R&TTE Directive 1999/5/EC. 2 Note: In regions other than EU/USA, specific local regulations may apply. It is the responsibility of the installer/user to check that the equipment as deployed meets local regulatory requirements. 1321 5 Regulations applicable to 5.8 GHz PTP 400 Series Bridge variant (58400) Examples of Regulatory Limits at 5.8GHz Power/Radiated Power/Region Setting USA/ Canada/ Taiwan/ Brazil Equipment can be operated in any mode, best results will be obtained using Region 1 settings UK F 3 Under UK Regulations, operation of this product is only allowed with a License Key for Region 4 (1W EIRP with Radar Detection) Eire F 4 Under Eire Regulations, operation of this product is only allowed with a License Key for Region 6 (1W EIRP) Norway Norwegian rules allow a 200W EIRP but also require Radar Detection (DFS) and barring of part of the band. The license key for Region 7 is required, although Region 4 could also be used for lower power requirements. Australia Australian laws prohibit use/op…

Text truncated - open the document above for the full version.

From: FISHER CLEM-CFI002 [mailto:[email protected]] Sent: Monday, September 25, 2006 5:20 AM To: PCTEST TCB Cc: PCTEST - Al Cirwithian; PCTEST - Courtenay Geraghty; PCTEST - Gregory Czumak; PCTEST - Randy Ortanez Subject: RE: Questions Regarding FCC ID: QWP494XX Hi Gregory See embedded replies below and attached photo. Please let me know if you need anything more Regards Clem Fisher RF Development Manager Motorola Wireless Point to Point Solutions Group Tel: +44 (0)1364 655509 Fax: +44 (0)1364 654625 www.motorola.com The information contained within this e-mail, and any files transmitted with it, is confidential and is intended solely for the individual or entity to whom it is addressed. Any unauthorized dissemination or copying of this message or its attachments, and any use or disclosure of any information contained in them, is strictly prohibited and may be illegal. If you have received this e-mail in error, please telephone +44 (0)1364 655500, and delete it from your system. From: PCTEST TCB [mailto:[email protected]] Sent: 21 September 2006 22:01 To: FISHER CLEM-CFI002 Cc: PCTEST - Al Cirwithian; PCTEST - Courtenay Geraghty; PCTEST - Gregory Czumak; PCTEST - Randy Ortanez Subject: Questions Regarding FCC ID: QWP494XX To: Mr. Clem Fisher / Motorola Wireless Point to Point Solutions Group From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: QWP494XX Applicant: Orthogon Systems Correspondence Reference Number: QWP0569 Confirmation Number: 1609150569 Date of Original Email: September 21, 2006 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please submit the occupied bandwidth measurement plots for each modulation type (the occupied Page 3 of 4 9/28/2006 bandwidth value(s) is(are) used in the emission designator(s)). Do not understand - these plots are on P28-40 of the report. They are shown independently for the V/H polarisations but they are basically the same. You should note that the wider bandwdths are on the higher order modulation modes. 2. Please re-submit the photo of the RF board with the shielding removed. See attached 3. Please confirm that RFI Global Services. Ltd. has been accredited to ISO/IEC 17025, and by whom. They are accredited by UKAS - see http://www.rfi -global.com/Accreditations/RFIAccre.html 4. We note the following typo:p.57/86 of the test report, the measured QP levels should be positive, rather than negative. I see the problem on P57 - do you need a re-issued report for this? 5. FYI: the spurious radiated emission limit for the EUT, pursuant to Sections 90.210(m) and 2.1053, is 70.2 dBuV/m at 3m, and not the Section 15.209 (or 15.247(d)) limits, neither is Section 15.205 applicable. The EUT is a Part 90 transmitter-the only Part 15 Rules that are applicable are to the digital circuitry. We did realise that Part15 was not really applicable but I wanted the conducted tests done anyway and we decided with the test house to test to the tighter limits of Part 15. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 4 of 4 9/28/2006

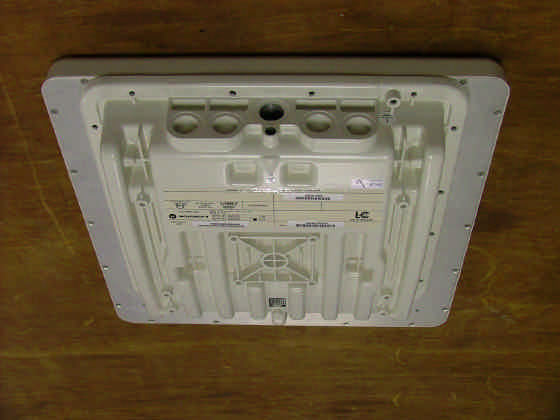

PTP 49400 ODU CAUTION:This product must be installed in accordance with the instructions in the User Manual FCC ID: QWP49XX MSN: Complies with UL60950 CSA C22.2 No. 60950 LISTING No: E112443 IC:4815A-49XX Label Part Number # 2621 not printed Made in: EU Power Requirements: 55V 1.2A Model No: WB2619Full Model No: WB2626Lite ESN: (MAC Address) PTP 49400 ODU CAUTION:This product must be installed in accordance with the instructions in the User Manual FCC ID: QWP49XX MSN: Complies with UL60950 CSA C22.2 No. 60950 LISTING No: E112443 IC:4815A-49XX Label Part Number # 2620 not printed Made in: EU Power Requirements: 55V 1.2A Model No: WB2618Full Model No: WB2625Lite ESN: (MAC Address)

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) Test Report Serial No: RFI/MPTE1/RP48412JD01A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: Tested By: Steven Wong Checked By: Nigel Davison Report Copy No: PDF01 Issue Date: 15 September 2006 Test Dates: 01 August 2006 to 09 August 2006 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE1/RP48412JD01A Page: 2 of 86 Issue Date: 15 September 2006 Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE1/RP48412JD01A Page: 3 of 86 Issue Date: 15 September 2006 Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) Table of Contents 1. Client Information............................................................................................................. 4 2. Equipment Under Test (EUT) .......................................................................................... 5 3. Test Results ...................................................................................................................... 9 4. Operation of the EUT during Testing ........................................................................... 10 5. Summary of Tests .......................................................................................................... 11 6. Measurements, Examinations and Derived Results ................................................... 12 7. Measurement Uncertainty ............................................................................................. 75 8. Measurement Methods .................................................................................................. 76 Appendix 1. Test Equipment Used ................................................................................... 82 Appendix 2. Test Configuration Drawings ....................................................................... 84 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE1/RP48412JD01A Page: 4 of 86 Issue Date: 15 September 2006 Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) 1. Client Information Company Name: Motorola Point to Point Fixed Wireless Solutions Group Address: Unit A, Linhay Business Park Eastern Road Ashburton Devon TQ13 7UP Contact Name: Mr C Fisher RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE1/RP48412JD01A Page: 5 of 86 Issue Date: 15 September 2006 Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: Motorola Point to Point Model Name or Number: PTP49400 Serial Number: 00.39.87 Hardware Version: Rev 1 Software Version: XX400 Software Version Number: 08.00 FCC ID Number: QWP49XX Country of Manufacture: United Kingdom Date of Receipt: 01 August 2006 Brand Name: PTP49400 Model Name or Number: E066105C Serial Number: 0540203217 Hardware Version: 01 Country of Manufacture: United Kingdom Date of Receipt: 01 August 2006 2.2. Description of EUT The equipment under test is a Wireless Ethernet Bridge operating in the 4.9 GHz Band. Connects IP networks via Ethernet interfaces and then a radio link in Point to Point links. 2.3. Modifications Incorporated in EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE1/RP48412JD01A Page: 6 of 86 Issue Date: 15 September 2006 Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) 2.4. Additional Information Related to Testing Power Supply Requirement: Nominal 115 V 60 Hz AC Mains supply Intended Operating Environment: Commercial Equipment Category: Broadband Radio Access network, Fixed Link Type of Unit: Base station (Fixed Use) Transmit Frequency Range: 4945 MHz to 4985 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 4945 Middle 3 4965 Transmit Channels Tested: Top 5 4985 Receive Frequency Range: 4945 MHz to 4985 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 4945 Middle 3 4965 Receive Channels Tested: Top 5 4985 Maximum Power Output (ERP) 23dBm 2.5. Port Identification Port Description Type/Length 1 Antenna Vertical (connectorised version) N/A 2 Antenna Horizontal (connectorised version) N/A 3 Mains input to Indoor Unit AC supply cable, 1.5m 4 Indoor-Outdoor unit Cat 5, 1.0m 5 Indoor Unit to customer equipment (Ethernet) Cat5, 1.0m RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE1/RP48412JD01A Page: 7 of 86 Issue Date: 15 September 2006 Test of: Motorola Point to Point Fixed Wireless Solutions Group Motorola PTP49400 To: FCC Part 90: 2005 (Subpart I) 2.6. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Laptop Brand Name: ACER Model Name or Number: Travelmate 4020. ZL3 Serial Number: LXTAH0508353100905EM00 Cable Length and Type: None Stated Connected to Port: None Stated Description: DC- 18 GHz, 30dB Attenuator Brand Name: Midwest microwave Model Name or Number: ATT-0219-30-NNN-02 Serial Number: None Stated Cable Length and Type: None Stated Connected to Port: None Stated Description: Outdoor Unit Brand Name: Moto…

Text truncated - open the document above for the full version.

Low EdgeHigh Edge Width of GraticuleOcc BW BPSKHBottom0.50.52.78.06 Mid0.50.52.78.06 Top0.50.52.78.06 VBottom0.50.52.78.068.06 Mid0.50.52.78.06 Top0.50.52.78.06 QPSKHBottom0.750.72.78.63 Mid0.80.652.78.63 Top0.750.72.78.63 VBottom0.750.72.78.638.69 Mid0.80.72.78.69 Top0.750.72.78.63 16QAMHBottom0.90.852.79.00 Mid0.950.82.79.00 Top0.90.852.79.00 VBottom0.90.852.79.009.00 Mid0.950.82.79.00 Top0.90.852.79.00 64QAMHBottom1.0512.79.38 Mid1.0512.79.38 Top1.0512.79.38 VBottom1.0512.79.389.38 Mid1.0512.79.38 Top1.0512.79.38 Acq ModeHBottom0.650.62.78.37 Mid0.70.52.78.31 Top0.70.52.78.31 VBottom0.650.552.78.318.37 Mid0.70.52.78.31 Top0.650.552.78.31
