QWP54100Fixed Point to Point Wireless Bridge

PTP 600 Series User Guide MOTOROLA POINT-TO-POINT WIRELESS SOLUTIONS 1 MOTOROLA, Inc. Point-to-Point Wireless Bridges – PTP 600 Series Software Release PTP 600-04-01 System User Manual June 18 th , 2007 Ref: PHN-0896-01.05 Copyright Information This document is the confidential property of Motorola, Inc. and without its prior written consent may not be copied or released to third parties. MOTOROLA, the stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat & Tm. Office. PTP 600 is a trademark of Motorola, Inc. All other product or service names are the property of their respective owners. © 2007 Motorola, Inc. All rights reserved. http://www.motorola.com/ptp Compliance General Changes or modifications not expressly approved by Motorola could void the user’s authority to operate the system. NOTE: This system has achieved Type Approval in various countries around the world. This means that the system has been tested against various local technical regulations and found to comply. The frequency band in which the system operates is ‘unlicensed’ and the system can be used provided it does not cause interference. Further, it is not guaranteed protection against interference from other products and installations. 2 The system has basically been shown to comply with the limits for emitted spurious radiation for a Class B digital device 1 , pursuant to Part 15 of the FCC Rules in the USA as well as comparable regulations in other countries. These limits have been designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the Outdoor Unit (ODU). • Increase the separation between the equipment and ODU. • Connect the equipment into a power outlet on a circuit different from that to which the receiver is connected. • Consult your installer or supplier for help. Deployment and Operation The Radio Regulations of various countries’ limits constrain the operation of radio products generally. In particular the local regulator may limit the amount of conducted or radiated transmitter power and may require registration of the radio link. The power transmitted by the PTP 600 Series Bridge is controlled by the use of Region-specific License Keys. The following examples show how the regulatory limits apply in some specific countries at the current time. Operators should note that regulations are subject to change. Contact your supplier/installer to ensure that your product is set for the correct License Key for your Country/Region and to ensure that you have fulfilled all the local regulatory requirements, especially if you are intending to use a link with external antennas. Footnotes to the table below indicate countries where registration of the link is currently mandatory. 1 Class B Digital Device, A digital device that is marketed for use in a residential environment notwithstanding use in commercial, business and industrial environments. 3 Regulations applicable to 5.4GHz PTP 600 Series Bridge variant Examples of Regulatory Limits at 5.4GHz Non-FCC and Non-ETSI 2 Equipment can be operated in any mode, best results will be obtained using Region 8 settings (Region 7 if i-DFS is required) FCC Under FCC Regulations, operation of this product is only allowed with a License Key for Region 12 (30dBm EIRP with Radar Detection) Canada Under IC Regulations, operation of this product is only allowed with a License Key for Region 13 (30dBm EIRP with Radar Detection and barring of the band 5600-5650MHz) ETSI Under ETSI Regulations, operation of this product is only allowed with a License Key for Region 12 (30dBm EIRP with Radar Detection) General Notice Applicable to Europe This equipment complies with the essential requirements for the EU R&E Directive 1999/5/EC. And 2 Note: In regions other than EU/USA, specific local regulations may apply. It is the responsibility of the installer/user to check that the equipment as deployed meets local regulatory requirements. 4 Regulations applicable to 5.8GHz PTP 600 Series Bridge variant Examples of Regulatory Limits USA/ Canada/ Taiwan/ Brazil Equipment can be operated in any mode, best results will be obtained using Region 1 settings UK 3 Under UK Regulations, operation of this product is allowed with a License Key for Region 4 (2W EIRP with Radar Detection) Eire 4 Under Eire Regulations, operation of this product is only allowed with a License Key for Region 6 (2W EIRP) Norway Norwegian rules allow a 200W EIRP but also require Radar Detection (i-DFS) and barring of par t of the band. The license key for Region 7 is required, although Region 4 could also be used fo r lower power requirements. Australia Australian laws prohibit use/operation of this product except where it is used with a License Key for Region 3 (4W EIRP) Singapore Under Singapore Regulations, operation of this product is only allowed with a License Key fo r Region 5 (100mW EIRP) Hong Kong Under Hong Kong Regulations, operation of this product is only allowed with a License Key fo r Region 3 (4W EIRP) Korea Under Korean Regulations, operation of this product is only allowed with a License Key for Region 11 (100mW TX Power, Band restricted to 5725 to 5825MHz) 3 UK Registration of Links – OfCom The application form may be found at http://www.ofcom.org.uk/radiocomms/ 4 Eire Registration of Links – Commission for Communication Regulation (ComReg) The application form m…

Text truncated - open the document above for the full version.

MOTOROLA 2 February, 2007 Compliance Certification Services Certification Division 56IF Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Operating Office: UnitAl, Linhay Business Park, Eastern Road, Ashburton, Devon, TQ13 7UP, United Kingdom MOTOROLA h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product's compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; • document the actions taken. This authorization is valid until further written notice from the applicant. Clem Fisher RF Development Manager Motorola Point to Point Fixed Wireless Solutions Group Operating Office: Unit At, Linhay Business Park, Eastern Road, Ashburton, Devon, TQ13 7UP, United Kingdom

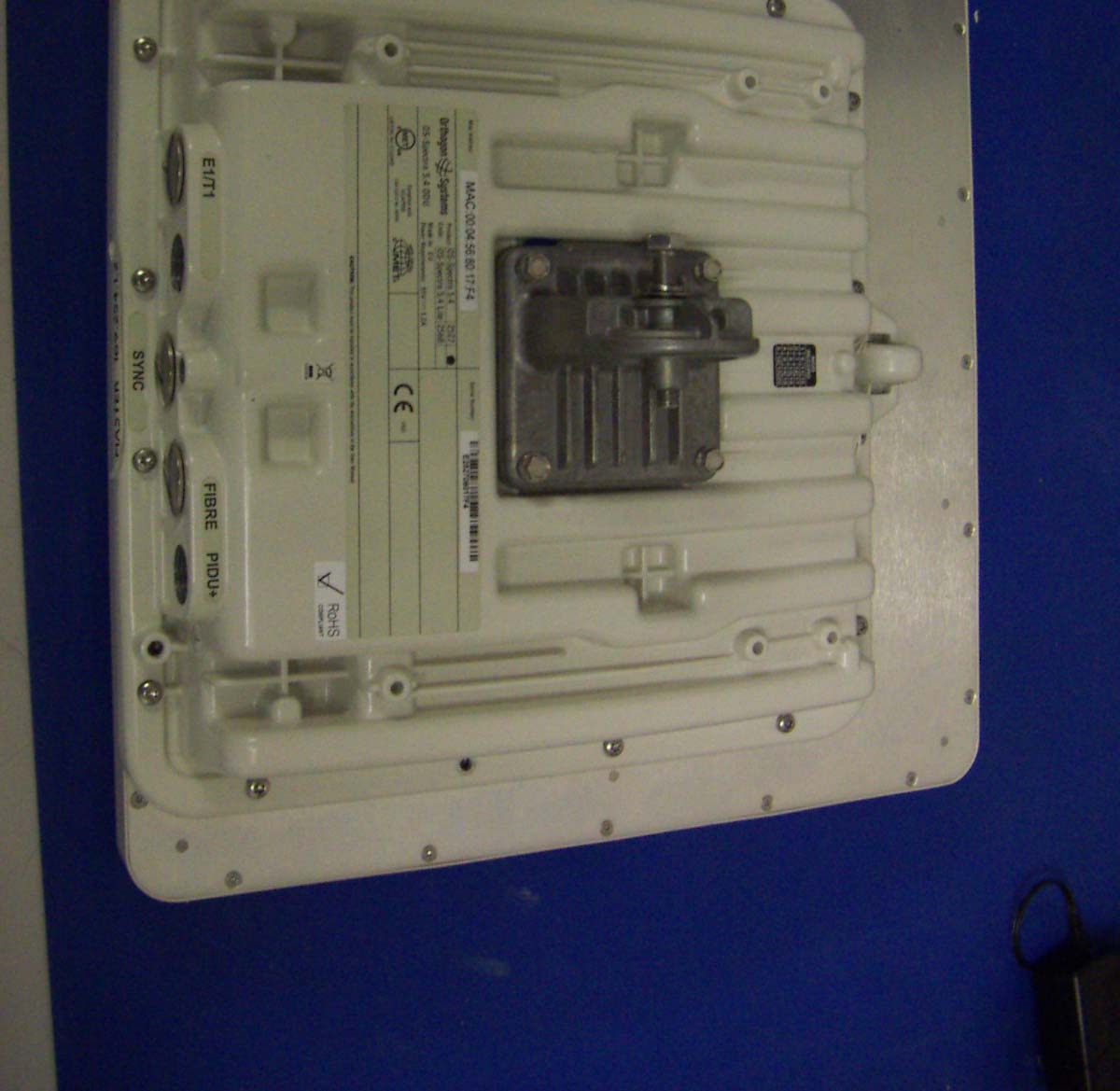

PTP 54600 ODU CAUTION:This product must be installed in accordance with the instructions in the User Manual ESN: (MAC Address) MSN: Complies with UL60950 CSA C22.2 No. 60950 LISTING No: E112443 1321 Label Part Number # 2573 not printed (latest) Made in: EU Power Requirements: 55V 1.2A Model No: 5530BHFull Model No: 5530BH15Lite FCC ID: QWP54100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 This device may not cause harmful interference, and 2 This device must accept any interference received, including interference that may cause undesired operation. IC:109AO-54100

MOTOROLA POINT TO POINT FIXED WIRELESS SOLUTIONS GROUP Working Paper Analysis of operating and installation requirements to satisfy FCC Regulations for RF exposure compliance for the OS54100/PTP54600 Products C.F.Fisher Ref: phn-01048 Abstract This document analyses the operating and installation requirements to ensure limits for RF Exposure Compliance are not exceeded by the OS54100/PTP54600 range of products with integrated antennas. The guidelines in FCC Bulletin 65 are used for the analysis. This document is the confidential property of Motorola, Inc. and without its prior consent may not be copied or released to 3 rd parties. The parameters quoted in this document must be specifically confirmed in writing before they become applicable to any particular order or contract. The company reserves the right to make alterations or amendments to the detail specification at its discretion. The publication of information in this document does not imply freedom from patent or other rights of Orthogon Systems or others. Orthogon Systems and Motorola in Confidence Revision History Version Date Comments Author 0.001 15 June 2007 Initial Issue CF Phn-1048 000V001 Page 2 of 5 Orthogon Systems and Motorola in Confidence Operational Parameters of the OS54100/PTP54600 Product 1 Scope The purpose of this brief working paper is to identify the RF power produced by the OS54100/PTP54600 equipment under various operating conditions. This mean RF power plus the antenna gain used in specific installations identifies the effective power density (dBm/cm 2 ) that is to be compared against allowed limits for human exposure. The two part numbers in the heading above reflect changes in product branding only; the product performance is not affected. 2 References Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields: OET Bulletin 65, Edition 97-01, August 1997 [1] 3 Background Reference [1] identifies how the radiated power density should be calculated for different distances from the antenna. The variables used are Radiated Power Density (S), conducted power (P), Antenna Gain (G) and distance (R) . The formula given is S= (P * G)/(4 * Pi * R) 2 The limit allowed for S depends on whether the exposure risk is to a member of the public or not. The OS54100/PTP54600 products are approved by the FCC under the UNII Rules (Part 15.407). This requires (Part 15.407(f) that all products meet the radio frequency radiation requirements for the “general population/uncontrolled environment” case. At the frequency of operation of these products, this requires that the value of S to be used is 1mW/cm 2 . It is clear from [1] that the power to be used should be the maximum transmitted power, subject to any allowance for source-based time-averaging. Notes a) the FCC require that the power density be calculated at a minimum distance of 20cm b) the value of P * G is the same as the transmitted EIRP. 4 OS54100/PTP54600 Specific Issues 4.1 FCC Regulations The OS54100/PTP54600 is approved under FCC Part 15.407 and this regulation limits the maximum EIRP to 30dBm in a channel bandwidth of approximately 27MHz . The OS54100/PTP54600 products ensure that this power cannot be exceeded. 4.2 Dual Polarisation The OS54XX and PTP54400 products use an integrated dual polarised antenna, with each polarisation connected to an identical transceiver circuit inside the unit. In order to Phn-1048 000V001 Page 3 of 5 Orthogon Systems and Motorola in Confidence comply with the FCC EIRP limits, the design of the products reduces by 3dB the conducted power and EIRP of each of the two individual polarisations. 4.3 Power Control The power levelling loops in the product measure the transmitted power on each polarisation at all times and limit each to the Maximum Transmit Power –3dB. The Maximum Transmit Power during the transmit period (total for both polarisations) for OS54100/PTP54600 equipments in production is set to not exceed 4dBm to ensure that the Maximum EIRP requirement during the burst (30dBm) is not exceeded when the product is used with the supplied integrated antenna (G = 23dBi). The OS54100/PTP54600 equipments operate on a TDD basis using the same frequency for up/down link. The transmit duty cycle resulting from the TDD operation is fixed at <50%. . The FCC regulations allow source-based time averaging to be used in working out the EIRP value for the exposure calculation. This reduces the effective mean conducted power and EIRP by at least 3dB from the levels of conducted power and EIRP that would be applicable if the products were to transmit with a duty cycle of 100%. It should be noted that this is very much a worst case as the product operates Receiver driven Transmit power control. 4.4 FCC Testing The testing has confirmed that the maximum conducted power and EIRP limits were not exceeded by the product. The effect of the dual polarised antenna on the EIRP was calculated by taking the linear sum of the results for each polarisation. 5 Analysis 5.1 Transmitted Levels The Radiated Power Density can be assessed on the basis of the antenna gain for each polarisation and the linear sum of the transmitter powers on the two polarisations. More simply it could be based on the total EIRP allowed by the FCC regulations (as the test reports show that the linear sum of the EIRPs from each of the two polarisations on the product is less than this limit). This would present a conservative assessment as the calculated power density levels would be less using the actual test results. This is the approach that is used for the analysis below. Example Channel BW = BW Allowed Conducted Power = 11dBm + 10*Log(BW) - (Actual Antenna Gain - 6dBi) Antenna Gain = Antenna Gain of each polarisation Allowed EIRP = Allowed Conducted Power + Actual Antenna Gain EIRP used for Radiated Power Density Calculation = Allowed Conducted Power - Allowance for source-based time-averaging in the product TDD structure Phn-1048 000V001…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART E (DFS REQUIREMENTS) CERTIFICATION TEST REPORT FOR FIXED POINT TO POINT WIRELESS BRIDGE BRAND NAME: MOTOROLA MODEL SERIES: PTP54600 Full and PTP54600 Lite MODELS: 5530BH and 5530BH15 FCC ID: QWP54100 REPORT NUMBER: 06U10770-1 ISSUE DATE: FEBRUARY 21, 2007 Prepared for ORTHOGON SYSTEMS, LTD. UNIT A1, LINHAY BUSINESS PARK, EASTERN ROAD ASHBURTON, DEVON, TQ13 7UP, UK Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 2 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 02/21/2007 Initial Issue MH REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 3 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. DESCRIPTION OF EUT ................................................................................................................... 6 5.1. MANUFACTURER’S DESCRIPTION OF MODEL DIFFERENCES.......................................... 6 6. APPLICABLE LIMITS AND RESULTS......................................................................................... 7 6.1. DYNAMIC FREQUENCY SELECTION ....................................................................................... 7 6.1.1. LIMITS ................................................................................................................................. 7 6.1.2. TEST AND MEASUREMENT SYSTEM ......................................................................... 10 6.1.3. TEST AND MEASUREMENT EQUIPMENT .................................................................. 15 6.1.4. SUPPORT EQUIPMENT ................................................................................................... 15 6.1.5. DESCRIPTION OF EUT.................................................................................................... 16 6.1.6. PLOTS OF RADAR WAVEFORM, AND WLAN TRAFFIC .......................................... 17 6.1.7. TEST CHANNEL AND METHOD ................................................................................... 24 6.1.8. CHANNEL AVAILABILITY CHECK TIME ................................................................... 24 6.1.9. CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME FOR CONFIGURATION AS A MASTER DEVICE ................................................................................. 29 6.1.10. NON-OCCUPANCY PERIOD........................................................................................... 33 6.1.11. DETECTION BANDWIDTH............................................................................................. 34 6.1.12. IN-SERVICE MONITORING............................................................................................ 36 6.1.13. CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME FOR CONFIGURATION AS A SLAVE DEVICE .................................................................................... 55 7. SETUP PHOTOS .............................................................................................................................. 58 REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 4 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ORTHOGON SYSTEMS, LTD. UNIT A1, LINHAY BUSINESS PARK, EASTERN ROAD ASHBURTON, DEVON, TQ13 7UP, UK EUT DESCRIPTION: Fixed Point to Point Wireless Bridge BRAND NAME: MOTOROLA MODEL SERIES: PTP54600 Full and PTP54600 Lite MODEL TESTED: 5530BH15 SERIAL NUMBER: E252708017DA (Master) and E252708017FH (Slave) DATE TESTED: January 11 – 12, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART E (DFS REQUIREMENTS) NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this repo…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) Test Report Serial No: RFI/RPTE1/RP48768JD01A This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: pp. Tested By: Nigel Davison pp Checked By: Michael Derby Report Copy No: PDF01 Issue Date: 07 February 2007 Test Dates: 21 November 2006 to 30 November 2006 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 2 of 86 Issue Date: 07 February 2007 Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 3 of 86 Issue Date: 07 February 2007 Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) Table of Contents 1. Client Information............................................................................................................. 4 2. Equipment Under Test (EUT) .......................................................................................... 5 3. Test Results ...................................................................................................................... 8 4. Deviations from the Test Specification .......................................................................... 8 5. Operation of the EUT during Testing ............................................................................. 9 6. Summary of Test Results .............................................................................................. 10 7. Measurements, Examinations and Derived Results ................................................... 11 8. Measurement Uncertainty ............................................................................................. 80 Appendix 1. Test Equipment Used ................................................................................... 81 Appendix 2. Test Configuration Drawings ....................................................................... 84 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 4 of 86 Issue Date: 07 February 2007 Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) 1. Client Information Company Name: Motorola Point to Point Wireless Solutions Group Address: Unit A1 Linhay Business Park Eastern Road Ashburton Devon TQ13 7UP UK Contact Name: Mr Clem Fisher RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 5 of 86 Issue Date: 07 February 2007 Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: 5.4 GHz Microwave Fixed Link System (Master) Brand Name: PTP 600 Series Model Name or Number: PTP54600 Serial Number: E252708017F4 Hardware Version: D05-R01-C Software Version: 54600-B1066 + !wdog FCC ID Number: QWP54100 Country of Manufacture: UK Date of Receipt: 27 November 2006 Description: 5.4 GHz Microwave Fixed Link System (Slave) Brand Name: Spectra Model Name or Number: PTP54600 Serial Number: E252708017DA Hardware Version: D05-R01-C Software Version: 54600-B1066 +!wdog FCC ID Number: QWP54100 Country of Manufacture: UK Date of Receipt: 27 November 2006 2.2. Accessories No accessories were supplied with the EUT. 2.3. Description of EUT The equipment under test is a 5.4 GHz UNII microwave fixed link system. 2.4. Modifications Incorporated in EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 6 of 86 Issue Date: 07 February 2007 Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) 2.5. Additional Information Related to Testing Power Supply Requirement: 110 VAC Intended Operating Environment: Commercial Equipment Category: Broadband Radio Access Network, Fixed Link. Type of Unit: Base Station (Fixed Use) Transmit Frequency Range: 5486 MHz to 5708 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 5486 Middle 11 5590 Transmit Channels Tested: Top 23 5708 Receive Frequency Range: 5486 MHz to 5708 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 5486 Middle 11 5590 Receive Channels Tested: Top 23 5708 Maximum Power Output (EIRP) 28.3 dBm 2.6. Port Identification Port Description 1 Cat 5 Ethernet. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 7 of 86 Issue Date: 07 February 2007 Test of: Motorola Point to Point Fixed Wireless Solutions Group PTP54600 To: FCC Part 15.407: 2006 (Subpart E) (Requested Parts Only) 2.7. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Power IDU Brand Name: Motorola Model Name or Number: Canopy Power IDU Serial Number: 0604018625 Revision: 00 Description: Power IDU Brand Name: Motorola Model Name or Number: Canopy Power IDU Serial Number: 0633322995 Revision: 00 Description: Laptop Brand Name: Dell Model Name or Number: PP0XA Serial Number: TF733A00 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP48768JD01A Page: 8 of 86 Issue Date: 07 February 2007 Test of: Motorola P…

Text truncated - open the document above for the full version.

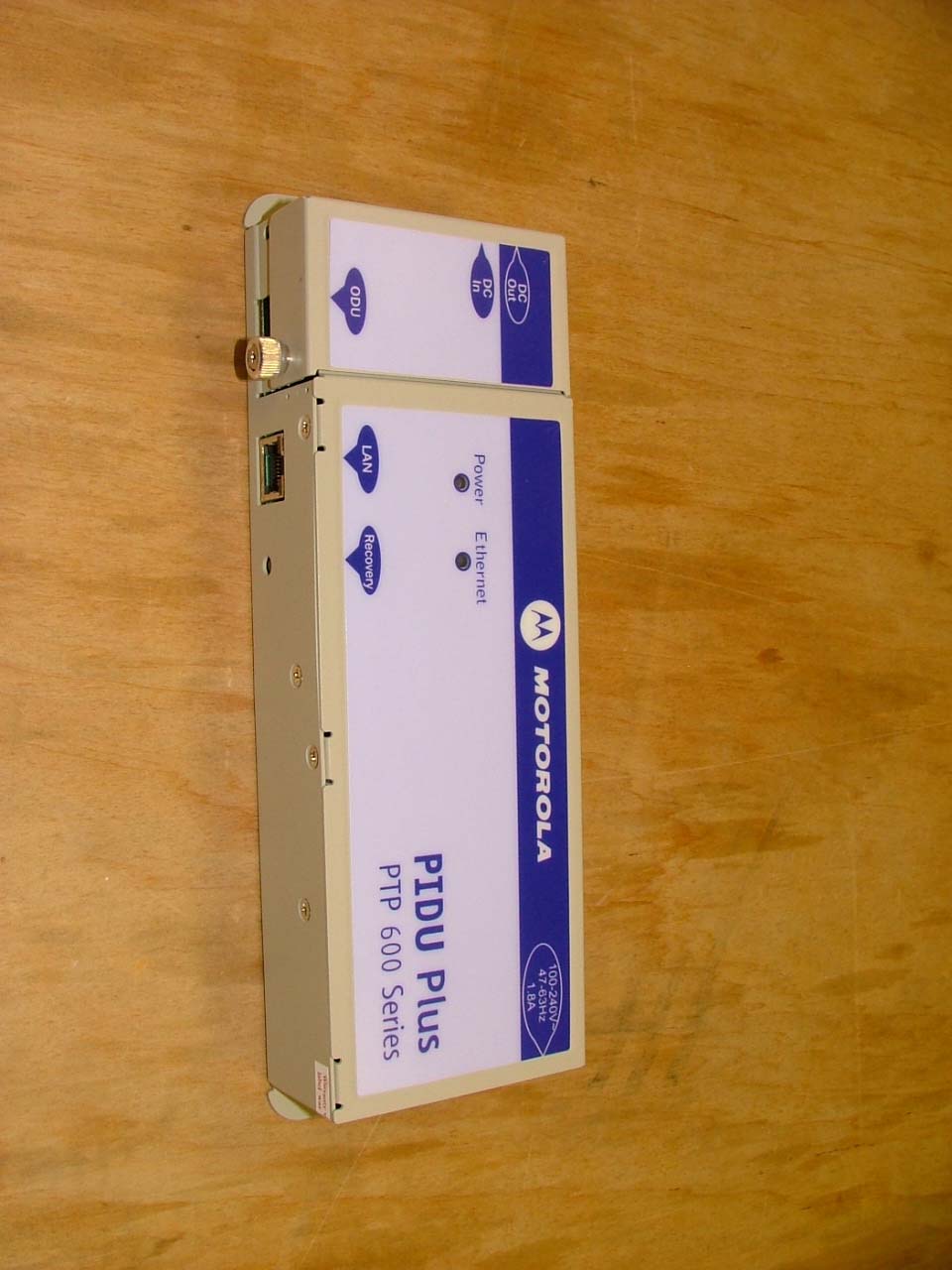

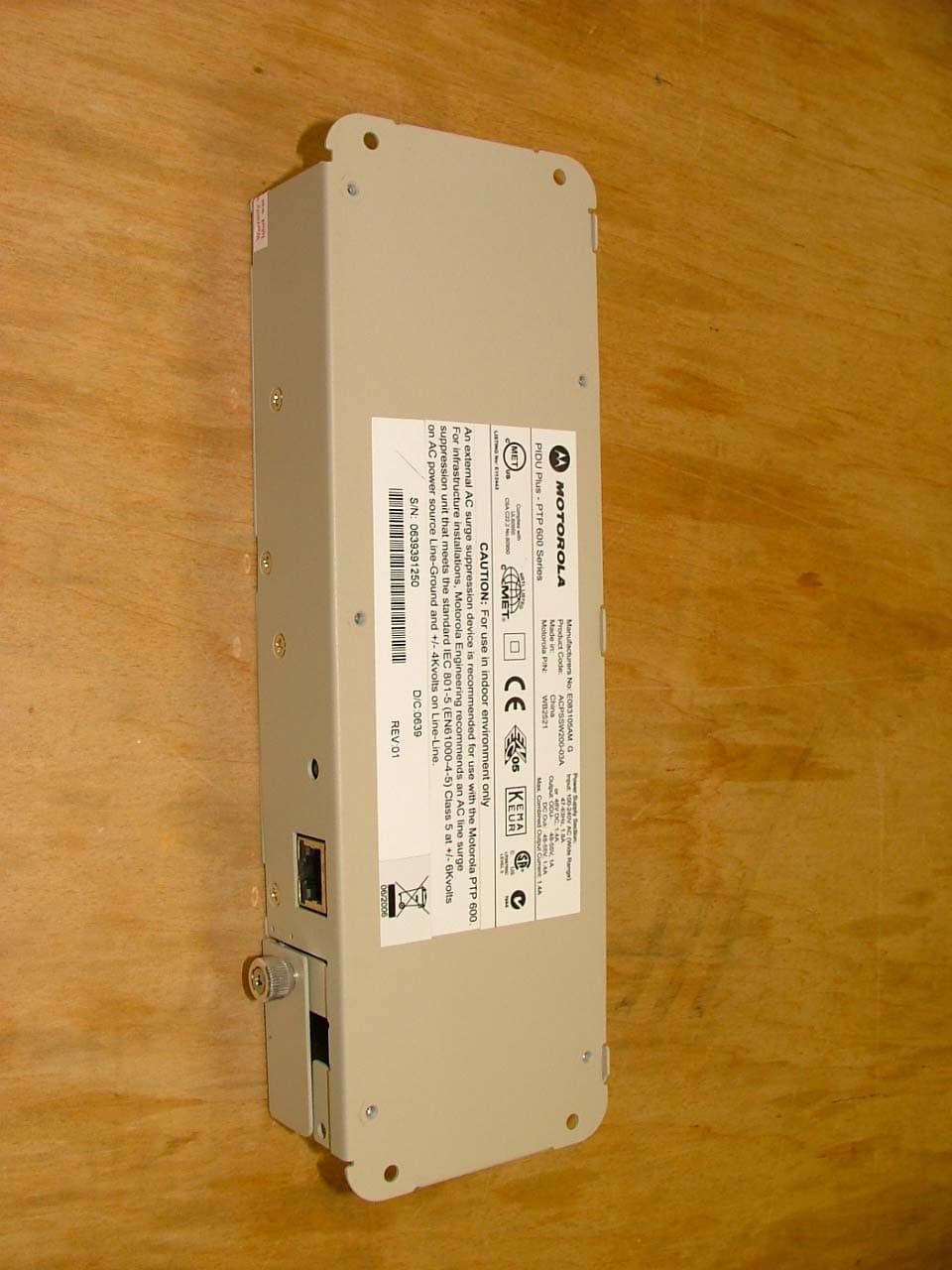

REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 58 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7. SETUP PHOTOS CONDUCTED DFS MEASUREMENT SETUP CONDUCTED DFS PHOTO REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 59 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED DFS MEASUREMENT SETUP MASTER DEVICE FRONT VIEW REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 60 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. MASTER DEVICE BACK VIEW REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 61 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. SLAVE DEVICE FRONT VIEW REPORT NO: 06U10770-1 DATE: FEBRUARY 21, 2007 EUT: POINT TO POINT WIRELESS ETHERNET BRIDGE FCC ID: QWP54100 Page 62 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT SLAVE DEVICE BACK VIEW
