QWP58XXWIRELESS ETHERNET BRIDGE

There’sline-of-sight... There’snon-line-of-sight... andthenthere’s OrthogonSystems UserManual 2 1 Orthogon Systems Gemini System User Manual May 16, 2003 Ref: PHN-0532-0006 Copyright Information This document is the confidential property of PipingHot Networks Limited and without its pri- or written consent may not be copied or released to 3rd parties. © 2003 PipingHot Networks Limited. Compliance Changes or modifications not expressly approved by Orthogon Systems could void the user’s authority to operate the equipment. Disclaimer The parameters quoted in this document must be specifically confirmed in writing before they become applicable to any particular order or contract. The company reserves the right to make alterations or amendments to the detail specification at its discretion. The publication of informa- tion in this document does not imply freedom from patent or other rights of Orthogon Systems or others. 2 Contents 1Getting Started . . . . . . . . . . . . . . . . . . 4 1.1For Your Safety . . . . . . . . . . . . . . . . 4 1.2Welcome . . . . . . . . . . . . . . . . . . . . . 4 1.2.1About This Guide . . . . . . . . . . . . . 4 1.2.2Who Should Use This Guide . . . . 5 1.2.3Service . . . . . . . . . . . . . . . . . . . . . 5 1.3Product Description (About the OS-Gemini) . . . . . . . . . . . . . . . . 5 1.3.1The Outdoor Unit (ODU) . . . . . . . 6 1.3.2The Indoor Unit (IDU) . . . . . . . . . 6 1.3.3Mains Power Adaptor. . . . . . . . . 7 1.3.4Cables and Connectors . . . . . . . . . 8 1.3.5Surge Arrestor. . . . . . . . . . . . . . . 9 1.3.6Mounting Brackets . . . . . . . . . . . 10 1.3.7Configuration and Management . 11 1.4Warranty . . . . . . . . . . . . . . . . . . . . 11 2Product Architecture (More Detail About The OS-Gemini) . . . .12 3General Considerations . . . . . . . . . . 14 3.1Frequency Planning. . . . . . . . . . . 14 3.2Distance . . . . . . . . . . . . . . . . . . . . . 14 3.3Networking Information . . . . . . . . 14 3.4Lightning Protection . . . . . . . . . . . 14 3.5Electrical Requirements . . . . . . . . 15 3.6Training . . . . . . . . . . . . . . . . . . . . . 15 4Site Planning . . . . . . . . . . . . . . . . . . 16 4.1Site Selection Criteria . . . . . . . . . . 16 4.1.1ODUSite Selection . . . . . . . . . . . 16 4.1.2IDUSite Selection . . . . . . . . . . . . 16 4.2Path Loss Considerations . . . . . . . 16 4.2.1Free Space Path Loss . . . . . . . . . 17 4.2.2Excess Path Loss . . . . . . . . . . . . 17 4.2.3Fade Margin . . . . . . . . . . . . . . . . 18 4.2.4Maximum Path Loss. . . . . . . . . 18 4.2.5Worked Example 1 . . . . . . . . . . . 19 4.2.6Worked Example 2 . . . . . . . . . . . 19 4.3Mean Power. . . . . . . . . . . . . . . . . 20 5Installation . . . . . . . . . . . . . . . . . . . . 22 5.1Preparation. . . . . . . . . . . . . . . . . . 22 5.2Installation Procedure . . . . . . . . . . 22 5.3Tools Required. . . . . . . . . . . . . . . 22 5.4Installation Support . . . . . . . . . . . . 22 5.5Legal Disclaimer . . . . . . . . . . . . . . 23 5.5.1Mounting theODUs. . . . . . . . . . 23 5.5.2Connecting Up . . . . . . . . . . . . . . 25 5.5.3Mounting TheIDU. . . . . . . . . . . 30 5.5.4Powering Up . . . . . . . . . . . . . . . . 31 5.5.5Aligning theODUs . . . . . . . . . . . 31 6Web Page Reference. . . . . . . . . . . . 33 6.1Home Page. . . . . . . . . . . . . . . . . . 33 6.2Systems Status Page . . . . . . . . . . . 34 6.3System Administration Page . . . . . 35 6.3.1System Configuration Page . . . . 35 6.3.2Install Pages . . . . . . . . . . . . . . . . 36 6.3.3Software Upgrade Pages. . . . . . 38 6.3.4DFS Pages. . . . . . . . . . . . . . . . . 39 6.3.5SMTP Configuration Page . . . . . 40 6.3.6Change System Administration Password. . . . . . 41 6.3.7Software License Key. . . . . . . . 41 7Fault Finding . . . . . . . . . . . . . . . . . . 42 8Specifications . . . . . . . . . . . . . . . . . . 43 8.1System Specification . . . . . . . . . . . 43 8.2Safety Compliance . . . . . . . . . . . . 44 8.3EMC Emissions Compliance. . . . 44 8.4EMC Immunity Compliance . . . . . 45 8.5Radio Certifications (type approvals) . . . . . . . . . . . . . . . . . . . 45 8.6Environmental Specifications . . . . 45 8.7System Connections . . . . . . . . . . . 46 8.7.1ODU to IDU Connection . . . . . . 46 8.7.2Network Connection. . . . . . . . . 46 8.7.3Power Connection. . . . . . . . . . . 46 9Lightning Protection. . . . . . . . . . . . 48 10 FAQs. . . . . . . . . . . . . . . . . . . . . . . . 50 11 Glossary . . . . . . . . . . . . . . . . . . . . . . 51 12 Index. . . . . . . . . . . . . . . . . . . . . . . . 52 3 List of Figures 1Typical OS-Gemini Deployment . . . . 5 2OS-Gemini Outdoor Unit (ODU) . . . . 7 3OS-Gemini Indoor Unit (IDU) . . . . . . 8 4OS-Gemini Reset Switch . . . . . . . . . . 9 5OS-Gemini power adaptor . . . . . . . . 10 6ODUMounting Configurations . . . . . 10 7OS-Gemini Layer Diagram . . . . . . . 12 8Free Space Path Loss at 5.8 GHz . . . 17 9Fade Margin vs Excess Path Loss for 99.99% link availability . .18 10 Worked Example . . . . . . . . . . . . . . . 19 11 Worked Example over a hill. . . . . . 20 12 Mean path loss vs range for BPSKand 16QAM. . . . . . . . . . . . . . .20 13 RJ45 Pin Connections . . . . . . . . . . . 27 14 Web page menus. . . . . . . . . . . . . . . 33 15 Home Page . . . . . . . . . . . . . . . . . . . . 33 16 Status Page . . . . . . . . . . . . . . . . . . . . 34 17 System Administration Page . . . . . . 35 18 Configuration Page. . . . . . . . . . . . . 35 19 Licence key entry . . . . . . . . . . . . . . . 36 20 Installation page 1 — Internet Protocol Settings . . . . . . . . . . . . . . .36 21 Installation page 2 — Wireless Configuration . . . . . . . . . .37 22 Installation page 3 — Confirm Installation. . . . . . . . . . . .37 23 Installation page 4 — Configuration Complete . . . . . . . . .38 24 Software upgrade . . . . . . . . . . . . . . . 38 25 DFS page . . . . . . . . . . . . . . . . . . . . . 40 26 SMTP page. . . . . . . . . . . . . . . . . . . 40 27 Pas…

Text truncated - open the document above for the full version.

Unit A1, Linhay Business Park Eastern Road Ashburton Devon TQ13 7UP United Kingdom Tel: +44 (0)1364 655500 Fax: +44 (0)1364 654625 www.orthogonsystems.com 14 May 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application for FCC ID: QWP58XX Dear Sirs It is requested that the following information is to be held confidential on behalf of Orthogon Systems. Item No of Files Pages Per File ODU RF Block Diagram 1 1 in .pdf OS58XX Operational Description 1 4 in .pdf ODU Digital Block Diagram 1 1 in .pdf ODU Digital Schematics 1 17 in .pdf ODU RF Schematics 1 22 in .pdf IDU Schematics 1 1 in .pdf Bills of Material 4 ODU RF ODU Digital IDU Overall ODU RF - 8 pages in .pdf ODU Dig - 4 pages in .pdf IDU - 2 pages in .pdf Overall - 1 page in .pdf Reasons for Confidentiality Request 1. Orthogon Systems is proposing to market the OS58XX product (also known as Gemini) as a Wireless Ethernet Bridge operating at 5.8GHz. This is a highly competitive market where Orthogon believes its product will have significant performance advantage in terms of its operation in Non Line-of-Sight conditions. The materials listed above identify the methods used in the product to achieve the performance advantage and contain significant Intellectual Property developed by Orthogon Systems. The publication of some or all of the information could allow this performance advantage to be unfairly eroded by the competitors of Orthogon Systems. 2. Orthogon Systems has entered into non-disclosure agreements during the development process with some of its key component suppliers. Publication of schematics and Bills of Material would compromise those agreements. 3. Orthogon Systems has taken steps during development of the product to keep confidential its plans: a. The Orthogon Systems web site was only upgraded to give brief details of the product once the formal launch date was finalised. b. Technical papers produced by Orthogon Systems do not identify how the performance advantage is achieved c. Prior disclosure to 3 rd parties has always been under the terms of specific non-disclosure agreement. 4. Orthogon Systems believes that no benefit would accrue to the general public in the event of publication of the material listed. The only beneficiaries would be the competitors of Orthogon Systems. 5. Orthogon Systems believes that the material listed should be kept confidential for a period of 5 years from the date of submission in order to prevent its competitors from copying its technology. Yours Sincerely Clem Fisher RF Development Manager

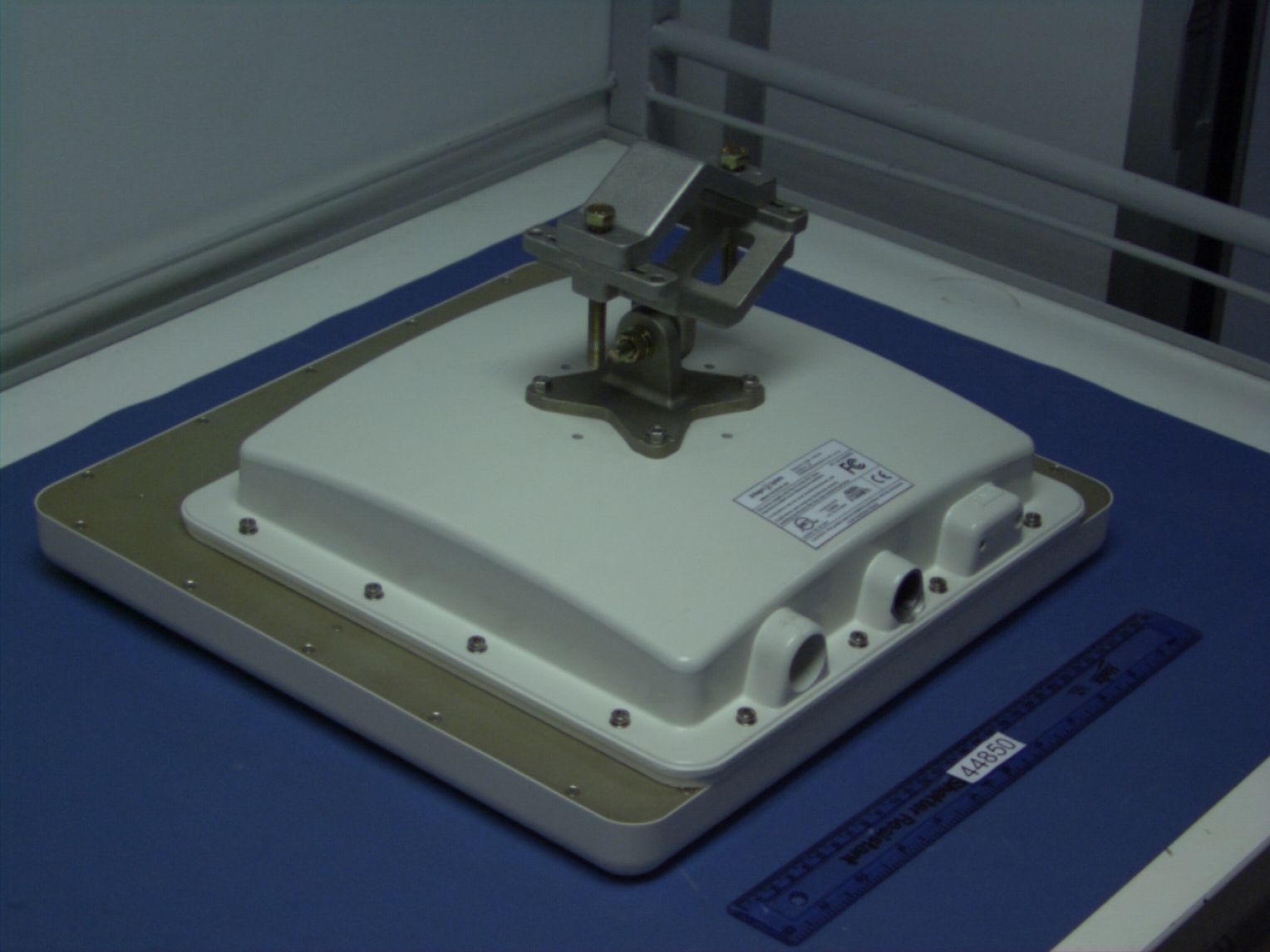

OS-Gemini Outdoor Unit Product Code:PHN1678 Made in:United Kingdom Power Requirements:48V 0.9A CAUTION:This product must be installed in accordance with the instructions in the User Manual Complies with UL60950 CSA C22.2 No. 60950 LISTING No: E112443 FCC ID: QWP58XX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 This device may not cause harmful interference, and 2 This device must accept any interference received, including interference that may cause undesired operation. OS Label artwork (back) 6/5/03 2:43 pm Page 2 (Black plate)

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Orthogon. Gemini OS58XX To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 Test Report Serial No: RFI/MPTB1/RP44850JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: pp Tested By: pp Release Version No: PDF01 Issue Date: 27 May 2003 Test Dates: 23 April 2003 to 28 April 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44850JD01A Operations Department Page 2 of 90 Issue Date: 27 May 2003 Test Of: Orthogon. Gemini OS58XX To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44850JD01A Operations Department Page 3 of 90 Issue Date: 27 May 2003 Test Of: Orthogon. Gemini OS58XX To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ..........................................................10 4. Deviations From The Test Specification ...................................................................12 5. Operation Of The EUT During Testing ......................................................................13 6. Summary Of Test Results...........................................................................................14 7. Measurements, Examinations And Derived Results................................................15 8. Measurement Uncertainty ..........................................................................................28 Appendix 1. Test Equipment Used ................................................................................29 Appendix 2. Measurement Methods ..............................................................................31 Appendix 3. Test Configuration Drawings....................................................................39 Appendix 4. Graphical Test Results ..............................................................................42 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44850JD01A Operations Department Page 4 of 90 Issue Date: 27 May 2003 Test Of: Orthogon. Gemini OS58XX To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 1. Client Information Company Name: Orthogon Systems Address: Unit A1 Linhay Business Park Eastern Road Ashburton Devon TQ13 7UP Contact Name: Mr C Fisher RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44850JD01A Operations Department Page 5 of 90 Issue Date: 27 May 2003 Test Of: Orthogon. Gemini OS58XX To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Gemini Model Name or Number: OS58XX Unique Type Identification: OS58XX Outdoor Unit Serial Number: 00:00:02 Country of Manufacture: UK Date of Receipt: 23 April 2003 FCC ID: QWP58XX Brand Name: Gemini Model Name or Number: OS58XX Unique Type Identification: OS58XX Indoor Unit Serial Number: 0126 Country of Manufacture: UK Date of Receipt: 23 April 2003 FCC ID: N/A Brand Name: Hitron Electronics Corporation Model Name or Number: HES51-48010 Unique Type Identification: N/A (System Power Supply) Serial Number: 0437 Country of Manufacture: Taiwan Date of Receipt: 23 April 2003 FCC ID: N/A RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44850JD01A Operations Department Page 6 of 90 Issue Date: 27 May 2003 Test Of: Orthogon. Gemini OS58XX To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 Identification Of Equipment Under Test (EUT) (continued) Brand Name: Ault Model Name or Number: PW125 Unique Type Identification: PW125KA4803 Serial Number: A01 Country of Manufacture: Korea Date of Receipt: 23 April 2003 FCC ID: N/A 2.2. Description Of EUT Gemini 0S58XX is a point to point Ethernet Bridge radio equipment operating in the band 5725MHz to 5850MHz (USA band limits) and 5725MHz to 5875MHz (European band limits). The equipment supplied for formal testing will comprise one end of the Ethernet Bridge, although the other end will be supplied to enable the equipment to be operated in its normal operating modes. There are 3 parts to the equipment. Outdoor Unit, which comprises of an electronics enclosure and an integral, dual polarised antenna. The ODU contains all the main electronic components in the system and generates all the RF frequencies. Indoor Unit, which provides an interface box between the ODU, the power supply and the customer’s LAN network. This unit comprises basically of connectors, some LEDs and filters. A mains power supply adapter from an external supplier (and which meets all normal regulatory requirements) provides all the DC supplies for the rest of the system. The system is connected by CAT5 cables. 2.3. Modifications Incorporated …

Text truncated - open the document above for the full version.
