QXGEIMEUBSelf-Ballasted Fluorescent Lamp

Zhongshan Tianpeng Electronic Lighting and Communication Equipment Factory Self-Ballasted Fluorescent Lamp FCC ID: QXGEIMEUB This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. Made in China

Block Diagram A. Rectifier B. Starting Circuit C. High Frequency Signal Generator D. Tube Lighting Input: 120V/60Hz Fundamental Operation Frequency is 40KHz or so. A B C D

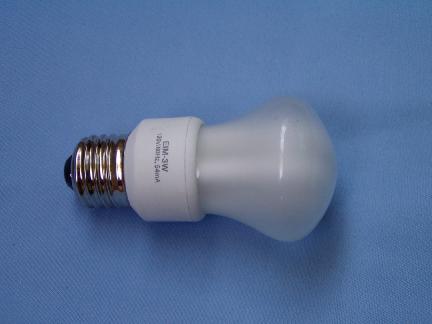

Self-Ballasted Fluorescent Lamp M/N: EIM-3W Self-Ballasted Fluorescent Lamp M/N: EIM-5W Self-Ballasted Fluorescent Lamp M/N: EIM-7W Self-Ballasted Fluorescent Lamp M/N: EUB-5W Self-Ballasted Fluorescent Lamp M/N: EUB-7W

Label Location Information EUT Bottom View/Proposed FCC ID Label Location EIM series EUB series

Label Drawing – FCC ID Sample Label The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Model Number: EIM-3W FCC ID:QXGEIMEUB Zhongshan Tianpeng Made in China

Self-Ballasted Fluorescent Lamp M/N: EIM-3W Self-Ballasted Fluorescent Lamp M/N: EIM-5W Self-Ballasted Fluorescent Lamp M/N: EIM-7W Self-Ballasted Fluorescent Lamp M/N: EUB-5W Self-Ballasted Fluorescent Lamp M/N: EUB-7W

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:21-Mar-2003Sheet of File:D:\PCB\1EIMEUB.S01Drawn By: C1 C6 R3 R6 D3 D4 D1 D2 R2 D5 C4 F L1 R5 C7 N1 N2 N3 L2 R4 R1 DB3 C5 T1 T2 1 2 0 V / 6 0 H z C3 C2 2U EIM3W-7W EUB5W-7W/FCC UL L3 蘑菇泡、小普泡 型号 EIM-3W EIM EUB 5W EIM EUB 7W L2 9mH 6mH 4.5mH L3 2:30:2 2:20:2 3:15:3 C4 331/1KV 561/1KV 561/1KV C7 102/1KV 102/1KV 152/1KV LAMP 3W 5W 7W 参数 L A M P 473/400V 473/400V 2 2 3 / 1 0 0 V 510K 510K 4 . 7 U / 2 0 0 V IN4007*4 R4 R5 10 10 20 2.2 2.2

FCC TEST REPORT UNDER FCC Part 18 RF Lighting Device PREPARED FOR： Zhongshan Tianpeng Electronic Lighting and Communication Euqipment Factory Tian Peng Industrial District HengLan Town, Zhongshan, GuangDong, China February 18, 2003 PREPARED BY ： Shenzhen Academy of Metrology & Quality Inspection Longzhu Road, Nanshan FCC Registration Number: 97379 FCC ID: QXGEIMEUB EUT: Self-Ballasted Fluorescent Lamp Model: EIM-3W; EIM-5W; EIM-7W; EUB-5W; EUB-7W Report Type: Original Report Test Engineer: Peter Lin Test Date: January 16, 2003 Review By: Apollo Liu Zhongshan Tianpeng Electronic Lighting and Communication Equipment Factory FCC ID: QXGEIMEUB FCC ID Report Report #: KA200212120101J Page 2 of 30 TABLE OF CONTENTS 1. Summary of Test Results.....................................................................................................................................................3 2. Test Statement......................................................................................................................................................................4 2. 1 Test Statement.................................................................................................................................................................4 2. 2 Departure From Document Policies, Procedure or Specifications, The Statement.........................................................4 3. EUT Modifications..............................................................................................................................................................5 4. Conducted Power Line Test................................................................................................................................................6 4. 1 Test Equipment...............................................................................................................................................................6 4. 2 Test Procedure................................................................................................................................................................6 4. 3 Test Setup.......................................................................................................................................................................6 4. 4 Configuration of The EUT..............................................................................................................................................7 4. 5 EUT Operating Condition...............................................................................................................................................8 4. 6 Conducted Power Line Emission Limits........................................................................................................................8 4. 7 Conducted Power Line Test Result.................................................................................................................................9 5. Radiated Emission Test.....................................................................................................................................................17 5. 1 Test Equipment.............................................................................................................................................................17 5. 2 Test Procedure..............................................................................................................................................................17 5. 3 Radiated Test Setup......................................................................................................................................................17 5. 4 Configuration of The EUT............................................................................................................................................18 5. 5 EUT Operating Condition.............................................................................................................................................18 5. 6 Radiated Emission Limit..............................................................................................................................................18 5. 7 Radiated Emission Test Result......................................................................................................................................19 6. Photos of Testing................................................................................................................................................................26 6. 1 EUT Test Photographs..................................................................................................................................................26 6. 2 EUT Detailed Photographs...........................................................................................................................................28 7. FCC ID Label.....................................................................................................................................................................29 8. Test Equipment..................................................................................................................................................................30 Zhongshan Tianpeng Electronic Lighting and Communication Equipment Factory FCC ID: QXGEIMEUB FCC ID Report Report #: KA200212120101J Page 3 of 30 1. Summary of Test Results The EUT has been tested according to the following specifications: Standard Test Type Result Notes FCC Part 18 Conducted Test PASS The test results meet limit FCC Part 18 Radiated Test PASS The test results meet limit. Zhongshan Tianpeng Electronic Lighting and Communication Equipment Factory FCC ID: QXGEIMEUB FCC ID Report Report #: KA200212120101J Page 4 of 30 2. Test Statement 2. 1 Test Statement A. This statement explains the test condition of this project. The EUT was tested under the condition of each test item. B. The data shown in this repo…

Text truncated - open the document above for the full version.

Conducted Emission Test View Radiated emission test view
