QXGSREEUTSelf-Ballasted Flourescent Lamp
Zhongshan Tianpeng Electronic Lighting And Communication Equipment Factory
Click to zoom
Application Details
- Equipment Class
- 8CC - Part 18 Consumer Device
- Date of Grant
- Apr 02, 2003
- Application Purpose
- Original Equipment
- Date of Application
- Apr 02, 2003
- Equipment Note
- Self-Ballasted Flourescent Lamp
- Frequency Range
- 0.04100000 - 0.04400000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Zhongshan Tianpeng Electronic Lighting and Communication Equipment Factory Self-Ballasted Fluorescent Lamp FCC ID: QXGSREEUT This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. Made in China
Block Diagram
Block Diagram A. Rectifier B. Starting Circuit C. High Frequency Signal Generator D. Tube Lighting Input: 120V/60Hz Fundamental Operation Frequency is 40KHz or so. A B C D
Cover Letter(s)
C:\windows\TEMP\probonholdemail.doc TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] March 24, 2003 FCC SUBJECT: ZHONGSHAN TIANPENG ELECT.LIGHT.AND COMM.EQUIP.FACT - FCC ID: QXGSREEUT REFERENCE: JOB 375HC3 To whom it may concern: The conducted emission plots for this job appear to be over limit. The Table of conducted emissions is within limits. The submitting laboratory was questioned regarding the differences. The difference was a result of making “peak” measurements in the plots versus “quasi-peak” measurements in the tabulated data. Their written response follows: Dear Sir, Please see attached information. The test result curve was measured by peak detector, & test final data was measured by Quasi-Peak detector. B/RGDs J.K. Hsu Wise Team Technical Services Co. e-mail: [email protected] Very truly yours, Frank (for) Sid Sanders
External Photos

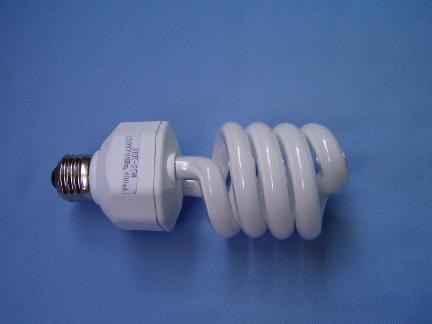

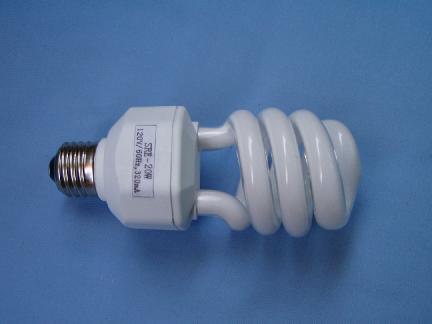

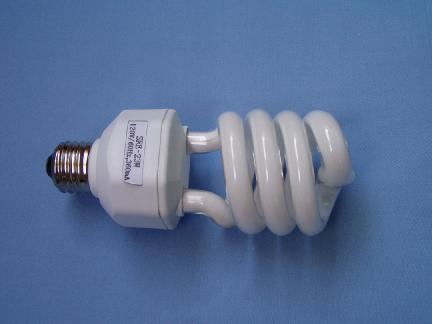

SRE-15W SRE-20W SRE-23W SRE-25W EUT-15W EUT-20W EUT-23W EUT-25W
ID Label/Location Info
Label Location Information EUT Bottom View/Proposed FCC ID Label Location SRE series EUT series
ID Label/Location Info
Label Drawing – FCC ID Sample Label The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Model Number: SRE-15W FCC ID: QXGSREEUT Zhongshan Tianpeng Made in China
Internal Photos
SRE-15W SRE-20W SRE-23W SRE-25W EUT-15W . EUT-20W EUT-23W EUT-25W
Schematics
1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:21-Mar-2003Sheet of File:D:\PCB\4SET15~1.S01Drawn By: T2 T1 C3 DB3 R2 R3 L2 7N 3N 3N C7 R4 L1 F C4 C2 D5 R1 D2 D1 D4 D3 R6 R5 C5 C1 Chang EE19 1 2 0 V / 6 0 H z SRE15-25W EUT15-25W /FCC UL L A M P D7 D6 C6 L3 3U大螺旋、大 104/250V 223/100V 1M430k 15 15 102/1KV 104/250V 型号 参数 EUT-15W SRE-15W EUT20-23W EUT-25W SRE-25W C2T1 T2R5 R6C6C7LAMP 15U/200V130032.2332/1KV222/1KV3U 15W 15U/200V130031.5332/1KV222/1KV 15W大螺旋 22U/200V 22U/200V 22U/200V 13005 13005 130051 0.68 1562/1KV 562/1KV 562/1KV332/1KV 272/1KV 272/1KV 3U 20W 23W 3U 25W 25W大螺旋 SRE20-23W L2 1.2mH 1.2mH 1.5mH 1.5mH 1.5mH 20-23W大螺旋
