QXZCFPA-001Bluetooth Compact Flash Card (Class 1)

Bluetooth™ CompactFlash Adapter Users’ Guide The easy way to add Bluetooth functionality to: o Microsoft ® Windows 2000® o Microsoft ® Windows 98 SE® o Microsoft ® PocketPC ® o Microsoft ® PocketPC 2002 ® o Microsoft ® CE.NET ® (future support) GigaWaveTech (Pte) Ltd (a member of schmidt electronics asia) DISCLAIMER: This manual is published by Gigawavetech Pte Ltd, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to equipment may be made by Gigawavetech Pte Ltd at any time and without notice. Such changes will however be incorporated into new editions of this manual. Hardware, software and firmware mentioned in this document are subject to continuous development and improvement. Consequently, there may be discrepancies between the information in this document and the performance and design of the product. Table of Contents Chapter 1: Introduction................................................................................................4 Installation Overview – PocketPC/PocketPC 2002.................................................4 Installation Overview – Windows 2000, Windows 98 SE.......................................4 Minimum System Requirements................................................................................5 Chapter 2 Windows 2000 Driver installation & removal.......................................6 Step 1: Copy the files to a hard disk directory...............................................6 Step 2: Inserting the Card.................................................................................6 Step 3: Driver installation..................................................................................7 Step 4: Completing the Installation.................................................................8 Step 5: Configuring the driver..........................................................................8 Step 7: Reboot the system.............................................................................10 Step 8: Driver Removal – only if you wish to remove the driver...............10 Chapter 3 Pocket PC 2002 Driver installation & removal...................................11 Step 1 (optional) Card validation and mobile computer functionality check 11 Step 2 Preparing for Driver installation............................................................11 Step 3 Driver installation....................................................................................12 Step 4 Driver removal – only if you wish to remove the drivers..................12 Chapter 4: Basic Troubleshooting Guide...............................................................14 Chapter 5: Specifications..........................................................................................15 Chapter 6: Useage & Safety Considerations.........................................................17 Appendix A: Limited Product Warranty.................................................................19 Copyright Notice.............................................................................................................21 Regulatory Compliance Notice.....................................................................................22 Life Support Policy.........................................................................................................23 CHAPTER 1: INTRODUCTION Congratulations on the purchase of your GigaWaveTech Type 1 Bluetooth CompactFlash adapter. This adapter will allow you to easily add Bluetooth functionality to your handheld PC, running Microsoft® PocketPC ® , PocketPC 2002 ® or and Windows CE.NET ®. This adapter will also allow you to easily add Bluetooth functionality to a desktop/laptop PC running Microsoft Windows98 SE and Windows 2000. A CF-PCMCIA adapter quickly and easily allows the use of this card in a standard PCMCIA/PC-Card slot The CF card package includes: o Drivers on a driver disk o Installation guide (this document) This Users’ Guide shows you how to quickly install the drivers. The following graphics show the GUI for PocketPC 2002 and Windows 2000; however, the operation is the same for PocketPC and Windows 98 SE respectively. Installation Overview – PocketPC/PocketPC 2002 1. Important: Read chapter on “Useage and Safety Considerations” before first using the card 2. Turn on the mobile computer 3. Copy the drivers into the mobile computer via ActiveSync and install the drivers. 4. Insert card into available CompactFlash (CF) slot 5. Drivers will be loaded. Installation Overview – Windows 2000, Windows 98 SE 1. Important: Read chapter on “Useage and Safety Considerations” before first using the card 2. Turn on the computer 3. Copy driver files into a directory of your choice. 4. Insert card into a CF-to-PC-Card adapter, then insert both into an available PCMCIA or PC-Card slot. 5. When prompted, request Windows to do a search for drivers. Then, point driver source to directory where files were earlier copied to. Follow the on-screen instructions. Minimum System Requirements o Operating System: - Pocket PC (PPC) or Pocket PC 2002(PPC 2002) using Intel StrongArm SA1110 processor. - Microsoft Windows 2000 Professional or Server Edition. - Microsoft Windows 98 SE o Hardware: - PPC or PPC2002: • PPC or PPC2002 with available CompactFlash slot - Windows 2000 or Windows 98 SE: • Computer with available CF card slot • CF to PCMCIA card adapter CHAPTER 2 WINDOWS 2000 DRIVER INSTALLATION & REMOVAL This chapter covers the steps you need to take to install the card and its drivers. It also covers the procedure on how to remove the drivers, if desired. Step 1: Copy the files to a hard disk directory • Create a directory in your local hard disk (e.g. C:\GWTBTCF) and copy all the files located under \GWTBTCF of the GWTBTCF Driver Disk into this newly created directory. Step 2: Inserting the Card • Fit the GigaWaveTech Bluetooth CF Card into a CF-PCMCIA …

Text truncated - open the document above for the full version.

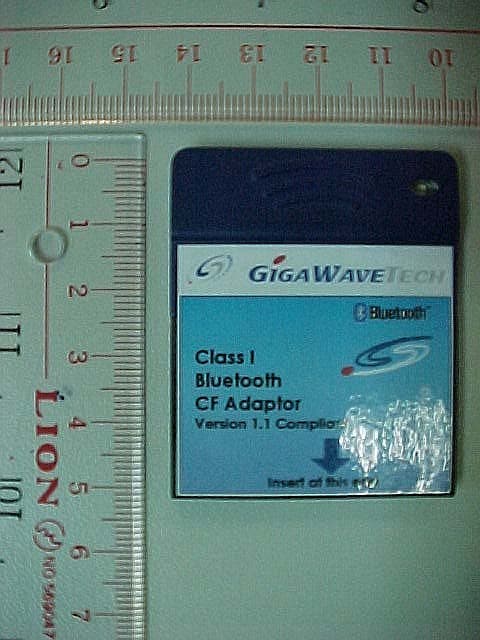

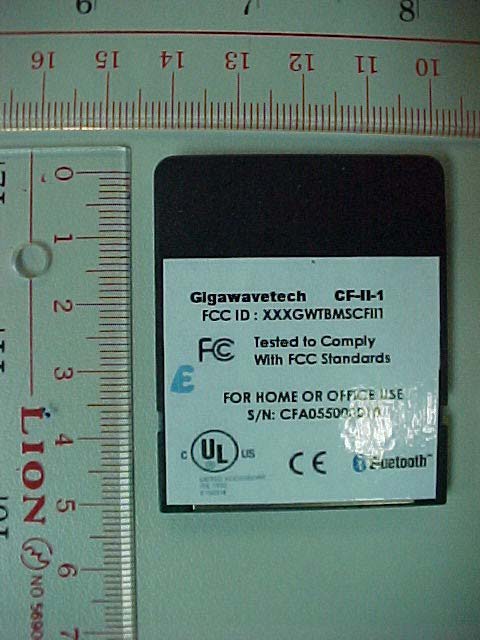

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 1 von 6 Page 1 of 6 Gigawavetech – CFPA-001 Bluetooth CF Adapter (Class 1) Front side of external view: TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 2 von 6 Page 2 of 6 Rear side of external view: TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 3 von 6 Page 3 of 6 Side view of external view:

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 1 von 11 Page 1 of 11 1.1 FCCID Label Artwork

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 2 von 10 Page 2 of 10 2.1 Description of Circuit Function 2.1.1 General Description Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. The Bluetooth system consists of a radio unit, a link control unit, and a support unit for link management and host terminal interface functions. 2.1.2 Specific Information about the RF module The Bluetooth Radio PMB 8760 from Infineon is a short-range microwave frequency radio transceiver for Bluetooth communication links. Provided in a compact LFBGA package. The Bluetooth Radio offers a combination of compact size, low power consumption, and cost effective assembly. The PMB 8760 integrates a 13 MHz low power oscillator with on-chip PLL and a voice encoding (PCM, CVSD). There is a on-chip 2.4 GHz RF driver amplifier with 4 dBm output power. State-of-the-art CMOS technology is used.

TEST REPORT Your Ref:Date: 6 Jun 2003 Our Ref: 56S030405/01_CORR01 Page: 1 of 18 DID: 68851464 Fax: 67741459 LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline 6885 1333 • Fax 6775 9725 • Email [email protected] • Website www.psbcorp.com NOTE: This Report is issued subject to the “ Terms and Conditions Governing Technical Services” set out in the “Request for Technical Services” form. The terms and conditions governing the issue of this report are set out overleaf. COMPLIANCE REPORT ON TESTING IN ACCORDANCE WITH SAR (SPECIFIC ABSORPTION RATE) REQUIREMENTS Supplement C (Edition 01-01) FCC OET Bulletin 65 (Edition 97-01) OF A Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 APPLICANT Mr. Chua Teck Chuan GigaWaveTech Pte Ltd No 1 Jalan Kilang Timor, #07-02, Pacific Tech Centre Singapore 159303 Tel: (65) 63774801Fax: (65) 63750966 JOB NUMBER 56S030405 TEST PERIOD 4 Jun 2003 - 5 Jun 2003 PREPARED BYAPPROVED BY ____________________ Gary Ng Ah Chye Associate Engineer ____________________ Benjamin Foo Assistant Vice President April 2002Page 2 of 18 This Report is issued under the following conditions: 1. Results of the testing/calibration in the form of a report will be issued immediately after the service has been completed or terminated. 2. Unless otherwise requested, a reported shall contain only technical results. Analysis and interpretation of the results and professional opinion and recommendations expressed thereupon, if required, shall be clearly indicated and additional fee paid for, by the Client. 3. This report is not a Certificate of Quality. It only applies to the sample of the specific product/equipment given at the time of its testing/calibration. The results are not used to indicate or imply that they are application to other similar items. In addition, such results must not be used to indicate or imply that PSB Corporation approves, recommends or endorses the manufacturer, supplier or user of such product/equipment, or that PSB Corporation in any way “guarantees” the later performance of the product/equipment. 4. The sample/s mentioned in this report is/are submitted/supplied/manufactured by the Client, PSB Corporation therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture, consignment or any information supplied. 5. Additional copies of the report are available to the Client at an additional fee. No third party can obtain a copy of this report through PSB Corporation, unless the Client has authorised PSB Corporation in writing to do so. 6. PSB Corporation may at its sole discretion add to amend the conditions of the report at the time of issue of the report and such report and such additions or amendments shall be binding on the Client. 7. All copyright in the report shall remain with PSB Corporation and the Client shall, upon payment of PSB Corporation’s fees for the carrying out of the tests/calibrations, be granted a license to use or publish the report to the third parties subject to the terms and conditions herein, provided always that PSB Corporation may at its absolute discretion be entitled to impose such conditions on the license as it sees fit. 8. Nothing in this report shall be interpreted to mean that PSB Corporation has verified or ascertained any endorsement or marks from any testing authority or bodies that may be found on that sample. 9. This report shall not be reproduced wholly or in parts and no reference shall be made by the Client to PSB Corporation or to the report or results furnished by PSB Corporation in any advertisements or sales promotion. 56S030405/01_CORR01GigaWaveTech Pte LtdPage 3 of 18 Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS Test Setup EUT Photographs ANNEX C-TISSUE SIMULANT DATA SHEETS ANNEX D-SAR VALIDATION RESULTS ANNEX E-CALIBRATION CERTIFICATES Validation Dipole Calibration Certificates SAR Probe Calibration Certificates ANNEX F-REFERENCES 56S030405/01_CORR01GigaWaveTech Pte LtdPage 4 of 18 Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] TEST SUMMARY The product was tested in accordance with the following standards. Test Results Summary Test StandardsDescriptionPass / Fail • Supplement C (Edition 01-01) to FCC OET Bulletin 65 (Edition 97-01) • ANSI/IEEE Standard C95.1-1993 SAR Measurement (Device at body phantom) Pass > Note: 1. The worst-case SAR value was found to be 0.928W/kg which is lower than the maximum limit of 1.60 W/kg, over 1g of tissue . >Based on spatial peak uncontrolled exposure / general population level: Head: 1.60 W/kg, over 1g of tissue. Body: 1.60 W/kg, over 1g of tissue. Modification No modification was made. 56S030405/01_CORR01GigaWaveTech Pte LtdPage 5 of 18 Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] DEVICE DESCRIPTION Compact Flash Adapter (EUT) DESCRIPTION Compact Flash Adapter (EUT) Description The Equipment Under Test (EUT) is a Bluetooth Class 1 Compact Flash Adapter Compact Flash Adapter (EUT) Test Device Type Identical Prototype Compact Flash Adapter (EUT) Model CFPA-001 Compact Flash Adapter (EUT) Brand Name GigaWaveTech Compact Flash Adapter (EUT) Serial Numbers Labelled as " CFA055000017 " Compact Flash Adapter (EUT) FCC ID QXZCFPA-001 PDA (Host) DESCRIPTION PDA (Host) Device Category Portable Device (Pocket PC - iPAQ 3850) PDA (Host) Exposure Environment General Population/Uncontrolled exposure PDA (Host) FCC ID DoC 56S…

Text truncated - open the document above for the full version.

EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S030405/01_CORR01 SAR Test Setup Photographs SAR Test Setup At Flat Phantom – Closer View (EUT Rear To Phantom, 15mm spacing) 15 mm EUT EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S030405/01_CORR01 SAR Test Setup Photographs SAR Test Setup At Flat Phantom – Closer View (EUT Front Touched Phantom) SAR Test Setup At Flat Phantom – Closer View (EUT Rear Touched Phantom) 19.3 mm EUT 1.6 mm EUT

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 2 von 20 Page 2 of 20 1 Test Summary 7.1.1 ANTENNA CONNECTOR SUBCLAUSE 15.203 7.1.2 A NTENNA TYPE SUBCLAUSE 15.204 7.1.3 DISTURBANCE VOLTAGE ON AC MAINS SUBCLAUSE 15.207(A) RESULT: N/A Limit Subclause 15.207(a) 7.1.4 C ARRIER FREQUENCY SEPERATION SUBCLAUSE 15.247(A)(1) Limit Subclause 15.247(a)(1) 7.1.5 D WELL TIME SUBCLAUSE 15.247(A)(1)(III) RESULT: Pass Limit Subclause 15.247(a)(1)(iii) 7.1.6 20DB BANDWIDTH SUBCLAUSE 15.247(A)(1) RESULT: Pass Limit Subclause 15.247(a)(1)(ii) 7.1.7 HOPPING SEQUENCE SUBCLAUSE 15.247(A)(1) 7.1.8 R ECEIVER INPUT BANDWIDTH SUBCLAUSE 15.247(A)(1) 7.1.9 PEAK OUTPUT POWER SUBCLAUSE 15.247(B)(1) RESULT: Pass Limit Subclause 15.247(b)(1) 7.1.10 B AND EDGE COMPLIANCE SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.11 S PURIOUS CONDUCTED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.12 S PURIOUS RADIATED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 3 von 20 Page 3 of 20 2 Contents 1 TEST SUMMARY..................................................................................................................2 2 C ONTENTS...........................................................................................................................3 3 GENERAL REMARKS...........................................................................................................4 3.1 COMPLEMENTARY MATERIALS..........................................................................................4 4 TEST SITES..........................................................................................................................4 4.1 TEST FACILITIES.................................................................................................................4 4.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS............................................................5 5 GENERAL PRODUCT INFORMATION...................................................................................6 5.1 PRODUCT FUNCTION AND INTENDED USE..........................................................................6 5.2 R ATINGS AND SYSTEM DETAILS.........................................................................................6 5.3 INDEPENDENT OPERATION MODES....................................................................................6 5.4 SUBMITTED DOCUMENTS....................................................................................................7 6 T EST SET-UP AND OPERATION MODE................................................................................7 6.1 P RINCIPLE OF CONFIGURATION SELECTION.....................................................................7 6.2 T EST OPERATION AND TEST SOFTWARE............................................................................7 6.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................7 7 T EST RESULTS.....................................................................................................................7 7.1.1 Antenna connector Subclause 15.203 ........................................................................................................ 8 7.1.2 Antenna type Subclause 15.204.................................................................................................................. 8 7.1.3 Disturbance voltage on AC mains Subclause 15.207(a) ............................................................................9 7.1.4 Carrier frequency seperation Subclause 15.247(a)(1).............................................................................10 7.1.5 Dwell time Subclause 15.247(a)(1)(iii) .................................................................................................... 11 7.1.6 20dB bandwidth Subclause 15.247(a)(1) ................................................................................................. 12 7.1.7 Hopping sequence Subclause 15.247(a)(1).............................................................................................. 13 7.1.8 Receiver input bandwidth Subclause 15.247(a)(1) .................................................................................. 14 7.1.9 Peak output power Subclause 15.247(b)(1) ............................................................................................. 15 7.1.10 Band edge compliance Subclause 15.247(c) .......................................................................................16 7.1.11 Spurious conducted emissions Subclause 15.247(c) ........................................................................... 17 7.1.12 Spurious radiated emissions Subclause 15.247(c) .............................................................................. 19 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 4 von 20 Page 4 of 20 3 General Remarks 3.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT Photos Appendix 4: FCCID Label, Block Diagram and Schematics 4 Test Sites 4.1 Test Facilities Hong Kong Productivity Council HKPC Building 78 Tat Chee Avenue Kowloon Hong Kong TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 5 von 20 Page 5 of 20 4.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESH-3 890173/033 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 2 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 1 von 2 Page 1 of 2 1.1 Test set-up (Spurious Radiated Emissions) TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 2 Prüfbericht - Nr.: Test Report No. 14003059 001 Seite 2 von 2 Page 2 of 2
