QXZCFPA-001ABluetooth Compact Flash Card (Class 1)

Bluetooth™ CompactFlash Adapter Users’ Guide The easy way to add Bluetooth functionality to: o Microsoft ® Windows 2000® o Microsoft ® Windows 98 SE® o Microsoft ® PocketPC ® o Microsoft ® PocketPC 2002 ® o Microsoft ® CE.NET ® (future support) GigaWaveTech (Pte) Ltd (a member of schmidt electronics asia) DISCLAIMER: This manual is published by Gigawavetech Pte Ltd, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to equipment may be made by Gigawavetech Pte Ltd at any time and without notice. Such changes will however be incorporated into new editions of this manual. Hardware, software and firmware mentioned in this document are subject to continuous development and improvement. Consequently, there may be discrepancies between the information in this document and the performance and design of the product. Table of Contents Chapter 1: Introduction......................................................................................4 Installation Overview – PocketPC/PocketPC 2002............................................4 Installation Overview – Windows 2000, Windows 98 SE...................................4 Minimum System Requirements........................................................................5 Chapter 2 Windows 2000 Driver installation & removal...................................6 Step 1: Copy the files to a hard disk directory..........................................6 Step 2: Inserting the Card........................................................................6 Step 3: Driver installation.........................................................................7 Step 4: Completing the Installation...........................................................8 Step 5: Configuring the driver...................................................................8 Step 7: Reboot the system.....................................................................10 Step 8: Driver Removal – only if you wish to remove the driver.............10 Chapter 3 Pocket PC 2002 Driver installation & removal...............................11 Step 1 (optional) Card validation and mobile computer functionality check 11 Step 2 Preparing for Driver installation.....................................................11 Step 3 Driver installation...........................................................................12 Step 4 Driver removal – only if you wish to remove the drivers................12 Chapter 4: Basic Troubleshooting Guide........................................................14 Chapter 5: Specifications................................................................................15 Chapter 6: Useage & Safety Considerations...................................................17 Appendix A: Limited Product Warranty..........................................................19 Copyright Notice.................................................................................................21 Regulatory Compliance Notice...........................................................................22 Life Support Policy..............................................................................................23 CHAPTER 1: INTRODUCTION Congratulations on the purchase of your GigaWaveTech Type 1 Bluetooth CompactFlash adapter. This adapter will allow you to easily add Bluetooth functionality to your handheld PC, running Microsoft® PocketPC ® , PocketPC 2002 ® or and Windows CE.NET ®. This adapter will also allow you to easily add Bluetooth functionality to a desktop/laptop PC running Microsoft Windows98 SE and Windows 2000. A CF-PCMCIA adapter quickly and easily allows the use of this card in a standard PCMCIA/PC-Card slot The CF card package includes: o Drivers on a driver disk o Installation guide (this document) This Users’ Guide shows you how to quickly install the drivers. The following graphics show the GUI for PocketPC 2002 and Windows 2000; however, the operation is the same for PocketPC and Windows 98 SE respectively. Installation Overview – PocketPC/PocketPC 2002 1. Important: Read chapter on “Useage and Safety Considerations” before first using the card 2. Turn on the mobile computer 3. Copy the drivers into the mobile computer via ActiveSync and install the drivers. 4. Insert card into available CompactFlash (CF) slot 5. Drivers will be loaded. Installation Overview – Windows 2000, Windows 98 SE 1. Important: Read chapter on “Useage and Safety Considerations” before first using the card 2. Turn on the computer 3. Copy driver files into a directory of your choice. 4. Insert card into a CF-to-PC-Card adapter, then insert both into an available PCMCIA or PC-Card slot. 5. When prompted, request Windows to do a search for drivers. Then, point driver source to directory where files were earlier copied to. Follow the on-screen instructions. Minimum System Requirements o Operating System: ­ Pocket PC (PPC) or Pocket PC 2002(PPC 2002) using Intel StrongArm SA1110 processor. ­ Microsoft Windows 2000 Professional or Server Edition. ­ Microsoft Windows 98 SE o Hardware: ­ PPC or PPC2002: • PPC or PPC2002 with available CompactFlash slot ­ Windows 2000 or Windows 98 SE: • Computer with available CF card slot • CF to PCMCIA card adapter CHAPTER 2 WINDOWS 2000 DRIVER INSTALLATION & REMOVAL This chapter covers the steps you need to take to install the card and its drivers. It also covers the procedure on how to remove the drivers, if desired. Step 1: Copy the files to a hard disk directory • Create a directory in your local hard disk (e.g. C:\GWTBTCF) and copy all the files located under \GWTBTCF of the GWTBTCF Driver Disk into this newly created directory. Step 2: Inserting the Card • Fit the GigaWaveTech Bluetooth CF Card into a CF-PCMCIA Card adapter, as shown on the right. Push it in firmly and ensure it is seated properly • Insert the GigaWaveTech Bluetooth CF Card (fitted into the CF-PCMCIA ada…

Text truncated - open the document above for the full version.

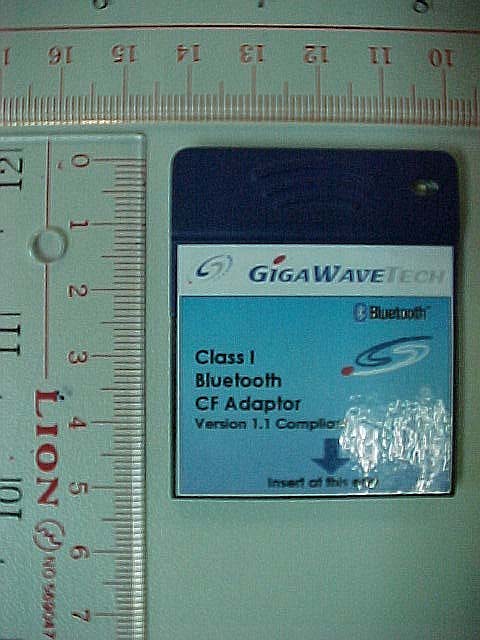

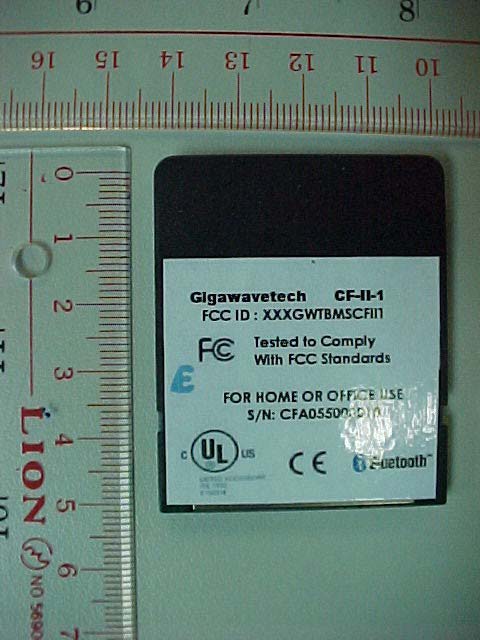

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 1 von 6 Page 1 of 6 Gigawavetech – CF-II-1 Bluetooth CF Adapter (Class 1) Front side of external view: TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 2 von 6 Page 2 of 6 Rear side of external view: TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 3 von 6 Page 3 of 6 Side view of external view:

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 1 von 11 Page 1 of 11 1.1 FCCID Label Artwork Front Label (Not to Scale) Back Label (Not to Scale) Illustration of the fixing of the Front and FCC Label on the CF Card Fix FCC Label HereFix Top Label Here

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 2 von 11 Page 2 of 11 2.1 Description of Circuit Function 2.1.1 General Description Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. The Bluetooth system consists of a radio unit, a link control unit, and a support unit for link management and host terminal interface functions. 2.1.2 Specific Information about the RF module The Bluetooth Radio PMB 8760 from Infineon is a short-range microwave frequency radio transceiver for Bluetooth communication links. Provided in a compact LFBGA package. The Bluetooth Radio offers a combination of compact size, low power consumption, and cost effective assembly. The PMB 8760 integrates a 13 MHz low power oscillator with on-chip PLL and a voice encoding (PCM, CVSD). There is a on-chip 2.4 GHz RF driver amplifier with 4 dBm output power. State-of-the-art CMOS technology is used.

TEST REPORT Your Ref:Date: 6 Jun 2003 Our Ref: 56S030405/01_CORR01 Page: 1 of 18 DID: 68851464 Fax: 67741459 LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline 6885 1333 • Fax 6775 9725 • Email [email protected] • Website www.psbcorp.com NOTE: This Report is issued subject to the “ Terms and Conditions Governing Technical Services” set out in the “Request for Technical Services” form. The terms and conditions governing the issue of this report are set out overleaf. COMPLIANCE REPORT ON TESTING IN ACCORDANCE WITH SAR (SPECIFIC ABSORPTION RATE) REQUIREMENTS Supplement C (Edition 01-01) FCC OET Bulletin 65 (Edition 97-01) OF A Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 APPLICANT Mr. Chua Teck Chuan GigaWaveTech Pte Ltd No 1 Jalan Kilang Timor, #07-02, Pacific Tech Centre Singapore 159303 Tel: (65) 63774801Fax: (65) 63750966 JOB NUMBER 56S030405 TEST PERIOD 4 Jun 2003 - 5 Jun 2003 PREPARED BYAPPROVED BY ____________________ Gary Ng Ah Chye Associate Engineer ____________________ Benjamin Foo Assistant Vice President April 2002Page 2 of 18 This Report is issued under the following conditions: 1. Results of the testing/calibration in the form of a report will be issued immediately after the service has been completed or terminated. 2. Unless otherwise requested, a reported shall contain only technical results. Analysis and interpretation of the results and professional opinion and recommendations expressed thereupon, if required, shall be clearly indicated and additional fee paid for, by the Client. 3. This report is not a Certificate of Quality. It only applies to the sample of the specific product/equipment given at the time of its testing/calibration. The results are not used to indicate or imply that they are application to other similar items. In addition, such results must not be used to indicate or imply that PSB Corporation approves, recommends or endorses the manufacturer, supplier or user of such product/equipment, or that PSB Corporation in any way “guarantees” the later performance of the product/equipment. 4. The sample/s mentioned in this report is/are submitted/supplied/manufactured by the Client, PSB Corporation therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture, consignment or any information supplied. 5. Additional copies of the report are available to the Client at an additional fee. No third party can obtain a copy of this report through PSB Corporation, unless the Client has authorised PSB Corporation in writing to do so. 6. PSB Corporation may at its sole discretion add to amend the conditions of the report at the time of issue of the report and such report and such additions or amendments shall be binding on the Client. 7. All copyright in the report shall remain with PSB Corporation and the Client shall, upon payment of PSB Corporation’s fees for the carrying out of the tests/calibrations, be granted a license to use or publish the report to the third parties subject to the terms and conditions herein, provided always that PSB Corporation may at its absolute discretion be entitled to impose such conditions on the license as it sees fit. 8. Nothing in this report shall be interpreted to mean that PSB Corporation has verified or ascertained any endorsement or marks from any testing authority or bodies that may be found on that sample. 9. This report shall not be reproduced wholly or in parts and no reference shall be made by the Client to PSB Corporation or to the report or results furnished by PSB Corporation in any advertisements or sales promotion. 56S030405/01_CORR01GigaWaveTech Pte LtdPage 3 of 18 Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS Test Setup EUT Photographs ANNEX C-TISSUE SIMULANT DATA SHEETS ANNEX D-SAR VALIDATION RESULTS ANNEX E-CALIBRATION CERTIFICATES Validation Dipole Calibration Certificates SAR Probe Calibration Certificates ANNEX F-REFERENCES 56S030405/01_CORR01GigaWaveTech Pte LtdPage 4 of 18 Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] TEST SUMMARY The product was tested in accordance with the following standards. Test Results Summary Test StandardsDescriptionPass / Fail • Supplement C (Edition 01-01) to FCC OET Bulletin 65 (Edition 97-01) • ANSI/IEEE Standard C95.1-1993 SAR Measurement (Device at body phantom) Pass > Note: 1. The worst-case SAR value was found to be 0.928W/kg which is lower than the maximum limit of 1.60 W/kg, over 1g of tissue . >Based on spatial peak uncontrolled exposure / general population level: Head: 1.60 W/kg, over 1g of tissue. Body: 1.60 W/kg, over 1g of tissue. Modification No modification was made. 56S030405/01_CORR01GigaWaveTech Pte LtdPage 5 of 18 Bluetooth Class 1 Compact Flash Adapter [ Model: CFPA-001 ] DEVICE DESCRIPTION Compact Flash Adapter (EUT) DESCRIPTION Compact Flash Adapter (EUT) Description The Equipment Under Test (EUT) is a Bluetooth Class 1 Compact Flash Adapter Compact Flash Adapter (EUT) Test Device Type Identical Prototype Compact Flash Adapter (EUT) Model CFPA-001 Compact Flash Adapter (EUT) Brand Name GigaWaveTech Compact Flash Adapter (EUT) Serial Numbers Labelled as " CFA055000017 " Compact Flash Adapter (EUT) FCC ID QXZCFPA-001 PDA (Host) DESCRIPTION PDA (Host) Device Category Portable Device (Pocket PC - iPAQ 3850) PDA (Host) Exposure Environment General Population/Uncontrolled exposure PDA (Host) FCC ID DoC 56S…

Text truncated - open the document above for the full version.

EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S030405/01_CORR01 SAR Test Setup Photographs SAR Test Setup At Flat Phantom – Closer View (EUT Rear To Phantom, 15mm spacing) 15 mm EUT EUT PHOTOGRAPHS / DIAGRAMS ANNEX B 56S030405/01_CORR01 SAR Test Setup Photographs SAR Test Setup At Flat Phantom – Closer View (EUT Front Touched Phantom) SAR Test Setup At Flat Phantom – Closer View (EUT Rear Touched Phantom) 19.3 mm EUT 1.6 mm EUT

GigaWaveTech Pte LtdPage 1 of 20 SAR SYSTEM VALIDATION DATA (Additional Information for GigaWaveTech Pte Ltd) Reference to Test Report Nos.: 56S030405/01_CORR01 TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 APPLICANT Mr. Chua Teck Chuan GigaWaveTech Pte Ltd No 1 Jalan Kilang Timor, #07-02, Pacific Tech Centre Singapore 159303 Tel: (65) 63774801Fax: (65) 63750966 JOB NUMBER 56S030405 TEST PERIOD 15 Oct 2003 PREPARED BY ____________________ Gary Ng Ah Chye Associate Engineer Date prepared 15 Oct 2003 GigaWaveTech Pte LtdPage 2 of 20 TABLE OF CONTENTS TEMPERATURE AND HUMIDITY TEST INSTRUMENTATION TISSUE SIMULANT DATA SHEETS SAR VALIDATION RESULTS CALIBRATION CERTIFICATES Validation Dipole Calibration Certificates SAR Probe Calibration Certificates GigaWaveTech Pte LtdPage 3 of 20 TEMPERATURE AND HUMIDITY SAR System re-validation on 15 Oct 2003 TEMPERATURE AND HUMIDITY Ambient Temperature: 24 ± 1 0 C Tissue Temperature: 24 ± 1 0 C Humidity:53% to 58% TEST INSTRUMENTATION GigaWaveTech Pte LtdPage 4 of 20 ELECTRICAL CHARACTERISTIC MEASUREMENT SETUP • Description of the Agilent 85070D Dielectric Probe Kit The 85070D is a dielectric probe that is used to measure the intrinsic electrical properties of materials in the RF and microwave frequency bands. The 85070D software allows you to measure the complex dielectric constant (also called permittivity) of liquids and semi- solids, incuding the dielectric loss factor of loss tangent. To obtain data at hundreds of frequencies in seconds, simply immerse the probe into liquids or semi-solids - no special fixtures or containers are required. The 85070D must be used in conjunction with an Agilent network analyzer. The network analyzer provides the high frequency stimulus, and measures the reflected response. The probe transmits a signal into the material under test (MUT). The measured reflected response from the materials is then related to its dielectric properties. A computer controls the system, and runs software that guides the user through a measurement sequence. An effort is made to keep the results dielectric constant and conductivity within 5 % of published data. TEST INSTRUMENTATION GigaWaveTech Pte LtdPage 5 of 20 The following test equipment were used during the SAR System Re-validation at 2450MHz Head and Body System Validation. Instrument ModelS/NoCal Due Date Boonton RF Power Meter (Dual Channel)45329770125 June 2004  Boonton Power Sensor (used as reference)5107531534-  Boonton Power Sensor510753200225 June 2004  HP Spectrum Analyzer 8593E3831u020871 Sept 2004  S-Parameter Network Analyzer (30kHz – 6GHz) 8753ESMY400010263 Oct 2004  Agilent 85070D Dielectric Probe Kit 85075D21356-  HP Signal Generator (10MHz – 20GHz) 83620A250A0159A16 July 2005  Amplifier Research Power Amplifier (800MHz – 4.2GHz) 25S1G4A29346-  Agilent Dual Directional CouplerHP778D18289-  2450MHz System Validation DipoleD2450V271525 Sept 2004  Data Acquisition Electronics (DAE)DAE3V147511 Nov 2003  Dosimetric E-field ProbeET3DV616459 Oct 2004  TISSUE SIMULANT DATA SHEETS GigaWaveTech Pte LtdPage 6 of 20 Type of TissueHeadBody Target Frequency (MHz) 24502450 Target Dielectric Constant 39.252.7 Target Conductivity (S/m) 1.801.95 Composition (by weight) Ultra Pure Water (55.67 %) Ethanol (42.52%) Sugar (0%) Salt (0%) HEC (0%) Preventol D7 (1.81%) Ultra Pure Water (71.19%) Ethanol (26.83%) Sugar (0%) Salt (0.11%) HEC (0%) Preventol D7 (1.87%) Measured Dielectric Constant 40.2454.43 Measured Conductivity (S/m) 1.85662.0017 Probe Name Dosimetric E-field Probe ET3DV6 Dosimetric E-field Probe ET3DV6 Probe Serial Number 16451645 Sensor Offset (mm) 2.72.7 Conversion Factor 5.1 ± 9.5%4.7 ± 9.5% Probe Calibration Due Date (DD/MM/YY) 9 Oct 20049 Oct 2004 TISSUE SIMULANT DATA SHEETS GigaWaveTech Pte LtdPage 7 of 20 Head Tissue at 2450MHz Frequencye'e''Conductivity 244000000040.2813.621.8460 Tested by: NAC 244100000040.2613.611.8457 Date : 15th Oct 2003 244200000040.2713.611.8461 Frequency: 2450MHz 244300000040.2613.611.8478 Mixture: Head Tissue 244400000040.2613.621.8499 Tissue temp: 24°C 244500000040.2613.641.8525 244600000040.2513.631.8521 244700000040.2613.631.8535 Composition 244800000040.2413.641.8551 Tap Water 0.0g0.00% 244900000040.2413.641.8556 245000000040.2413.641.8566 Ultra Pure Water 20000.0g55.67% 245100000040.2213.651.8586 245200000040.2213.641.8587 Sugar 0.0g0.00% 245300000040.2213.661.8613 245400000040.2313.651.8606 Glyco 15278.0g42.52% 245500000040.2213.651.8619 245600000040.2113.661.8644 Salt 0.0g0.00% 245700000040.2113.661.8645 245800000040.2213.661.8655 Preventol D7 650.0g1.81% 245900000040.2013.661.8662 246000000040.2013.651.8661 Total Weight 35928.0g100.0% 246100000040.1813.661.8671 246200000040.1813.661.8680 246300000040.1813.671.8706 246400000040.1813.671.8715 Result (FCC)DielectricConductivity 246500000040.1713.691.8745 Constant 246600000040.1813.681.8742 Measured 40.241.8566 246700000040.1613.681.8743 Target (FCC) 39.21.8 246800000040.1713.681.8753 Low Limit 37.241.71 246900000040.1613.691.8776 High Limit 41.161.89 247000000040.1513.691.8781 % Off Target 2.653.14 247100000040.1513.691.8796 247200000040.1413.701.8817 247300000040.1413.691.8814 247400000040.1413.701.8835 247500000040.1213.701.8839 247600000040.1413.701.8852 247700000040.1213.711.8868 247800000040.1313.711.8875 247900000040.1013.721.8889 248000000040.1213.741.8928 (e' = Dielectric Constant) (e" = Loss Factor) TISSUE SIMULANT DATA SHEETS GigaWaveTech Pte LtdPage 8 of 20 Body Tissue at 2450MHz Frequencye'e''Conductivity 244000000054.4914.882.0165 Tested by: NAC 244100000054.4814.862.0157 Date : 15th Oct 2003 244200000054.4914.842.0128 Frequency: 2450MHz 244300000054.4914.822.0115 Mixture: Body Tissue 244400000054.4914.822.0123 Tissue temp: 24°C 244500000054.4914.792.0093 244600000054.4914.792.0091 244700000054.4714.752.0057 Composition 244800000054.4614.742.0049 Tap Water 0.0g0.00% 244900000054.4414.712.0007 245000000054.4314.…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 2 von 19 Page 2 of 19 1 Test Summary 7.1.1 ANTENNA CONNECTOR SUBCLAUSE 15.203 7.1.2 ANTENNA TYPE SUBCLAUSE 15.204 7.1.3 DISTURBANCE VOLTAGE ON AC MAINS SUBCLAUSE 15.207(A) RESULT: N/A Limit Subclause 15.207(a) 7.1.4 C ARRIER FREQUENCY SEPERATION SUBCLAUSE 15.247(A)(1) Limit Subclause 15.247(a)(1) 7.1.5 DWELL TIME SUBCLAUSE 15.247(A)(1)(III) RESULT: Pass Limit Subclause 15.247(a)(1)(iii) 7.1.6 20DB BANDWIDTH SUBCLAUSE 15.247(A)(1) RESULT: Pass Limit Subclause 15.247(a)(1)(ii) 7.1.7 H OPPING SEQUENCE SUBCLAUSE 15.247(A)(1) 7.1.8 RECEIVER INPUT BANDWIDTH SUBCLAUSE 15.247(A)(1) 7.1.9 PEAK OUTPUT POWER SUBCLAUSE 15.247(B)(1) RESULT: Pass Limit Subclause 15.247(b)(1) 7.1.10 B AND EDGE COMPLIANCE SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.11 SPURIOUS CONDUCTED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.12 SPURIOUS RADIATED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 3 von 19 Page 3 of 19 2 Contents 1 TEST SUMMARY..................................................................................................................2 2 CONTENTS...........................................................................................................................3 3 GENERAL REMARKS...........................................................................................................4 3.1 COMPLEMENTARY MATERIALS..........................................................................................4 4 TEST SITES..........................................................................................................................4 4.1 TEST FACILITIES.................................................................................................................4 4.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................5 5 GENERAL PRODUCT INFORMATION...................................................................................6 5.1 PRODUCT FUNCTION AND INTENDED USE..........................................................................6 5.2 RATINGS AND SYSTEM DETAILS.........................................................................................6 5.3 INDEPENDENT OPERATION MODES....................................................................................6 5.4 SUBMITTED DOCUMENTS....................................................................................................7 6 TEST SET-UP AND OPERATION MODE................................................................................7 6.1 P RINCIPLE OF CONFIGURATION SELECTION.....................................................................7 6.2 T EST OPERATION AND TEST SOFTWARE............................................................................7 6.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................7 7 TEST RESULTS.....................................................................................................................7 7.1.1 Antenna connector Subclause 15.203 ........................................................................................................ 8 7.1.2 Antenna type Subclause 15.204.................................................................................................................. 8 7.1.3 Disturbance voltage on AC mains Subclause 15.207(a) ............................................................................9 7.1.4 Carrier frequency seperation Subclause 15.247(a)(1).............................................................................10 7.1.5 Dwell time Subclause 15.247(a)(1)(iii) .................................................................................................... 11 7.1.6 20dB bandwidth Subclause 15.247(a)(1) ................................................................................................. 12 7.1.7 Hopping sequence Subclause 15.247(a)(1).............................................................................................. 13 7.1.8 Receiver input bandwidth Subclause 15.247(a)(1) .................................................................................. 14 7.1.9 Peak output power Subclause 15.247(b)(1) ............................................................................................. 15 7.1.10 Band edge compliance Subclause 15.247(c) .......................................................................................16 7.1.11 Spurious conducted emissions Subclause 15.247(c) ........................................................................... 17 7.1.12 Spurious radiated emissions Subclause 15.247(c) .............................................................................. 18 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 4 von 19 Page 4 of 19 3 General Remarks 3.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT Photos Appendix 4: FCCID Label, Block Diagram and Schematics 4 Test Sites 4.1 Test Facilities Hong Kong Productivity Council HKPC Building 78 Tat Chee Avenue Kowloon Hong Kong TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14004100 001 Seite 5 von 19 Page 5 of 19 4.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESH-3 890173/033 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS-21 979 3/…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14004100 002 Seite 2 von 19 Page 2 of 19 1 Test Summary 7.1.1 ANTENNA CONNECTOR SUBCLAUSE 15.203 7.1.2 A NTENNA TYPE SUBCLAUSE 15.204 7.1.3 DISTURBANCE VOLTAGE ON AC MAINS SUBCLAUSE 15.207(A) RESULT: N/A Limit Subclause 15.207(a) 7.1.4 C ARRIER FREQUENCY SEPERATION SUBCLAUSE 15.247(A)(1) Limit Subclause 15.247(a)(1) 7.1.5 D WELL TIME SUBCLAUSE 15.247(A)(1)(III) RESULT: Pass Limit Subclause 15.247(a)(1)(iii) 7.1.6 20DB BANDWIDTH SUBCLAUSE 15.247(A)(1) RESULT: Pass Limit Subclause 15.247(a)(1)(ii) 7.1.7 HOPPING SEQUENCE SUBCLAUSE 15.247(A)(1) 7.1.8 R ECEIVER INPUT BANDWIDTH SUBCLAUSE 15.247(A)(1) 7.1.9 PEAK OUTPUT POWER SUBCLAUSE 15.247(B)(1) RESULT: Pass Limit Subclause 15.247(b)(1) 7.1.10 B AND EDGE COMPLIANCE SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.11 S PURIOUS CONDUCTED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.12 S PURIOUS RADIATED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14004100 002 Seite 3 von 19 Page 3 of 19 2 Contents 1 TEST SUMMARY..................................................................................................................2 2 C ONTENTS...........................................................................................................................3 3 GENERAL REMARKS...........................................................................................................4 3.1 COMPLEMENTARY MATERIALS..........................................................................................4 4 TEST SITES..........................................................................................................................4 4.1 TEST FACILITIES.................................................................................................................4 4.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS............................................................5 5 GENERAL PRODUCT INFORMATION...................................................................................6 5.1 PRODUCT FUNCTION AND INTENDED USE..........................................................................6 5.2 R ATINGS AND SYSTEM DETAILS.........................................................................................6 5.3 INDEPENDENT OPERATION MODES....................................................................................6 5.4 SUBMITTED DOCUMENTS.............................…

Text truncated - open the document above for the full version.
