Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Audio Communicator (Receiver Part) MODEL NO.: XA1 TRADE NAME: Wideye IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D921103R02 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Addvalue Communications Pte Ltd. To Be Determined. Address: 750D Chai Chee Road #03-03 Technopark @ Chai Chee Singapore 469004 Contact Person: Anitha Title: Senior Engineer Tel/Fax: + 886 65-244-4828 + 886 65-242-4555

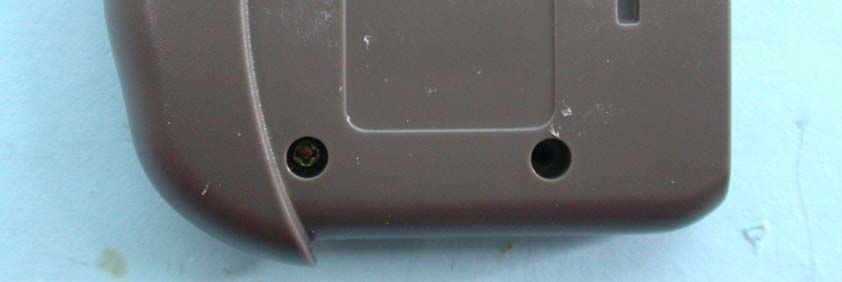

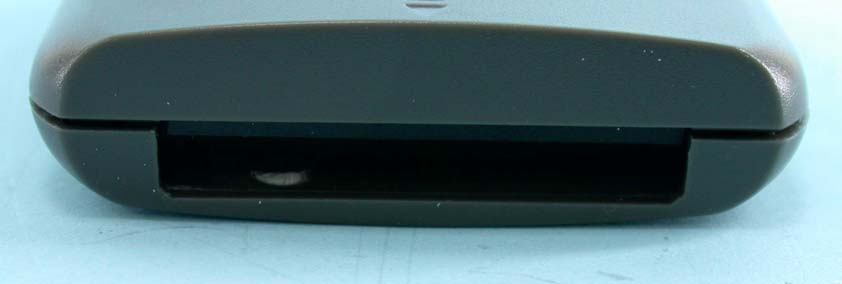

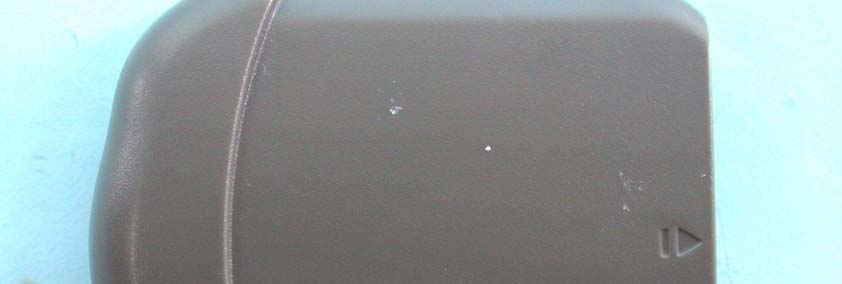

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3
Label Location
Page 4 Page 5
FCC ID: QY9-GCXC1B Report No.: RF921103R02 Operational Description The EUT is a Audio Communicator and powered by X-Box game Console. This device is. The antenna type is Integral loop antenna and there is no antenna connector used. The other instruction, please have a look at the users manual.
FCC ID: QY9-ACXA1B Report No.: RF921103R021Issued: Dec. 12, 2003 FCC TEST REPORT REPORT NO.: RF921103R02 MODEL NO.: XA1 RECEIVED: Nov. 03, 2003 TESTED: Nov. 04 ~ Dec. 11, 2003 APPLICANT: Addvalue Communications Pte Ltd. ADDRESS: 750D Chai Chee Road #03-03 Technopark @ Chai Chee Singapore 469004 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: QY9-ACXA1B Report No.: RF921103R022Issued: Dec. 12, 2003 Table of Contents 1CERTIFICATION ..................................................................................... 3 2SUMMARY OF TEST RESULTS ............................................................. 4 3.GENERAL INFORMATION...................................................................... 5 3.1GENERAL DESCRIPTION OF EUT ........................................................ 5 3.2DESCRIPTION OF TEST MODES .......................................................... 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ......................... 6 3.4DESCRIPTION OF SUPPORT UNITS .................................................... 7 3.5CONFIGURATION OF SYSTEM UNDER TEST..................................... 8 4.TEST TYPES AND RESULTS ................................................................. 9 4.1CONDUCTED EMISSION MEASUREMENT .......................................... 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................ 9 4.1.2TEST INSTRUMENTS............................................................................. 9 4.1.3TEST PROCEDURES ........................................................................... 10 4.1.4DEVIATION FROM TEST STANDARD ................................................. 10 4.1.5TEST SETUP ........................................................................................ 11 4.1.6EUT OPERATING CONDITIONS .......................................................... 11 4.1.7TEST RESULTS .................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ............................................. 16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ........................... 16 4.2.2TEST INSTRUMENTS........................................................................... 17 4.2.3TEST PROCEDURES ........................................................................... 18 4.2.4DEVIATION FROM TEST STANDARD ................................................. 18 4.2.5TEST SETUP ........................................................................................ 19 4.2.6EUT OPERATING CONDITIONS .......................................................... 19 4.2.7TEST RESULTS .................................................................................... 20 4.3BAND EDGES MEASUREMENT .......................................................... 25 4.3.1LIMITS OF BAND EDGES MEASUREMENT........................................ 25 4.3.2TEST INSTRUMENTS........................................................................... 25 4.3.3TEST PROCEDURE ............................................................................. 25 4.3.4EUT OPERATING CONDITION ............................................................ 25 4.3.5TEST RESULTS .................................................................................... 25 5.PHOTOGRAPHS OF THE TEST CONFIGURATION ............................ 28 6.INFORMATION ON THE TESTING LABORATORIES .......................... 30 FCC ID: QY9-ACXA1B Report No.: RF921103R023Issued: Dec. 12, 2003 1 CERTIFICATION PRODUCT : Audio Communicator MODEL NO.: XA1 BRAND: Wideye APPLICANT : Addvalue Communications Pte Ltd. TEST ITEM: ENGINEERING SAMPLE STANDARDS : FCC 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that four samples of the designation have been tested in our facility from Nov. 04 to Dec. 11, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: QY9-ACXA1B Report No.: RF921103R024Issued: Dec. 12, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is β15.71dB at 0.177MHz 15.209 15.249 Radiated Emission TestPASS Minimum passing margin is β3.37dB at 902.68MHz 15.249 Band Edge Measurement Limit: 50 dB less than the peak value of fundamental frequency PASS Meet the requirement of limit NOTE2: The information of measurement uncertainty is available upon the customerβs request. FCC ID: QY9-ACXA1B Report No.: RF921103R025Issued: Dec. 12, 2003 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Audio Communicator MODEL NO. XA1 BRAND Wideye POWER SUPPLY 5Vdc from X-Box game Console MODULATION TYPE FM CARRIER FREQUENCY OF EACH CHANNEL 902.70 ~ 906.75 MHz BANDWIDTH OF EACH CHANNEL 450kHz NUMBER OF CHANNEL 10 ANTENNA TYPE Integral Loop antenna (antenna gain: 1dBi) DATA CABLE NA I/O PORTS NA NOTE: 1. This EUT has function of autio data rate transmitter. During Xbox Live Online gaming where voice communication feature is present. 2. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: QY9-ACXA1B Report No.: RF921103R026Issued: Dec. 12, 2003 3.2 DESCRIPTION OF TEST MODES Ten chβ¦
Text truncated - open the document above for the full version.
FCC ID: QY9-ACXA1B Report No.: RF921103R0228Issued: Dec. 12, 2003 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QY9-ACXA1B Report No.: RF921103R0229Issued: Dec. 12, 2003 RADIATED EMISSION TEST
13-1 Lane 19 WenShan 3rd Street Β· Taoyuan Β· Taiwan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 902.7 MHz - 906.75 MHz | - |

Bluetooth Handset
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
WIDEYE SABRE 1
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Audio Communicator
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Bluetooth Pendant Headset
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
