QY9-ACXA1CAudio Communicator


 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Audio Communicator (Receiver Part) MODEL NO.: XA1 TRADE NAME: Wideye IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D921103R01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Addvalue Communications Pte Ltd. To Be Determined. Address: 750D Chai Chee Road #03-03 Technopark @ Chai Chee Singapore 469004 Contact Person: Anitha Title: Senior Engineer Tel/Fax: + 886 65-244-4828 + 886 65-242-4555

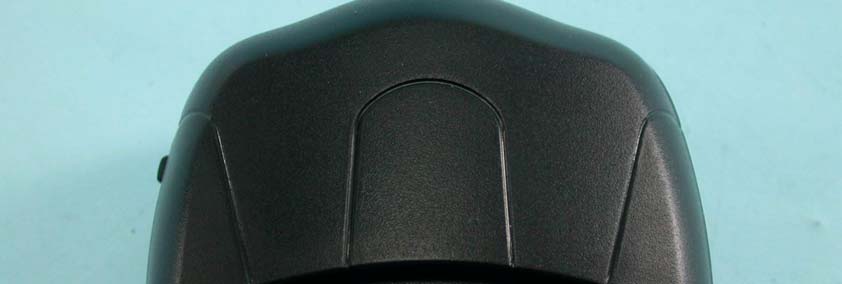

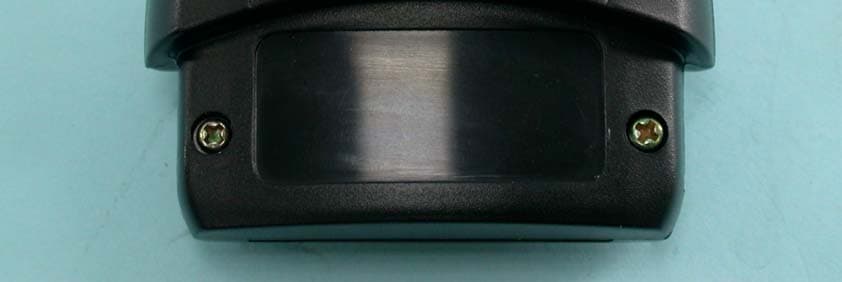

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: QY9-ACXA1C Report No.: RF921103R01 Operational Description The EUT is a Audio Communicator and powered by battery (taking from Addvalue 2.4GHz X-Box game controller). The antenna type is Integral (non-removable) Loop antenna with 1dBi gain without connector. The other instruction, please have a look at the users manual.

FCC ID: QY9-ACXA1C Report No.: RF921103R011Issued: March 18, 2004 FCC TEST REPORT REPORT NO.: RF921103R01 MODEL NO.: XA1 RECEIVED: November 3, 2003 TESTED: March 10 ~ 17, 2004 APPLICANT: Addvalue Communications Pte Ltd. ADDRESS: 750D Chai Chee Road #03-03 Technopark@Chai Chee Singapore 469004 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: QY9-ACXA1C Report No.: RF921103R012Issued: March 18, 2004 Table of Contents 1CERTIFICATION ..................................................................................... 3 2SUMMARY OF TEST RESULTS ............................................................. 4 3.GENERAL INFORMATION...................................................................... 5 3.1GENERAL DESCRIPTION OF EUT ........................................................ 5 3.2DESCRIPTION OF TEST MODES .......................................................... 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ......................... 6 3.4DESCRIPTION OF SUPPORT UNITS .................................................... 7 3.5CONFIGURATION OF SYSTEM UNDER TEST..................................... 8 4.TEST TYPES AND RESULTS ................................................................. 9 4.1CONDUCTED EMISSION MEASUREMENT .......................................... 9 4.2RADIATED EMISSION MEASUREMENT ............................................... 9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ............................. 9 4.2.2TEST INSTRUMENTS........................................................................... 10 4.2.3TEST PROCEDURES ........................................................................... 11 4.2.4DEVIATION FROM TEST STANDARD ................................................. 11 4.2.5TEST SETUP ........................................................................................ 12 4.2.6EUT OPERATING CONDITIONS .......................................................... 12 4.2.7TEST RESULTS .................................................................................... 13 4.3BAND EDGES MEASUREMENT .......................................................... 20 4.3.1LIMITS OF BAND EDGES MEASUREMENT........................................ 20 4.3.2TEST INSTRUMENTS........................................................................... 20 4.3.3TEST PROCEDURE ............................................................................. 20 4.3.4EUT OPERATING CONDITION ............................................................ 20 4.3.5TEST RESULTS .................................................................................... 20 5.PHOTOGRAPHS OF THE TEST CONFIGURATION ............................ 23 6.INFORMATION ON THE TESTING LABORATORIES .......................... 24 FCC ID: QY9-ACXA1C Report No.: RF921103R013Issued: March 18, 2004 1 CERTIFICATION PRODUCT : Audio Communicator MODEL NO.: XA1 BRAND: Wideye APPLICANT : Addvalue Communications Pte Ltd. TEST ITEM: ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.249), ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that four samples of the designation have been tested in our facility from March 10 to March 17, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. PREPARED BY:, DATE:March 18, 2004 APPROVED BY: Suntee Liu , DATE:March 18, 2004 Ellis Wu / Technical Manager FCC ID: QY9-ACXA1C Report No.: RF921103R014Issued: March 18, 2004 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply is 3.4Vdc from batteries 15.209 15.249 Radiated Emission TestPASS Minimum passing margin is –2.78dB at 655.93MHz 15.249 Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency PASS Meet the requirement of limit NOTE: The information of measurement uncertainty is available upon the customer’s request. FCC ID: QY9-ACXA1C Report No.: RF921103R015Issued: March 18, 2004 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Audio Communicator MODEL NO. XA1 BRAND Wideye POWER SUPPLY 3.4Vdc from battery (taking from Addvalue 2.4GHz X-Box game controller) MODULATION TYPE FM CARRIER FREQUENCY OF EACH CHANNEL 923.70~927.75MHz BANDWIDTH OF EACH CHANNEL 150kHz NUMBER OF CHANNEL 10 ANTENNA TYPE Integral (non-removable) Loop antenna with 1dBi gain DATA CABLE NA I/O PORTS NA NOTE: 1. The EUT has function of audio data rate transmitter. During X-Box Live Online gaming where voice communication feature is present. 2. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: QY9-ACXA1C Report No.: RF921103R016Issued: March 18, 2004 3.2 DESCRIPTION OF TEST MODES Ten channels are provided in the EUT ChannelFrequencyChannelFrequency 1923.70MHz6925.95MHz 2924.15MHz7926.40MHz 3924.60MHz8926.85MHz 4925.05MHz9927.30MHz 5925.50MHz10927.75MHz NOTE: 1. Below 1000MHz, the channel 1, 5 and10 were pre-tested in chamber. Channel 10, the worst case, were chosen for final test. 2. Above 1000MHz, the channel 1, 5 and 10 were tested individually. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is a Audio Communicator. According to the specifications of the manufacturer, it must comply with the requirements of the follow…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST
