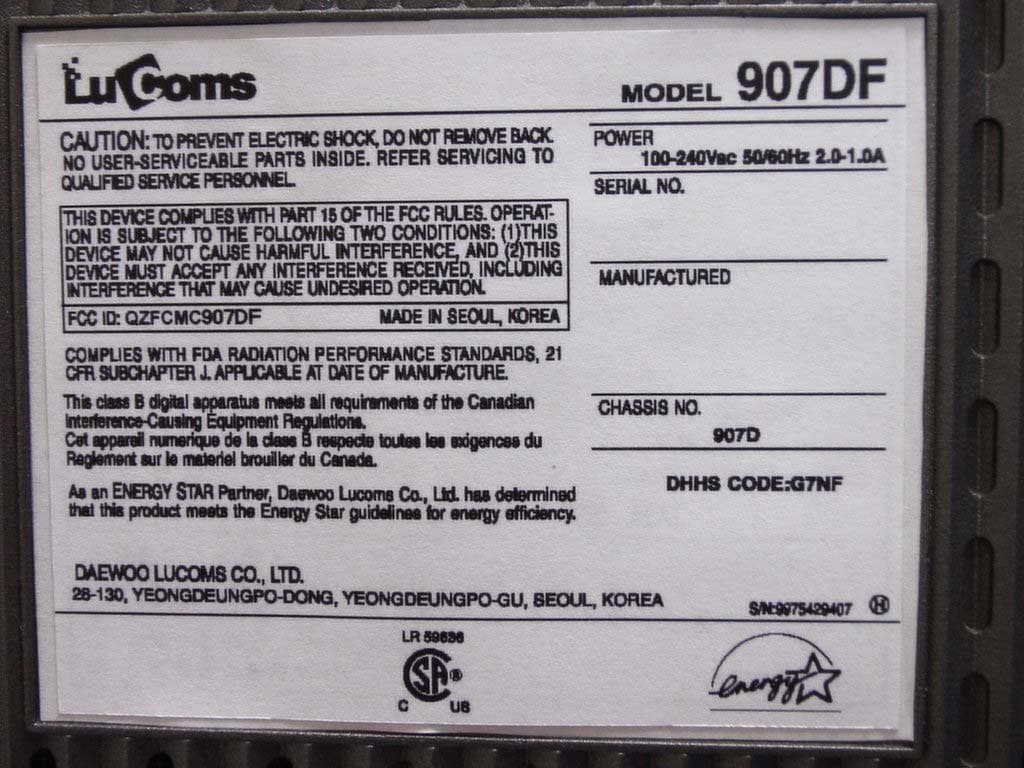

QZFCMC907DF19" Color Monitor

Hs-IN(30~95KHz) Vs-IN(50~160Hz) SDA SCL CLAMP BCL G1 FOCUS 907DF BLOCK DIAGRAM -130V SCREEN R/G/B ABL HIGH VOLTAGE +80V+185V+31V+14V SCL1 Hs-O Vs-O MUTE SDA1 SIGNAL IN VIDEO PRE AMP.+OSD LM1237 VIDEO OUT & BIASLM2465 + LM2480 CDT MCU NT6865 (12MHz) D-COIL POWER IN & FILTER CIRCUIT EEPROM 24LC08 H/V OSC & G/D CHOPPER CONTROL STV6888 SMPS KA3843B 2SK2545 BRIGHT CONTROL ABL CONTROL V-OUT TDA8172 H-OUT FJAF6815 D-FOCUS HIGH VOLTAGE 2SK2545 FBT SCL1 SDA1 DEGAUSS V-BLK H-FBP DY VIDEO B+MAIN B+GENERALGENERHT +6.5V 50~160Hz 30~95KHz

ID Label Sample & Location Information

File No. 03-IST-213/FB IST EMC LAB. Page 1 of 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 03-IST-213/FB Date of issue : Aug. 19, 2003 Model / Type No. : 907DF ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : 19” Monitor : LUCOMS : DAEWOO LUCOMS CO.,LTD. : WEIHAI DAEWOO ELECTRONICS CO.,LTD. : DAEWOO LUCOMS CO.,LTD. : Gaya-Venture B/D, 28-130, Yeongdeungpo-Dong, Yeongdeungpo-Gu, Seoul, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report with appendix consists of 16 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 03-IST-213/FB IST EMC LAB. Page 2 of 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Regulation Equipment under Test Test Conditions Test Result Measurement Uncertainty Test-setup Summary 2 3 3 4 5 ~ 6 7 8 9 ~ 11 17 B) Test Data. Conducted emissions (Mains) Radiated emissions : 150 kHz - 30 MHz : 30 MHz – 1 GHz 12 ~ 14 15 ~ 16 C) Appendix File No. 03-IST-213/FB IST EMC LAB. Page 3 of 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. File No. 03-IST-213/FB IST EMC LAB. Page 4 of 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : CDT 19inch Diagonal visible image area : 18-inch Dot Pitch : 0.24mm Synchronization : Vertical 50 ~ 160 Hz, Horizontal 30 ~ 95 kHz Plug and Plug : VESA DDC Compatible Power Saving : EPA, VESA DPMS, Nutek Compliant Power Comsumption : 90W Dimensions (W x H x D) : 444 x 459 x 458 mm (set with stand) Weight-unpacked(1bs/kg) : 45.6/20.7 Operating Temperature : 10 ~ 40 °C /50 ~ 104 °F EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : Scrolling “H” characters under MS Windows, at test mode of 1600 X 1200, 75 Hz Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No. PC Brio BA600/550 HP SG01301176 Keyboard SK-2502C HP M000375059 PS/2 Mouse M-S48A HP LZA00850320 Serial Mouse M-S428 Logitech LCA53305547 Printer A0302384 Northern Telecom 26633S60168 Connecting Interface Cables : - Unshielded AC power cable : 1.8 m - Unshielded DC power cable : 1.5 m - Shielded monitor’s signal cable : 1.5 m - Shielded printer’s signal cable : 1.8 m File No. 03-IST-213/FB IST EMC LAB. Page 5 of 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 22, 2003 892108/018 3725/2 LISN EMCO Jul. 23, 2003 9101-2068 KNW-407 LISN Hyup-Rip Jul. 23, 2003 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 23, 2003 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 03-IST-213/FB IST EMC LAB. Page 6 of 17 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde …
