QZGBL3006F-001BL3006F 2.4GHz WLAN ODU

Copyright Copyright © 2004 all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of the supplier. About This Manual The purpose of this manual is for the setup of the 11Mbps Wireless LAN ODU. This manual, revised as version 4.0.3 in 2004, includes procedures assisting you in avoiding unforeseen problems. Technical Support If you have difficulty resolving the problem while installing or using the Wireless LAN ODU, please contact the supplier for support. FCC Certified Declaration: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Reminder: To comply with FCC part 15 rules, the ODU must only be used as a system as FCC certified. The system must also be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in where FCC rules apply. Further, according to FCC Part 15 regulations, Section 15.247(b)(3)(iii), the installer must ensure that the high-gain directional antenna used in this system is used exclusively for fixed, point-to-point operations and that multiple co-located intentional radiators transmitting the same information are not used. For further information, please see Appendix B. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separation distance between the antenna and all persons’ body during normal operation. Table of Contents Chapter 1 Introduction..........................................................................5 1-1 Features and Benefits.............................................................................5 1-2 Applications..........................................................................................6 1-3 System Configurations...........................................................................7 Chapter 2 Hardware Installation.........................................................8 Chapter 2 Hardware Installation.........................................................9 2-1 Product Kit............................................................................................9 2-2 System Requirements.............................................................................9 2-3 Mechanical Description.......................................................................10 2-4 Hardware Installation..........................................................................11 Chapter 3 Configuring the ODU........................................................12 3-1 Configuration......................................................................................12 3-2 Using the Web Management................................................................. 25 3-3 Using the Telnet...................................................................................29 Appendix A: Channels................................................................................36 Appendix B: FCC Certified Systems...........................................................37 Appendix C: Troubleshooting.......................................................................1 Chapter 1 Introduction The Outdoor wireless LAN device – 11Mbps Wireless Outdoor Unit, are specially designed for Point-to-Point applications, offering long distance connections between buildings at a speed of up to 11Mbps. Fully compliant with IEEE802.11b standard, the Outdoor Unit (ODU) provides powerful features such as the Windows-based configuration utility, MAC address filtering, WEP security and more. 1-1 Features and Benefits n Creates a Point-to-Point connection linking two LANs, using 2 Indoor Units or Indoor and Outdoor total solutions. n Integrated antenna allows you for easy installing the Outdoor bridge. n With a data rate of 11Mbps and 5.5Mbps, the system is faster than an E1/T1 data link. n Features 11Mbps data rate by incorporating Direct Sequence Spread Spectrum technology. n Fully IEEE 802.11b compatible. Allow inter-operation among multiple vendors. n Technique operating in the unlicensed 2.4 GHz ISM band. n Seamless roaming within the 802.11 & 802.11b wireless LAN infrastructure. n Provides user authentication to enforce tight security. n MAC address Access Control. n Bandwidth control n Advanced Security 802.1x authentication (EAP) n Provides Window-based configuration utility. n Waterproof housing 1-2 Applications The 11Mbps Wireless LAN ODU offers a fast, reliable, cost-effective solution for wireless client access to the network in applications like these: 1. Remote Access to Corporate Network Information E-mail, file transfer and terminal emulation. 2. Difficult-to-Wire Environments Historical or old buildings, asbestos installations, and open area where wiring is difficult to deploy. 3. Frequently Changing Environments Retailers, manufacturers and those who frequently rearrange the workplace and change location. 4. Temporary LANs for Special Projects or Peak Time C1- Trade shows, exhibitions and construction sites where a temporary network will be practical. C2- Retailers, airline and shipping companies need additional workstations during…

Text truncated - open the document above for the full version.

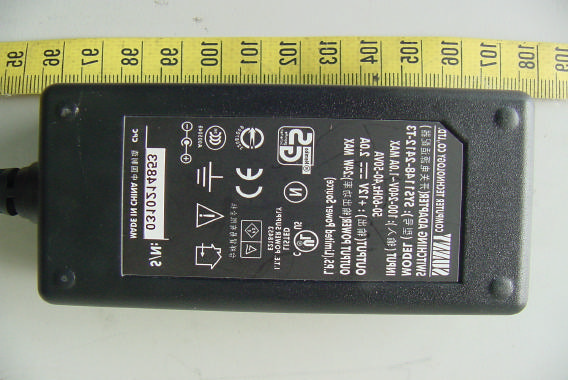

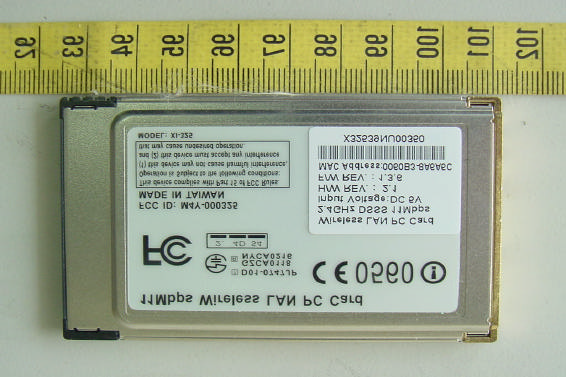

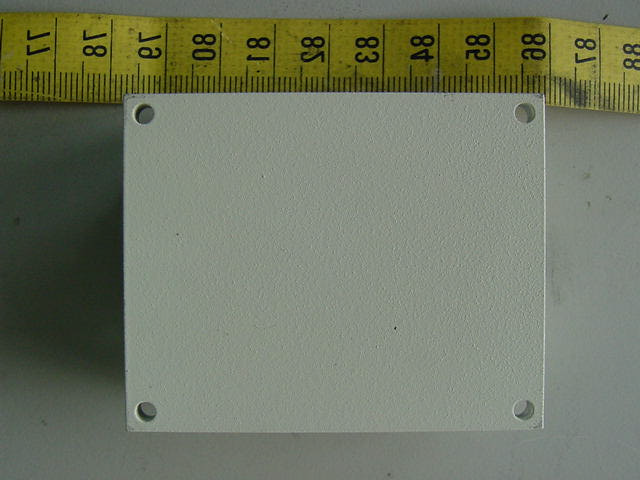

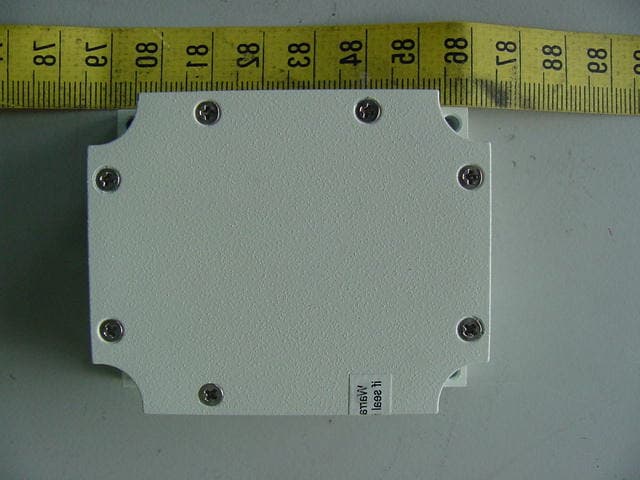

ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Wireless LAN Card Rear View of Wireless LAN Card ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Booster Rear View of Booster ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of Booster Side View of Booster ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of CR Fitter Rear View of CR Fitter ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of CR Fitter Side View of CR Fitter ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of DC Adaptor Rear View of DC Adaptor ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of DC Adaptor Side View of DC Adaptor ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of DC Adaptor ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor

This statement will be placed in User’s Manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. 2.4GHz 26dBm WLAN Radio Model No.:BL3006F FCC ID:QZGBL3006F-001 S/N:243006F03440001 4cm 2.5cm

ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Wireless LAN Card Component View of Wireless LAN Card ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Wireless LAN Card Solder View of Wireless LAN Card ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Booster ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Booster’s PCB Solder View of Booster’s PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of CR Fitter ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of CR Fitter’s PCB Solder View of CR Fitter’s PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Main PCB Component View of Main PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of LED’s PCB Solder View of LED’s PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of DC to DC PCB Solder View of DC to DC PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of DC Adaptor ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of DC Adaptor’s PCB Solder View of DC Adaptor’s PCB ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor ETC Report No. : ET93R-02-048 FCC ID.:QZGBL3006F-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

BL3006F BL3006F is outdoor Wireless LAN systems that offer excellent broadband communication in the temperature range of 0~60°C. This system is used for point-to-point radio frequency (RF) solution that connects multiple local area networks (LAN) among the different buildings. It supports up to 11Mbps data rate by incorporating DSSS(Direct Sequence Spread Spectrum) technology. Device Interface Ethernet Interface : IEEE 802.3 10/100 Base T ( RJ-45 ) Wireless Network Connection Standard: IEEE 802.11b Frequency Range: 2400-2484 MHz Data Rate : Supports up to 11 Mbps automatically Throughput: 5Mbps Typical Emission Type: Direct Sequence Spread Spectrum Channel : 11 channels Modulation : BPSK / QPSK / CCK Output power :26dBm Protocols Security: WEP Encryption 64-bit and 128-bit Network: SNMP, TCP/IP, IPX/SPX, NetBEUI Operating System Support Supports Windows 98/Me/2000/NT/XP Network Architecture PTP Connection ( point to point ) Power Requirements Input: AC 100-264V, 50-60Hz Physical Description ODU (350 w × 95 d × 350 h ) mm; 4.3 kg Operating Environment Operating Temperature : ODU (0 ~ 60°C ) Storage Temperature : -20 ~ 80°C Humidity Range: 85, non-condensing Gain 18dBi Beamwidth H17 E11 VSWR =1.4 Front to Back Ratio >30 Impedance 50O Specifications of ODU Specifications of Integrated Antenna n Creates a Point-to-Point connection linking two LANs, using 2 Indoor Units or Indoor and Outdoor total solutions. n Integrated antenna allows you for easy installing the Outdoor bridge. n With a data rate of 11Mbps and 5.5Mbps, the system is faster than an E1/T1 data link. n Features 11Mbps data rate by incorporating Direct Sequence Spread Spectrum technology. n Fully IEEE 802.11b compatible. Allow inter-operation among multiple vendors. n Technique operating in the unlicensed 2.4 GHz ISM band. n Seamless roaming within the 802.11 & 802.11b wireless LAN infrastructure. n Provides user authentication to enforce tight security. n MAC address Access Control. n Bandwidth control n Advanced Security 802.1x authentication (EAP) n Provides Window-based configuration utility. n Waterproof housing

FCC ID: QZGBL3006F-001 RF Exposure Evaluation of E.U.T. : BL3006F 2.4GHz WLAN ODU FCC ID. : QZGBL3006F-001 MODEL : BL3006F for APPLICANT : K-Best Technology Inc. ADDRESS : 2FI-1, No.185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET93R-02-048 FCC ID: QZGBL3006F-001 Product Information: Type of EUT: BL3006F 2.4GHz WLAN ODU FCC ID: QZGBL3006F-001 Manufacturer: K-Best Technology Inc. Model: BL3006F Description: The BL3006F 2.4GHz WLAN ODU designed with a transmitting method of direct sequence spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 11 Mbps. Maximum conducted output power (measured): 25.9 dBm or 389.05 mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric KBNT2418-16 Flat Panel 18.0 63.1 Below is an example of the RF Exposure Statement: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separation distance between the antenna and all persons’ body during normal operation. FCC ID: QZGBL3006F-001 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 614 1.63 *(100) 6 3-30 ..................... 1842/f 4.89/f *(900/f 2 ) 6 30-300 .................. 61.4 0.163 1.0 6 300-1500 ............... ...................... ...................... f/300 6 1500-100,000 ......... ...................... ...................... 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 614 1.63 *(100) 30 1.34-30 ............... 824/f 2.19/f *(180/f2) 30 30-300 .................. 27.5 0.073 0.2 30 300-1500 ............... ...................... ...................... f/1500 30 1500-100,000 ......... ...................... ...................... 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: QZGBL3006F-001 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4R 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= PG / 4S) 1/2 For our device P = 389.05 mW G = 63.1 S = Exposure limit = 1.0 mW/cm 2 R = ((389.05 * 63.1) / (4**1.0)) 1/2 = 44.20 cm For complying the FCC limits for general population/uncontrolled exposure, the minimum MPE distance is 44.20 cm. The minimum distance declared by the manufacturer is 2 meters, which is greater than the minimum MPE distance. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : BL3006F 2.4GHz WLAN ODU FCC ID. : QZGBL3006F-001 MODEL : BL3006F for APPLICANT : K-Best Technology Inc. ADDRESS : 2FI-1, No.185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET93R-02-048 ETC Report No. : ET93R-02-048 FCC ID.: QZGBL3006F-001 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : K-Best Technology Inc. 2FI, -1, No. 185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Manufacturer : K-Best Technology Inc. 2FI, -1, No. 185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Description of EUT : a) Type of EUT : BL3006F 2.4GHz WLAN ODU b) Trade Name : K-Best c) Model No. : BL3006F d) Power Supply : I/P: 100-240Vdc,50-60Hz,1.0A,60-70VA; O/P: +12Vdc,2.0A,30W Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2003) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Mar. 05, 2004 Test Engineer : ( Tien lu Liao) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET93R-02-048 FCC ID.: QZGBL3006F-001 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.4 Labeling Requirement......................................................................................................................5 2.5 User Information.............................................................................................................................6 3. SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................10 4.4 Radiated Emission Data.................................................................................................................11 4.4.1 RF Portion..............................................................................................................................11 4.4.3 Other Emission........................................................................................................................15 4.5 Field Strength Calculation..............................................................................................................15 4.6 Photos of Radiation Measuring Setup............................................................................................16 5 CONDUCTED EMISSION MEASUREMENT.........................................................................17 5.1 Standard Applicable......................................................................................................................17 5.2 Measurement Procedure...............................................................................................................17 5.3 Conducted Emission Data.............................................................................................................18 5.4 Result Data Calculation.................................................................................................................19 5.5 Conducted Measurement Equipment.............................................................................................20 5.6 Photos of Conduction Measuring Setup..............................…

Text truncated - open the document above for the full version.

ETC Report No. : ET93R-02-048 Sheet 16 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 Appendix 4 : Ploted Datas of Band Edge Emission ETC Report No. : ET93R-02-048 Sheet 17 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 18 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 19 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 Appendix 5 : Ploted Datas of Power Density ETC Report No. : ET93R-02-048 Sheet 20 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 21 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 22 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 23 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 Appendix 6 : Plotted Data for Out-of-Band Conducted Emission ETC Report No. : ET93R-02-048 Sheet 24 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 25 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 26 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 27 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 28 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0 ETC Report No. : ET93R-02-048 Sheet 29 of 29Sheets FCC ID.: QZGBL3006F-001 Rev. No 2.0

ETC Report No. : ET93R-02-048 FCC ID.: QZGBL3006F-001 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET93R-02-048 FCC ID.: QZGBL3006F-001 Rev. No 2.0 Photos of Conduction Measuring Setup
