QZGBL5201-001802.11g Outdoor HotSpot

Copyright Copyright © 2004 all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of the supplier. About This Manual The purpose of this manual is for the setup of the 54Mbps Wireless LAN ODU. This manual, first version 1.0.1 in 2004, includes procedures assisting you in avoiding unforeseen problems. Technical Support If you have difficulty resolving the problem while installing or using the Wireless LAN ODU, please contact the supplier for support. FCC Notice FCC Certified Declaration: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Reminder: To comply with FCC part 15 rules, the ODU must only be used as a system as FCC certified. The system must also be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in where FCC rules apply. Further, according to FCC Part 15 regulations, Section 15.247(b)(3)(iii), the installer must ensure that the high-gain directional antenna used in this system is used exclusively for fixed, point-to-point operations and that multiple co-located intentional radiators transmitting the same information are not used. For further information, please see Appendix B. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device. Table of Contents FCC Notice..............................................................................................3 Chapter 1 Introduction.......................................................................5 1-1 Features and Benefits.............................................................................5 1-2 Applications..........................................................................................6 1-3 System Configurations...........................................................................7 Chapter 2 Hardware Installation.....................................................8 2-1 Product Kit............................................................................................8 2-2 System Requirements.............................................................................8 2-3 Mechanical Description.........................................................................9 2-4 Hardware Installation..........................................................................10 Chapter 3 Configuring the ODU....................................................11 3-1 Using the Web Management.................................................................11 3-1-1 How to access the web-browser configuration utility?................................11 3-1-2 Information.........................................................................................................11 3-1-3 Configuration....................................................................................................12 3-1-4 TCP/IP...............................................................................................................18 3-1-5 Statistics............................................................................................................19 3-1-6 Firmware Upgrade...........................................................................................20 3-2 Using the WLAN outdoor hotspot Utility...............................................21 3-2-1 Configuration....................................................................................................22 3-2-2 TCP/IP...............................................................................................................24 3-2-3 Firmware Upgrade...........................................................................................24 Appendix A: Channels........................................................................25 Appendix B: FCC Certified Systems..............................................26 Appendix C: Troubleshooting..........................................................27 -5- Chapter 1 Introduction The 802.11g WLAN outdoor hotspot – 54Mbps Wireless Outdoor Unit, are specially designed for Point-to-Point and Point-to-Multipoint applications, offering long distance connections between buildings at a speed of up to 54Mbps. Fully compliant with IEEE802.11b/g standard, the Outdoor Unit (ODU) provides powerful features such as the Windows-based configuration utility, MAC address filtering, WEP security, WDS application and more. 1-1 Features and Benefits n Creates a Point-to-Point connection linking two LANs, using 2 Indoor Units or Indoor and Outdoor total solutions. n Integrated 90 degree sector antenna provides the easy installation and cost effective hotspot and PTMP under 5 KM solution. n The ODU act as bridge and access point at the same time with the WDS function. n With a data rate up to 54Mbps, the system is faster than an E1/T1 data link. n Features 54Mbps data rate by incorporating Direct Sequence Spread Spectrum technology. n Fully IEEE 802.11b/g compatible. Allow inter-operation among multiple vendors. n …

Text truncated - open the document above for the full version.

1 Chris Harvey From:iris [[email protected]] Sent:Wednesday, April 06, 2005 10:27 PM To:[email protected] Subject:Fw: K-Best Technology Inc., FCC ID: QZGBL5201-001, Assessment NO.: AN05T4658, Notice#1 Exhibit-L-MPE.pdf (15 KB) Exhibit-E-User_Man ual_revised.... Dear Chris Harvey, We are very urgent for this project. If you have any problem, pls advise us ASAP. Best Regards, Iris Lin ----- Original Message ----- From: "SS" <[email protected]> To: "Compliance Certification Services" <[email protected]> Cc: "R00/???" <[email protected]>; "Mike Kuo" <[email protected]> Sent: Friday, April 01, 2005 8:30 PM Subject: Re: K-Best Technology Inc., FCC ID: QZGBL5201-001, Assessment NO.: AN05T4658, Notice#1 > Dear Chris Harvey > > #1 Please refer to attached MPE evaluation and the user manual which > has been revised to the RF exposure statements accordingly. #2 The > power supply for the POE contains no ferrite core on the DC cord. > > Best regards, > > S. S. Liou > Engineer / EMC Dept. II > Electronics Testing Center, Taiwan > > > ----- Original Message ----- > From: "Compliance Certification Services" <[email protected]> > To: <[email protected]> > Cc: <[email protected]> > Sent: Wednesday, March 23, 2005 1:29 PM > Subject: K-Best Technology Inc., FCC ID: QZGBL5201-001, Assessment > NO.: AN05T4658, Notice#1 > > > Desr SS Liou, > > I have reviewed the documents in the above referenced application and > find that the following items need to be addressed before this review > can be > completed: > > 1. Although the Users manual has a general statement about complying > with 2 RF > Exposure requirements, there has been no specific information provided > to the user as to how this should be accomplished. The application > documentation does not contain the required RF Exposure Maximum Permissible > Exposure (MPE) calculations to determine the minimum safe distance for > RF Exposure compliance of FCC 15.247. Please update the documentation > to include the MPE calculation and the specifics of installation to > maintain that minimum separation distance and information to the users > to maintain at > least that minimum separation to this device and its antenna. > > 2. Please confirm whether the power supply for the POE contains a > ferrite cord on the DC cord as has been incorporated in previous ODU > systems from K-Best. > > Best regards, > Chris Harvey > [email protected] > > The items indicated above must be submitted before processing can > continue on the above referenced application. Failure to provide the > requested information within 30 days of the original e-mail date may > result in application dismissal and forfeiture of the filing fee. > Also, please note that partial responses increase processing time and > should not be submitted. > Any questions about the content of this correspondence should be > directed to > the e-mail address listed below the name of the sender. > >

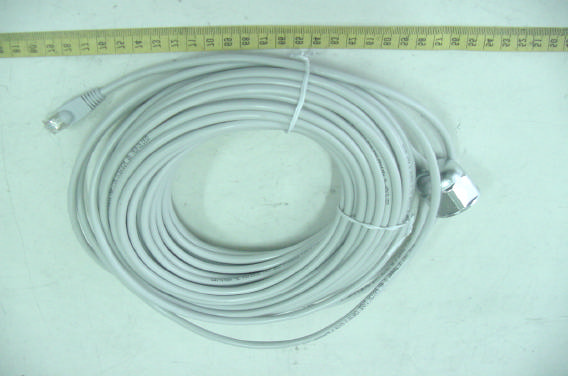

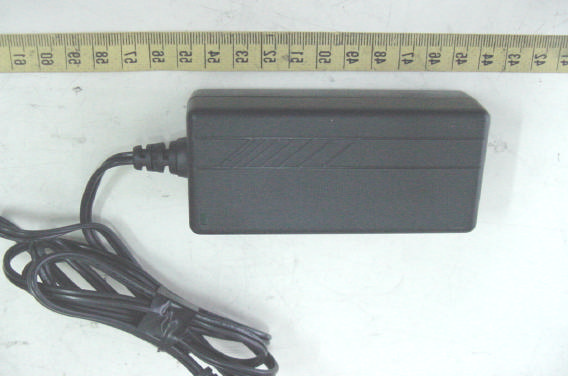

ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Rear View of EUT ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of POE Rear View of POE ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of POE Side View of POE ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of Power Adaptor Bottom View of Power Adaptor ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of SFTP Cable

4cm 2.5cm

ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Component View of PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of POE Component View of POE’s PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of POE’s PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Power Adaptor Component View of Power Adaptor’s PCB ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Power Adaptor’s PCB

-5- Features and Benefits n Creates a Point-to-Point connection linking two LANs, using 2 Indoor Units or Indoor and Outdoor total solutions. n Integrated 90 degree sector antenna provides the easy installation and cost effective hotspot and PTMP under 5 KM solution. n The ODU act as bridge and access point at the same time with the WDS function. n With a data rate up to 54Mbps, the system is faster than an E1/T1 data link. n Features 54Mbps data rate by incorporating Direct Sequence Spread Spectrum technology. n Fully IEEE 802.11b/g compatible. Allow inter-operation among multiple vendors. n Technique operating in the unlicensed 2.4GHz ISM band. n Seamless roaming within the 802.11 & 802.11b/g wireless LAN infrastructure. n Provides the highest available level of WEP /WAP-PSK as well as MAC Address Control to increase security. n MAC address Access Control. n Provides Window-based configuration utility. n IP67 rated weatherproof housing

1 RF Exposure Evaluation of E.U.T. : 802.11g Outdoor Hotspot (90° Sector antenna integrated) FCC ID. : QZGBL5201-001 MODEL : BL5201 for APPLICANT : K-Best Technology Inc. ADDRESS : 2Fl. –1, No.185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET94R-02-063 2 Product Information: Type of EUT: 802.11g Outdoor Hotspot (90° Sector antenna integrated) FCC ID: QZGBL5201-001 Manufacturer: K-Best Technology Inc. Model: BL5201 Description: The 802.11g WLAN outdoor hotspot-54Mbps Wireless outdoor Unit, are specially designed for Point-to-Point and Point-to-Multipoint applications, offering long distance connections between buildings at a speed of up to 54Mbps. Fully compliant with IEEE802.11b/g standard, the Outdoor Unit (OUD) provides powerful features such as the Windows-based configuration utility, MAC address filtering, WEP security, WDS application and more. Maximum conducted output power (measured): 21.49 dBm or 140.93 mW The following table lists the provided authorized antennas: Antenna Gain Antenna Type (dBi) Numeric Integrated Panel Antenna 12.0 15.85 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device. 3 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 614 1.63 *(100) 6 3-30 ..................... 1842/f 4.89/f *(900/f 2 ) 6 30-300 .................. 61.4 0.163 1.0 6 300-1500 ............... ...................... ...................... f/300 6 1500-100,000 ......... ...................... ...................... 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 614 1.63 *(100) 30 1.34-30 ............... 824/f 2.19/f *(180/f2) 30 30-300 .................. 27.5 0.073 0.2 30 300-1500 ............... ...................... ...................... f/1500 30 1500-100,000 ......... ...................... ...................... 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. 4 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4R 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= PG / 4S) 1/2 For our device P = 140.93 mW G = 15.85 S = Exposure limit = 1.0 mW/cm 2 R = ((140.93 * 15.85) / (4**1.0)) 1/2 = 13.33 cm For complying the FCC limits for general population/uncontrolled exposure, the minimum MPE distance is 13.33 cm. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 802.11g Outdoor Hotspot (90° Sector antenna- integrated) FCC ID. : QZGBL5201-001 MODEL : BL5201 for APPLICANT : K-Best Technology Inc. ADDRESS : 2FI-1, No.185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET94R-02-063 ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : K-Best Technology Inc. 2FI, -1, No. 185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Manufacturer : K-Best Technology Inc. 2FI, -1, No. 185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Description of EUT : a) Type of EUT : 802.11g Outdoor Hotspot (90° Sector antenna-integrated) b) Trade Name : K-Best c) Model No. : BL5201 d) Power Supply : I/P: 100-240Vac, 50-60Hz, 1.0A, 60~70VA; O/P: 15Vdc, 2.0A, 30W Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2003) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Mar. 03, 2005 Test Engineer : ( Kevin Lee ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.4 Labeling Requirement......................................................................................................................5 2.5 User Information.............................................................................................................................6 3. SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................10 4.4 Radiated Emission Data.................................................................................................................11 4.4.1 RF Portion..............................................................................................................................11 4.4.2 Radiated Eimssion of Restricted bands......................................................................................17 4.4.3 Other Emission........................................................................................................................19 4.5 Field Strength Calculation..............................................................................................................22 4.6 Photos of Radiation Measuring Setup............................................................................................23 5 CONDUCTED EMISSION MEASUREMENT.........................................................................24 5.1 Standard Applicable......................................................................................................................24 5.2 Measurement Procedure...............................................................................................................24 5.3 Conducted Emission Data.............................................................................................................25 5.4 Result Data Calculation.................................................................................................................28 5.5 Con…

Text truncated - open the document above for the full version.

ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET94R-02-063 FCC ID.: QZGBL5201-001 Rev. No 2.0 Photos of Conduction Measuring Setup
