QZGBL4012-001BL4012 5.8GHz WLAN ODU

Copyright Copyright © 2004 all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of the supplier. About This Manual The purpose of this manual is for the setup of the 11Mbps Wireless LAN ODU. This manual, revised as version 4.0.3 in 2004, includes procedures assisting you in avoiding unforeseen problems. Technical Support If you have difficulty resolving the problem while installing or using the Wireless LAN ODU, please contact the supplier for support. FCC Notice FCC Certified Declaration: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Reminder: To comply with FCC part 15 rules, the ODU must only be used as a system as FCC certified. The system must also be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in where FCC rules apply. Further, according to FCC Part 15 regulations, Section 15.247(b)(3)(iii), the installer must ensure that the high-gain directional antenna used in this system is used exclusively for fixed, point-to-point operations and that multiple co-located intentional radiators transmitting the same information are not used. For further information, please see Appendix B. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separation distance between the antenna and all persons’ body during normal operation. Table of Contents Chapter 1 Introduction......................................................................5 1-1 Features and Benefits ................................................................................... 5 1-2 Applications.................................................................................................. 6 1-3 System Configurations.................................................................................. 7 Chapter 2 Hardware Installation .....................................................8 Chapter 2 Hardware Installation .....................................................9 2-1 Product Kit ................................................................................................... 9 2-2 System Requirements .................................................................................... 9 2-3 Mechanical Description ............................................................................. 10 2-4 Hardware Installation ................................................................................ 11 Chapter 3 Configuring the ODU .......................................................12 3-1 Configuration ............................................................................................. 12 3-2 Using the Web Management ...................................................................... 25 3-3 Using the Telnet.......................................................................................... 29 Appendix A: Channels ...................................................................................... 36 Appendix B: FCC Certified Systems................................................................. 37 Appendix C: Troubleshooting............................................................................. 1 Chapter 1 Introduction The Outdoor wireless LAN device – 11Mbps Wireless Outdoor Unit, are specially designed for Point-to-Point and Point-to-Multipoint applications, offering long distance connections between buildings at a speed of up to 11Mbps. Fully compliant with IEEE802.11b standard, the Outdoor Unit (ODU) provides powerful features such as the Windows-based configuration utility, MAC address filtering, WEP security and more. 1-1 Features and Benefits „ Creates a Point-to-Point connection linking two LANs, using 2 Indoor Units or Indoor and Outdoor total solutions. „ Creates a Point-to-Multipoint system using three or more Indoor Units or Indoor and Outdoor total solutions. „ Detachable antenna allows you for the use of external high gain antenna. „ With a data rate of 11Mbps and 5.5Mbps, the system is faster than an E1/T1 data link. „ Features 11Mbps data rate by incorporating Direct Sequence Spread Spectrum technology. „ Fully IEEE 802.11b compatible. Allow inter-operation among multiple vendors. „ Technique operating in the unlicensed 5.8GHz ISM band. „ Seamless roaming within the 802.11 & 802.11b wireless LAN infrastructure. „ Provides user authentication to enforce tight security. „ MAC address Access Control. „ Bandwidth control „ Advanced Security — 802.1x authentication (EAP) „ Provides Window-based configuration utility. „ Waterproof housing 1-2 Applications The 11Mbps Wireless LAN ODU offers a fast, reliable, cost-effective solution for wireless client access to the network in applications like these: 1. Remote Access to Corporate Network Information E-mail, file transfer and terminal emulation. 2. Difficult-to-Wire Environments Historical or old buildings, asbestos installations, and open …

Text truncated - open the document above for the full version.

1 Mike Kuo From: S. S. Liou Sent: March182004Thursday 1:41 AM To: Mike Kuo Cc: R00/ Subject: Re: K-Best Technology Inc., FCC ID:QZBBL4012-001, AN04T3784 radiated restricted band measu... Dear Mike, Please find the measurement data in attached file. Best regards, ================================ S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Liou, S. S. (E-mail)" Cc: "ETC/Iris (E-mail)""Will Yauo (E-mail)" Sent: Thursday, March 18, 2004 8:11 AM Subject: FW: K-Best Technology Inc., FCC ID:QZBBL4012-001, AN04T3784 > > > -----Original Message----- > From: CERTADM > Sent: Wednesday, March 17, 2004 4:10 PM > To: Mike Kuo > Subject: K-Best Technology Inc., FCC ID:QZBBL4012-001, AN04T3784 > > > Notice_content > ------------- > Question #1: Please provide radiated restricted band measurement data per > section 15.247 ( c ) requirements. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

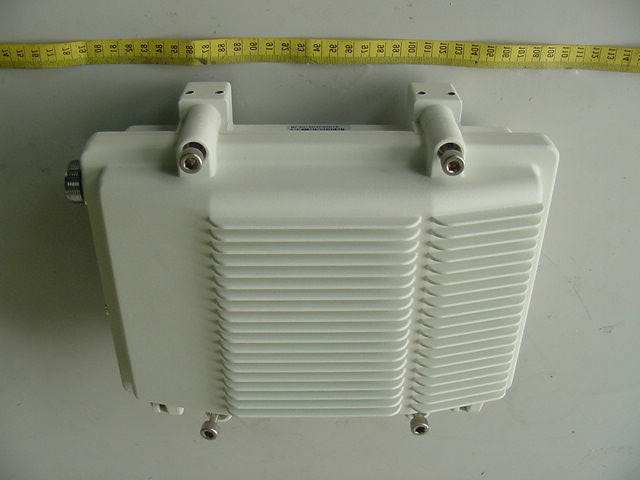

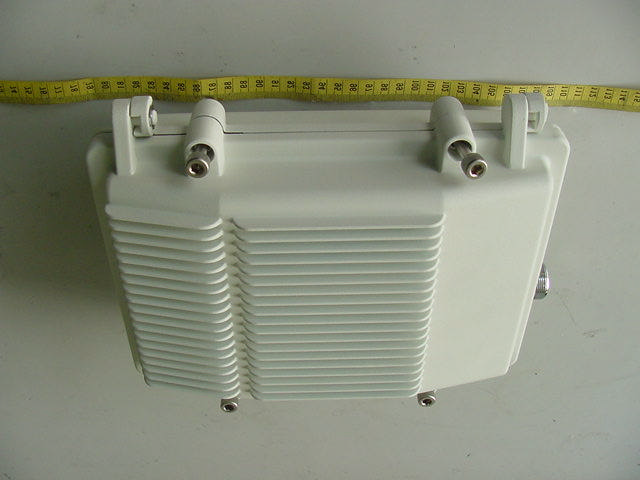

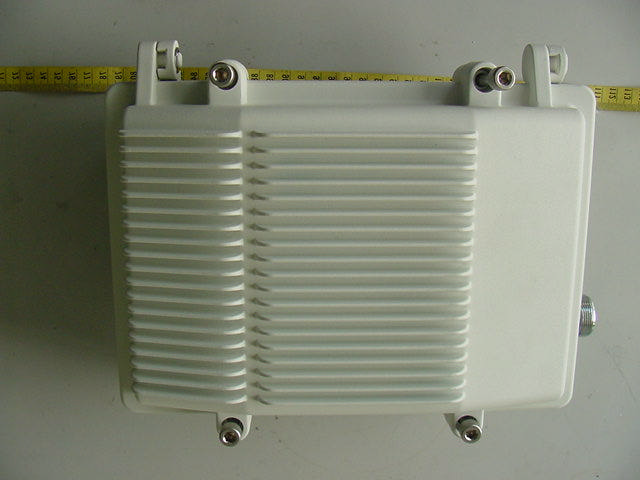

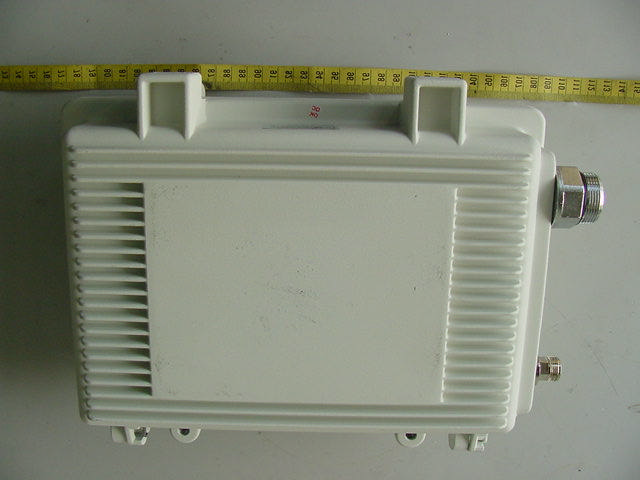

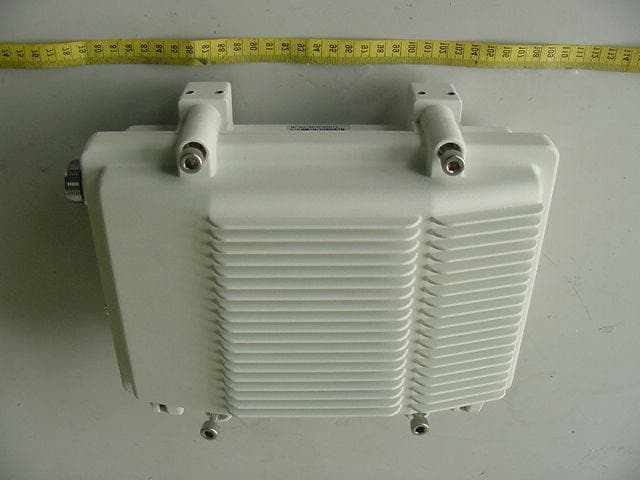

FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Front View of EUT FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Rear View of EUT FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Bottom View of EUT

This statement will be placed in User’s Manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. 5.8GHz 0.2W WLAN Radio Model No.:BL4012 FCC ID:QZGBL4012-001 S/N:58401203440001 4cm 2.5cm

FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Main PCB Internal View of Main PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Wireless LAN Card Rear View of Wireless LAN Card FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Wireless LAN Card Component View of Wireless LAN Card PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Wireless LAN Card PCB Solder View of Wireless LAN Card PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of DC to DC PCB Solder View of DC to DC PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of Converter Bottom View of Converter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of Converter Side View of Converter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of Converter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Converter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Converter’s PCB Solder View of Converter’s PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of CR Fitter Rear View of CR Fitter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of CR Fitter Side View of CR Fitter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of CR Fitter FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of CR Fitter’s PCB Solder View of CR Fitter’s PCB

FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of Conver Bottom View of Conver FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of RX detector Side View of RX detector FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of RX detector FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of RX detector’s PCB Solder View of RX detector’s PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of LED PCB Solder View of LED PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT TOP View of DC Adaptor Side View of DC Adaptor FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of DC Adaptor Side View of DC Adaptor FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Bottom View of DC Adaptor FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of DC Adaptor FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of DC Adaptor’s PCB Solder View of DC Adaptor’s PCB FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Grid Antenna Rear View of Grid Antenna FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Flat Plane Antenna Rear View of Flat Plane Antenna FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor FCC ID.: QZGBL4012-001 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

BL4012 BL4012 series is outdoor Wireless LAN systems that offer excellent broadband communication in the temperature range of 0~60°C. This system is used for point-to-point radio frequency (RF) solution that connects multiple local area networks (LAN) among the different buildings. It supports up to 11Mbps data rate by incorporating DSSS(Direct Sequence Spread Spectrum) technology. Device Interface Ethernet Interface : IEEE 802.3 100/10 Base T ( RJ-45 ) Wireless Network Connection Standard: IEEE 802.11b Frequency Range: 5725-5850 MHz Data Rate : Supports up to 11 Mbps automatically Throughput: Max 5Mbps Emission Type: Direct Sequence Spread Spectrum Channel : 11 channels Modulation : BPSK / QPSK / CCK Output power : 0.2W Protocols Security: WEP Encryption 40-bit and 128-bit Network: SNMP, TCP/IP, IPX/SPX, NetBEUI Operating System Support Supports Windows 98/2000/NT/XP Network Architecture PTP Connection ( point to point ) LED Indicator Power, Act, Signal Strength Power Requirements Input: AC 100-264V, 50-60Hz, 21W Physical Description ODU (280 w × 236 d × 116 h ) mm; 2.8 kg Operating Environment Operating Temperature : ODU (0 ~ 60°C ) Storage Temperature : -20 ~ 80°C Humidity Range: 85°C, non-condensing Specifications of ODU KBNT5824-16 5.8GHz WLAN 24 dBi Panel Antenna Frequency: 5725-5875MHz Gain: 24 dBi Impedance: 50 O Beam width: H6 V6 Maximum Input Power: 50W Lightning Protection: DC Ground Connector: N type female VSWR = 1.4 Dimension: 350 (H) x 350 (W) x 37 (D)mm, 1.2kgw Rated Wind Velocity: 60 m/s Mounting Hardware: F30-F70 KBNT5826-13 5.8GHz WLAN 26 dBi Grid Parabolic Antenna Frequency: 5725-5875MHz Gain: 26 dBi Impedance: 50 O Beam width: H6 V8 Polarization: Linear, Vertical Front to Back Ratio: > 30 dB Maximum Input Power: 200W Lightning Protection: DC Ground Connector: N type female VSWR = 1.4 Dimension: Caliber 520 x 450 mm, 2.6kgw Rated Wind Velocity: 60 m/s Mounting Hardware: F30-F60 Specifications of Detachable Antenna

FCC ID: QZGBL4012-001 RF Exposure Evaluation of E.U.T. : BL4012 5.8GHz WLAN ODU FCC ID. : QZGBL4012-001 MODEL : BL4012 for APPLICANT : K-Best Technology Inc. ADDRESS : 2FI-1, No.185, Ko Wang Rd., Kau Yuan Tsun, Lung Tan Hsiang, Tao Yuan Hsien, Taiwan Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET93R-02-049 FCC ID: QZGBL4012-001 Product Information: Type of EUT : BL4012 5.8GHz WLAN ODU FCC ID : QZGBL3006F-001 Manufacturer : K-Best Technology Inc. Model : BL4012 Description : 1. 5725~5850 MHz unlicensed ISM Band 2. IEEE 802.11 Standard 3. Provides DC Power to the ODU with PoE (Power over Ethernet) 4. 23dBm output power levels 5. 20 dB receive gain for the ODU 6. Bi-directional TDD technology 7. Transmitter and receiver LED 8. Waterproof housing 9. The Z-COM WLAN Access Point is currently certified with FCC ID:M4Y-000325 Maximum conducted output power (measured): 22.5 dBm or 177.83 mW The following table lists the provided authorized antennas: Antenna Gain (dBi) Antenna Gain Antenna Model Antenna type (dBi) Numeric KBNT5824-16 Flat Panel 24 251.2 KBNT5826-13 Grid 26 398.1 Below is an example of the RF Exposure Statement: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separation distance between the antenna and all persons’ body during normal operation. FCC ID: QZGBL4012-001 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 614 1.63 *(100) 6 3-30 ..................... 1842/f 4.89/f *(900/f 2 ) 6 30-300 .................. 61.4 0.163 1.0 6 300-1500 ............... ...................... ...................... f/300 6 1500-100,000 ......... ...................... ...................... 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 614 1.63 *(100) 30 1.34-30 ............... 824/f 2.19/f *(180/f2) 30 30-300 .................. 27.5 0.073 0.2 30 300-1500 ............... ...................... ...................... f/1500 30 1500-100,000 ......... ...................... ...................... 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: QZGBL4012-001 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 177.83 mW G = 398.1 S = Exposure limit = 1.0 mW/cm 2 R = ((177.83 * 398.1) / (4*π*1.0)) 1/2 = 75.1 cm For complying the FCC limits for general population/uncontrolled exposure, the minimum MPE distance is 75.1 cm. The minimum distance declared by the manufacturer is 2 meters, which is greater than the minimum MPE distance. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : BL4012 5.8GHz WLAN ODU Model : BL4012 FCC ID. : QZGBL4012-001 for APPLICANT : K-Best Technology Inc. ADDRESS : 2Fl,-1, No.185, Ko Wang Rd., Kau Yuan Taun, Lung Tan Hsiang, Taoyuan Hsien, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET93R-02-049 ETC Report No. : ET93R-02-049 FCC ID. : QZGBL4012-001 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : K-Best Technology Inc. 2Fl,-1, No.185, Ko Wang Rd., Kau Yuan Taun, Lung Tan Hsiang, Taoyuan Hsien, Taiwan Manufacturer : K-Best Technology Inc. 2Fl,-1, No.185, Ko Wang Rd., Kau Yuan Taun, Lung Tan Hsiang, Taoyuan Hsien, Taiwan Description of EUT : a) Type of EUT : BL4012 5.8GHz WLAN ODU b) Trade Name : K-Best c) Model No. : BL4012 d) Power Supply : I/P: 100-240Vac, 50-60Hz; O/P:15Vdc, 2.0A 30W Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2003) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Mar. 05, 2004 Test Engineer : ( Tien Lu Liau) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET93R-02-049 FCC ID. : QZGBL4012-001 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation........................................................................................................5 2.4 Labeling Requirement.....................................................................................................................5 2.5 User Information............................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System.............................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.......................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument...................................................................................................................10 4.4 Radiated Emission Data................................................................................................................11 4.4.1 RF Portion(Transmitting Harmonics and Receiving Local Frequency).........................................11 4.4.2 Other Emission........................................................................................................................17 4.5 Field Strength Calculation.............................................................................................................18 4.6 Photos of Radiation Measuring Setup............................................................................................19 5 CONDUCTED EMISSION MEASUREMENT........................................................................21 5.1 Standard Applicable.....................................................................................................................21 5.2 Measurement Procedure...............................................................................................................21 5.3 Conducted Emission Data.............................................................................................................22 5.4 Result Data Calculation.................................................................................................................23 5.5 Conducted Measurement Equipment.............................................................................................24 5.6 Photos of Conduction Measuring Setup........................................................................................25 6 ANTENNA REQUIREMENT....................................................................................................26 6.…

Text truncated - open the document above for the full version.

ETC Report No. : ET93R-02-049 Sheet 16 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 Appendix 4 : Plotted Data of Band Edge Emission ETC Report No. : ET93R-02-049 Sheet 17 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 18 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 19 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 Appendix 5 : Plotted Data of Power Density ETC Report No. : ET93R-02-049 Sheet 20 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 21 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 22 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 23 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 Appendix 6 : Plotted Data for Out-of-Band Conducted Emission ETC Report No. : ET93R-02-049 Sheet 24 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 25 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 26 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 27 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 28 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 ETC Report No. : ET93R-02-049 Sheet 29 of 29 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0

ETC Report No. : ET93R-02-049 Sheet 16-1 of 36 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 Radiated Eimssion of Restricted bands A. Antenna Type : Flat Panel Antenna Test Date : Feb. 20, 2004 Temperature : 23 °C Humidity : 65 % Operation Mode : CH 01 Restricted Frequency band: 2310MHz – 2390MHz Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2350.150 41.3 28.5 42.5 29.4 -3.3 39.2 26.1 74.0 54.0 -27.9 0 1.0 2380.700 41.9 29.0 43.6 30.5 -3.2 40.4 27.3 74.0 54.0 -26.7 0 1.0 Operation Mode : CH 11 Restricted Frequency band: 2483.5MHz – 2500MHz Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2490.850 42.0 28.8 43.0 29.9 -2.7 40.3 27.2 74.0 54.0 -26.8 180 1.0 2500.000 42.9 30.0 44.1 31.0 -2.7 41.4 28.3 74.0 54.0 -25.7 180 1.0 Note : 1. Item of margin shown in above table refer to average limit. 2. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 3. Remark “---” means that the emissions level is too low to be measured. 4. Item “Margin” referred to Average limit while there is only peak result. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB. ETC Report No. : ET93R-02-049 Sheet 16-2 of 36 Sheets FCC ID.: QZGBL4012-001 Rev. No 2.0 B. Antenna Type : Grid Antenna Test Date : Feb. 20, 2004 Temperature : 23 °C Humidity : 65 % Operation Mode : CH 01 Restricted Frequency band: 2310MHz – 2390MHz Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2345.250 41.6 28.8 42.9 29.8 -3.3 39.6 26.5 74.0 54.0 -27.5 0 1.0 2378.950 42.2 29.3 44.0 30.9 -3.2 40.8 27.7 74.0 54.0 -26.3 0 1.0 Operation Mode : CH 11 Restricted Frequency band: 2483.5MHz – 2500MHz Frequency (MHz) Reading (dBuV) H V Peak Ave Peak Ave Factor (dB) Corr. Result @3m (dBuV/m) Peak Ave Limit @3m (dBuV/m) Peak Ave. Margin (dB) Table Deg. (Deg.) Ant. High (m) 2485.650 42.5 29.3 43.5 30.4 -2.8 40.7 27.6 74.0 54.0 -26.4 180 1.0 2498.100 43.4 30.5 44.6 31.5 -2.7 41.9 28.8 74.0 54.0 -25.2 180 1.0 Note : 1. Item of margin shown in above table refer to average limit. 2. It is considered that the results of average comply with average limit when measuring data with a peak function detector meet the average limit. Mark “***” means that Peak result is meet average limit. 3. Remark “---” means that the emissions level is too low to be measured. 4. Item “Margin” referred to Average limit while there is only peak result. 5. The expanded uncertainty of the radiated emission tests is 3.53 dB.

FCC ID.: QZGBL4012-001 Rev. No 2.0 Photos of Radiation Measuring Setup ( Flat Panel Antenna ) FCC ID.: QZGBL4012-001 Rev. No 2.0 ( Grid Antenna ) FCC ID.: QZGBL4012-001 Rev. No 2.0 Photos of Conduction Measuring Setup
