R2LXF1100Mullion Reader

XceedID p/n 0093-01 INSTALLATION SHEET Series 1100 (preliminary) PARTS LIST: • 1 - Installation Sheet • 1 - Reader • 2 - Mounting Screws • 1 - Security Screw Removal: 1. Remove unit from box. 2. Notice the connector on the inside of the cover plastic and the base unit plastic. The connector will end up at the top side of the reader when mounted. (ILLUSTRATION) Mounting the Reader: 1. Determine an appropriate mounting position on the door frame or wall, be sure to account for any applicable ADA height requirements. 2. Drill two mounting holes a minimum of 3.2” apart on the mounting surface of the door frame or wall. Drill one 3/4” diameter cable hole for the pigtail wire connection. (ILLUSTRATION) 3. Following cable connection (see the cable connection diagram below), re-install the plastic cover to the reader base. The base male connectors should align with the cover connector holes and the bottom slot should easily slide over and snap into place over the plastic dimple of the base. After ensuring connection, install the security screw on the bottom of the reader. Cable Connections: 1. XceedID readers are supplied with a 12 conductor cable pigtail. Connect this pigtail with the host/panel being careful to match the color of each wire with the chart shown below. (ILLUSTRATION) Yellow = Beeper Blue = Hold Purple = Open Collector/Card present Green = Data 0 White = Data 1 Orange = Green LED Brown = Red LED Red = Power +DC (6-16 VDC) Black = Ground Pink = RQE (Request to Exit input) Grey = DI (Door DI Input) Tan = Tamper Output Drain = Shield Ground XceedID p/n 0093-01 2. Use a linear DC power source between 6 volts and 16 volts. 3. Be sure the reader is properly grounded by attaching the ground wire to an earth ground connection at the power supply or panel end of the cable. Testing the Reader: 1. Power up the reader. The LED will light followed by a beeper tone. This indicates that the reader is ready. 2. Present a proper card or token programmed to operate the reader and a green LED flash will indicate successful operation. Note that a red flash could simply indicate an incorrect match or mis-programmed card/token rather than a faulty reader installation . Additional Notes: • The voltage specification for these products is 6 volts to 16 volts. Higher voltage within these specifications will result in better performance. • Typical cable guage ranges from 18 to 22 guage. Check with your cable supplier to determine the best choice for your application and installation distance . Specifications: • Power Supply: Linear DC • Voltage Range: 6 – 16VDC • Temperature Range: -25F to 125F • Card Read Distance: Up to 4.5” – Distance can vary widely depending on installation conditions and credential type. • Cable Distance to Panel in Wiegand mode: o 500 ft. maximum at 12 volts o 200 ft. maximum at 6 volts • Information Output: Wiegand = 64 bits; RS485 = 128k bits per second • Tamper Output: Open Collector • Regulatory Approvals and Standards UL ISO15693 ISO14443A Europe: CE Listed. Federal Communications Statement: The FCC requires the following statement for your information: This reader utilizes and radio frequency energy and has been tested and complies with the limits of FCC testing. Changes, modifications or disregard of proper installation instructions not expressly approved by XceedID Corporation is strictly prohibited by the FCC and could void the user’s authority to operate the equipment. For Canadian Users: This unit has been tested and meets all applicable Industry of Canada technical specifications. • This device may not cause radio frequency interference. • This device must accept radio frequency interference. In the unlikely event interference occurs, please contact the manufacturer. XceedID p/n 0093-01

Response to E04-000091-1 & E04-000091-1 IC 1. The equipment code on the 731 form should be DXT. 2. A revised test report has been uploaded with in-cal equipment. 3. The manufacturer has been changed in the revised test report.

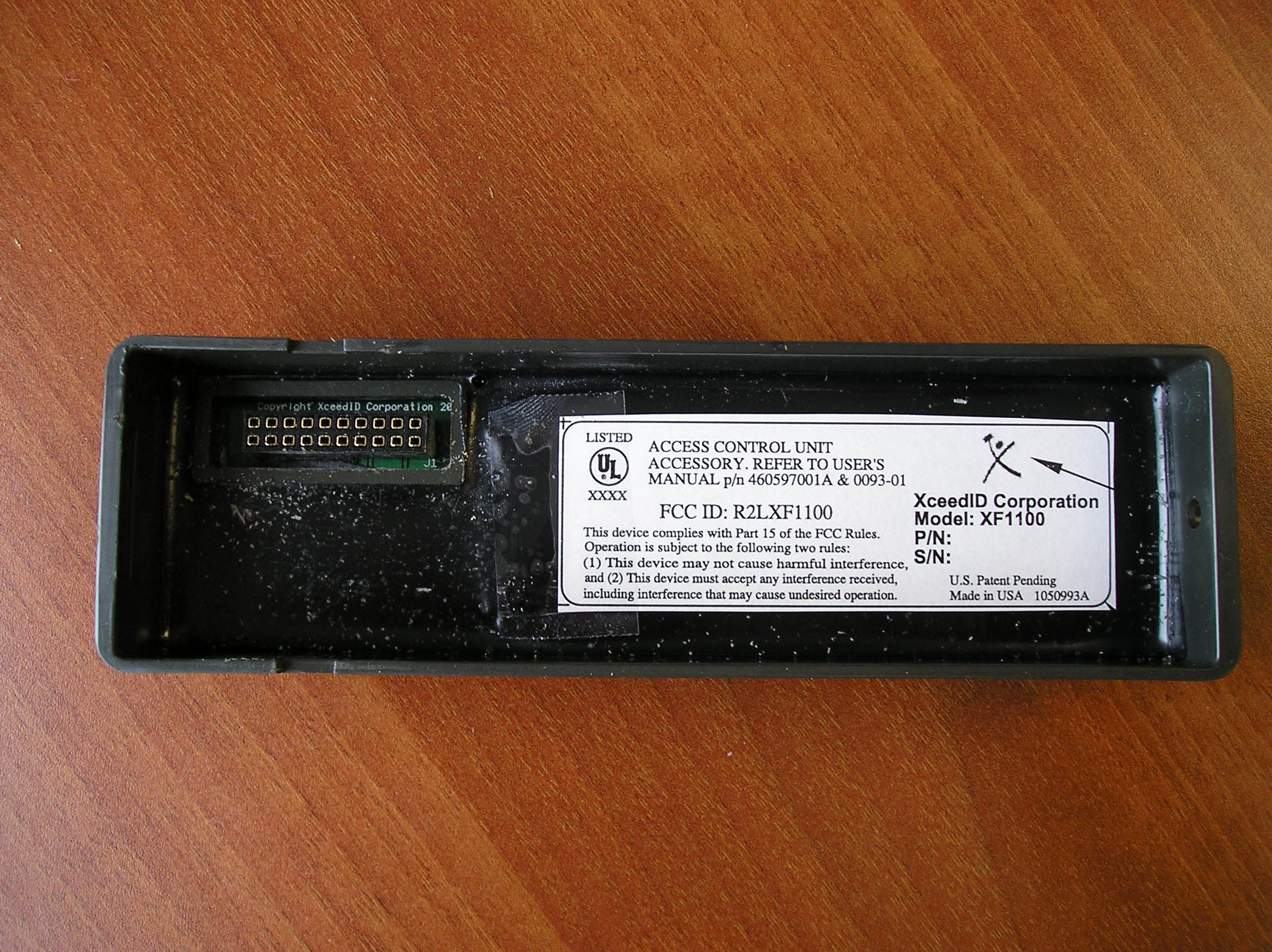

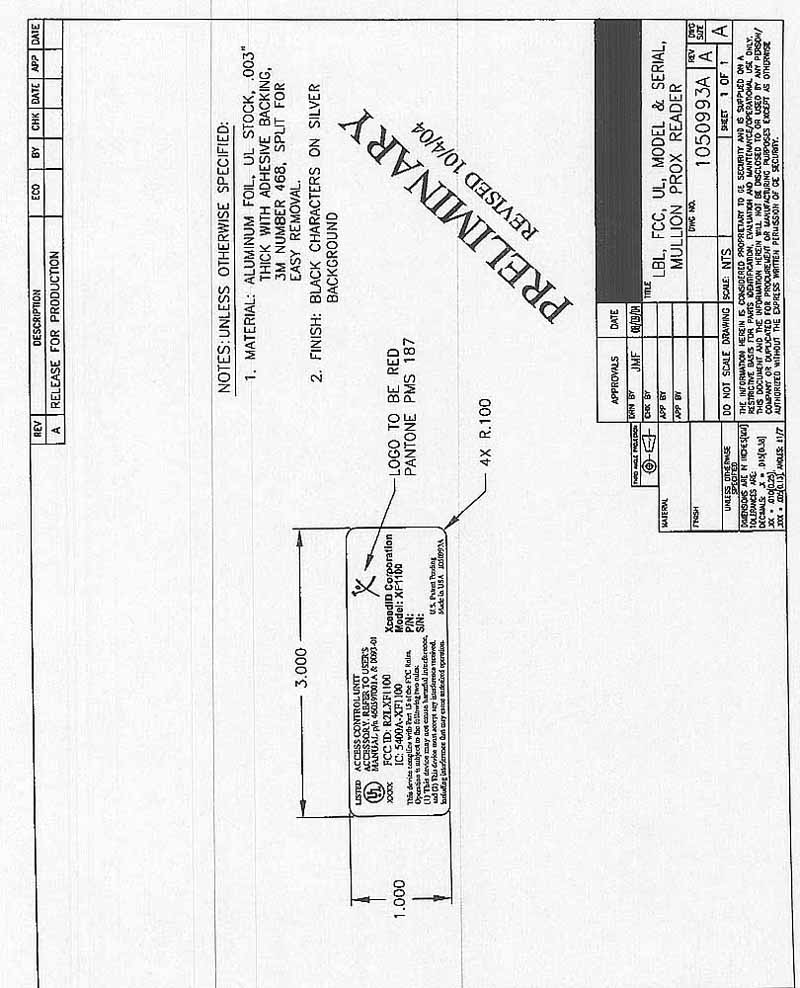

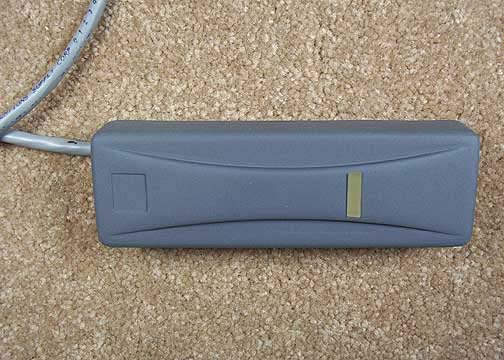

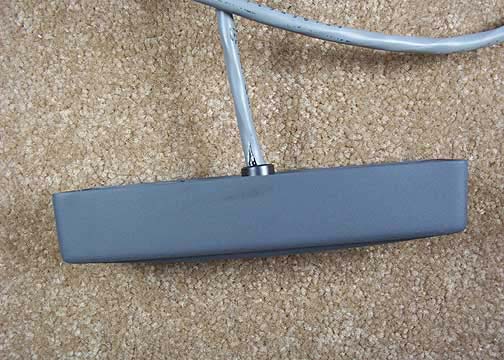

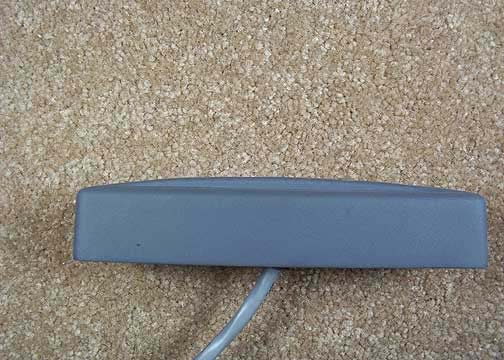

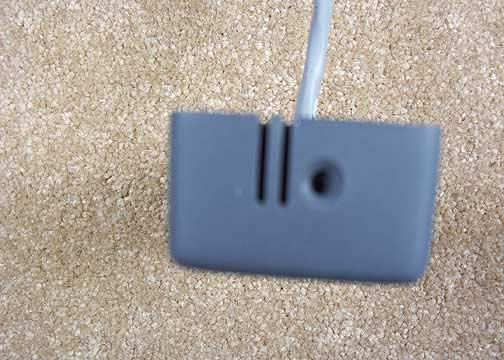

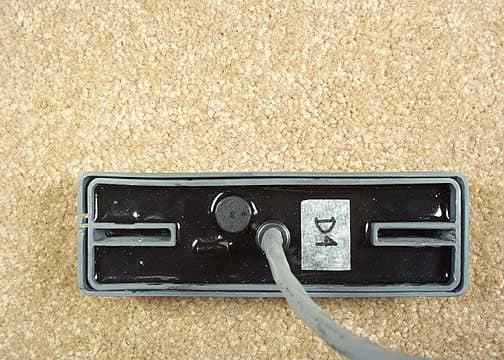

SUBMITTAL PHOTOGRAPH Front SUBMITTAL PHOTOGRAPH Back SUBMITTAL PHOTOGRAPH Top SUBMITTAL PHOTOGRAPH Bottom SUBMITTAL PHOTOGRAPH Left Side SUBMITTAL PHOTOGRAPH Right Side

SUBMITTAL PHOTOGRAPH Base PCB Top SUBMITTAL PHOTOGRAPH Base PCB Bottom SUBMITTAL PHOTOGRAPH Antenna PCB Top SUBMITTAL PHOTOGRAPH Antenna PCB Bottom

Page 1 of 39 Report No.: FC04-033A ADDENDUM TO XCEEDID TEST REPORT FC04-033 FOR THE READER, XF1100 FCC PART 15 SUBPART C SECTIONS 15.225, 15.207 & 15.209 COMPLIANCE DATE OF ISSUE: OCTOBER 7, 2004 PREPARED FOR: XceedID 112 N. Rubey Drive, Suite 100 Golden, CO 80403 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.:JC4-204C W.O. No.:81624 Date of test:April 23 - June 17, 2004 Report No.: FC04-033A This report contains a total of 39 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 39 Report No.: FC04-033A TABLE OF CONTENTS Administrative Information..............................................................................................4 Summary of Results.........................................................................................................5 Conditions for Compliance..............................................................................................5 Approvals.........................................................................................................................5 FCC 15.31(m) Number Of Channels...............................................................................6 FCC 15.33(a) Frequency Ranges Tested..........................................................................6 FCC 15.35 Analyzer Bandwidth Settings........................................................................6 FCC 15.203 Antenna Requirements.................................................................................6 FCC 15.205 Restricted Bands..........................................................................................6 Eut Operating Frequency.................................................................................................6 Temperature And Humidity During Testing....................................................................6 Equipment Under Test (EUT) Description......................................................................7 Equipment Under Test.....................................................................................................7 Peripheral Devices............................................................................................................7 Report of Measurements..................................................................................................8 Table 1: FCC 15.207 Six Highest Conducted Emission Levels..........................8 Table 2: FCC 15.225 Fundamental Emission Levels (13.56 MHz).....................9 Table 3: FCC 15.209 Fundamental Emission Levels (125 kHz).........................10 Table 4: FCC 15.209/15.225 Six Highest Radiated Emission Levels: 9 kHz - 30 MHz..........11 Table 5: FCC 15.209 Six Highest Radiated Emission Levels: 30-1000 MHz (13.56 MHz)...12 Table 6: FCC 15.209 Six Highest Radiated Emission Levels: 30-1000 MHz (125 kHz)......13 FCC 15.225(b) Band Edge Plot........................................................................................14 FCC 15.215(c) Frequency Stability..................................................................................15 RSS-210 Occupied Bandwidth.........................................................................................17 EUT Setup........................................................................................................................18 Correction Factors............................................................................................................18 Table A: Sample Calculations..............................................................................18 Test Instrumentation and Analyzer Settings....................................................................19 Spectrum Analyzer Detector Functions...............................................................19 Peak..........................................................................................................19 Quasi-Peak...............................................................................................19 Average....................................................................................................19 EUT Testing.....................................................................................................................20 Mains Conducted Emissions................................................................................20 Radiated Emissions..............................................................................................20 Page 3 of 39 Report No.: FC04-033A Appendix A: Test Setup Photographs..............................................................................21 Photograph Showing Mains Conducted Emissions.............................................22 Photograph Showing Mains Conducted Emissions.............................................23 Photograph Showing Radiated Emissions............................................................24 Photograph Showing Radiated Emissions............................................................25 Photograph Showing Temperature Testing..........................................................26 Appendix B: Test Equipment List....................................................................................27 Appendix C: Measurement Data Sheets...........................................................................28 Page 4 of 39 Report No.: FC04-033A ADMINISTRATIVE INFORMATION DATE OF TEST:April 23 - June 17, 2004 DATE OF RECEIPT:April 23, 2004 PURPOSE OF TEST:To demonstrate the compliance of the Reader, XF1100 with the requirements for FCC Part 15 Subpart C Sections 15.225, 15.207 & 15.209 devices. Addendum A is to revise the manufacturer and update the equipment lists. TEST METHOD:ANSI C63.4 (2001) MANUFACTURER:GE Security 1510 Tate Boulevard SE Hickory, NC 28602 RE…

Text truncated - open the document above for the full version.

PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Front View PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS Mains Conducted Emissions - Side View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Back View PHOTOGRAPH SHOWING TEMPERATURE TESTING
