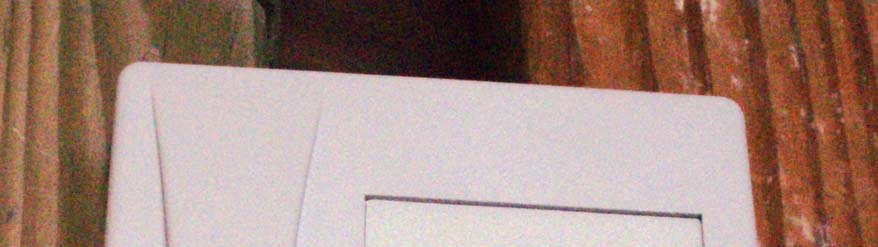

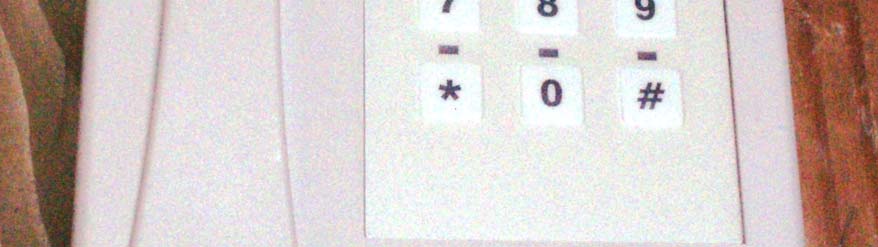

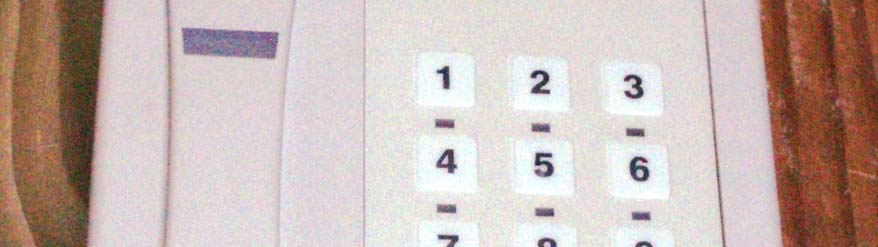

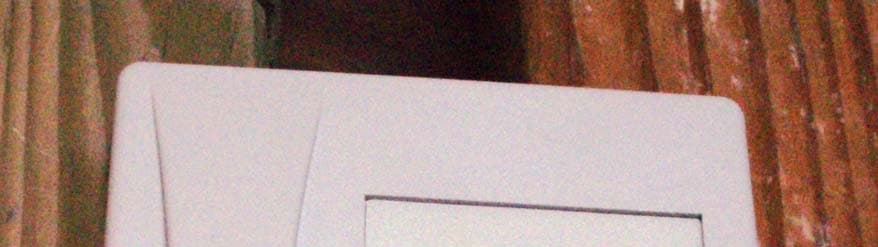

R2LXF2100CMulti-Tech Credential Reader

Description The Multi-technology Readers feature a rugged design and can be installed almost anywhere. Durable, weatherproof, UV-resistant materials, along with advanced electronics and circuitry, protect readers against inclement weather and exposure to sunlight. Mounting the Reader 1. Find a suitable mounting position on the door frame or wall. Note: For out of doors or wet locations, it is recommended that the gasket provided be installed on the base as shown in Figure 2. 2. Drill two mounting holes a minimum of 3.25” (82.6 cm) apart on the mounting surface of the door frame or wall. Refer to Figure 3. 3. Drill one .625” (1.587 cm) diameter hole in wall for the pigtail wire connection. 4. Follow the cable connection chart. Connect power at the panel when installation is complete. 5. Mount the base plate to the wall using the supplied screws. 6. Install gasket if required, see Figure 2. 7. Install top cover straight on to the reader base. Do not force the cover on. The four cover guides should ensure the connector seats correctly. 8. Verify the connection is secure and install the security screws at the top and bottom of the reader. 9. Place a screw head cover over each of the screws. The screw head cover should be flush with the reader once in place. 5.850 [148.6] 1.160 [29.5] 1.750 [44.5] front viewside view XceedID Corporation 3899 Hancock Expressway Security, CO 80911 Tel: 303-273-9930 Fax: 303-273-9937 www.xceedid.com Multi-technology Readers Installation Guide Figure 1. Multi-technology Readers Figure 2. Gasket Installation Figure 3. Figure 4. Aligning base plate and top cover Specifications The voltage specification for this reader is 8-16 VDC. Higher voltage with the specifications provides better performance and cable run distances. The recommended cable gauge is 18-gauge to 22-gauge. Check with the cable supplier to determine the best choice for the application and installation distance. FCC compliance The FCC requires the following statement: This reader uses radio frequency energy and has been tested, and complies with the limits of FCC testing. Changes, modification, or disregard of proper installation and instructions not expressly approved by XceedID, and is strictly prohibited by the FCC and could void the user’s authority to operate the equipment. a. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. b. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. ColorsBlack (standard), charcoal Power supplyLinear DC Voltage range8 - 16 VDC Maximum and Average Current range XF2110C: 173 mA (max), 155mA (aver) XF2100C: 157 mA (max), 141 mA (aver) XF1100C: 132 mA(max), 116 mA (aver) Temperature range-31 F to 149 F -35 C to 65 C Card read distanceDistance can vary depending on reader, installation conditions and credential type. Cable distance to panel200 ft. max (22 gauge) 300 ft. max. (20 gauge) 500 ft. max. (18 gauge) Wiegand outputUp to 200 bits depending on configuration and card technology Tamper outputOpen Collector Regulatory approvals and standards UL, CE, and FCC (part 15) ISO StandardsISO 14443A ISO 15693 Ordering Information ProductDescription X F -110 0 - B (Standard Black) Mullion mount; Wiegand output XF-2100-B (Standard Black) 1-Gang US mount; Wiegand output XF-2110-B (Standard Black) 1-Gang US mount; Keypad; Wiegand output XF-1100-C (Charcoal)Mullion mount; Wiegand output XF-2100-C (Charcoal)1-Gang US mount; Wiegand output XF-2110-C (Charcoal)1-Gang US mount; Keypad; Wiegand output Testing the Reader 1. Power up the reader. A red LED will light followed by a beeper tone, which indicates the reader is ready. 2. Present a proper card, which has been programmed to operate the reader. * A green LED indicates a registered badge read. * A red LED indicates idle (ready to read) state in the Wiegand mode. Removing the Cover 1. Remove the plugs and security screws. 2. Slide cover off perpendicular to base. Trouble Shooting 1. If reader does not behave normally upon installation, verify that cover and base are connected properly: The reader is shipped unassembled. To assemble, pull cover away from base and rotate until the connector port on the base is aligned with the connector port on the cover. Snap shut. 2. Only connect wires necessary for use. Cut and/or isolate unused wires. Connecting unnecessary wires may lead to unexpected reader behavior. 3. If multiple reader units are installed in close proximity or back to back, RF interference may result in reduced read range performance. 4. A recurrent triple beep audio sequence may indicate that the cover is not seated properly. Remove cover and check for bent or broken pins in the connector. Copyright © 2007-2011, XceedID. All rights reserved. Revised 2/1/2011. Connecting the Cable 1. The readers are supplied with a 12-conductor cable pigtail. Ensure the reader wiring is disconnected at the host panel until all connections are made at the reader. Use the cable connection chart below: 2. Use a DC Power source between 8-16 volts. 3. Verify the reader is properly grounded by attaching the ground wire to an earth ground connection at the power supply or panel end of the cable. YellowBeeper BlueHold PurpleFuture GreenWiegand Data 0 or RS485A WhiteWiegand Data 1 or RS485A OrangeGreen LED BrownRed LED RedPower + DC (6-16 VDC) BlackGround PinkNot Used GrayNot Used DrainShield Ground

2/4/2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Short-term confidentiality request regarding application for certification of FCC ID: R2LXF2100C Gentlemen: Pursuant to DA 04-1705 of the Commission’s public notice, we request short-term confidential treatment for the following information until 06/01/2011 in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. Internal Photos 2. External Photos 3. Test Setup Photos 4. Users Manuals The above material contains trade secrets or technical data that if other companies with in the same industry were able to view, it would remove the edge on the market that this product provides our company. We acknowledge that any items where permanent confidentiality has been requested, the permanent request shall supersede this request. We understand that this request can be extended up to a maximum of 180 days. Should marketing for this product begin prior to the timeline indicated above, we will notify CKC Certification Services, LLC to remove the temporary confidentiality for the exhibits listed herein. Sincerely, Michael T. Conlin Vice President Engineering XceedID Corporation 500 Golden Ridge Rd. Building #1, Suite 160 Golden, CO 80401 TEL: 303-273-9930

11/9/2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457 and Section 0.459 pertaining to confidential material. XceedID Corporation would like the following documents regarding this submission for FCC ID: R2LXF2100C to be kept confidential. 1. All Schematics 2. All Block Diagrams 3. All Operational Descriptions 4. All Parts Lists 5. All Tune-up Procedure Documents The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Michael T. Conlin Director Engineering Ingersoll Rand Corporation 500 Golden Ridge Rd. Building #1, Suite 160 Golden, CO 80401 TEL: 303-640-2667

ACCESS CONTROL UNIT ACCESSORY, REFER TO INSTALL MANUAL P/N: 0093-01 FCC ID: R2LXF2100C IC: 5400A-XF2100C XceedID Corporation Model: XF2100C P/N: XF2100C S/N: 0000001 Date Code: 107 Rev: C Configuration: F00-04 X05_xx This device complies with Part 15 of FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Suitable for Outdoor Use US Patent 7676839 0976 Listed 22DV

ACCESS CONTROL UNIT ACCESSORY, REFER TO INSTALL MANUAL P/N: 0093-01 FCC ID: R2LXF2100C IC: 5400A-XF2100C XceedID Corporation Model: XF2110C P/N: XF2110C S/N: 0000001 Date Code: 107 Rev: C Configuration: F00-04 X05_xx This device complies with Part 15 of FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Suitable for Outdoor Use US Patent 7676839 0976 Listed 22DV

This report c written cons e TE S CERT #803 803.05 ontains a total of ent of CKC Laborat Physical STING 3.01, 803.02, 5, 803.06 49 pages and ma tories, Inc. Access Co Te FCC Par This test rep testing perfo of ISO/IEC 1 CKC Laborato We strive t o sound, adapt our custome processes, bu ay be reproduced Inger TEST ontrol Read ested To The rt 15 Subpar RSS Report Date of issue port bears th ormed herein 17025 under ories, Inc. o create long‐t tive, customer ers’ unique EM ut rather as th in full only. Partia rsoll Ra REPORT FO der, XF210 e Following S rt C Sections And ‐210 Issue 7 t No.: 91096‐ e: November 1 e accreditatio meets the tes the applicab term, trust ba r first testing MC challenges, e reason we a al reproduction m and OR 00 Rev. C & Standards: s 15.207, 15. 7 ‐12 16, 2010 on symbol ind st and reporti ble scope of sed relations h services. We , not as an int are in business may only be done & XF2110 R .225 dicating that ing requireme EMC testing hips by provid embrace each terruption to . with the Rev. C the ents for ding h of set Page 2of 49 Report No.: 91096‐12 TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing ......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 15.207 AC Conducted Emissions................................................................................................................................ 7 15.209 Carrier .......................................................................................................................................................... 25 15.209 / RSS‐210 Occupied Band Width .................................................................................................................. 28 15.225 Carrier .......................................................................................................................................................... 31 15.225 / RSS‐210 Occupied Band Width .................................................................................................................. 34 15.225 Frequency Stability ...................................................................................................................................... 37 15.209 Spurious Emissions ...................................................................................................................................... 41 Supplemental Information .......................................................................................................................... 48 Measurement Uncertainty ...................................................................................................................................... 48 Emissions Test Details .............................................................................................................................................. 48 Page 3of 49 Report No.: 91096‐12 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Ingersoll Rand 500 Golden Ridge Road., Bldg. 1 Golden, CO 80401 Joyce Walker CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 REPRESENTATIVE: Chao Lor Project Number: 91096 Customer Reference Number: 306477 DATE OF EQUIPMENT RECEIPT: October5, 2010 DATE(S) OF TESTING: October5 ‐11, 2010 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4of 49 Report No.: 91096‐12 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Site Registration & Accreditation Information Location CB # JAPAN CANADA FCC Mariposa A US0103 R‐563, C‐578, T‐1492 & G‐87 3082A‐2 90477 Page 5of 49 Report No.: 91096‐12 SUMMARY OF RESULTS Standard / Specification: FCC Part 15 Subpart C & RSS‐210 Issue 7 Description Test Procedure/Method Results Conducted Emissions FCC Part 15 Subpart C Section 15.207 /ANSIC63.4 (2003) …

Text truncated - open the document above for the full version.

XF2100C XF2100C XF2110C XF2110C Low Frequency ‐ Horizontal Low Frequency – Vertical
