R2NSER-8189CDMA 1x EV-DO USB Modem with WLAN

EPIVALLEY SER-8189 QSG Thank you for purchasing EpiValley SER-8189. Note. - This manual briefly the preparation, the process for installing and safety precautions for using SER-8189 router. - You are recommended to read the manual before using the SER-8189. Table of Contents Care and Maintenance ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 2 Part 1. Getting to know the SER ‐ 8189 1.1 Package Contents ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 1.2 Consists of SER ‐ 8189. ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 Part 2. Setting up the SER ‐ 8189 2.1 Charging the battery ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 2.2 Battery Tips ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4 2.3 Extending Battery Life ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4 2.4 Using a LAN cable ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5 Part 3. Using the SER ‐ 8189 3.1 Connecting the SER ‐ 8189 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5. 3.2 Opening the Browser Interface ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6 3.3 Device Activation (Winodws) ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6 3.4 Device Activation (Mac) ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7 Part 4. Technical Specifications, Regulatory and Safety ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 8 4.1 LED Overview ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 8 4.2 Technical Specification ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 9 4.3 Safe Information ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 9 4.4. Trademarks ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 10 2 4.5 Copyright ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 10 Care and Maintenance It is normal that your wireless device gets hot when you use it. - Use your wireless device and accessories with care and in clean environment. - Keep the wireless device from a fire or a lit cigarette. - Protect your device and accessories from water and vapor and keep them dry. - Do not drop, throw or bend your device. - Clean your device with a piece of damp and soft antistatic cloth. - Do not use any chemical agents (such as alcohol and benzene), chemical detergent, or powder to clean it. - Do not leave your device and accessories in a place with a considerably low or high temperature. - Use only accessories of the wireless device approved by the manufacturer. - Contact the authorized service center for any abnormity of the device or accessories. - Do not dismantle the device or accessories. Otherwise, the device and accessories are not covered by the warranty. Part 1. Getting to know the SER-8189 1.1 Package Contents - EpiValley SER-8189 Mobile Hotspot Router - QSG (Quick Start Guide) - AC-DC Travel Adaptor - Carrying Pouch - Li-ion 1,350mAh battery - RJ45 slot rubber cover 1.2 Consists of SER-8189 Power/Reset Button Micro USB port RJ45 LAN Port Air holes 3 Part 2. Setting up the SER-8189 2.1 Charging the battery 1. The battery compartment is located on the bottom of the device. Slide open the battery compartment door by firmly pressing in the direction of the arrows. 2. Insert the battery by lining up the gold contact points on the battery with the gold contact points in the battery compartment. Then press down gently until the battery is seated. 3. Replace the battery cover and slide it closed while pressing gently until it 4locks into place. 4. Connect the micro USB end of the AC-DC adapter to the micro USB port of the device. Note • You must have a fully charged battery the first time you use the SER-8189. • After the first use, you may use the device while it is connected to the AC- DC adapter. • When using battery power, the device lasts up to 2.5 hours (when connected to a single device only). • The battery will discharge more rapid ly as additional devices access the SER-8189. 2.2 Battery Tips Warning Use only EpiValley approved or EpiValley Wireless approved batteries and chargers with your device. The failure to use a EpiValley approved or EpiValley Wireless-approved battery and charger may increase the risk that your device will overheat, catch fire, or explode, re sulting in serious bodily injury, death, or property damage. Battery life depends on the network, signal strength, temperature, features, and accessories you use. _ If you connect your device to your computer using a USB data cable, the battery will charge. However, the device will not function as a wireless access point while connected to your computer. _ It normally takes at least 3 hours to fully charge the battery with an AC- DC adapter. _ New batteries or batteries stored for a long time may take more time to charge. _ When charging your battery, keep it near room temperature. _ Never expose batteries to temperatures below 32 ° F (0 ° C) or above 113 ° F (45 ° C). Never leave the device in an unattended vehicle due to uncontrollable temperatures that may be outside the desired temperature for this device. 5 _ It is normal for batteries to gradually wear down and require longer charging times. If you notice a change in your battery life, it is probably time to purchase a new battery. 2.3 Extending Battery Life When you are not using the device, push the power button lightly. Then the WiFi LED indicator turns off and SER-8189 turns to Standby mode. If you want to connect WiFi networ k again, push the power button lightly again. A blue WiFi LED of indicates that SER-8189 is ready to connect. 2.4 Using a LAN cable (RJ45) If you want to connect to RJ45 LAN cable to the SER-8189, plug the cable to the RJ45 slot located between Micro USB port and power button. Part 3. Using the SER-8189 3.1 Connecting the SER-8189 When you press the power button: _ The SER-8189 comes on and the power LED lights up. _ A solid green power LED of indicates that the device is charged over 40%. 1. Turn on the SER-8189 ensure your WiFi is enabled on your PC or laptop. You can view your available wireless networks by going through the control panel, network connections or sy…

Text truncated - open the document above for the full version.

EpiValley Co., Ltd. Lordland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea Date: December 31, 2009 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

EpiValley Co., Ltd. Lordland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea Date: December 31, 2009 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Harvey Sung of DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: R2NSER-8189 including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from EpiValley Co., Ltd. Sincerely, Woo Won Choung Principal Engineer

EpiValley Co., Ltd. Lordland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea Date: February 16, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: R2NSER-8189 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, EpiValley Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give EpiValley Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram Block Diagram_R2NSER-8189.pdf 2 Operational Description Operational Description_R2NSER-8189.pdf 3 Schematics Schematic_R2NSER-8189.pdf 4 Part Lists Part List_R2NSER-8189.pdf SHORT-TERM 5 External Photos Ext Photo_R2NSER-8189.pdf 6 Internal Photos Int Photo_R2NSER-8189.pdf 7 Test-Setup Photos Test Photo_R2NSER-8189.pdf 8 Users Manual User Manual_R2NSER-8189.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Woo Won Choung Principal Engineer

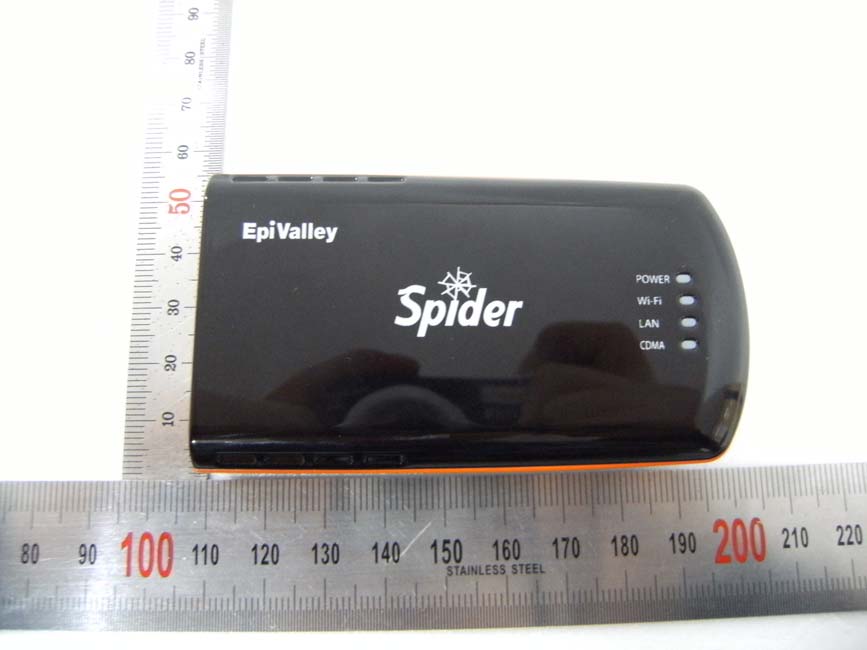

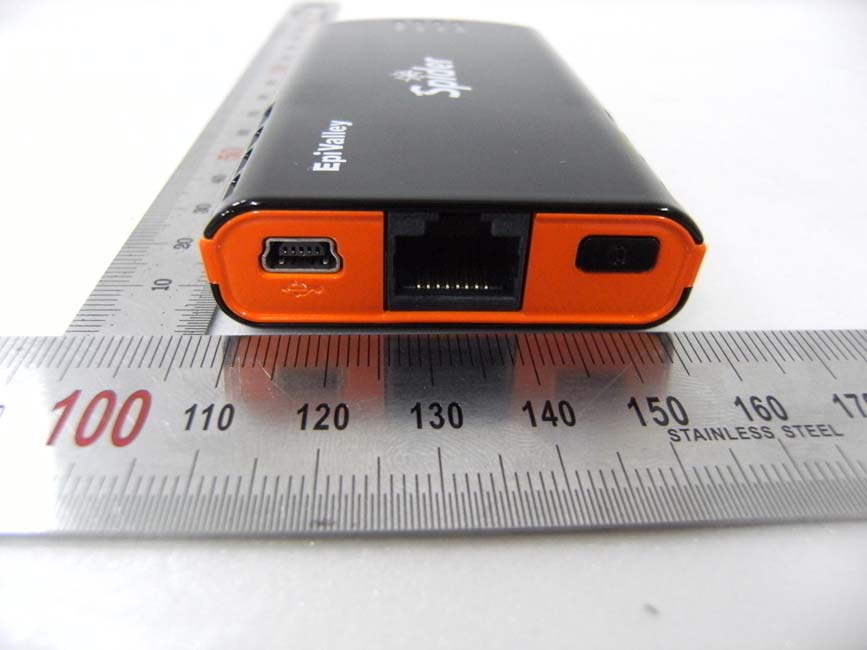

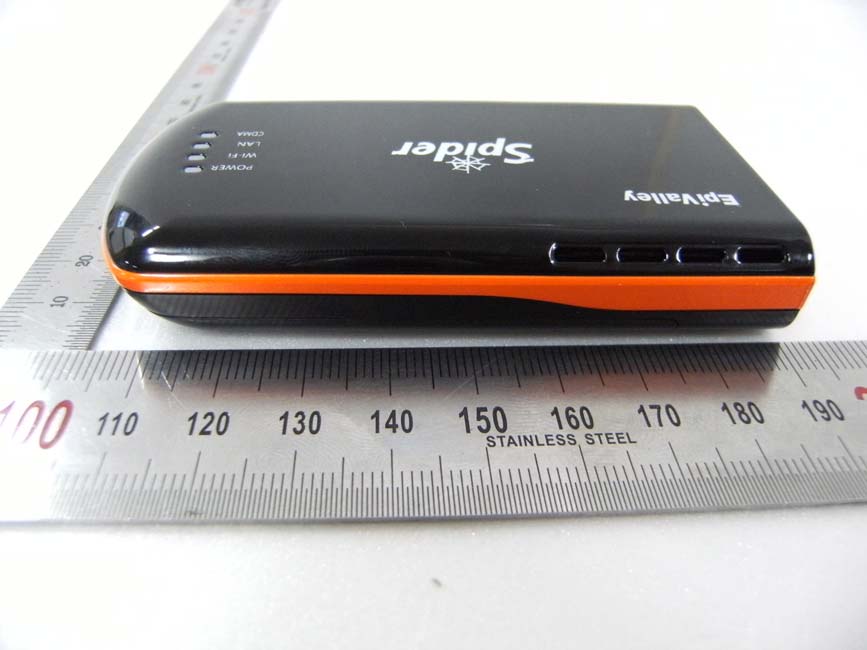

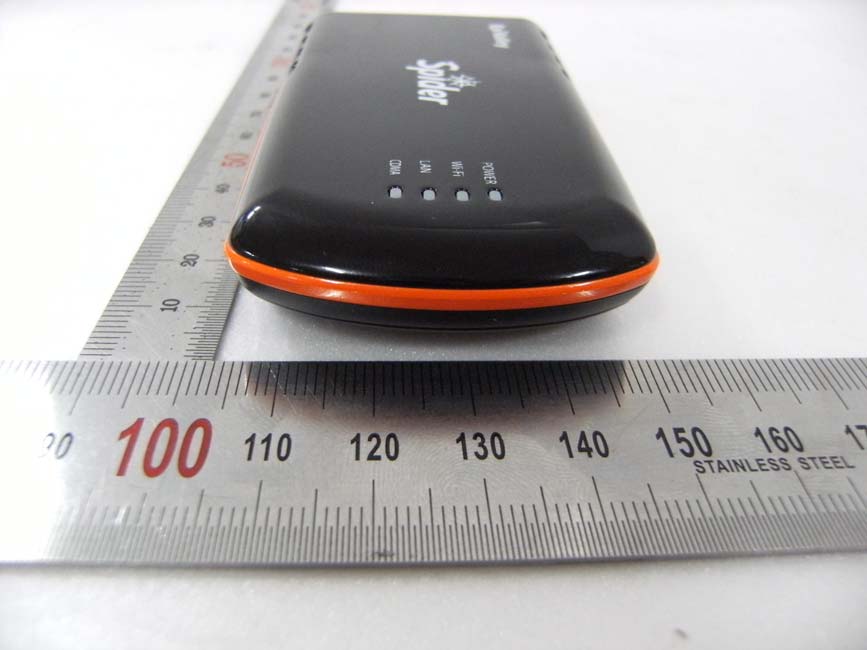

FCCID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 1 FCCID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 2 FCCID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 3 FCCID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 4

FCC ID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

FCC ID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 1 FCC ID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 2 FCC ID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 3 FCC ID: R2NSER-8189 Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 4 - CDMA Antenna - WLAN Antenna

FCC ID: R2NSER-8189 MPE Calculations for CDMA Cellular Band The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (ERP) was tested according to ANSI/TIA/EIA-603-C-2004. The maximum peak radiated output power (ERP) is recorded and EIRP is calculated as follows. ERP = 26.36dBm(433mW) EIRP = ERP + 2.15dB = 26.36 + 2.15 = 28.51(710mW) Power density at the specific separation: S = (EIRP)/(4R 2 π) S = (710) / (4 * 20 2 * π) S = 0.141 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) EIRP = Maximum Peak radiated output power(mW) R = Distance to the center of the radiation of the antenna (20cm) Conclusion: The Maximum permissible exposure (MPE) for the general Population/Uncontrolled is 0.55 mW/cm 2 (=f/1500=824/1500).The power density at 20cm does not exceed the 0.55 mW/cm 2 . Therefore, the exposure condition of this EUT is compliant with FCC rules. FCC ID: R2NSER-8189 MPE Calculations for CDMA PCS Band The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (ERP) was tested according to ANSI/TIA/EIA-603-C-2004. The maximum peak radiated output power (ERP) is recorded and EIRP is calculated as follows. EIRP = 25.06dBm(321mW) Power density at the specific separation: S = (EIRP)/(4R 2 π) S = (321) / (4 * 20 2 * π) S = 0.064 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) EIRP = Maximum Peak radiated output power(mW) R = Distance to the center of the radiation of the antenna (20cm) Conclusion: The Maximum permissible exposure (MPE) for the general Population/Uncontrolled is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition of this EUT is compliant with FCC rules.

1008-00775 DRTFCC1009-0189 TRF-RF-303(03)100616 Page2 / 31 Copyright ○ C 2010, Digital EMC Co., Ltd. CONTENTS 1. General Information ....................................................................... 5 1.1 Equipment information ................................................................ 5 2. INTROCUCTION/SAR DEFINITION ............................................... 5 2.1 SAR Definition ............................................................................. 5 3. SAR MEASUREMENT SETUP ....................................................... 6 3.1 Robotic System .......................................................................... 6 3.2 System Hardware ...................................................................... 6 3.3 System Electronics .................................................................... 6 3.4 Probe Measurement System ..................................................... 7 3.5 Probe Specifications .................................................................. 7 4. Probe Calibration Process ............................................................ 8 4.1 Dosimetric Assessment Procedure ............................................ 8 4.2 Free Space Assessment ............................................................ 8 4.3 Temperature Assessment * ........................................................ 8 5. PHANTOM & EQUIVALENT TISSUES ........................................... 9 5.1 SAM Phantom ............................................................................ 9 5.2 Brain & Muscle Simulating Mixture Characterization ................. 9 5.3 Device Holder for Transmitters .................................................. 9 6. TEST SYSTEM SPECIFICATIONS ............................................... 10 6.1 Automated Test System Specifications .................................... 10 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................... 11 7.1 Measurement Procedure ......................................................... 11 7.2 Specific Anthropomorphic Mannequin (SAM) Specifications ... 11 8. DEFINITION OF REFERENCE POINTS ....................................... 12 8.1 EAR Reference Point ............................................................... 12 8.2 Handset Reference Points ....................................................... 12 9. TEST CONFIGURATION POSITIONS .......................................... 13 1008-00775 DRTFCC1009-0189 TRF-RF-303(03)100616 Page3 / 31 Copyright ○ C 2010, Digital EMC Co., Ltd. 9.1 Positioning for Cheek/Touch .................................................... 13 9.2 Positioning for Ear / 15 ° Tilt .................................................... 14 9.3 Body Holster /Belt Clip Configurations ..................................... 15 10. ANSI / IEEE C95.1-1992 RF EXPOSURE LIMITS ...................... 16 10.1 Uncontrolled Environment ...................................................... 16 10.2 Controlled Environment ......................................................... 16 11. IEEE P1528 –MEASUREMENT UNCERTAINTIES .................... 17 12. SYSTEM VERIFICATION ............................................................ 18 12.1 Tissue Verification .................................................................. 18 12.2 Test System Validation ........................................................... 18 13.Multiple TRANSMITTERS SAR CONSIDERATIONS ................. 19 13.1 Introduction ............................................................................ 19 13.2 Output Power Thresholds for Unlicensed Transmitters .......... 19 13.3 Multiple Antenna Transmission Information for SER-8189 .... 19 13.3.1 The closest separation distance between CDMA and W-LAN antennas ....................................................................................... 19 13.3.2 W-LAN(802.11b) out power ............................................... 19 13.4 Summary of SAR Evaluation Requirements for Cell phones with MultipleTransmitters ....................................................................... 20 14. FCC 3G SAR MEASUREMENT PROCEDURES – OCT. 2007 .. 21 14.1 SAR MEASURMENT CONDITIONS FOR CDMA2000 ......... 21 14.2 Body SAR Measurements ...................................................... 21 14.3 1x RTT Support ...................................................................... 21 15. Configuring 802.11 a/b/g Transmitters for SAR Measurement22 15.1 SAR Testing with IEEE 802.11 a/b/g Transmitters ................. 22 15.2 General Device Setup ............................................................ 22 15.3 Frequency Channel Configurations ....................................... 22 16. SAR TEST DATA SUMMARY AND POWER TABLE ................. 23 16.1Max. Power Output Table for SER-8189 (Cellular, PCS) ........ 23 16.2 Max. Power Output Table for SER-8189 (W-LAN) ................. 23 1008-00775 DRTFCC1009-0189 TRF-RF-303(03)100616 Page4 / 31 Copyright ○ C 2010, Digital EMC Co., Ltd. 17. SAR TEST DATA SUMMARY ..................................................... 24 18. SAR TEST EQUOPMENT ........................................................... 29 19.CONCLUSION .............................................................................. 30 20. REFERENCES ............................................................................ 31 1008- TRF-R 1. G 1.1 FC Equ Equ Equ Equ TX RX Ma 2. IN In 1 (NIR), Congr In co develo spons chara on bi o scient At th the I n IRPA/ forms magn inclu d A glo 2.1 Specif (dissip the ra SAR i SAR Wher e = ma E = NOT E relatio polarit a grou -00775 RF-303(03)1 General In Equipme C Equipmen uipment type uipment mod uipment add uipment seri Frequency R X Frequency ax. SAR Mea NTROCU 1974, the Int , which exam ress in Paris ooperation w oped a num sored by the cteristics, m ological effec tific database e Eighth Inte nternational /INIRC. The of NIR, de v etic field ha ding UNEP/W ossary of term SAR Defi fic Absorptio pated in) an te of RF en e …

Text truncated - open the document above for the full version.

DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.941 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(9.31, 9.31, 9.31); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 Dipole Validation Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.139 dB Peak SAR (extrapolated) = 3.43 W/kg SAR(1 g) = 2.25 mW/g; SAR(10 g) = 1.47 mW/g 0 dB = 2.76mW/g DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.57 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(7.59, 7.59, 7.59); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-08-31; Ambient Temp: 22.0; Tissue Temp: 23.0 Dipole Validation Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.056 dB Peak SAR (extrapolated) = 20.7 W/kg SAR(1 g) = 10.7 mW/g; SAR(10 g) = 5.39 mW/g 0 dB = 14.8mW/g DIGITAL EMC CO., LTD DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:726 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.1 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(7.41, 7.41, 7.41); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-09-02; Ambient Temp: 22.5; Tissue Temp: 23.0 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.053 dB Peak SAR (extrapolated) = 26.6 W/kg SAR(1 g) = 12.7 mW/g; SAR(10 g) = 5.87 mW/g 0 dB = 18.1mW/g DIGITAL EMC CO., LTD DUT: SER-8189; Type: USB Modem Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.667 MHz; σ = 0.943 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(9.31, 9.31, 9.31); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 1cm space from Body, Top, CDMA Cellular Ch. 384, Ant Internal Area Scan (111x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.170 dB Peak SAR (extrapolated) = 0.025 W/kg SAR(1 g) = 0.019 mW/g; SAR(10 g) = 0.014 mW/g 0 dB = 0.022mW/g DIGITAL EMC CO., LTD DUT: SER-8189; Type: USB Modem Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.667 MHz; σ = 0.943 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(9.31, 9.31, 9.31); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 1cm space from Body, Top, CDMA Cellular Ch. 384, Ant Internal Area Scan (111x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.170 dB Peak SAR (extrapolated) = 0.025 W/kg SAR(1 g) = 0.018 mW/g; SAR(10 g) = 0.014 mW/g 0 dB = 0.022mW/g DIGITAL EMC CO., LTD DUT: SER-8189; Type: USB Modem Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.667 MHz; σ = 0.943 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(9.31, 9.31, 9.31); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 1cm space from Body, Top, CDMA Cellular Ch. 384, Ant Internal Area Scan (111x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 2: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.170 dB Peak SAR (extrapolated) = 0.023 W/kg SAR(1 g) = 0.017 mW/g; SAR(10 g) = 0.013 mW/g 0 dB = 0.019mW/g DIGITAL EMC CO., LTD DUT: SER-8189; Type: USB Modem Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.667 MHz; σ = 0.943 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3643; ConvF(9.31, 9.31, 9.31); Calibrated: 2010-01-26; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Test Date: 2010-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 1cm space from Body, Top, CDMA Cellular Ch. 384, Ant Internal Area Scan (111x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 3: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.170 dB Peak SAR (extrapolated) = 0.021 W/kg SAR(1 g) = 0.016 mW/g; SAR(10 g) = 0.012 mW/g 0 dB = 0.018mW/g DIGITAL EMC CO., LTD DUT: SER-8189; Type: USB Modem Communication Syst…

Text truncated - open the document above for the full version.

FCC ID: R2NSER-8189 ATTACHMENT Te s t P l o t s Test Plots FCC ID: R2NSER-8189 1/21 page Conducted Spurious CDMA Cellular Band Ch.1013 Conducted Spurious CDMA Cellular Band Ch.1013 Test Plots FCC ID: R2NSER-8189 2/21 page Conducted Spurious CDMA Cellular Band Ch.0384 Conducted Spurious CDMA Cellular Band Ch.0384 Test Plots FCC ID: R2NSER-8189 3/21 page Conducted Spurious CDMA Cellular Band Ch.0777 Conducted Spurious CDMA Cellular Band Ch.0777 Test Plots FCC ID: R2NSER-8189 4/21 page Power Out. CDMA Cellular Band Ch.1013 Power Out. CDMA Cellular Band Ch.0384 Test Plots FCC ID: R2NSER-8189 5/21 page Power Out. CDMA Cellular Band Ch.0777 Test Plots FCC ID: R2NSER-8189 6/21 page Occupied Bandwidth. CDMA Cellular Band Ch.1013 Channel Power. CDMA Cellular Band Ch.1013 Test Plots FCC ID: R2NSER-8189 7/21 page Occupied Bandwidth. CDMA Cellular Band Ch.0384 Channel Power. CDMA Cellular Band Ch.0384 Test Plots FCC ID: R2NSER-8189 8/21 page Occupied Bandwidth. CDMA Cellular Band Ch.0777 Channel Power. CDMA Cellular Band Ch.0777 Test Plots FCC ID: R2NSER-8189 9/21 page Band Edge. CDMA Cellular Band Ch.1013 Band Edge. CDMA Cellular Band Ch.0777 Test Plots FCC ID: R2NSER-8189 10/21 page Conducted Spurious CDMA PCS Band Ch.0025 Conducted Spurious CDMA PCS Band Ch.0025 Test Plots FCC ID: R2NSER-8189 11/21 page Conducted Spurious CDMA PCS Band Ch.0025 Conducted Spurious CDMA PCS Band Ch.0025 Test Plots FCC ID: R2NSER-8189 12/21 page Conducted Spurious CDMA PCS Band Ch.0600 Conducted Spurious CDMA PCS Band Ch.0600 Test Plots FCC ID: R2NSER-8189 13/21 page Conducted Spurious CDMA PCS Band Ch.0600 Conducted Spurious CDMA PCS Band Ch.0600 Test Plots FCC ID: R2NSER-8189 14/21 page Conducted Spurious CDMA PCS Band Ch.1175 Conducted Spurious CDMA PCS Band Ch.1175 Test Plots FCC ID: R2NSER-8189 15/21 page Conducted Spurious CDMA PCS Band Ch.1175 Conducted Spurious CDMA PCS Band Ch.1175 Test Plots FCC ID: R2NSER-8189 16/21 page Power Out. CDMA PCS Band Ch.0025 Power Out. CDMA PCS Band Ch.0600 Test Plots FCC ID: R2NSER-8189 17/21 page Power Out. CDMA PCS Band Ch.1175 Test Plots FCC ID: R2NSER-8189 18/21 page Occupied Bandwidth. CDMA PCS Band Ch.0025 Channel Power. CDMA PCS Band Ch.0025 Test Plots FCC ID: R2NSER-8189 19/21 page Occupied Bandwidth. CDMA PCS Band Ch.0600 Channel Power. CDMA PCS Band Ch.0600 Test Plots FCC ID: R2NSER-8189 20/21 page Occupied Bandwidth. CDMA PCS Band Ch.1175 Channel Power. CDMA PCS Band Ch.1175 Test Plots FCC ID: R2NSER-8189 21/21 page Band Edge. CDMA PCS Band Ch.0025 Band Edge. CDMA PCS Band Ch.1175

DEMC#DR50111003A Page 1 of 25 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Dates of Tests: December 21, 2009 ~ February 17, 2010 Test Report S/N:DR50111003A Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT Purpose : Original Grant Classification : Licensed Non-Broadcast Station Transmitter(PCB) EUT Type : CDMA 1x EV-DO USB Modem with WLAN Model name : SER-8189 Serial number : Identical prototype FCC Rule Part(s) : §22(H), §24(E), §2 TX Frequency Range : Cellular Band: 824.70 ~ 848.31 MHz PCS Band: 1851.25 ~ 1908.75 MHz RX Frequency Range : Cellular Band: 869.70 ~ 893.31 MHz PCS Band: 1931.25 ~ 1988.75 MHz Max. RF Output Power : Cellular Band – 0.433W ERP : PCS Band – 0.321W EIRP Date of Issue : March 2, 2010 The Test results relate only to the tested sample. It is not allowed to copy this report even partly without the allow…

Text truncated - open the document above for the full version.
