SXC-1180 CDMA 1x USB MODEM Wherever you are. Wherever you need 참고사항 노트북에 제품(SXC-1180)을 직접 연결하여 사용하는 경우, LCD모니터에서 발생하 는 전자파에 의해 수신 감도가 저하되는 경우가 있습니다. 이 경우 제품과 함께 동봉된 USB연장 케이블을 연결해 사용하시기를 권장합니다. Introduction Congratulations on your purchase of the advanced and compact SXC- 1180 USB Modem, designed to operate with the latest digital mobile communication technology. For Your Safety Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual. Warning • USB Modem must be switched off at all times in an aircraft. • Do not use your Modem near petrol stations, fuel depots, chemical plants or blasting operations. • For your safety, use ONLY specified note-book PC and desk-top PC • Do not handle the modem with wet hands while it is being charged. It may cause an electric shock or seriously Damage your modem. • Keep the modem in a safe place out of small children’s reach. It includes small parts which if detached may cause a choking hazard. Caution • Switch off the modem in any area where required by special regulations. For example, do not use your modem in hospitals or it may affect sensitive medical equipment. • Emergency calls may not be available under all cellular networks. Therefore, you should never depend solely on the modem for emergency calls. • Only use ORIGINAL accessories to avoid damage to your modem. • All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs, radios, PCs, etc. This user’s guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and ro prevent any damage to or misuse of the USB Modem. Any changes or modifications not expressly approved in this user’s guide could void your warranty for this equipment. 1. Part of the USB Modem Indicator LED R-UIM Socket USB CONNECTOR Neck Strap USB Cover 2. Product Specification Function SXC-1180 Remarks Main Operation Chip MSM6025,RFR6122, RFT6122 CDMA Standard TIA/EIA/IS-2000, IS-98D, Backwards compatibility with IS-95 A/B Cellular 800 Single Band Support Band Class 0 TX: 824 ~ 849 MHz Frequency Band of Operation RX: 869 ~ 894 MHz Transmit Power 200mW Power supply 4.5 ~5.5V DC USB Power Data Rate Up to 153 Kbps(FL:153Kbps / RL:153Kbps) Feed through : Packet data, A sync data Data options Protocol : SMS, Simple IP Connector&Switches USB Power input connector Hardware Interface USB 1.1 and 2.0 Software Interface IS-707.3 AT Command set LEDs 2 LED(Power) 3 Color LED PRL/OTA support Phone book Use PC UI Application Antenna Intenna Connector&Switches USB Power input connector Installation Noetbook/Desktop PC USB Interface Dimension W: 32 ,D:94.4 ,H:11.5 (mm) Weight Net( 20g),Gift box( TBD kg) TBD O/S SUPPORT Windows 2000, Windows XP(Option : WIN98SE) 3-1 Program install guide 1. The install program insert at CD-ROM drive 2. If waited, Auto run program start for install 3. If do not started install program, Use window search to install “Setup.exe” of CD-ROM 4. The picture is install start program screen . Click “Next” 5. The picture is ready to install the program. Click “Install”, start program 6. Start the Dialer Client install program 7. The picture is install program finished 8-1. SIT_1x_usbmodem Device install(1). - After installation process completing. Connect the PC and the modem. And then the new hardware wizard is executed. Click “Install the software automatically ” and “Next ”, And then modem driver is installed automatically. 8-2. SIT_1x_usbmodem Device install(2). . - Below window comes out to hardware installation process. Then Click “continue Anyway”. 8-3. SIT_1x_usbmodem Device install (3). - The picture is SIT_1x_usbmodem Device install finished. 9-1. SIT_1x_usbmodem install (1). - After SIT_1x_usbmodem Device drive install finished. The new hardware wizard is executed.. Click “Install the software automatically ” and “Next ”, And then modem driver is installed automatically. 9-2. SIT _1x_usbmodem install (2). - “Continue Anyway” Click 9-3. SIT _1x_usbmodem install(3). - The picture is SIT_1x_usbmodem drive install finished. 10-1. SIT_1x_usbmodem Port install(1). - After SIT_1x_usbmodem drive install finished. The new hardware wizard is executed.. Click “Install the software automatically ” and “Next ”, And then modem driver is installed automatically. 10-2. SIT_1x_usbmodem Port install(2). - “Continue Anyway” Click. 10-3. SIT_1x_usbmodem Port install (3). - The picture is SIT_1x_usbmodem Port install finished. 3-3. PC Client Manual Run application and then below window is active. Below window has 6 function menu. 1) Connect Connect wireless internet via Dial connection network. Click Connect menu to be showed below pop-up window User name : fill in user ID, password and Dial number provided by service provider, and then click connect button to connect wireless network.(If you want to save this information, click square box next to “ Save setting”. 2) Address Book - Manage phone book. 2.1) If you want to call or send SMS to member in the list, select the member and click the right mouse button. You see pop-up menu and just click Send or Call. 2.2) You can use Find function to find registered name or phone number you want in the list. 2.3) If you want to register new number, just click Add button. You can see “Add” list and Add Group. Select Add List to be showed new screen for new Number. (Refer to below picture) 2.4) If you want to synchronize phone book between PC and Modem, click “Phone Book” button to be showed below phone book window. (Refer to below picture) - Use left, right arrow button to select phone number and use copy/move option to synchronize the selected number. 3) Setup - Setup various information in application. 3.1) Window Set up the window display function. A) Always on top : Display window on top always. B) Tray icon blink : When application receives messages, tray icon blinks on work…

Text truncated - open the document above for the full version.

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea January 23, 2007 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: R2NSXC-1180 including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SUNGIL TELECOM CO., LTD. Sincerely, W.W CHOUNG/Senior Engineer

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea January 23, 2007 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re : SUNGIL TELECOM CO., LTD. FCC ID : R2NSXC-1180 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SUNGIL TELECOM CO., LTD. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Part Location and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which SUNGIL TELECOM CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SUNGIL TELECOM CO., LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, W.W CHOUNG/Senior Engineer

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea January 23, 2007 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re: SUNGIL TELECOM CO., LTD. FCC ID: R2NSXC-1180 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, SUNGIL TELECOM CO., LTD requests short- term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos except in the SAR test report Internal photos and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which SUNGIL TELECOM CO., LTD considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SUNGIL TELECOM CO., LTD feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. W.W CHOUNG/Senior Engineer

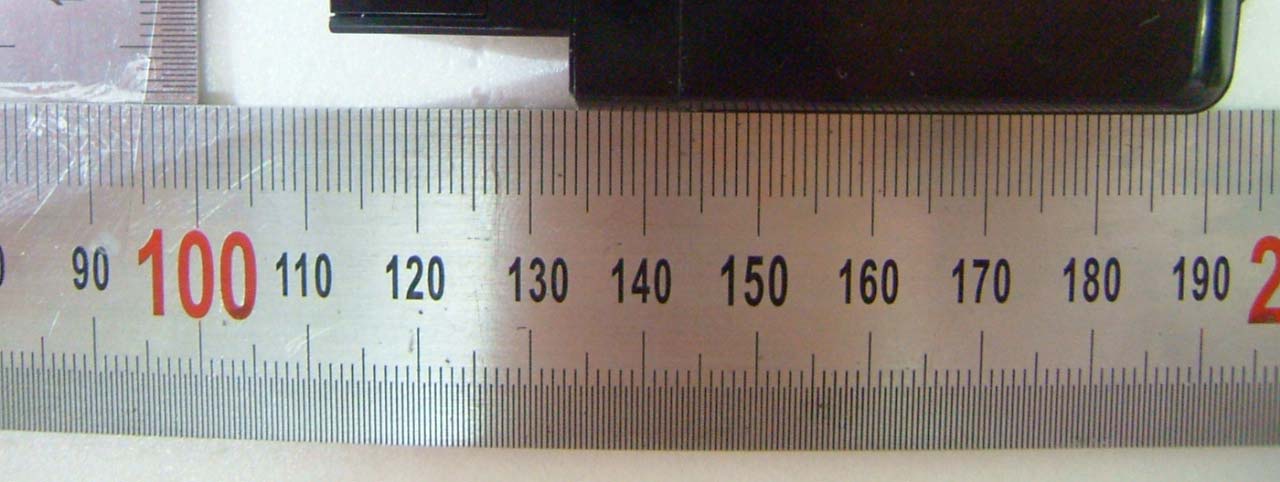

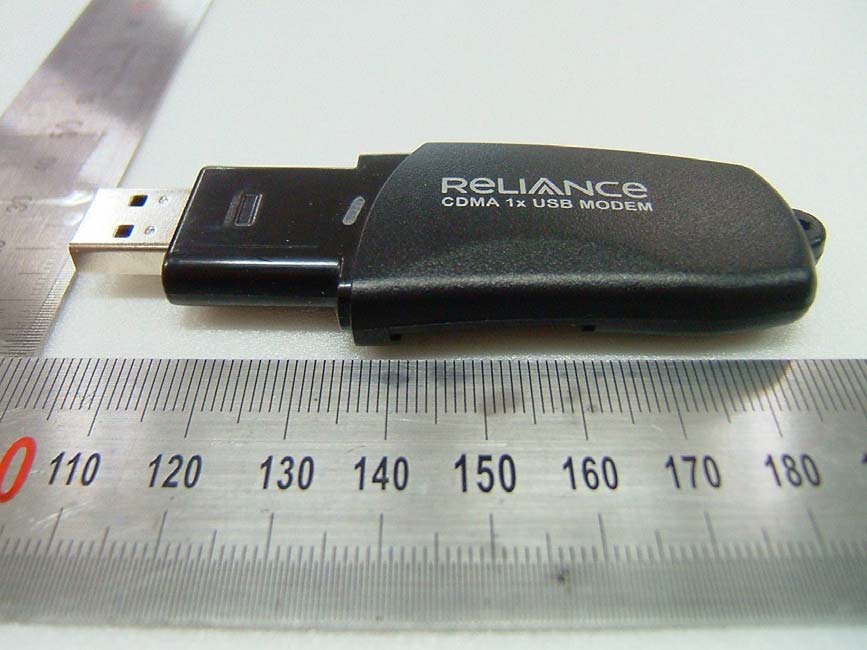

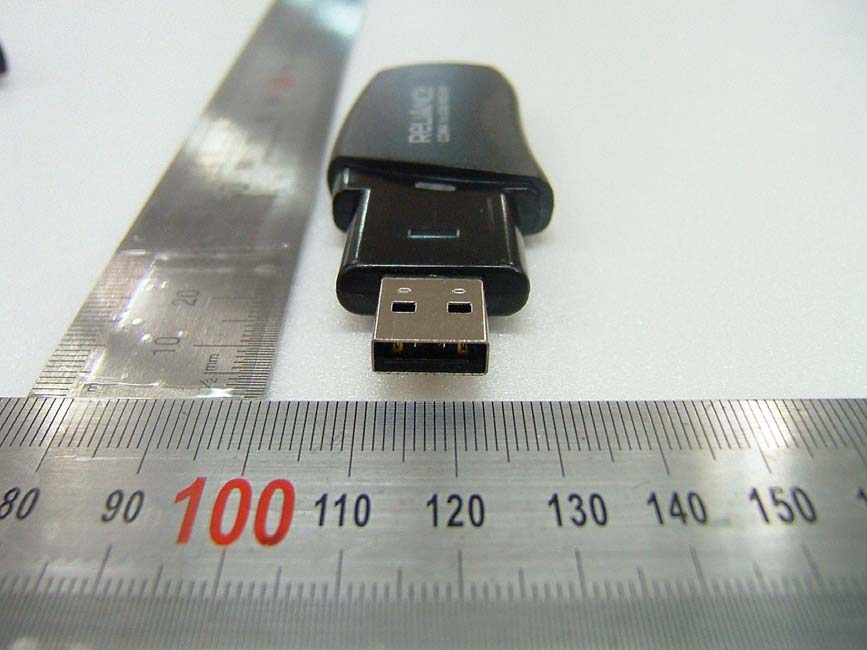

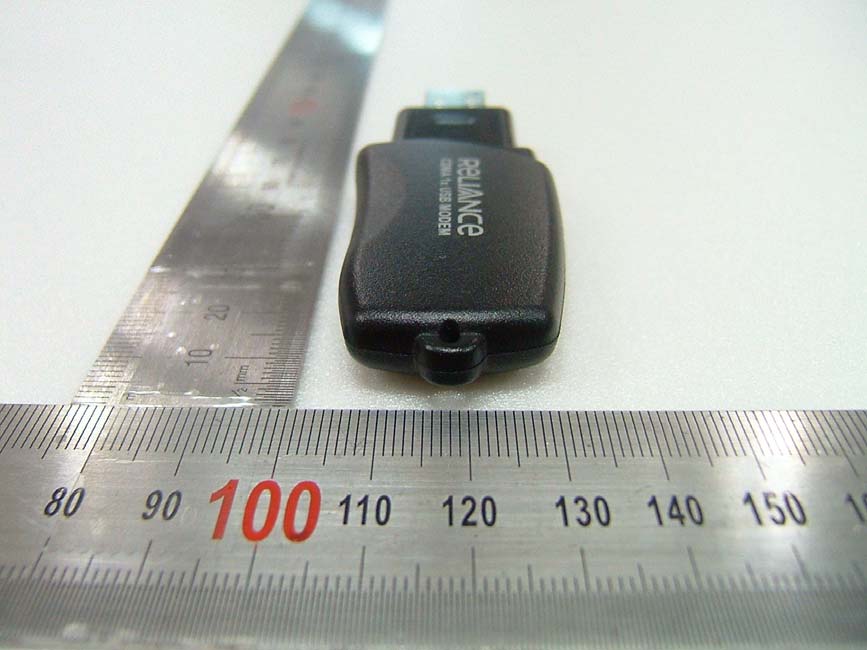

FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd. EXTERNAL PHOTOGRAPHS FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd. FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd. FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd.

FCC ID: R2NSXC-1180 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID: R2NSXC-1180 Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. SUNGIL TELECOM FCC ID: R2NSXC-1180 Model Name: SXC-1180

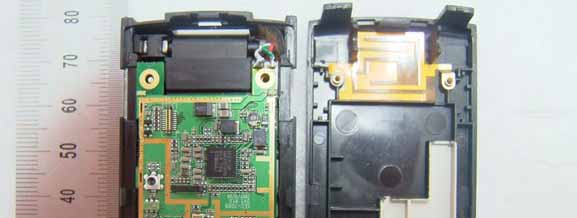

FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd. INTERNAL PHOTOGRAPHS FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd. FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd. FCC ID: R2NSXC-1180 Copyright ○ c 2007, DIGITAL EMC Co., Ltd.

Copyright ○ c 2007, DIGITAL EMC Co., Ltd. PROBE CALIBRATION

DEMC#DR50110701D Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 2 SAR VALIDATION PLOTS DEMC#DR50110701D Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 2

DEMC#DR50110701D Copyright ○ c 2007, DIGITAL EMC Co., Ltd. SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.983 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 5.5mm from Body, CDMA Ch.1013, Ant Fixed, Horizontal Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.037 dB Peak SAR (extrapolated) = 0.952 W/kg SAR(1 g) = 0.577 mW/g; SAR(10 g) = 0.351 mW/g 0 dB = 0.641mW/g DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.983 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 5.5mm from Body, CDMA Ch.1013, Ant Fixed, Horizontal Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.037 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.407 mW/g; SAR(10 g) = 0.175 mW/g 0 dB = 0.421mW/g DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.52 MHz; σ = 0.994 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 5.5mm from Body, CDMA Ch.384, Ant Fixed, Horizontal Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.012 dB Peak SAR (extrapolated) = 5.58 W/kg SAR(1 g) = 1.23 mW/g; SAR(10 g) = 0.666 mW/g 0 dB = 1.23mW/g DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.52 MHz; σ = 0.994 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 5.5mm from Body, CDMA Ch.384, Ant Fixed, Horizontal Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.012 dB Peak SAR (extrapolated) = 2.91 W/kg SAR(1 g) = 0.963 mW/g; SAR(10 g) = 0.440 mW/g 0 dB = 1.02mW/g DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used: f = 848.31 MHz; σ = 1.01 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 5.5mm from Body, CDMA Ch.777, Ant Fixed, Horizontal Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.165 dB Peak SAR (extrapolated) = 2.96 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.495 mW/g 0 dB = 1.10mW/g DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used: f = 848.31 MHz; σ = 1.01 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 5.5mm from Body, CDMA Ch.777, Ant Fixed, Horizontal Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.165 dB Peak SAR (extrapolated) = 1.74 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.643 mW/g 0 dB = 1.15mW/g DIGITAL EMC CO., LTD DUT: SXC-1180; Type: CDMA USB Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.983 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-01-17; Ambient Temp: 21.0; Tissue Temp: 21.5 Touch from Body, CDMA Ch.1013, Ant Fixed, Vertical Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.013 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.839 mW/g; SAR(10 g) = 0.531 mW/g 0 dB = 0.912mW/g DIGITAL EMC CO., LTD …

Text truncated - open the document above for the full version.

Copyright ○ c 2007, DIGITAL EMC Co., Ltd. DIPOLE CALIBRATION

DEMC#DR50110701E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 19 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: January 18 ~23, 2007 Test Report S/N: DR50110701E Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Portable Transmitter worn on body (PCT) FCC Rule Part(s) : §22(H), §2 EUT Type : CDMA 2000 1x USB Dongle CDMA MS Protocol Rev. Number : 6 Model name : SXC-1180 Serial number : Identical prototype TX Frequency Range : 824.70 ~848.31 MHz (CDMA) RX Frequency Range : 869.70 ~893.31 MHz (CDMA) Max. RF Output Power : 0.163W ERP CDMA (22.13dBm) Max. SAR Measurement : 1.23W/kg CDMA Body SAR Emission Designators: : 1M26F9W Date of Issue : January 24, 2007 R2NSXC-1180 SUNGIL TELECOM CO., LTD. DEMC#DR50110701E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 19 TABLE OF CONTENTS ◈ AUTHORIZATION LETTER ◈ CONFIDENTIALITY LETTER(S) ◈ TEST REPORT 1.1 SCOPE 3 2.1 GENERAL INFORMATION 4 3.1 DESCRIPTION OF TESTS 5 4.1 TEST DATA 8 4.1.1 CONDUCTED OUTPUT POWER 8 4.1.2 EFFECTIVE RADIATED POWER OUTPUT 9 4.1.3 CDMA RADIATED MEASUREMENTS 10 4.1.4 FREQUENCY STABILITY(CDAM) 13 5.1 PLOTS OF EMISSIONS 15 6.1 LIST OF TEST EQUIPMENT 16 7.1 SAMPLE CALCULATIONS 18 8.1 CONCLUSION 19 ◈ TEST PLOTS ◈ FCC ID LABEL & LOCATION ◈ TEST SETUP PHOTOGRAPHS ◈ EXTERNAL PHOTOGRAPHS ◈ INTERNAL PHOTOGRAPHS ◈ BLOCK DIAGRAM(S) ◈ SCHEMATIC DIAGRAM(S) ◈ OPERATIONAL DESCRIPTION ◈ PARTS LI S T ◈ PARTS LOCATION ◈ USER’S MANUAL ◈ SAR TEST REPORT ◈ SAR VALIDATION PLOTS ◈ SAR TEST PLOTS ◈ SAR TEST SETUP PHOTOGRAPHS ◈ SAR PROBE CALIBRATION ◈ SAR DIPOLE CALIBRATION DEMC#DR50110701E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 3 of 19 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z CDMA MS Protocol Revision Number z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: R2NSXC-1180 Quantity production is planned 1M26F9W (CDMA) 824.70 ~848.31 MHz (CDMA) 869.70 - 893.31 MHz (CDMA) 0.163W ERP CDMA (22.13dBm) Licensed Portable Transmitter worn on body (PCT) CDMA 2000 1x USB Dongle 6 CDMA ± 0.00025 % (2.5ppm) §22(H), §2 January 18 ~ 23, 2007 DIGITAL EMC DR50110701E Applicant: SUNGIL TELECOM CO., LTD. Address: Lordland EZ Tower #511, 153, Gumi-Dong, Bundang-Gu, SEONGNAMCITY, GYUNGGI, KOREA Attention: Woo Won Choung DEMC#DR50110701E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 4 of 19 2.1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer January 24, 2007 Won-Jung LEE Data Name Signature Report Reviewed By: manager January 24, 2007 Harvey Sung Data Name Signature Ordering party: Company name : SUNGIL TELECOM CO., LTD. Address : Loadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Zipcode : 463-500 City/town : SEONGNAM-CITY, KYUNGGI Country : KOREA Date of order : January 16, 2006 DEMC#DR50110701E Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 5 of 19 3.1 DESCRIPTION OF TESTS 3.1.1 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 3.1.2 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 3.1.3 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 10 GHz. At the input terminals of the spectrum analyzer, an isolator(RF circulator with on port terminated with 50ohms) and an 870 MHz to 890 MHz band pass filter is connected between the test transceiver(for conducted tests)or the receive antenna(for radiated tests) and the analyzer . The rejection of the band pass filter to signals in the 825-845 MHz range is adequate to limit the transmit energy from the test transceiver which appears to a level which will allow the analyzer to measure signals less than-90dBm. Calibration of the test receiver is performed in the 870-890 MHz range to insure accuracy to allow variation in the band pass filter insertion loss to be calibrated. 3.1.4 Frequencies At the input terminals of the spectrum analyzer, an isolator (RF pad) and a high-pass filter are connected between the test transceiver (for conducted tests) or the receive antenna (for radiated tests) and the analyzer. The high-pass filter is to limit the fundamental frequency from interfering with the measurement of low-level spurious and harmonic emissions and to ensure that the preamplifier is not saturated. 3.1.5 Radiation Spurious and Harmonic Emission…

Text truncated - open the document above for the full version.

DEMC#DR50110701D Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 23 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: January 17, 2007 Test Report S/N:DR50110701D Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Portable Transmitter Worn on Body (PCT) EUT Type: CDMA 2000 1x USB Dongle Model Name SXC-1180 Test Device Serial No.: Identical prototype TX Frequency Range: 824.70 ~848.31 MHz (CDMA) RX Frequency Range: 869.70 ~893.31 MHz (CDMA) Max. RF Output Power: 0.163W ERP CDMA (22.13 dBm) Max. SAR Measurement: 1.23 mW/g CDMA Body SAR Application Type: Certification Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Data of issue: January 23, 2007 Tested by : Reviewed by : Sun-Kyu Ryu (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. R2NSXC-1180 SUNGIL TELECOM CO., LTD. DEMC#DR50110701D Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 23 1. INTRODUCTION ...................................................................................................... 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP......................................................................................... 4 Robotic System.......................................................................................................... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY4 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System......................................................................................... 5 Probe Specifications .................................................................................................... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment ............................................................................................... 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom ........................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters..................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure............................................................................................. 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points............................................................................................ 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 12 Body Holster /Belt Clip Configurations .......................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS.................................................................. 14 Uncontrolled Environment ........................................................................................... 14 Controlled Environment........................................................................................ ....... 14 11. MEASUREMENT UNCERTAINTIES............................................................................... 15 SAR Measurement Uncertainties .................................................................................. 15 12. SYSTEM VERIFICATION........................................................................................... 16 Tissue Verification...................................................................................................... 16 Test System Verification...........................................................................…

Text truncated - open the document above for the full version.

FCC ID: R2NSXC-1180 ATTACHMENT Te s t P l o t s Te s t P l o t s FCC ID: R2NSXC-1180 - Conducted Spurious CDMA Ch. 1013 Te s t P l o t s FCC ID: R2NSXC-1180 - Conducted Spurious CDMA Ch. 1013 (Continued...) Te s t P l o t s FCC ID: R2NSXC-1180 - Conducted Spurious CDMA Ch. 0384 Te s t P l o t s FCC ID: R2NSXC-1180 - Conducted Spurious CDMA Ch. 0384 (Continued...) Te s t P l o t s FCC ID: R2NSXC-1180 - Conducted Spurious CDMA Ch. 0777 Te s t P l o t s FCC ID: R2NSXC-1180 - Conducted Spurious CDMA Ch. 0777 (Continued...) Te s t P l o t s FCC ID: R2NSXC-1180 - Power Out. CDMA Ch. 1013 - Power Out. CDMA Ch. 0384 Te s t P l o t s FCC ID: R2NSXC-1180 - Power Out. CDMA Ch. 0777 Te s t P l o t s FCC ID: R2NSXC-1180 - Occupied Bandwidth. CDMA Ch. 0384 - Channel Power. CDMA Ch. 0384 Te s t P l o t s FCC ID: R2NSXC-1180 - Band Edge. CDMA Ch. 1013 Te s t P l o t s FCC ID: R2NSXC-1180 - Band Edge. CDMA Ch. 0777

DEMC#DR50110701D Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. Page 1 of 4 SAR TEST SET UP PHOTO DEMC#DR50110701D Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. Page 2 of 4 View 1 DEMC#DR50110701D Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. Page 3 of 4 View 2(Front) DEMC#DR50110701D Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. Page 4 of 4 View 3(Side)

FCC ID : R2NSXC-1180 Copyright ○ c 2007 DIGITAL EMC Co., Ltd. TEST SETUP PHOTOGRAPHS FCC ID : R2NSXC-1180 Copyright ○ c 2007 DIGITAL EMC Co., Ltd. FCC ID : R2NSXC-1180 Copyright ○ c 2007 DIGITAL EMC Co., Ltd.
