R2NSXP-1080CDMA 1x WLL Terminal

CDMA 2000 1XWLL PHONESXP-800/ 1900T CDMA Fixed wireless Phone 1 Table of Contents PHONE COMPONENTS MAIN OPERATION KEYES LCD DISPLAY BATTERY BASIC OPERATIONS 4-1.Turning Power On 4-2.Making a Call 4-3.Receiving a Call 4-4.Function used during a call 4-5.Call Forwarding and Call Waiting MENU TABLE MENU OPTIONS 6-1.Phone Book 6-2.Messages 6-3.Call History 6-4.Sounds 6-5.Tools 6-6.Settings 6-7.Games REFERENCE 7-1.Care and Maintenance 7-2.Battery Information 7-3.Accessories 7-4.Limited Warranty Information ........................................................................................................................2 ..................................................................................................................3 .............................................................................................................................................4 .........................................................................................................................................................5 ..............................................................................................................................6 .............................................................................................................................6 ......................................................................................................................................6 ...................................................................................................................................7 .............................................................................................................7 ...............................................................................................8 .....................................................................................................................................10 ........................................................................................................................................10 .............................................................................................................................................10 ........................................................................................................................................15 ..................................................................................................................................................16 ......................................................................................................................................................17 .................................................................................................................................................18 ..................................................................................................................................................22 ............................................................................................................................................9 ..............................................................................................................................................23 ...................................................................................................................23 ..........................................................................................................................23 .........................................................................................................................................24 .....................................................................................................25 CDMA 2000 1XWLL PHONESXP-800/ 1900T CDMA Fixed wireless Phone 1. Phone Components 2 Main UnitHandset AntennaPower Adaptor User’s ManualRechargeable Battery Data Cable (Optional) CDMA 2000 1XWLL PHONESXP-800/ 1900T CDMA Fixed wireless Phone 2. Main Operation Keys 3 Easy navigational keys to explore the phone menu. 1. Up/Down Navigation Keys Large and easy-to-recognize number/text keys are used to input numbers 2. Number keys To exit out of any menu or to cancel the setup process 3. Clear Key To confirm the any setting or to proceed to next sub menu 4. Store Key This button will enable the phone to dial with a tone without picking up a handset. 5. Speaker Key This button will automatically send already input numbers to make a call 6. Send Key To check your text and voicemail message 7. Message Menu Key In this menu, you can set up and check the functions of the phone 8. Main Menu Key This LED indicates the on/off status of the phone. 9. Power Indicator LED CDMA 2000 1XWLL PHONESXP-800/ 1900T CDMA Fixed wireless Phone 4 3. LCD Display RSSI Signal Strength Indicator Indicates that phone is exploring Main Menu or Message Menu Indicates the Alarm status Indicates that user has a message in the mailbox Used when calling or receiving an outside trunk call User is using the phone book menu. Battery Signal Indicator CDMA 2000 1XWLL PHONESXP-800/ 1900T CDMA Fixed wireless Phone 5 4. Battery Installing a Battery The FWP is powered by a rechargeable Li-on battery. Use only Sungil approved battery. 1. Remove the battery cover gently. 2. Place the battery into the battery slot, making sure that the battery connector is securely connected to the corner of the battery slot. 3. Place the Battery cover as shown. Charging the Battery The Battery is charged and powered by Li-on battery,and a travel adaptor comes with the original package. Use only Sungil approved battery to ensure the quality,and it is always advised that phone is connected to a permanent power source at all times. Please note that Battery is for Emergency. 1. With Battery in position on the phone, plug in FWP power adaptor to the back of the unit. 2. Plug your Power Adaptor to a standard AC Wall Outlet. When the battery is charged, it will have power plug display on the right end. When power is plugged off,…

Text truncated - open the document above for the full version.

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea Oct. 7, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: R2NSXP-1080 including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SUNGIL TELECOM CO., LTD. Sincerely, W.W CHOUNG/Senior Engineer

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea Oct. 07, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : SUNGIL TELECOM CO., LTD. FCC ID : R2NSXP-1080 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SUNGIL TELECOM CO., LTD. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Turn up procedure and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which SUNGIL TELECOM CO.,LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SUNGIL TELECOM CO., LTD.considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, W.W CHOUNG/Senior Engineer

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea Oct. 07, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: SUNGIL TELECOM CO., LTD. FCC ID: R2NSXP-1080 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, SUNGIL TELECOM CO., LTD.requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which SUNGIL TELECOM CO., LTD.considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SUNGIL TELECOM CO., LTD.feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, W.W CHOUNG/Senior Engineer

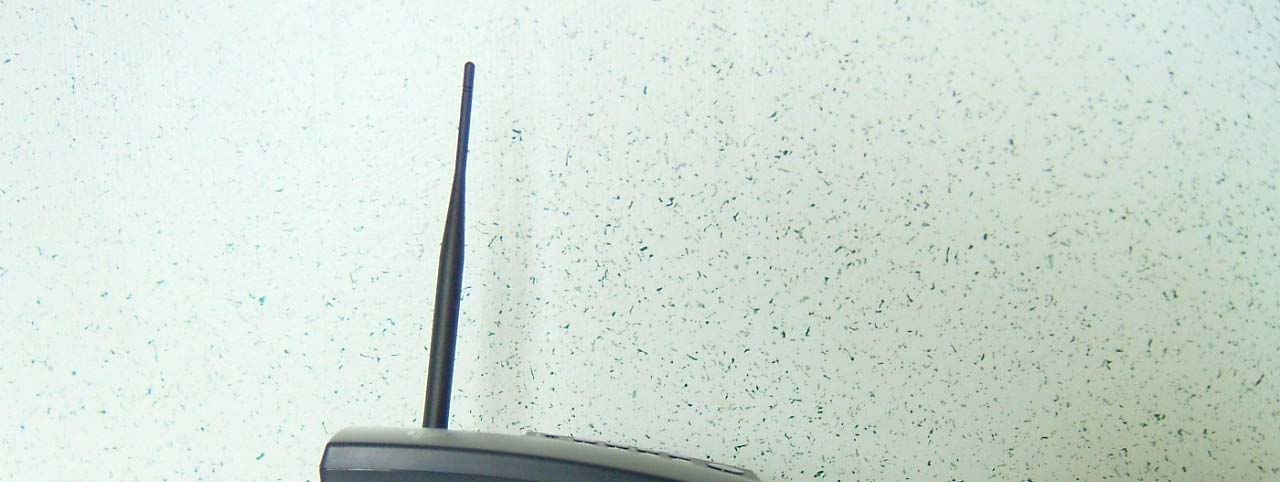

FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. EXTERNAL PHOTOGRAPHS FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. - BACK UP BATTERY

FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. FCC ID: R2NSXP-1080 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. INTERNAL PHOTOGRAPHS FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd.

Sungiltelecom Approval Number Approval Issue 1.0 Product Issue 1.0 Approval Sheet PROJECT NAME Antenna MODEL No. ASW-800 ITEM No. Person in ChargeExamined by Approved by MECHANIC Person in ChargeExamined by Approved by Songiltelecom ELECTRONIC Person in ChargeExamined by Approved by MECHANIC Person in ChargeExamined by Approved by Aceon ELECTRONIC I hereby submit a proposal as follows and ask for the confirmation of approval. March 15, 2005 429-010, 303-6 Daeya-dong, Shihe-shi, Kyunggi-do Aceon Co., CEO, jong hun, Kim Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 2/16 Aceon CO. Table of Contents 1. Approval Sheet Check List................................................................................................. 3 2. Outline................................................................................................................................. 4 2.1. Outline.......................................................................................................................................................4 2.2. Such outline was described for the usage of ASW-800.............................................................................4 3. Specification........................................................................................................................ 5 3.1. General Standard...................................................................................................................................5 3.2. Electrical Standard.................................................................................................................................5 3.3. Mechanical Standard............................................................................................................................5 4. Test Procedure & Measurement.......................................................................................... 6 4.1. External Test............................................................................................................................................6 4.2. Electrical Feature Inspection...............................................................................................................6 4.2.1. Materials.............................................................................................................................................................6 4.2.2. Inspection...........................................................................................................................................................6 4.3. Beam Pattern..........................................................................................................................................8 4.3.1. Materials.............................................................................................................................................................8 4.3.2. Inspection...........................................................................................................................................................9 Packing, Shipping, Handling...................................................................................................... 10 4.4. Exterior Option......................................................................................................................................10 4.5. Packing...................................................................................................................................................10 5. Exterior.............................................................................................................................. 11 6. Test Data Sheet................................................................................................................. 12 7. Data Sheet......................................................................................................................... 13 7.1. V.S.W.R..................................................................................................................................................13 7.2. Beam pattern........................................................................................................................................14 7.2.1. Azimuth...............................................................................................................................................................14 7.2.2. Elevation.............................................................................................................................................................15 7.3. Impedance.............................................................................................................................................16 Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 3/16 Aceon CO. 1. Approval Sheet Check List Change of Record Approval Issue Product Issue Date Item/Contents Foundation Ver 1.0 Ver 1.0 2005.03.15 Initial Issue Sungil Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 4/16 Aceon CO. 2. Outline 2.1. Outline 2.2. Such outline was described for the usage of ASW-800 Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 5/16 Aceon CO. 3. Specification 3.1. General Standard General specification Model name ASW-800 Antenna type Half Wavelength Antenna 3.2. Electrical Standard Electrical specification Frequency range 824 ~ 894㎒ V.S.W.R 1.9 : 1 Max. Gain(dBi) 2±0.5 Radiation pattern Omni-directional Polarization Vertical Max Power(W) 5W Max. Impedance 50 Ω Normalizer 3.3. Mechanical Standard Mechanical specification Connector type TNC Male Cover material Urethane Color Black not bright Temperature range -30°C ~ 70°C Weight 37 ± 2g Dimension TBD Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 6/16 Aceon CO. 4. Test Procedure & Measurement 4.1. External Test To check the unity Antenna’s exterior, size, connector and etc. with the exterior indicated in item #6. 4.2. Electrical Feature Inspection 4.2.1. Materials Equipment Model QuantityStand…

Text truncated - open the document above for the full version.

FCC ID: R2NSXP-1080 Max Conducted Output PWR of various operation modes of SXP-1080 Protocol Reversion Number: 6 Conducted Output Power(dBm) Radio Configuration Service Option Low Channel(1013) 824.70MHz Mid Channel(384) 836.52MHz High Channel(777) 848.31MHz SO2 23.6 24.0 23.3 F1R1 SO3 23.7 24.0 23.4 SO9 23.6 24.0 23.3 SO17 23.8 24.1 23.3 F2R2 SO32768 23.7 24.1 23.5 9.6 Kbps 23.6 24.1 23.1 19.2 Kbps 23.6 24.1 23.2 38.4 Kbps 23.5 24.0 23.0 76.8 Kbps 23.5 24.0 23.0 SO2 153.6 Kbps 23.5 24.0 23.0 9.6 Kbps 23.7 24.1 23.3 19.2 Kbps 23.6 24.0 23.3 38.4 Kbps 23.6 24.0 23.4 76.8 Kbps 23.7 24.1 23.3 SO3 153.6 Kbps 23.6 24.1 23.3 9.6 Kbps 23.4 24.0 23.0 19.2 Kbps 23.4 24.0 23.0 38.4 Kbps 23.5 24.1 23.1 76.8 Kbps 23.5 24.1 23.0 F3R3 SO32 153.6 Kbps 23.5 24.0 23.0 FCC ID: R2NSXP-1080 Protocol Reversion Number: 6 Max Conducted Output PWR of various operation modes of SXP-1080 ( Continued..) Conducted Output Power(dBm) Radio Configuration Service Option Low Channel(1013) 824.70MHz Mid Channel(384) 836.52MHz High Channel(777) 848.31MHz 9.6 Kbps 23.9 24.1 23.4 19.2 Kbps 23.8 24.0 23.3 38.4 Kbps 23.9 24.0 23.5 76.8 Kbps 23.9 24.0 23.5 SO3 153.6 Kbps 23.9 24.1 23.4 9.6 Kbps 23.7 24.0 23.3 19.2 Kbps 23.8 24.0 23.3 38.4 Kbps 23.9 24.1 23.5 76.8 Kbps 23.9 24.1 23.4 F4R3 SO32 153.6 Kbps 23.9 24.1 23.4 14.4 Kbps 23.9 24.1 23.4 28.8 Kbps 23.8 24.1 23.5 57.6 Kbps 23.8 24.1 23.4 115.2 Kbps 23.8 24.1 23.4 SO17 230.4 Kbps 23.8 24.0 23.4 14.4 Kbps 23.8 24.0 23.2 28.8 Kbps 23.8 24.0 23.2 57.6 Kbps 23.8 24.1 23.3 115.2 Kbps 23.8 24.1 23.4 F5R4 SO32768 230.4 Kbps 23.9 24.1 23.4 SAR TEST MODE 24.1 24.3 24.0 Note : SAR tests were performed using test mode program and conducted out put power of each channel was set equal or greater than the l argest power of each channel of above table.

FCC ID: R2NSXP-1080 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. SAR DIPOLE CALIBRATION Copyright ○ c 2005, DIGITAL EMC Co., Ltd. 1. 835 Dipole Calibration Copyright ○ c 2005, DIGITAL EMC Co., Ltd. 2. 1900 Dipole Calibration

FCC ID: R2NSXP-1080 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT : PROBE CALIBRATION

FCC ID:R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: SXP-1080; Type: CDMA 2000 1x WLL Terminal Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 824.7 MHz; σ = 0.981 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-09-28; Ambient Temp: 23.0; Tissue Temp: 21.3 2.5cm from Body, CDMA Ch.1013, Ant Fixed, Charger mode Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.203 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.948 mW/g; SAR(10 g) = 0.678 mW/g 0 dB = 1.00mW/g DIGITAL EMC CO., LTD DUT: SXP-1080; Type: CDMA 2000 1x WLLTerminal Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 836.52 MHz; σ = 0.994 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-09-28; Ambient Temp: 23.0; Tissue Temp: 21.3 2.5cm from Body, CDMA Ch.384, Ant Fixed, Charger mode Area Scan (51x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.264 dB Peak SAR (extrapolated) = 0.873 W/kg SAR(1 g) = 0.640 mW/g; SAR(10 g) = 0.454 mW/g 0 dB = 0.684mW/g DIGITAL EMC CO., LTD DUT: SXP-1080; Type: CDMA 2000 1x WLL Terminal Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used: f = 848.31 MHz; σ = 1 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-09-28; Ambient Temp: 23.0; Tissue Temp: 21.3 2.5cm from Body, CDMA Ch.777, Ant Fixed, Charger mode Area Scan (51x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.065 dB Peak SAR (extrapolated) = 0.814 W/kg SAR(1 g) = 0.594 mW/g; SAR(10 g) = 0.419 mW/g 0 dB = 0.633mW/g

FCC ID:R2NSXP-1080 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR VALIDATION DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.908 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.51, 6.51, 6.51); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-09-28; Ambient Temp: 23.0; Tissue Temp: 21.3 Dipole Validation Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.018 dB Peak SAR (extrapolated) = 3.19 W/kg SAR(1 g) = 2.26 mW/g; SAR(10 g) = 1.51 mW/g 0 dB = 2.45mW/g

FCC ID: R2NSXP-1080 TEST PLOTS FCC ID: R2NSXP-1080 Conducted Spurious CDMA Ch. 1013 FCC ID: R2NSXP-1080 Conducted Spurious CDMA Ch. 0384 FCC ID: R2NSXP-1080 Conducted Spurious CDMA Ch. 0777 FCC ID: R2NSXP-1080 Power Out. CDMA Ch. 1013 Power Out. CDMA Ch. 0777 FCC ID: R2NSXP-1080 Power Out. CDMA Ch. 0384 Channel Power. CDMA Ch. 0384 FCC ID: R2NSXP-1080 Occupied Bandwidth. CDMA Ch. 0384 FCC ID: R2NSXP-1080 Band Edge. CDMA Ch. 1013 Band Edge. CDMA Ch. 0777 FCC ID: R2NSXP-1080 FCC ID: Manufacturer: Channel: Test Mode: R2NSXP-1080 SUNG IL TELECOM 869.0 ~ 894.0 MHz CDMA Receiving Band

DEMC#DR50110510B Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 19 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: September 27 ~ October 4, 2005 Test Report S/N:DR50110510B Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §2 EUT Type : CDMA 2000 1x WLL Terminal Model name : SXP-1080 Serial number : Identical prototype TX Frequency Range : 824.70 ~848.31 MHz (CDMA) RX Frequency Range : 869.70 ~893.31 MHz (CDMA) Max. RF Output Power : 1.033W ERP CDMA (30.14 dBm) Max. SAR Measurement : 0.948W/kg CDMA Body SAR Emission Designators: : 1M27F9W Date of Issue : October 5, 2005 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. R2NSXP-1080 SUNGIL TELECOM CO., LTD. DEMC#DR50110510B Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 2 of 19 TABLE OF CONTENTS ◈ COVER LETTER(S) ◈ ATTESTATION STATEMENT(S) ◈ TEST REPORT 1.1 SCOPE 3 2.1 GENERAL INFORMATION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6 5.1 TEST DATA 9 5.2 EFFECTIVE RADIATED POWER OUTPUT 9 5.3 CDMA RADIATED MEASUREMENTS 10 5.4 FREQUENCY STABILITY(CDAM) 13 6.1 PLOTS OF EMISSIONS 15 7.1 LIST OF TEST EQUIPMENT 16 8.1 SAMPLE CALCULATIONS 18 9.1 CONCLUSION 19 ◈ TEST PLOTS ◈ FCC ID LABEL & LOCATION ◈ TEST SETUP PHOTOGRAPHS ◈ EXTERNAL PHOTOGRAPHS ◈ INTERNAL PHOTOGRAPHS ◈ BLOCK DIAGRAM(S) ◈ SCHEMATIC DIAGRAM(S) ◈ OPERATIONAL / CIRCUIT DESCRIPTION ◈ PARTS LIST/TUNE UP PROCEDURE ◈ USER’S MANUAL ◈ SAR REPORT ◈ SAR TEST PLOTS ◈ SAR TEST SETUP PHOTOGRAPHS ◈ SAR VALIDATION (S) ◈ PROBE CALIBRATION DEMC#DR50110510B Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 3 of 19 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: R2NSXP-1080 Quantity production is planned 1M27F9W (CDMA) 824.70 ~848.31 MHz (CDMA) 869.70 - 893.31 MHz (CDMA) 1.033W ERP CDMA (30.14 dBm) Licensed Non-Broadcast Station Transmitter (TNB) CDMA 2000 1x WLL Terminal CDMA ± 0.00025 % (2.5ppm) §22(H), §2 September 27 ~ October 4, 2005 DIGITAL EMC DR50110510B Applicant: SUNGIL TELECOM CO., LTD. Address: Lordland EZ Tower #511, 153, Gumi-Dong, Bundang-Gu, SEONGNAMCITY, GYUNGGI, KOREA Attention: Woo Won Choung DEMC#DR50110510B Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 4 of 19 2.1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer October 11, 2005 Won-Jung LEE Data Name Signature Report Reviewed By: manager October 11, 2005 Harvey Sung Data Name Signature Ordering party: Company name : SUNGIL TELECOM CO., LTD. Address : Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Zipcode : 463-500 City/town : SEONGNAM-CITY, KYUNGGI Country : KOREA Date of order : September 15, 2005 DEMC#DR50110510B Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 5 of 19 3.1 INSERTS Function of Active Devices (Confidential) The Function of active devices are shown in Attachment K. Block & Schematic Diagrams (Confidential) The block diagrams are shown in Attachment I, and the schematic diagrams are shown in Attachment J. Operating Instructions The instruction manual is shown in Attachment M. Parts List & Tune-Up Procedure (Confidential) The parts list & tune-up procedure is shown in Attachment L. Description of Freq. Stabilization Circuit (Confidential) The description of frequency stabilization circuit is shown in Attachment K. Description for Suppression of Spurious Radiation, for Limiting Modulation, and Harmonic Suppresion Circuits (Confidential) The description of suppression stabilization circuits is shown in Attachment K. DEMC#DR50110510B Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 6 of 19 4.1 DESCRIPTION OF TESTS 4.2 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 4.3 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 4.4 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 10 GHz. At the input terminals of the spectrum analyzer, an isolator(RF circulator with on port terminated with 50ohms) and …

Text truncated - open the document above for the full version.

DEMC#DR50110510C Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 21 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: September 28, 2005 Test Report S/N:DR50110510C Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT EUT Type: CDMA 2000 1x WLL Terminal TX Frequency Range: 824.70 ~848.31 MHz (CDMA) RX Frequency Range: 869.70 ~893.31 MHz (CDMA) RF Output Power: 1.033W ERP CDMA (30.14 dBm) Max. SAR Measurement: 0.948W/kg CDMA Body SAR Model(s) Name: SXP-1080 Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Application Type: Certification Test Device Serial No.: Identical prototype Data of issue October 5, 2005 Tested by : Reviewed by : Won-Jung LEE (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528- 200…

Text truncated - open the document above for the full version.
