R2NSXT-2180SINGLE-BAND CDMA 2000 1x FIXED WIRELESS TERMINAL

CDMA FWT SXT-2180 1 Technical Manual SXT-2180 CDMA 1XRTT FIXED WIRELESS TERMINAL 800 MHz CDMA TECHNICAL MANUAL VOICE COMMUNICATION and PCO/PTB Application CDMA FWT SXT-2180 2 Technical Manual Before installing your SXT-2180, carefully remove the contents from the shipping carton and check for evidence of shipping damage. If damage is found, contact your Authorized Sungil Distributor or shipping agent immediately. SAFE OPERATION INSTRUCTIONS IMPORTANT! Before installing or operating this product, read the SAFETY AND GENERAL INFORMATION section of this guide. 9 Install the unit indoors. 9 Install the unit on a hard, flat surface for proper ventilation. 9 Do not expose the unit to rain or moisture 9 Do not place the unit on or close to sources of heat. IMPORTANT NOTICES TERMS AND CONDITIONS FOR USE OF SXT-2180 PRODUCTS ("Product") These Terms and Conditions are a legal contract between you and SUNGIL Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURN THE UNUSED PRODUCT FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Product by you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, or other users of the Product so long as the Product was obtained from you, in the use and operation of the Product. SUNGIL Telecom Ltd. Corporate Headquarters 321 Gongdan-dong, Gumi City, Kyongbuk 730-030, Korea Sales and Technical Support Tel: +82-31-714-0038 · Fax: +82-31-714-9888 E-mail: [email protected] · http://www.sungiltel.com 2006 SUNGIL Telecom Co. Ltd., All Rights Reserved CDMA FWT SXT-2180 3 Technical Manual Emergency Battery Backup Checking the Battery Each Subscriber SXT2180 unit comes with a standard internal battery inside, and can be replaced at your local After-Service Centers. Plug in Your Telephone 1) Locate the modular line port on your telephone and plug in one end of a standard phone cord 2) Connect the other end of the phone cord to the telephone port on the side of the Unit. NOTE: The SXT-2180 does not support direct computer modem (data) operation through the phone port or fax port. SXT-2180 OPERATION Use the LED Status Indicators 1) Power-on the unit 2) The LEDs indicator on the front of the will turn ON. The following table describes the modes and operations of the indicator. Status LED #. √: Don’t care LED RSSI BATT Section Color BlinkColor Blink Description 1 Power ON Green X None X 2 Boot sequence Yellow X Yellow O Booting... 3 Initialize done Red O Red X Idle status 4 Activation fail Yellow/RedO √ √ MIN/ESN fail, etc.. 5 Exception occur Yellow X Red X 6 High Green X √ √ RSSI < 98dB 7 Normal Yellow X √ √ 98< RSSI < 104dB 8 Low Red X √ √ RSSI > 104dB 9 RSSI No signal Red O √ √ Searching... 10 High √ √ Green X Over 3.8V 11 Normal √ √ Yellow X Over 3.7V 12 Low √ √ Red X Over 3.4V 13 Low battery warn √ √ Red O Under 3.4V 14 Switch off √ √ Yellow/RedO 15 Battery No battery √ √ None X Battery Strength Indicator Low battery Tone – Generated alert sound or blink power LED when low battery. In conversation generated alert sound, not in conversation blink power LED. CDMA FWT SXT-2180 4 Technical Manual Basic Operation Placing a Call 1) Pick up the handset and listen for a dial tone. 2) Dial the phone number. Receiving a Call When your telephone rings, pick up the handset and begin talking. NOTE: If you hear an incoming call while picking up the handset, you can receive the call by hanging up (placing the handset on the cradle) immediately. This will cause the phone to start ringing. Ending a Call Hang up the phone (place the handset onto the cradle). Important Tones and Alerts Normal Dial Tone - When cellular service is available, the receiver emits a standard (steady) dial tone. No Service Tone - A fast beeping tone indicates that no cellular service is available. At that time, you can check the RSSI status. The LED of RSSI will be blink with red color. Outgoing Call Restriction - A slower beeping is an indication that calls may be received, but not made, from this particular phone. . Entering User MenuI - Pick up the handset - Press Entry code : ‘##XX’ ( ‘XX’ is 2 digit code ) Now you entered User Menu. Ex) ‘01’ – SIO ‘02’ – Emergency etc - Select sub menu and input user data. User Menu Table 01. Emergency 02. HOT Line 03. Mirroring 04. A Key 05. Mater Clear 0. Hidden Menu 06. Test Call 1. Ring Type 2. Volume 3. DTMF 4. 1Min Alert 1. Ring / Sound 5. Svc Alert 1. Caller ID 2.Tools 2. Dial Tone 1. Alarm 2. Auto Send Time 3. Flash Time 3. Time 4. On Hook Time 1. New Code 2. Outgoing Restrict 3. Reset Phone 4. Voice Privacy 4. Activating 5. Auto Gain Control CDMA FWT SXT-2180 5 Technical Manual . Hidden MenuII *Note: User MUST input the security lock code when accessing below menu options. Emergency ‘##01’ - In the Emergency Menu state, you can store 3-address. - Press 1~3 key to select an address slot, and then wait until you have heard a security tone. It likes as short melody. - Enter the security lock code, and press desired Emergency Number and then press ‘À’ to save. - If you press ‘#’ to release. Ex) ‘##011911*’ – Store number ‘911’ to 1st Emergency Slot. HOT Line ‘##02’ - In the Hotline Menu state, you can store 1 address. - To set up the hotline, you should follow two steps 1. Set a hotline number which will be dialed automatically whenever you pick up the handset. 2. Set a hotline time to delay between picking up handset and dialing a hotline number. - After heard confirmation tone for a lock code, You can set a Hotline number. - And then press À to store it in a memory for preserving it on power-on/off cycle. - If you press ‘#’ instead of À, it will be released. - And then if you stored a hotline nu…

Text truncated - open the document above for the full version.

TCB Application Form 731 Rev 01 Mar 02 Item 1. Applicant’s complete, legal business name: SUNGIL TELECOM CO., LTD. Applicant’s FCC Registration Number (FRN): 0010732899 Item 2. Applicant’s mailing address: fill in fields, as appropriate Line 1: Loadland EZ Tower #511, 513, Gumi-dong,Bundang-Gu, Line 2: Kyunggi-Do P.O. Box: City: Sungnam City State: Country (if foreign address): KOREA Zip/Postal Code: 463-500 Item 3. FCC ID consisting of: Grantee Code: R2N Equipment Product Code (14 characters maximum): SXT-2180include “dashes” (-) where appropriate Item 4. Person to receive grant: this is the APPLICANT’S contact person, NOT the Test Lab’s First Name:Woo Won Mail Stop: Last Name: Choung Telephone: +82-31-714-0038 Title: SENIOR ENGINEER Fax No.: +82-31-714-9888 E-mail: [email protected] Item 5. Test Firm Contact (if different from applicant): fill in fields, as appropriate Firm Name: Digital EMC Co., Ltd Telephone: +82-31-321-2664 Ext: Fax: No.: +82-31-321-1664 First Name:HARVEY Middle Initial: Last Name:SUNG Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City:Yongin-Si State:Kyunggi-Do Country (if foreign address):KOREA Zip/Postal Code:449-080 E-mail:[email protected] Item 6a. Name of Test Firm and Contact Person on file with the FCC: DIGITAL EMC CO., LTD. Item 6b. FCC Registered Test Site Number. Required for Part 15 and 18 applications. 101842 Item 7. Non-Technical Contact if Different: Firm Name: Digital EMC Co.,Ltd. Telephone: +82-31-321-2664 Ext.: Fax No.: +82-31-321-1664 First Name:Harvey Middle Initial: Last Name:Sung Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City:Yongin-Si State:Kyunggi-Do Country (if foreign address):KOREA Zip/Postal Code:449-080 E-mail:[email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission Rules? Yes No Item 9. *Is this application for modular approval? Yes No If yes, please submit a cover letter addressing the modular approval requirements of DA 00-1407. Item 10. *Is this application for software defined radio authorization? Yes No Item 11. Equipment Class: 3-digits required TNB Description of Product as it is marketed: SINGLE-BAND CDMA 2000 1x FIXED WIRELESS TERMINAL Item 12. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID Grant Date (MM/DD/YYYY) Class II permissive change or modification of presently authorized equipment Class III permissive change to software defined radio Note: this may only be filed for applications pertaining to Software Defined Radio Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered “Yes” complete section 12 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID * Equipment will be operated under FCC Rule Part(s): 22H Item 14. EQUIPMENT SPECIFICATIONS: Where applicable Frequency range in MHz Rated RF power output IN WATTS Frequency tolerance %, Hz, ppm Emission Designator (See 47 CFR 2.201 and 2.202) Microprocessor model number 824.70 848.31 0.367 2.5 ppm 1M28F9W Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE (U.S. TITLE 47, SECTION 503). Item 15. (This Section intentionally left blank) Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above Section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. *Signature of Authorized Applicant:Harvey Sung Title of Authorized Signature:Technical Director Complete items below if an agent signs the application Firm Name: DIGITAL EMC Co.,Ltd. Telephone: +82-31-321-2664 Ext.: Fax No.: +82-31-321-1664 First Name:Harvey Middle Initial: Last Name:Sung Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City: Yongin-Si State: Kyunggi- Do Country (if foreign address): KOREA Zip/Postal Code: 449-080 NOTE: An asterisk ‘*’ preceding a field indicates it must be completed.

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea November 30, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: R2NSXT-2180 including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SUNGIL TELECOM CO., LTD. Sincerely, W.W CHOUNG/Senior Engineer

Roadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Sungnam City, Kyunggi-Do, Korea November 30, 2006 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re: SUNGIL TELECOM CO., LTD. FCC ID: R2NSXT-2180 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, SUNGIL TELECOM CO., LTD requests short- term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which SUNGIL TELECOM CO., LTD considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SUNGIL TELECOM CO., LTD feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. W.W CHOUNG/Senior Engineer

FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 4 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 5

FCC ID: R2NSXT-2180 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase FCC ID: R2NSXT-2180 Model Name: SXT-2180

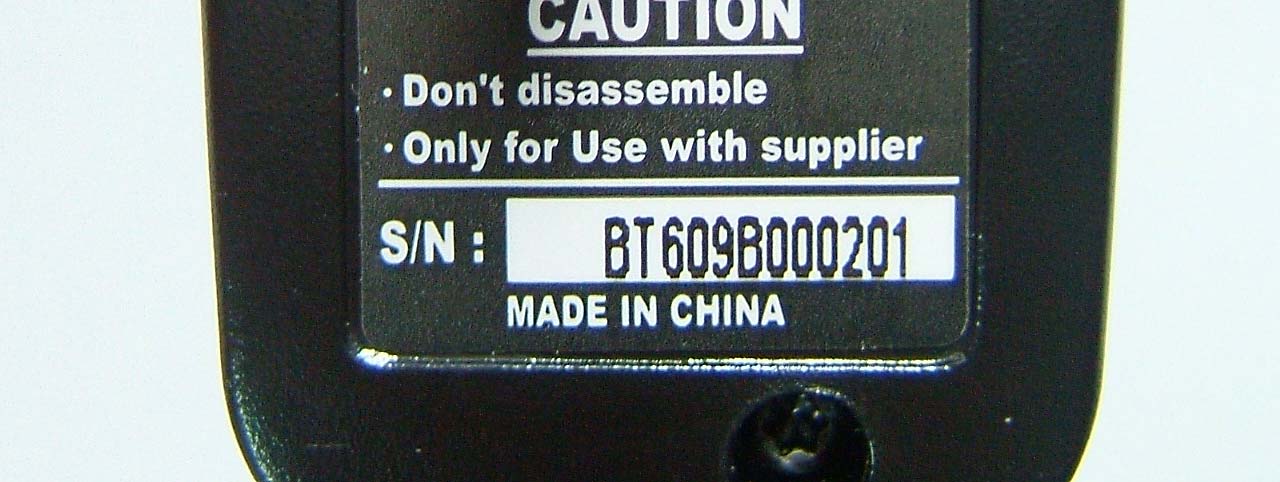

FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3 FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 4(Backup Battery) FCC ID: R2NSXT-2180 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 5

Applicant : SUNGIL. FCC ID : R2NSXT-2180 TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this CDMA WLL Terminal. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

FCC ID: R2NSXT-2180 MPE Calculations The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (ERP) is calculated as follows: EIRP = P + G EIRP = 24.449 dBm + 2.66 dBi EIRP = 27.11 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (278.548 * 1.85) / (4 * 20 2 * π) S = 0.103 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm) Conclusion: The Maximum permissible exposure (MPE) for the general Population/Uncontrolled is 0.55 mW/cm 2 (=f/1500=824/1500).The power density at 20cm does not exceed the 0.55 mW/cm 2 . Therefore, the exposure condition of the EUT is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(278.548 * 1.85 / 4π) R = 6.404 cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (2.66 / 10) G = 1.85

DEMC#DR50110611O Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 19 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: November 22 ~ 29, 2006 Test Report S/N: DR50110611O Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §2 EUT Type : CDMA 2000 1x FIXED WIRELESS TERMINAL Model name : SXT-2180 Serial number : Identical prototype TX Frequency Range : 824.70 ~848.31 MHz (CDMA) RX Frequency Range : 869.70 ~893.31 MHz (CDMA) Max. RF Output Power : 0.367W ERP CDMA (25.65 dBm) Emission Designators: : 1M28F9W Date of Issue : November 30, 2006 R2NSXT-2180 SUNGIL TELECOM CO., LTD. DEMC#DR50110611O Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 19 TABLE OF CONTENTS ◈ AUTHORIZATION LETTER ◈ CONFIDENTIALITY LETTER(S) ◈ TEST REPORT 1.1 SCOPE 3 2.1 GENERAL INFORMATION 4 3.1 DESCRIPTION OF TESTS 5 4.1 TEST DATA 8 4.1.1 CONDUCTED OUTPUT POWER 8 4.1.2 EFFECTIVE RADIATED POWER OUTPUT 9 4.1.3 CDMA RADIATED MEASUREMENTS 10 4.1.4 FREQUENCY STABILITY(CDAM) 13 5.1 PLOTS OF EMISSIONS 15 6.1 LIST OF TEST EQUIPMENT 16 7.1 SAMPLE CALCULATIONS 18 8.1 CONCLUSION 19 ◈ TEST PLOTS ◈ FCC ID LABEL & LOCATION ◈ TEST SETUP PHOTOGRAPHS ◈ EXTERNAL PHOTOGRAPHS ◈ INTERNAL PHOTOGRAPHS ◈ BLOCK DIAGRAM(S) ◈ SCHEMATIC DIAGRAM(S) ◈ OPERATIONAL DESCRIPTION ◈ PARTS LI S T ◈ PARTS LOCATION ◈ USER’S MANUAL ◈ MPE CALCULATION DEMC#DR50110611O Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 19 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: R2NSXT-2180 Quantity production is planned 1M28F9W (CDMA) 824.70 ~848.31 MHz (CDMA) 869.70 - 893.31 MHz (CDMA) 0.367W ERP CDMA (25.65 dBm) Licensed Non-Broadcast Station Transmitter (TNB) CDMA 2000 1x FIXED WIRELESS TERMINAL CDMA ± 0.00025 % (2.5ppm) §22(H), §2 November 22 ~ 29, 2006 DIGITAL EMC DR50110611O Applicant: SUNGIL TELECOM CO., LTD. Address: Lordland EZ Tower #511, 153, Gumi-Dong, Bundang-Gu, SEONGNAMCITY, GYUNGGI, KOREA Attention: Woo Won Choung DEMC#DR50110611O Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 4 of 19 2.1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer November 30, 2006 Won-Jung LEE Data Name Signature Report Reviewed By: manager November 30, 2006 Harvey Sung Data Name Signature Ordering party: Company name : SUNGIL TELECOM CO., LTD. Address : Loadland EZ Tower #511, 513, Gumi-dong, Bundang-Gu, Zipcode : 463-500 City/town : SEONGNAM-CITY, KYUNGGI Country : KOREA Date of order : November 16, 2006 DEMC#DR50110611O Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 5 of 19 3.1 DESCRIPTION OF TESTS 3.1.1 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 3.1.2 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 3.1.3 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 10 GHz. At the input terminals of the spectrum analyzer, an isolator(RF circulator with on port terminated with 50ohms) and an 870 MHz to 890 MHz band pass filter is connected between the test transceiver(for conducted tests)or the receive antenna(for radiated tests) and the analyzer . The rejection of the band pass filter to signals in the 825-845 MHz range is adequate to limit the transmit energy from the test transceiver which appears to a level which will allow the analyzer to measure signals less than-90dBm. Calibration of the test receiver is performed in the 870-890 MHz range to insure accuracy to allow variation in the band pass filter insertion loss to be calibrated. 3.1.4 Frequencies At the input terminals of the spectrum analyzer, an isolator (RF pad) and a high-pass filter are connected between the test transceiver (for conducted tests) or the receive antenna (for radiated tests) and the analyzer. The high-pass filter is to limit the fundamental frequency from interfering with the measurement of low-level spurious and harmonic emissions and to ensure that the preamplifier is not saturated. 3.1.5 Radiation Spurious and Harmonic Emissions Radiation and harmonic emissions are measured outdoors at our 3-meter test range. The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna hei…

Text truncated - open the document above for the full version.

FCC ID: R2NSXT-2180 ATTACHMENT Te s t P l o t s Te s t P l o t s FCC ID: R2NSXT-2180 - Conducted Spurious CDMA Ch. 1013 Te s t P l o t s FCC ID: R2NSXT-2180 - Conducted Spurious CDMA Ch. 1013 (Continued...) Te s t P l o t s FCC ID: R2NSXT-2180 - Conducted Spurious CDMA Ch. 0384 Te s t P l o t s FCC ID: R2NSXT-2180 - Conducted Spurious CDMA Ch. 0384 (Continued...) Te s t P l o t s FCC ID: R2NSXT-2180 - Conducted Spurious CDMA Ch. 0777 Te s t P l o t s FCC ID: R2NSXT-2180 - Conducted Spurious CDMA Ch. 0777 (Continued...) Te s t P l o t s FCC ID: R2NSXT-2180 - Power Out. CDMA Ch. 1013 - Power Out. CDMA Ch. 0384 Te s t P l o t s FCC ID: R2NSXT-2180 - Power Out. CDMA Ch. 0777 Te s t P l o t s FCC ID: R2NSXT-2180 - Occupied Bandwidth. CDMA Ch. 0384 - Channel Power. CDMA Ch. 0384 Te s t P l o t s FCC ID: R2NSXT-2180 - Band Edge. CDMA Ch. 1013 Te s t P l o t s FCC ID: R2NSXT-2180 - Band Edge. CDMA Ch. 0777

FCC ID : R2NSXT-2180 Copyright ○ c 2006 DIGITAL EMC Co., Ltd. TEST SETUP PHOTOGRAPHS FCC ID : R2NSXT-2180 Copyright ○ c 2006 DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-2180 Copyright ○ c 2006 DIGITAL EMC Co., Ltd.
