R2NSXT-800UCDMA 1x WLL Terminal

SUNGIL TELECOM CO., LTD. SEONIL TECHNOPIA #1209,440, SANGDAEWON-DONG, JUNGWON-GU, SEONGNAM-CITY, GYUNGGI, KOREA Tel:+82-31-777-3121 Fax: +82-31-777-3120 November 15, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: R2NSXT-800U, including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SUNGIL TELECOM CO., LTD. Sincerely, Sean Chi Product Manager SUNGIL TELECOM CO., LTD.

SUNGIL TELECOM CO., LTD. SEONIL TECHNOPIA #1209,440, SANGDAEWON-DONG, JUNGWON-GU, SEONGNAM-CITY, GYUNGGI, KOREA Tel:+82-31-777-3121 Fax: +82-31-777-3120 November 15, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : SUNGIL TELECOM CO., LTD. FCC ID : R2NSXT-800U FCC Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SUNGIL TELECOM CO., LTD. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Tune-up Procedure, Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which SUNGIL TELECOM CO., LTD considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SUNGIL TELECOM CO., LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Sean Chi Product Manager SUNGIL TELECOM CO., LTD.

FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT G: EXTERNAL PHOTOGRAPHS FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd.

FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. FCC ID: R2NSXT-800U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

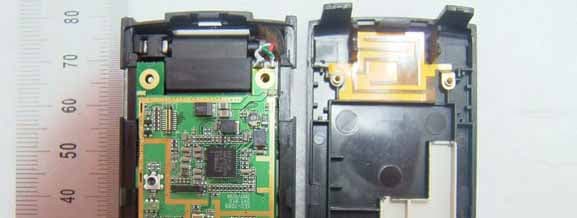

FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT H: INTERNAL PHOTOGRAPHS FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd.

Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT R: PROBE & DIPOLE CALIBRATION

DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.996 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.3; Tissue Temp: 21.5 1.5cm from Body, CDMA Ch.1013, Charger Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.7 W/kg SAR(1 g) = 1 mW/g; SAR(10 g) = 0.696 mW/g 0 dB = 1.09mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 1.01 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.5 1.5cm from Body, CDMA Ch.0384, Charger Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.838 W/kg SAR(1 g) = 0.543 mW/g; SAR(10 g) = 0.375 mW/g 0 dB = 0.570mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.02 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.7 1.5cm from Body, CDMA Ch.0777, Charger Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.985 W/kg SAR(1 g) = 0.582 mW/g; SAR(10 g) = 0.394 mW/g 0 dB = 0.661mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.996 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.7 1.5cm from Body, CDMA Ch.1013, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.2 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 0.963 mW/g 0 dB = 1.55mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 1.01 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.5 1.5cm from Body, CDMA Ch.0384, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.707 mW/g; SAR(10 g) = 0.475 mW/g 0 dB = 0.767mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.02 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.6 1.5cm from Body, CDMA Ch.0777, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.712 mW/g; SAR(10 g) = 0.493 mW/g 0 dB = 0.756mW/g

DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.996 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.3; Tissue Temp: 21.5 2.5cm from Body, CDMA Ch.1013, Charger Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.7 W/kg SAR(1 g) = 1 mW/g; SAR(10 g) = 0.696 mW/g 0 dB = 1.09mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 1.01 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.5 2.5cm from Body, CDMA Ch.0384, Charger Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.838 W/kg SAR(1 g) = 0.543 mW/g; SAR(10 g) = 0.375 mW/g 0 dB = 0.570mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.02 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.7 2.5cm from Body, CDMA Ch.0777, Charger Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.985 W/kg SAR(1 g) = 0.582 mW/g; SAR(10 g) = 0.394 mW/g 0 dB = 0.661mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.996 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.7 2.5cm from Body, CDMA Ch.1013, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.2 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 0.963 mW/g 0 dB = 1.55mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 1.01 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.5 2.5cm from Body, CDMA Ch.0384, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.707 mW/g; SAR(10 g) = 0.475 mW/g 0 dB = 0.767mW/g DIGITAL EMC CO., LTD DUT: SXT-800U; Type: CDMA Terminal; Serial: SET #1 Communication System: FCC CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.02 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.0; Tissue Temp: 21.6 2.5cm from Body, CDMA Ch.0777, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.712 mW/g; SAR(10 g) = 0.493 mW/g 0 dB = 0.756mW/g

FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd.

DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835 MHz; σ = 1.01 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.3, 6.3, 6.3); Calibrated: 2004-02-17; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Test Date: 2004-11-02; Ambient Temp: 23.2; Tissue Temp: 21.3 Dipole Validation Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.009 dB Peak SAR (extrapolated) = 4.33 W/kg SAR(1 g) = 2.58 mW/g; SAR(10 g) = 1.64 mW/g 0 dB = 2.75mW/g

FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious CDMA Ch. 1013 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious CDMA Ch. 0384 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted Spurious CDMA Ch. 0777 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Power Out. CDMA Ch. 1013 Power Out. CDMA Ch. 0777 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Power Out. CDMA Ch. 0384 Channel Power. CDMA Ch. 0384 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Occupied Bandwidth. CDMA Ch. 0384 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Band Edge. CDMA Ch. 1013 Band Edge. CDMA Ch. 0777 FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID: Manufacturer: CDMA 1x WLL Terminal Channel: Test Mode: R2NSXT-800U SUNG IL TELECOM CO., LTD. 869.0 ~ 894.0 MHz CDMA Receiving Band DIGITAL EMC TOKIN 9 November,2004 15:51<<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: SUNG IL TELECOM Model : SXT-800U Operator: W.J. LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: Operation Mode Remark2 : Battery ON Remark3: : 0.1530.000.501.005.0010.00 0 80 10 20 30 40 50 60 70 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <New Data> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 9 November,2004 15:51<<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: SUNG IL TELECOM Model : SXT-800U Operator: W.J. LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: Operation Mode Remark2 : Battery ON Remark3: : 0.1530.000.501.005.0010.00 0 80 10 20 30 40 50 60 70 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <New Data> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 9 November,2004 15:51 Standard : FCC PART.15 Manufacturer : SUNG IL TELECOM Model : SXT-800U Operator : W.J. LEE AC Power : 120V 60Hz Temp,Humidity : 20 52 Remark1 : Operation Mode Remark2 : Battery ON Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.204 46.6 41.5 1.1 47.7 42.6 63.4 53.4 15.7 10.8 2 0.404 44.2 38.1 0.4 44.6 38.5 57.8 47.8 13.2 9.3 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.204 47.0 41.4 1.0 48.0 42.4 63.4 53.4 15.4 11.0 2 0.401 42.8 38.9 0.5 43.3 39.4 57.8 47.8 14.5 8.4 DIGITAL EMC TOKIN 9 November,2004 16:06<<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: SUNG IL TELECOM Model : SXT-800U Operator: W.J. LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: Operation Mode Remark2 : Battery OFF Remark3: : 0.1530.000.501.005.0010.00 0 80 10 20 30 40 50 60 70 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <New Data> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 9 November,2004 16:06<<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: SUNG IL TELECOM Model : SXT-800U Operator: W.J. LEE AC Power: 120V 60Hz Temp,Humidity: 20 52 Remark1: Operation Mode Remark2 : Battery OFF Remark3: : 0.1530.000.501.005.0010.00 0 80 10 20 30 40 50 60 70 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <New Data> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 9 November,2004 16:06 Standard : FCC PART.15 Manufacturer : SUNG IL TELECOM Model : SXT-800U Operator : W.J. LEE AC Power : 120V 60Hz Temp,Humidity : 20 52 Remark1 : Operation Mode Remark2 : Battery OFF Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.150 36.4 0.0 1.8 38.2 0.0 66.0 56.0 27.8 0.0 2 0.253 5.4 39.5 0.9 6.3 40.4 61.7 51.7 55.4 11.3 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.254 45.3 44.3 0.9 46.2 45.2 61.6 51.6 15.4 6.4

FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Charger mode FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Battery mode FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Radiated emission FCC ID : R2NSXT-800U Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Conducted emission

DEMC#DR50110411N Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: November 3 ~ 12, 2004 Test Report S/N:DR50110411N Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §15, §2 EUT Type : CDMA 1x WLL Terminal Model name : SXT-800U Serial number : Identical prototype TX Frequency Range : 824.70 ~ 848.31 MHz (CDMA) RX Frequency Range : 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power : 0. 561W ERP CDMA (27.49 dBm) - With Battery 0.545W ERP CDMA (27.36dBm) - With Charger Max. SAR Measurement : 1.41W/kg CDMA Body SAR - With Battery 1.00W/kg CDMA Body SAR - With Charger Emission Designators: : 1M25F9W Date of Issue : November 15, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. R2NSXT-800U SUNGIL TELECOM CO., LTD. DEMC#DR50110411N Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 RADIATED MEASUREMENTS 11-13 7.1 FREQUENCY STABILITY 14-15 8.1 EMISSION TEST DATA 16-17 9.1 PLOTS OF EMISSIONS 18 10.1 LIST OF TEST EQUIPMENT 19-20 11.1 SAMPLE CALCULATIONS 21 12.1 CONCLUSION 22 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I : BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENTS REPORT ATTACHMENT O: SAR TEST PLOTS ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION (S) ATTACHMENT R: PROBE CALIBRATION DEMC#DR50110411N Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 22 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: R2NSXT-800U Quantity production is planned 1M25F9W (CDMA) 824.70 ~848.31 MHz (CDMA) 869.70 - 893.31 MHz (CDMA) 0. 561W ERP CDMA (27.49 dBm) - With Battery 0.545W ERP CDMA (27.36dBm) - With Charger Licensed Non-Broadcast Station Transmitter (TNB) CDMA 1x WLL Terminal CDMA ± 0.00025 % (2.5ppm) §22(H), §15, §2 November 03~ November 12, 2004 DIGITAL EMC DR50110411N Applicant: SUNGIL TELECOM CO., LTD. Address: SEONIL TECHNOPIA #1209, 440, SANGDAEWON-DONG, JUNGWON-GU, SEONGNAMCITY, GYUNGGI, KOREA Attention: Sean Chi (Product Manager) DEMC#DR50110411N Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 22 2.1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer November 15, 2004 Kyung-Taek LEE Data Name Signature Report Reviewed By: manager November 15, 2004 Dong –Min JUNG Data Name Signature Ordering party: Company name : SUNGIL TELECOM CO., LTD. Address : SEONIL TECHNOPIA #1209, 440, SANGDAEWON-DONG, Zipcode : 462-807 City/town : JUNGWON-GU, SEONGNAM-CITY, GYUNGGI Country : KOREA Date of order : October 29, 2004 DEMC#DR50110411N Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 22 3.1 INSERTS Function of Active Devices (Confidential) The Function of active devices are shown in Attachment K. Block & Schematic Diagrams (Confidential) The block diagrams are shown in Attachment I, and the schematic diagrams are shown in Attachment J. Operating Instructions The instruction manual is shown in Attachment M. Parts List & Tune-Up Procedure (Confidential) The parts list & tune-up procedure is shown in Attachment L. Description of Freq. Stabilization Circuit (Confidential) The description of frequency stabilization circuit is shown in Attachment K. Description for Suppression of Spurious Radiation, for Limiting Modulation, and Harmonic Suppresion Circuits (Confidential) The description of suppression stabilization circuits is shown in Attachment K. DEMC#DR50110411N Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 22 4.1 DESCRIPTION OF TESTS 4.2 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 4.3 Occupied Bandwidth The 99% power bandwidth was measured with …
