R3X0010819172RADIO TRANSMITTER

with wall mountable transmitter Customer Service Assistance: Toll Free 1-800-730-3707 Hours of Operation – 10AM to 6PM, EST, Monday - Friday avec émetteur mural montable Distant interrupteur de lumière Light Switch Remote Assistance service clientèle: Sans frais 1-800-730-3707 Heures d'opération - 10AM a 6PM EST, Lundi - Vendredi Garantie Limitée de Trois Ans: Si au cours de la première année à compter de la date d’achat cet appareil tombe en panne en raison d’un défaut, échangez-le là où il a été acheté ou expédiez-le en port payé ccompagné d’une preuve d’achat à THE NCC, 140 58th Street, P.O. Box 67, Brooklyn, New York 11220. Les appareils qui tombent en panne au cours de la seconde ou de la troisième année à compter de la date d’achat doivent être expédiés en port payé accompagnés d’une preuve d’achat à THE NCC. Nous remplacerons l’appareil. Cette garantie exclut l’usure normale et les dommages résultant d’accidents, de modifications ou d’un usage inapproprié. Cette garantie vous accorde des droits légaux spécifiques, vous pouvezaussi avoir d’autres droits lesquels peuvent varier d’un état a l’autre. CAUTION: DO NOT splice, repair, or modify. Unplug when not in use. Fully insert plug. DO NOT use damaged remote sets. Inspect periodically. Use within the electrical rating marked on the remote set. DO NOT plug in more than a total of 1000 watts in this remote set. If watts are not marked on appliance, multiply ampere rating (on nameplate) by 125 to determine equivalent watts. Add determined watts for each plugged-in appliance or lamp (sum of watts on bulbs) to find total watts being used. Operating temperature range 0°C (32°F) to 45°C (113°F). • Only use the batteries specified and be sure to match the + and - polarity markings. • Do not mix old batteries and new batteries or standard (carbon-zinc) with alkaline batteries. • Remove exhausted or dead batteries from the product. • Remove batteries if product is not to be used for a long time. • Do not dispose of batteries in fire. Batteries may explode or leak. As with all small items, these batteries should be kept away from children. If swallowed, seek medical attention immediately. *This item is a Radio Frequency Device (RF), and as such the range of the remote control is dependent on many factors. Actual operational distance will vary based on walls and line of sight obstructions, and other nearby electronic devices. SAVE THIS INSTRUCTION! Three Year Limited Warranty: If within the first year from date of purchase, this unit fails due to a defect, exchange where purchased, or ship it prepaid with proof of purchase to THE NCC, 140 58th Street, P.O. Box 67, Brooklyn, New York 11220. Units that fail to operate during the second or third year from date of purchase must be shipped prepaid with proof of purchase to THE NCC. We will replace unit. This guarantee excludes normal wear and tear and damage resulting from accident, alteration, or misuse. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Problem Solution The receiver doesn’t turn on Make sure the AC power cord is securely plugged into an AC power outlet. Unplug the unit for a moment, and then plug it back in again. Check the outlet by plugging in another device. The remote doesn’t work Make sure the battery is fresh. Stand closer to the receiver, the range should be up to 80ft. Doors or Walls will reduce the remote distance. Troubleshooting Tips: Problem Solution Le récepteur ne répond pas Assurez-vous que le cordon AC est bien branché dans la sortie AC. Débranchez l’appareil pour un instant, et rebranchez-le. Verifier la sortie en y branchant un autre appareil. The remote doesn’t work Assurez-vous que la pile est bonne. Approchez-vous du récepteur la distance doit être de moins de 24.4m Les portes ou les murs peuvent réduire la distance indiquée. Conseils de dépannage CONSERVEZ CES INSTRUCTIONS! Stanley and the Stanley Logo are trademarks of Stanley Tools and are used under license. Manufactured and Distributed by: The NCC Brooklyn, NY 11220 • www.thencc.com • © 2012 The NCC Made in China Stanley et le Logo de Stanley sont des marques de commerce de Stanley Tools et sont utilisés sous licence. Manufacturé et Distribué par: The NCC, Inc., Brooklyn, NY 11220 • www.thencc.com • © 2012 The NCC Fabriqué en Chine INSTRUCTIONS:  Plug the Receiver into a 120VAC electrical outlet.  Plug your electrical device into the receiver’s outlet located at the bottom of the unit. Make sure that your electrical device is powered ON.  On your transmitter, push the top portion of the rocker swtich to turn the device ON or bottom portion to turn the device OFF Manual Override: You can power the unit ON and OFF manually by pressing the ON/OFF override button located on the front of the Receiver. (Do not hold the button down for manual ON/OFF operation as this will cause the unit to enter pairing mode.) COMMAND1 TRANSMITTER PAIRING: Note: Your Command1 Transmitter and reciever contained in this package are pre-programmed and ready to use. Command 1 Pairing is only required for using additional transmitters. This unit is equipped with patented command1 technology. All Stanley indoor and outdoor transmitters bearing the command1 logo have the ability to be paired with all Stanley indoor and outdoor receivers. Please follow the directions below to pair a transmitter to your receiver.  Locate the power [ON/OFF] button on the receiver.  Press and hold the power button for 3 seconds. The LED power indicator will begin to flash slowly.  On your transmitter, (LED indicator still flashing slowly) press the [ON] button, wait 2 seconds and then press the [OFF] button. The LED indicator will now stop flashing.  You have successfully paired the transmitter to your receiver. RESETTING THE UNIT You can reset and remove all paired transmitters on your receiver by doing the following:  Press and hold the ON/OFF button for 3 seconds. The LED indicator w…

Text truncated - open the document above for the full version.

Shenzhen Chuangjiexing Electronics 3/F., Bldg. A6, Laodong 1st Industrial Zone, Xixiang,Shenzhen, China DATE：2012-12-25 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Jade yang of Keyway Testing Technology Co., Ltd. Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdo ng, China,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Chuangjiexing Electronics and 3/F., Bldg. A6, Laodong 1st Industrial Zone, Xixiang,Shenzhen, China. Dated this Day of 12/25/2012 Agency agreement expiration date: 12/24/2013 William Huo By: Signature Printed Title: General Manager On behalf of : Shenzhen Chuangjiexing Electronics Telephone: +86-755-27792221

DATE：2012-12-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: R3X0010819172 Product Name:_ RADIO TRANSMITTER _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Day of 12/25/2012 20 By: William Huo Signature Printed Title: General Manager On behalf of : Shenzhen Chuangjiexing Electronics Telephone: +86-755-27792221

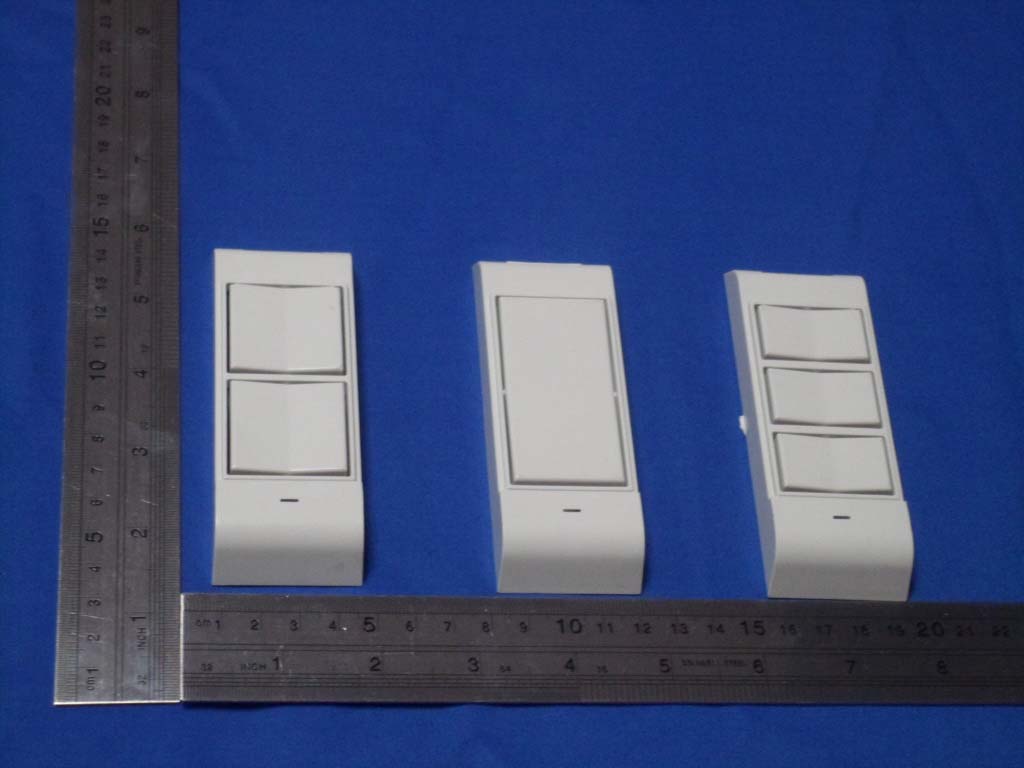

Shenzhen Chuangjiexing Electronics 3/F., Bldg. A6, Laodong 1st Industrial Zone, Xixiang,Shenzhen, China DECLARATION OF IDENTITY Hereby we: Shenzhen Chuangjiexing Electronics Basic Model Number: CM1T Basic Brand Name: Basic Product Name: RADIO TRANSMITTER The products are all the same(Declare the Circuit, PCB Layout, Electrical Parts) except for the number and size of button. Signature with Company Chop : Printed Name : William Huo DATE:2012-12-25

FCC ID: R3X0010819172 FCC ID: R3X0010819172 FCC ID: R3X0010819172 FCC ID: R3X0010819172

FCC ID: R3X0010819172 Size:30x30.2mm Label Location

FCC ID: R3X0010819172 Antenna Location FCC ID: R3X0010819172

Transmitter Operations 1. This Device is combined a central control unit with several press-button, one switch, code option. And also build with a RF amplifier and RF transmitter. 2. The switch on this device is actually a combination of two long time press-button with mechanical structure. 3. While any press-button is pressed, the central control unit will combined all the signals of pressed button, the switch position and code option together to give out a combined transmission code stream and send it to the RF amplifier. 4. The RF amplifier will amplify this code stream and send it out by the RF transmitter. 5. This device is operation in 433.92MHz, use the modulation is ASK, the antenna type is PCB antenna, and the antenna gain is 0dBi.

FCC ID: R3X0010819172 Keyway Testing Technology Co., Ltd. Report No. 12KWE12367F Page 1 of 21 FCC TEST REPORT for Shenzhen Chuangjiexing Electronics RADIO TRANSMITTER Model Number:CM1T Prepared for : Shenzhen Chuangjiexing Electronics Address : 3/F., Bldg. A6, Laodong 1st Industrial Zone, Xixiang,Shenzhen, China Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Tel: 86-769-8718 2258 Fax: 86-769-8718 1058 Report No. : 12KWE12367F Date of Test : Dec.9 ,2012 Date of Report : Dec.12,2012 FCC ID: R3X0010819172 Keyway Testing Technology Co., Ltd. Report No. 12KWE12367F Page 2 of 21 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION ............................................................................4 1.1. Product Function .......................................................................................................4 1.2. Description of Device (EUT) ......................................................................................4 1.3. Independent Operation Modes ..................................................................................4 2. TEST SITES .....................................................................................................................5 2.1. Test Facilities.............................................................................................................5 2.2. List of Test and Measurement Instruments................................................................6 3. TEST SET-UP AND OPERATION MODES......................................................................7 3.1. Principle of Configuration Selection ...........................................................................7 3.2. Block Diagram of Test Set-up ....................................................................................7 3.3. Test Operation Mode and Test Software ...................................................................7 3.4. Special Accessories and Auxiliary Equipment ...........................................................7 3.5. Countermeasures to Achieve EMC Compliance........................................................7 4. EMISSION TEST RESULTS.............................................................................................8 4.1. Radiated Emission Test.............................................................................................8 5. CALCULATION OF AVERAGE FACTOR.......................................................................12 6. 20DB OCCUPY BANDWIDTH ........................................................................................15 6.1. Limits .......................................................................................................................15 7. DWELL TIME..................................................................................................................16 7.1. Limits .......................................................................................................................16 8. PHOTOGRAPHS OF TEST SET-UP..............................................................................17 8.1. Set-up for Radiated Emission Test(Below 1GHz) ....................................................17 8.2. Set-up for Radiated Emission Test(Above 1GHz) ...................................................17 9. PHOTOGRAPHS OF THE EUT......................................................................................18 FCC ID: R3X0010819172 Keyway Testing Technology Co., Ltd. Report No. 12KWE12367F Page 3 of 21 Keyway Testing Technology Co., Ltd. Applicant: Address: Shenzhen Chuangjiexing Electronics 3/F Bldg. A5 Laodong 1ST Industrial Zone, Xixiang, BaoAn, Shenzhen, China Manufacturer: Address: Shenzhen Chuangjiexing Electronics 3/F Bldg. A5 Laodong 1ST Industrial Zone, Xixiang, BaoAn, Shenzhen, China E.U.T: RADIO TRANSMITTER Model Number: CM1T Trade Name: ------ Serial No.: ------ Date of Receipt: Dec.2, 2012 Date of Test: Dec.2~12, 2012 Test Specification: FCC Part 15 Subpart C Section 15.231:2010 ANSI C63.4:2003 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Dec.18, 2012 Tested by: Reviewed by: Approved by: Andy Gao / Engineer Jade Yang/ Supervisor Chris Du / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Keyway Testing Technology Co., Ltd. FCC ID: R3X0010819172 Keyway Testing Technology Co., Ltd. Report No. 12KWE12367F Page 4 of 21 1. GENERAL PRODUCT INFORMATION 1.1. Product Function Refer to Technical Construction Form and User Manual. 1.2. Description of Device (EUT) Description : RADIO TRANSMITTER M/N : CM1T Power Supply : DC 3V Operation Frequency : 433.92MHz Modulation Technology : ASK Antenna Type : PCB Antenna Antenna Gain : 0dBi 1.3. Independent Operation Modes The basic operation modes are: 1.3.1. Keep the EUT in transmitting mode. 1.4. Difference between Model Numbers Note: The products are different for shell size. but the other are same. FCC ID: R3X0010819172 Keyway Testing Technology Co., Ltd. Report No. 12KWE12367F Page 5 of 21 2. TEST SITES 2.1. Test Facilities Lab Qualifications : 944 Shielded Room built by ETS-Lindgren, USA Date of completion: March 28, 2011 966 Chamber built by ETS-Lindgren, USA Date of completion: March 28, 2011 Certificated by TUV Rheinland, Germany. Registration No.: UA 50207153 Date of registration: July 13, 2011 Certificated by UL, USA Registration No.: 100567-237 Date of registration: September 1, 2011 Certificated by Intertek Registration No.: 2011-RTL-L1-31 Date of registration: October 11, 2011 Certificated by FCC, USA Registration No.: 795647 Date of registration: November 7, 2011 Ce…

Text truncated - open the document above for the full version.

FCC ID: R3X0010819172
