USER MANUAL Free2move Configuration Software Rev: 29 April 2005 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Free2move Rev: 29 April 2005 FCC-B Radio Frequency Interference Statement This deceive has been tested and found to comply with the limits for a Class-B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Notice1 The changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment. Notice 2 Shielded interface cables an A.C. power cord, if any, must be used in order to comply with the emission limits. FCC ID: R47F2M01C1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Page 2(28) Rev: 29 April 2005 Table of contents 1 Installing the configuration software...................................................................................4 2 Configuring your F2M01 serial port plug.............................................................................5 2.1 General settings..............................................................................................................................6 2.2 Serial settings................................................................................................................................. 7 2.3 Connection management................................................................................................................8 2.4 Endpoint settings............................................................................................................................8 2.5 Connecting settings......................................................................................................................12 2.6 Read and write settings to F2M01................................................................................................14 2.7 Load and save settings to file.......................................................................................................14 3 Advanced settings...............................................................................................................15 3.1 User defined baud rate.................................................................................................................16 3.2 Inquiry and page scan parameters...............................................................................................17 3.3 Power settings..............................................................................................................................19 3.4 Sniff and park mode settings........................................................................................................20 3.5 Class of device..............................................................................................................................23 3.6 Link supervision timeout...............................................................................................................23 3.7 Performance parameters..............................................................................................................24 4 Hints and tips.......................................................................................................................25 4.1 Establishing a connection between two Serial port plugs.............................................................25 5 Frequently asked questions / troubleshooting guide......................................................27 Page 3(28) Rev: 29 April 2005 1 Installing the configuration software A complimentary Free2move software package accompanies your serial port plug and can be installed on systems running Windows 98, ME, 2000 and XP. This Windows™ based software is used for configuration of the serial interfaces, connection rules and for the security of your device. The software is found on the CD-ROM delivered with your Serial Port Plug. The installation requires 3.6Mb of free space on the hard disc drive. 1. Insert the CD into your CD-ROM. 2. Follow the installation link on the getting started guide or use the explorer in Windows and double click the setup.exe file on the CD-ROM. 3. If you wish to continue the installation of the Free2move configuration software, click the “Yes” button. 4. When the welcome dialog box appears, click “Next” to continue. 5. Choose to accept the default folder by clicking “Next”, or change the location by using the browse window. 6. Choose to accept the default name of the start menu shortcut, by clicking “Next”, or change it by editing the text field. 7. Choose if you wish to create a shortcut and then click “Next”. 8. Start the installation of program files by clicking “Finish”. When the install wizard is finished you are ready to use the Configuration Software. Page 4(28) Rev: 29 April 2005 2 Configuring your F2M01 serial port plug Before configuring your F2M01, you must make sure that there is no Bluetooth connection present, otherwise the plug cannot enter configuration mode, i.e. make sure that no other unit is connected to your endpoint or that a running corresponding slave unit is not within range of your connecting Serial Port Plug. To configure your Serial Port Plug, attach the plug to a serial port on your wi…

Text truncated - open the document above for the full version.

Date 2006-01-11 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Free2move FCC ID: R47F2M01C1 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Free2move hereby requests confidentiality of all following attachments for the subject application. Document name Confidentiality status OpDes Confidential BlkDia Confidential Schem Confidential PartLst Confidential AntSpec Confidential These documents contain detailed system and equipment description and related information about the product which Free2move considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Free2move considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Per-Arne Wiberg CEO Free2move

25.11.2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Electronic Technology Systems Dr. Genz GmbH to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Per-Arne Wiberg CEO Free2move AB Free2Move AB Box 871 301 18 Halmstad Telefon 035-22 70 92 Fax 035-22 70 93 Webbadress www.free2move.se Epost [email protected] Organisationsnr. 556587-0895

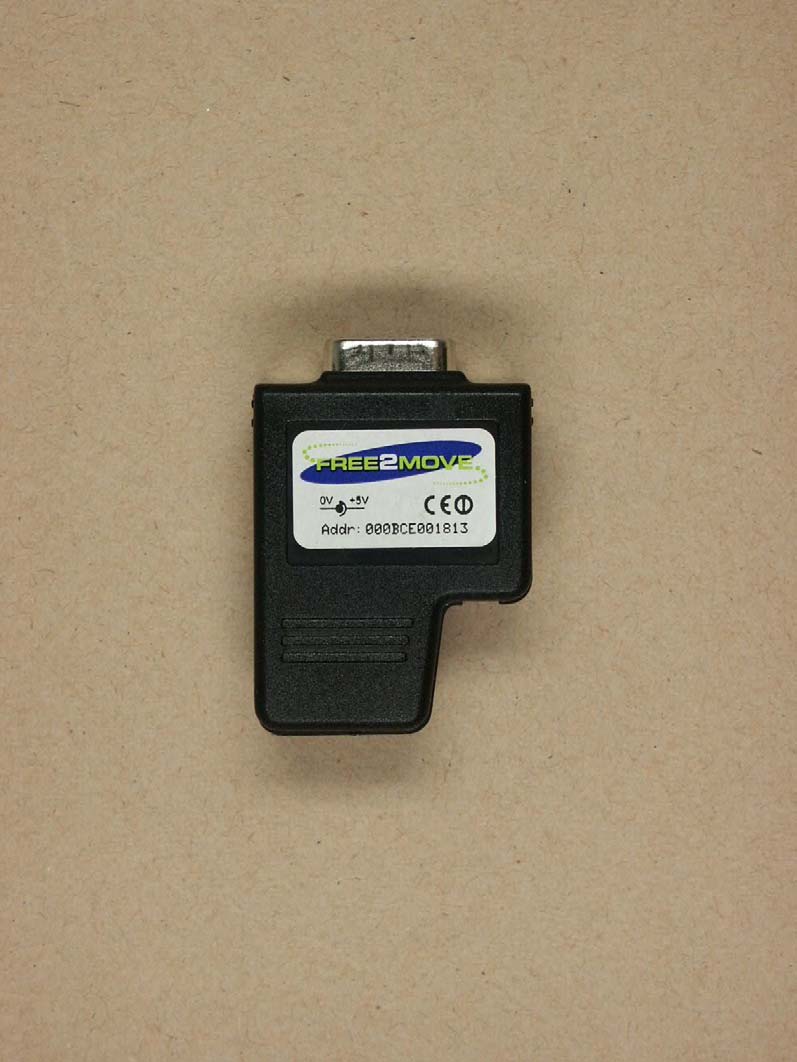

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 1 of 9 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 2 of 9

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 3 of 9 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 4 of 9

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: R47F2M01C1 Test report no.: G0M20504-9445-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 1 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 2 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 25.04.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 25.04.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 3 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Free2move AB Street : Pilefeltsgatan 77 Town : 302 50 Halmstad Country : Sweden Telephone : +46 35182194 Fax : +46 35182199 Contact : Mr. Per-Arne Wiberg E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 4 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 02.6.2003 Date of receipt of test item : 02.06.2003 Date of test : 02.06.2003 – 12.06.2003 1.5 Test item Description of test item : Bluetooth Serial Port Plug Type identification : F2M01 Brand Name: Free2move Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Power (ch A) : Conducted: 14.34 dBm Power (ch B) : Conducted: 13.93 dBm Power (ch C) : Conducted: 13.52 dBm Vnom Vnom –15 % Vnom +15 % Power (chA) : Radiated: 18.11 dBm Radiated: 18.24 dBm Radiated: 18.11 dBm Power (ch B) : Radiated: 17.00 dBm Radiated: 17.07 dBm Radiated: 16.95 dBm Power (ch C) : Radiated: 15.38 dBm Radiated: 13.37 dBm Radiated: 14.12 dBm Power supply : 4.5 V DC 110 V AC host device (CF-27 Panasonic) Operating mode : duplex Type of modulation : FHSS Antenna type : internal antenna Antenna gain : 3.5 dBi ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 5 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : Free2move AB Street : Pilefeltsgatan 77 Town : 302 50 Halmstad Country : Sweden Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. For testing, the Bluetooth Serial Port Plug F2M01 was tested connected to the laptop Notebook CF-27 from Panasonic as test environment. The host device (laptop) has a supply of 110 V AC and provides around 4,5 V DC to the F2M01. ETS Dr. Genz GmbH, Germany Registration number: G0M20504-9445-P-15 Page 6 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details …
