R4UARCFLEXEPHIndustrial radio remote control system

Industrial radio remote control system FLEX12EPH FLEX8EPH Instruction Manual Flex 12EPH/8EPH Standard, AB and Tandem Instruction Manual (FCC/CE) September 2016 Page 1 of 43 Service Information Your New Radio Remote Control System Thank you for your purchase of ARC Flex 12EPH/8EPH radio remote control system. Without a doubt, our Flex 12EPH/8EPH system is the ultimate solution for providing precise, undeterred, and safe control of your material. If your product ever needs modification or service, please contact our representative in your country or at the following location: World Headquarter: Advanced Radiotech Corporation No. 3, South 1st Road, Chien Chen District, Kaohsiung City, Taiwan Telephone: +886 7 812 8112 Fax Number: +886 7 812 8119 Website: www.advanced-radiotech.com E-mails: [email protected] [email protected] All rights reserved. This notice applies to all copyrighted materials included with this product, including, but not limited to, this manual and software embodied within the product. This manual is intended for the sole use of the person(s) to whom it was provided, and any unauthorized distribution of the manual or dispersal of its contents is strictly forbidden. This manual may not be reproduced in whole or in part by any means whatsoever without the expressed written permission of ARC. Flex 12EPH/8EPH Standard, AB and Tandem Instruction Manual (FCC/CE) September 2016 Page 2 of 43 PRODUCT MANUAL SAFETY INFORMATION Advanced Radiotech Corporation (ARC) offers a broad range of radio remote control product for material handling applications. This manual has been prepared by ARC to provide information and recommendations for the installation, use, operation and service of ARC’s material handling products and systems (ARC Products). Anyone who uses, operates, maintains, services, installs or owns ARC Products should know, understand, and follow the instructions and safety recommendations in this manual for ARC Products. The recommendations in this manual do not take precedence over any of the following requirements relating to cranes, hoists lifting devices or other material handling equipment which use or include ARC Products: • Instructions, manuals, and safety warnings of the manufacturers of the equipment where the radio system is used. • Plant safety rules and procedures of the employers and the owners of facilities where the ARC Products are being used. • Safety standards and practices for the industries in which ARC Products are used. This manual does not include or address the specific instructions and safety warnings of these manufacturers or any of the other requirements listed above. It is the responsibility of the owners, users and operators of the ARC Products to know, understand and follow all of these requirements. It is the responsibility of the employer to make its employees aware of all of the above listed requirements and to make certain that all operators are properly trained. No one should use ARC Products prior to becoming familiar with and being trained in these requirements and the instructions and safety recommendations in this manual. WARRANTY INFORMATION For information on ARC’s product warranties, please contact ARC representative nearest to you or visit www.advanced-radiotech.com. FCC WARNINGS and CAUTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: ⚫ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. ⚫ Any changes or modifications not expressly approved by the party responsible for compliance Flex 12EPH/8EPH Standard, AB and Tandem Instruction Manual (FCC/CE) September 2016 Page 3 of 43 could void the authority to operate equipment. ⚫ This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. ⚫ End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. ⚫ For product available in the USA/Canada market, only channel 1~141 can be operated. Selection of other channels is not possible FCC MPE：This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment for body-worn configuration in direct contact to the phantom. IC WARNINGS RSS-Gen Issue 4 8.4 According to RSS-Gen Issue 4 section 8.4, User manuals for licence-exempt radio apparatus shall contain the following text, or an equivalent notice that shall be displayed in a conspicuous location, either in the user manual or on the device, or both: (English) T…

Text truncated - open the document above for the full version.

SUBJECT: Model Difference Letter for FCC: R4UARCFLEXEPH To Whom It May Concern: Due to the business consideration, we hereby declare that our product of Industrial radio remote control systems, Model: FLEX 12EPH, FLEX 8EPH have as following difference Model Description: Diversity Description Series Model FLEX 12EPH FLEX 8EPH Transmitter O O Receiver Input power +3.0VDC+3.0VDC Number of buttons 12 8 Number of solid state relays Size 244mm (L) x 70mm (W) x 44mm (H) 198mm (L) x 70mm (W) x 44mm (H) Others FLEX 12EPH and FLEX 8EPH use the same TX PCB board Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, Tom Jou ADVANCED RADIOTECH CORPORATION Phone: 886-7-812-8112 N/A N/A N/A N/A N/A N/A

Date: January 7, 2020 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: ADVANCED RADIOTECH CORPORATION No. 3, South 1st Road, Chien Chen District, Kaohsiung Taiwan, 806 Regarding: Confidentiality Request regarding application for FCC ID: R4UARCFLEXEPH LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Part list The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Tom Jou ADVANCED RADIOTECH CORPORATION Phone: 886-7-812-8112

Page: 1 / 1 Report No.: T190902W05-MF Rev.: 01 FCC ID: R4UARCFLEXEPH According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 0dBm ± 1dBm, therefore the highest tune-up power is 1.0 dBm (1.2589 mW) @ 440.000 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (1.2589mW / 5mm) * (0.440GHz^0.5 )= 0.1670 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.1670 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

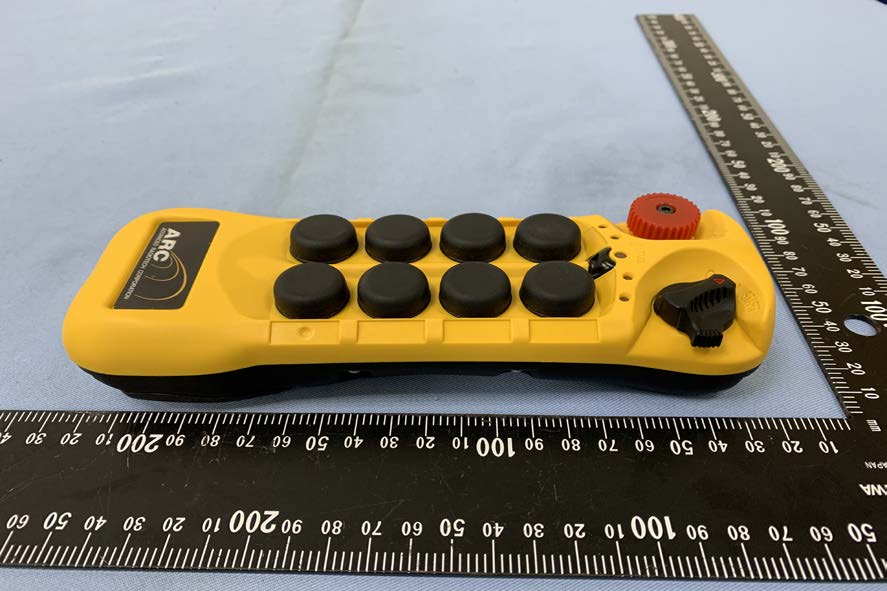

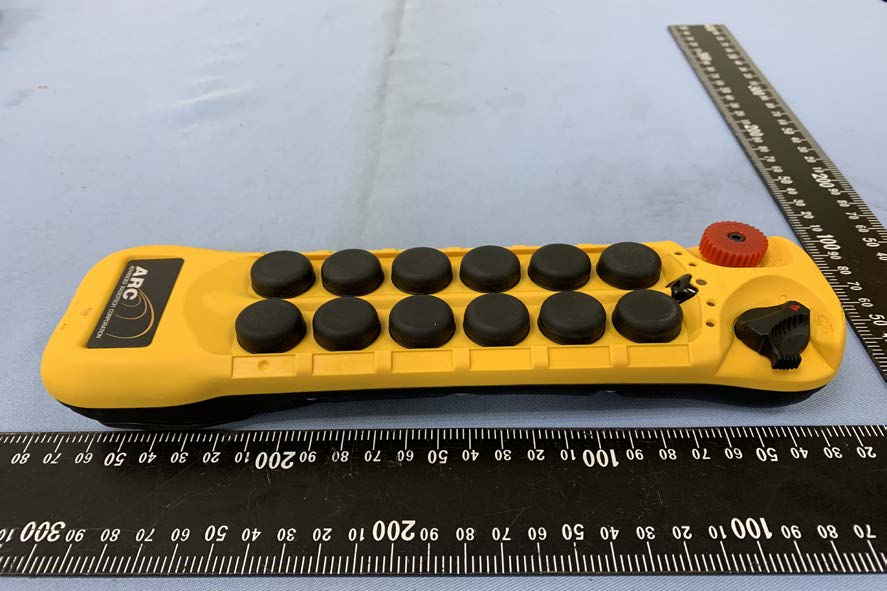

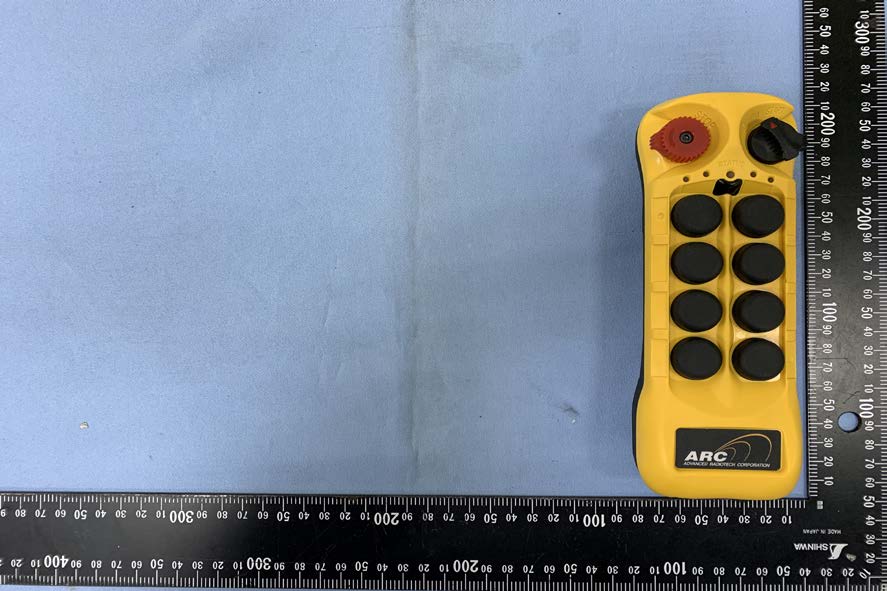

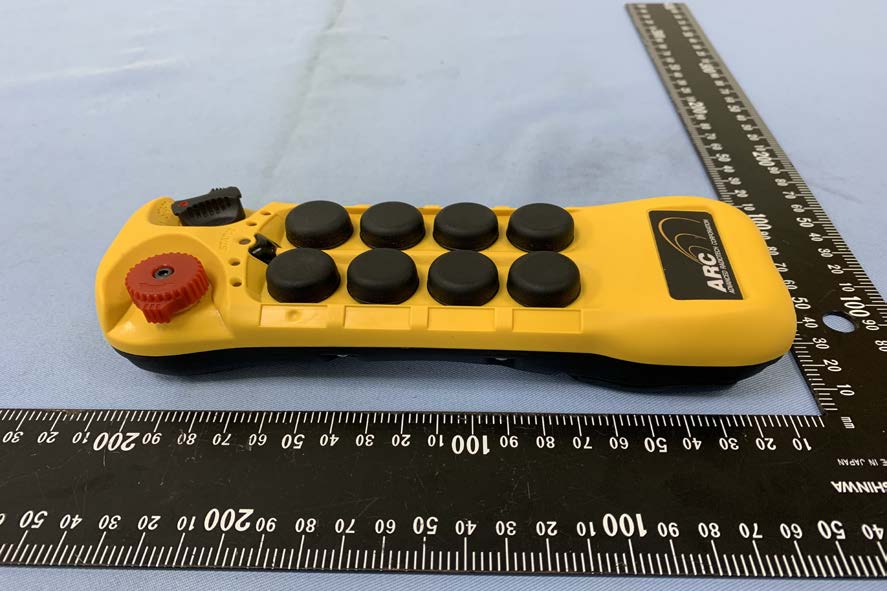

Page: 1 / 18 Report No.: T190902W05-1 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Transmitter: FLEX 8EPH Page: 2 / 18 Report No.: T190902W05-1 Rev.: 00 Page: 3 / 18 Report No.: T190902W05-1 Rev.: 00 Page: 4 / 18 Report No.: T190703W02 Rev.: 01 Transmitter: FLEX 12EPH Page: 5 / 18 Report No.: T190703W02 Rev.: 01 Page: 6 / 18 Report No.: T190703W02 Rev.: 01

A A d d v v a a n n c c e e d d R R a a d d i i o o t t e e c c h h C C o o r r p p o o r r a a t t i i o o n n No.3, South 1st Road, Chien Chen District, Kaohsiung City, Taiwan Tel: 886-7-812-8112 Fax: 886-7-812-8119 Email: [email protected] Label & Location Model: FLEX 8EPH (8 buttons) Rear side: Model: FLE X 12EPH (12 buttons) Rear side:

Page: 7 / 18 Report No.: T190703W02 Rev.: 01 INTERNAL PHOTOGRAPHS OF EUT Transmitter: FLEX 8EPH Page: 8 / 18 Report No.: T190703W02 Rev.: 01 Page: 9 / 18 Report No.: T190703W02 Rev.: 01 Page: 10 / 18 Report No.: T190703W02 Rev.: 01 Page: 11 / 18 Report No.: T190703W02 Rev.: 01 Module Crystal Page: 12 / 18 Report No.: T190703W02 Rev.: 01 Antenna Page: 13 / 18 Report No.: T190703W02 Rev.: 01 Transmitter: FLEX 12EPH Page: 14 / 18 Report No.: T190703W02 Rev.: 01 Page: 15 / 18 Report No.: T190703W02 Rev.: 01 Page: 16 / 18 Report No.: T190703W02 Rev.: 01 Page: 17 / 18 Report No.: T190703W02 Rev.: 01 Module Crystal Page: 18 / 18 Report No.: T190703W02 Rev.: 01 Antenna

FCC ID: R4UARCFLEXEPH Page: 1 / 37 Report No.: T190902W05-RP Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan / 新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2298-1882 www.sgs.tw www.ccsrf.com FCC RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.231 Trade name ARC Product name Industrial radio remote control system Model No. FLEX 12EPH, FLEX 8EPH Operation Freq. 433 MHz – 440MHz Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of SGS Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Reviewed by: Kevin Tsai Dally Hong Deputy Manager Engineer Page: 2 / 37 Report No.: T190902W05-RP Rev.: 01 Revision History Rev. Issue Date Revisions Effect page Revised By 00 December 30, 2019 Initial Issue ALL Doris Chu 01 January 8, 2020 1. Revised sectio n 3.2 Remark, 2. P.11 Doris Chu Page: 3 / 37 Report No.: T190902W05-RP Rev.: 01 Table of contents 1. GENERAL INFORMATION .................................................................................................................... 4 1.1 EUT INFORMATION .............................................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ............................................................................................................ 5 1.3 ANTENNA INFORMATION .................................................................................................................... 6 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 1.5 FACILITIES AND TEST LOCATION ...................................................................................................... 8 1.6 INSTRUMENT CALIBRATION ............................................................................................................... 8 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ............................................................................ 9 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ........................................................................ 9 2. TEST SUMMERY.................................................................................................................................. 10 3. DESCRIPTION OF TEST MODES ....................................................................................................... 11 3.1 THE WORST MODE OF OPERATING CONDITION ........................................................................... 11 3.2 THE WORST MODE OF MEASUREMENT ......................................................................................... 11 3.3 FCC PART 15.231 PERIODIC OPERATION IN THE BAND 40.66-40.70 MHZ AND ABOVE 70 MHZ12 3.4 EUT DUTY CYCLE ............................................................................................................................... 14 4. TEST RESULT ...................................................................................................................................... 15 4.1 AC POWER LINE CONDUCTED EMISSION ...................................................................................... 15 4.2 EMISSION BANDWIDTH ..................................................................................................................... 16 4.3 FIELD STRENGTH OF FUNDAMENTAL ............................................................................................ 19 4.4 RADIATION UNWANTED EMISSION ................................................................................................. 24 4.5 OPERATION RESTRICTION ............................................................................................................... 36 APPENDIX 1 – PHOTOGRAPHS OF EUT Page: 4 / 37 Report No.: T190902W05-RP Rev.: 01 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant ADVANCED RADIOTECH CORPORATION No. 3, South 1st Road, Chien Chen District, Kaohsiung City, Taiwan Manufacturer ADVANCED RADIOTECH CORPORATION No. 3, South 1st Road, Chien Chen District, Kaohsiung City, Taiwan Equipment Industrial radio remote control system Model Name FLEX 12EPH, FLEX 8EPH Model Discrepancy Diversity Description Series Model FLEX 12EPH FLEX 8EPH Transmitter O O Receiver N/A N/A Input power +3.0VDC +3.0VDC Number of buttons 12 8 Number of solid state relays N/A N/A Size 244mm (L) x 70mm (W) x 44mm (H) 198mm (L) x 70mm (W) x 44mm (H) Others N/A N/A Received Date September 2, 2019 Date of Test November 26 ~ December 20, 2019 Periodic operation (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation (3) Periodic transmissions at regular predetermined intervals are not permitted. (4) Periodic transmissions (lower field strength): each transmission is not greater than 1 sec and the silent period between transmissions is at least 30 times the duration of the transmission but in no case less than 10 sec. Power Operation Power from battery: DC 3V Operation Frequency 433MHz – 440MHz S/W Version V1.1.1 H/W Version V.01.01 Page: 5 / 37 Report No.: T190902W05-RP Rev.: 01 1.2 EUT CHANNEL INFORMATION Frequency Range 433MHz – 440MHz Modulation Type GFSK Bandwidth 50 kHz Number of Channels 141 channels Channel List Channel Channel Channel 1 433.000 51 435.500 101 …

Text truncated - open the document above for the full version.

Page: A-1 / A-2 Report No.: T190902W05-RP Rev.: 00 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) Page: A-2 / A-2 Report No.: T190902W05-RP Rev.: 00 Conducted Emission
