R4WRCLC01ResponseCard Single Event

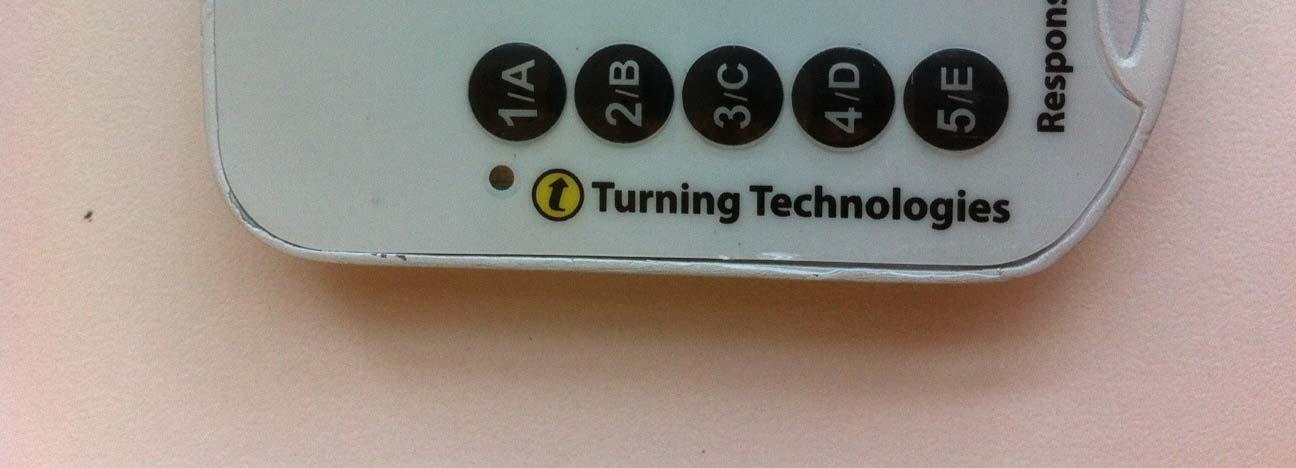

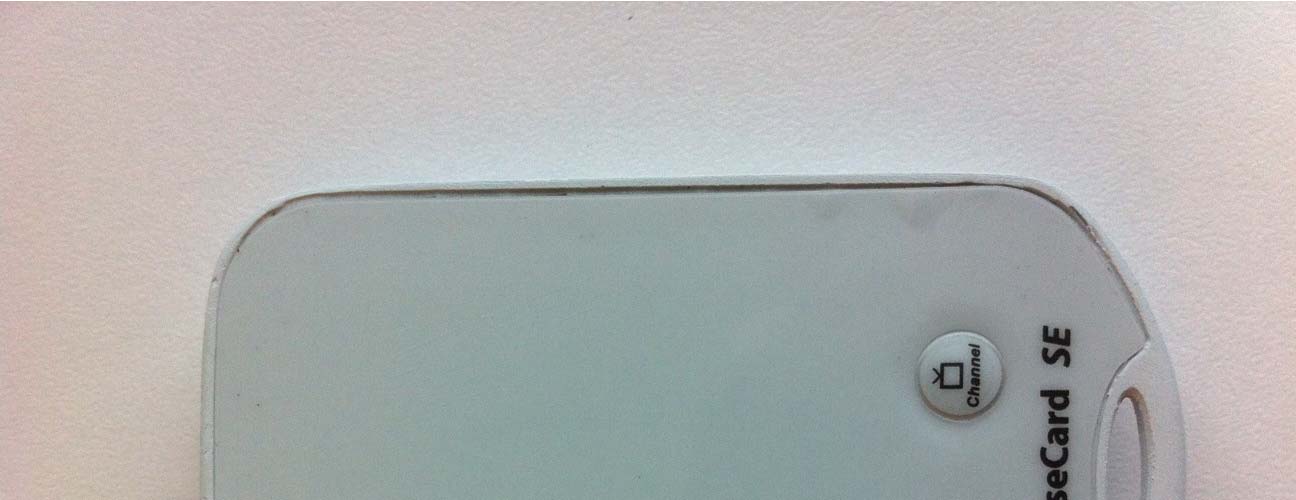

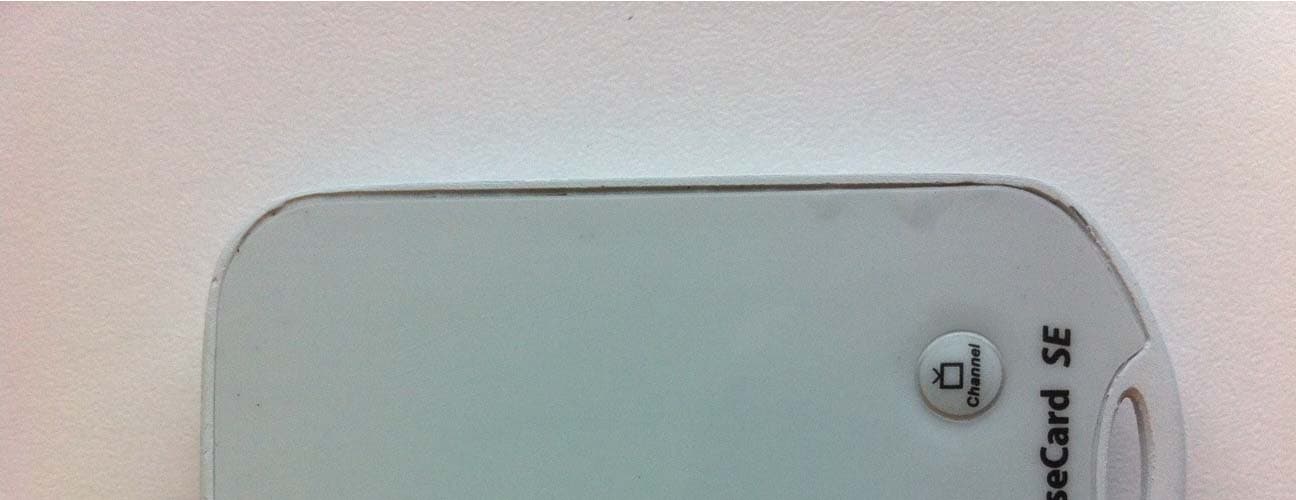

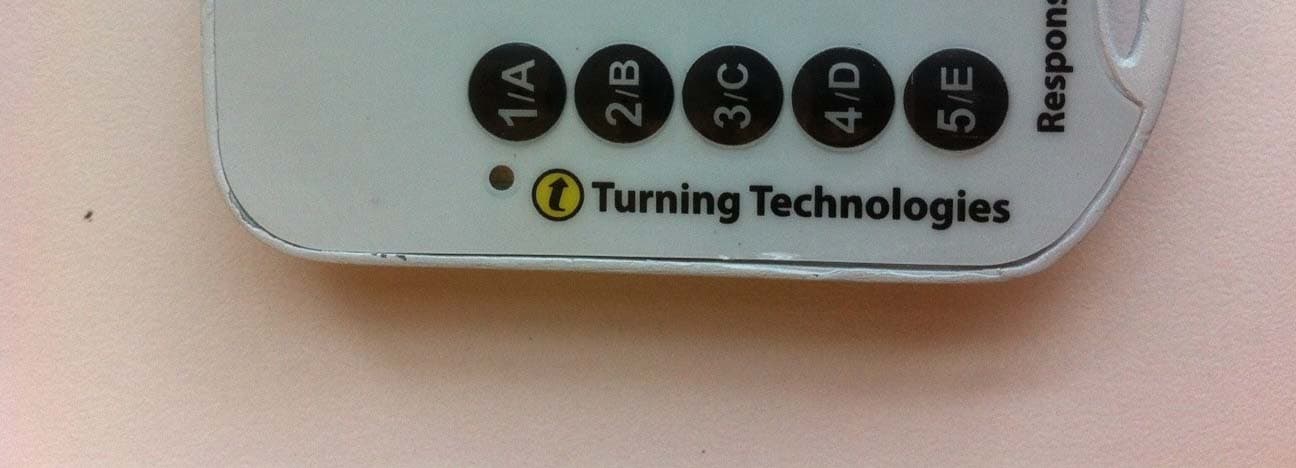

RCSE-01 Keypad User’s Guide v1.1 07/02/2013 Revision Date Comments 1.0 06/6/2013 Initial 1.1 7/2/2013 Updated FCC and IC Statement Overview: The ResponseCard Single Event Keypad (RCSE-01) is designed to be used with the Turning Technologies RF Receivers connected to a PC. The keypad transmits key presses via radio frequency to the RF receiver for accumulation by the PC. The keypad consists of 6 data keys (1-5, and Channel) and a single status LED. In Idle state, the LED is OFF. The keypad returns to idle state after completion of a key press. Standard Operation Mode: Initially the status LED is OFF. Pressing a single key will cause the key to be transmitted to the receiver. After pressing a key the status LED shows status as follows: Quick YELLOW Blink then OFF - Receiver is not accepting data at this time BLINKING YELLOW - key is being transmitted (up to 5 seconds) SOLID GREEN - key transmit successful - ready for input SOLID RED - key transmit failed – ready for input BLINKING GREEN - Receiver indicated correct answer BLINKING RED - Receiver indicated incorrect answer Blinking Green and Blinking Red will only occur if the Receiver is configured to indicate a correct or incorrect answer (CORRECT POLLING mode). Set RF Channel Press Channel Button Set RF Channel mode is indicated by the status LED flashing a RED then GREEN pattern. Set RF Channel mode exits automatically after two valid keys are pressed, if no valid key is pressed for 5 seconds, or at any time an invalid key is pressed. Valid keys are ‘1’ through ‘5’. Valid RF Channels are ‘11’ through ‘55’. While in Set RF Channel mode pressing a valid key will cause the status LED to briefly flash YELLOW. When Set RF Channel Mode exits, the status LED indicates the result as follows: SOLID GREEN - Set RF Channel successful SOLID RED - Set RF Channel failed Display Software Version Press ‘Channel’ and then quickly press and hold ‘2’. Release both keys. The status LED will turn OFF briefly, followed by: Major Version# - Count the number of RED blinks – could be zero. Minor Version# - Count the number of YELLOW blinks – could be zero REGULATORY INFORMATION FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement Safety Statement WARNING, batteries may explode if mistreated. Do not recharge, disassemble or dispose in a fire. Replace batteries With Maxell, CR2032, 3-Volt Coin Cell ONLY. Use of another battery may present risk of fire or explosion. The disposal of used batteries is governed by law in many countries world-wide. Therefore, please check your local regulations prior to battery disposal.

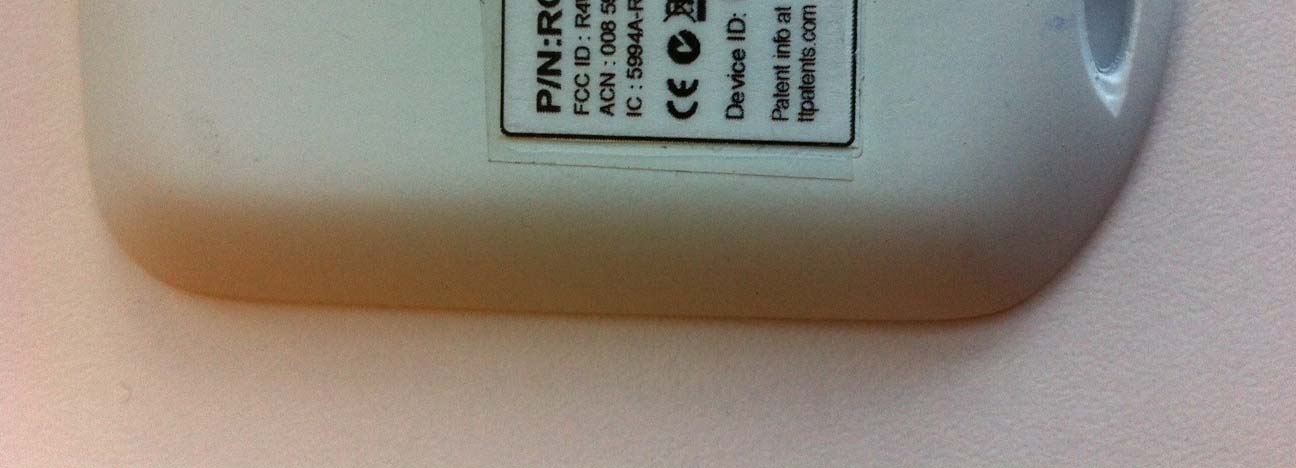

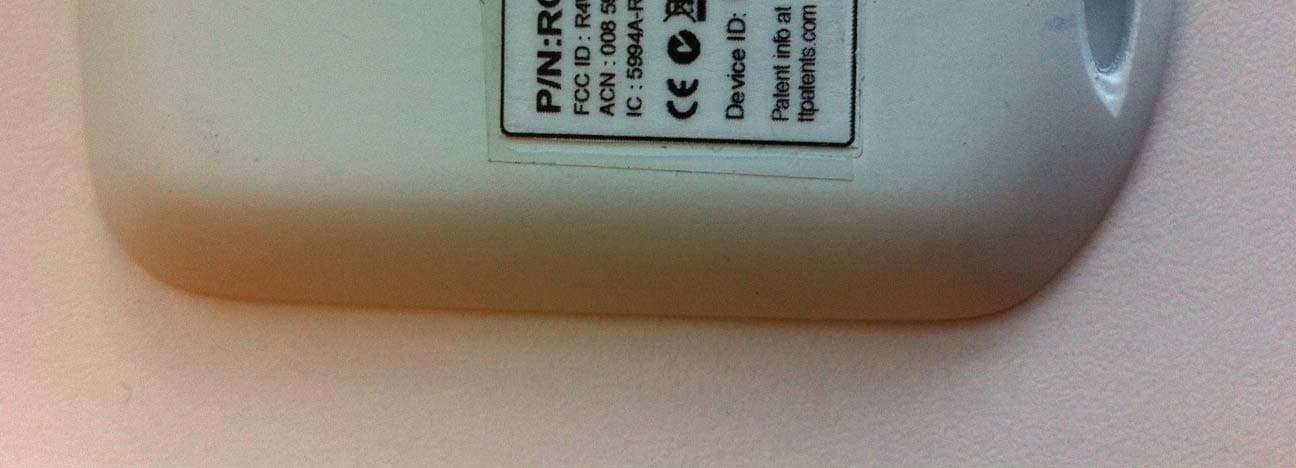

RCSE-01 Product Label

Engineering Test Report No. 1302037-01 Measurement of RF Emissions from a RCSE-01 Keypad transceiver For Turning Technologies, LLC. 255 W Federal Street Youngstown, OH 44503 P.O. Number 0000008713 Date Tested June 17 th through July 1 st , 2013 Test Personnel Richard E. King Test Specification FCC "Code of Federal Regulations” Title 47 Part15, Subpart C Industry Canada RSS-GEN Industry Canada RSS-210 Test Report By: Richard E. King EMC Engineer Requested By: Josh Blackann Turning Technologies, LLC. Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1302037-01 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 49 1. Introduction ................................................................................................................................................... 4 1.1. Scope of Tests ..................................................................................................................................... 4 1.2. Purpose ............................................................................................................................................... 4 1.3. Deviations, Additions and Exclusions .................................................................................................. 4 1.4. EMC Laboratory Identification ............................................................................................................. 4 1.5. Laboratory Conditions.......................................................................................................................... 4 2. Applicable Documents .................................................................................................................................. 4 3. EUT Setup and Operation ............................................................................................................................ 4 3.1. General Description ............................................................................................................................. 4 3.1.1. Power Input ................................................................................................................................. 5 3.1.2. Peripheral Equipment ................................................................................................................. 5 3.1.3. Signal Input/Output Leads .......................................................................................................... 5 3.1.4. Grounding ................................................................................................................................... 5 3.1.5. Software and Firmware Verisons ................................................................................................ 5 3.2. Operational Mode ................................................................................................................................ 5 3.3. EUT Modifications ................................................................................................................................ 5 4. Test Facility and Test Instrumentation ......................................................................................................... 5 4.1. Shielded Enclosure .............................................................................................................................. 5 4.2. Test Instrumentation ............................................................................................................................ 5 4.3. Calibration Traceability ........................................................................................................................ 5 4.4. Measurement Uncertainty ................................................................................................................... 5 5. Test Procedures ........................................................................................................................................... 6 5.1. Powerline Conducted Emissions ......................................................................................................... 6 5.1.1. Requirements .............................................................................................................................. 6 5.2. Duty Cycle Factor Measurements ....................................................................................................... 6 5.2.1. Procedures .................................................................................................................................. 6 5.2.2. Results ........................................................................................................................................ 6 5.3. Radiated Measurements ..................................................................................................................... 6 5.3.1. Requirements .............................................................................................................................. 6 5.3.2. Procedures .................................................................................................................................. 6 5.3.3. Results ........................................................................................................................................ 7 5.4. Bandedge Compliance ........................................................................................................................ 7 5.4.1. Requirement................................................................................................................................ 7 5.4.2. Procedures ............................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1302037-01 Page 12 of 49 Figure 2 Test Setup for Radiated Emissions, 30MHz to 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, 30MHz to 1GHz – Vertical Polarization Engineering Test Report No. 1302037-01 Page 13 of 49 Figure 4 Test Setup for Radiated Emissions, above 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, above 1GHz – Vertical Polarization
