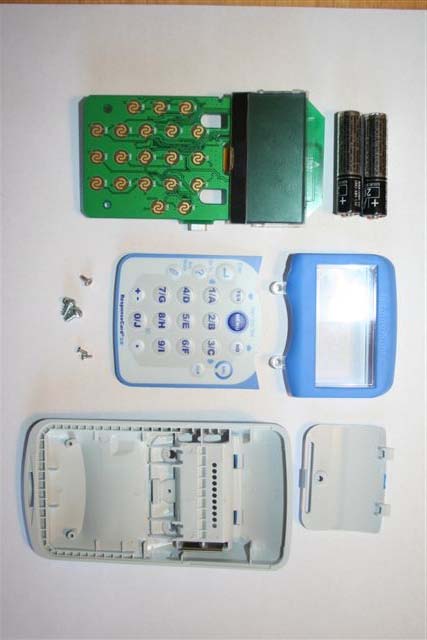

Responsive Innovations ResponseCard XR User’s Manual RCXR-01 User’s Manual Ver. Preliminary Overview: The RI XR Keypad is designed to be used with the RI RF & LR Receiver(s) connected to a PC. The keypad transmits key presse s via radio frequency to the RF receiver for accumulation by the PC. The keypad consists of 30 data and control keys (0-9, +/-, ., CLR, SEL, No, MENU, Yes, Enter, ?, and Ans Mode) and an LCD. In Idle state, the LCD is OFF. The keypad returns to idle state after completion and processing of a key press. Presentation Operation Mode: Initially the status LCD is OFF. Pressing a single key will cause the key to be transmitted to the receiver. After pressing a key the status LCD shows status. Test Mode: The XR unit can be used to batch user responses and answers for later transmission. Setup Modes: Active at any time the keyboard is ready for input. Set RF Channel Press Menu and Change Channel from user menu. The current RF channel is displayed. The requested RF channel (1-74) can be entered. Valid keys are ‘0’ through ‘9’. Valid RF Channels are ‘000’ through ‘127’. REGULATORY INFORMATION FCC Statement This product has been tested and found to comply with Part 15 of the FCC Rules. Operation it subject to the following conditions: it may not cause harmful interference and must be accept interference received, including interference that may cause undesired operations. Changes or modifications not expressly approved by the party responsible fo r compliance could void the user’s authority to operate the equipment. Canada Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This devices should not be connected to a PC with a USB cable exceeding 3 meters in length.

FCC ID: Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, (insert company name here), hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Kevin G. Adkins President & CEO Responsive Innovations, LLC

P/N: RCXR-01 FCC ID: R4WRCXR01 ACN: 107 654 697 IC: 5994A-RESCARD llllll lll lll llllllllll Device ID: 001000 Assembled in Thailand 2807

Page 1 of 57 Engineering Test Report No. 38183-01 Measurement of RF Interference from a Model RCXR-01 Transceiver and Computer Peripheral For : Responsive Innovations Akron, OH P.O. No. : 2005 Date Received : April 23, 2007 Date Tested : April 23, 2007 through April 30, 2007 Test Personnel : Mark E. Longinotti Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart B and Subpart C, Section 15.249 for Intentional Radiators Operating within the 2400-2483.5MHz band Test Report By : Mark E. Longinotti Witnessed By : Jon Hallsten Responsive Innovations Dale Liff Avid Technologies Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 38183-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 57 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1 INTRODUCTION .................................................................................................................................. 4 1.1 Description of Test Item............................................................................................................... 4 1.2 Purpose ....................................................................................................................................... 4 1.3 Deviations, Additions and Exclusions.......................................................................................... 4 1.4 Applicable Documents ................................................................................................................. 4 1.5 EMC Laboratory Identification ..................................................................................................... 4 1.6 Laboratory Conditions ................................................................................................................. 4 2 TEST ITEM SET-UP AND OPERATION ............................................................................................. 4 2.1 Power Input.................................................................................................................................. 4 2.2 Grounding.................................................................................................................................... 5 2.3 Peripheral Equipment .................................................................................................................. 5 2.4 Interconnect Cables..................................................................................................................... 5 2.5 Operational Mode ........................................................................................................................ 5 2.6 Test Item Modifications................................................................................................................ 5 3 TEST EQUIPMENT .............................................................................................................................. 5 3.1 Test Equipment List ..................................................................................................................... 5 3.2 Calibration Traceability ................................................................................................................ 6 3.3 Measurement Uncertainty ........................................................................................................... 6 4 REQUIREMENTS, PROCEDURES AND RESULTS .......................................................................... 6 4.1 Powerline Conducted Emissions ................................................................................................. 6 4.1.1 Computer Peripheral Device ................................................................................................... 6 4.1.1.1 Requirements ................................................................................................................. 6 4.1.1.2 .....Procedures ..................................................................................................................... 6 4.1.1.3 Results ............................................................................................................................ 7 4.1.2 Receiver .................................................................................................................................. 7 4.1.2.1 Requirements ................................................................................................................. 7 4.1.3 Transmitter .............................................................................................................................. 7 4.1.3.1 Requirements ................................................................................................................. 7 4.2 Duty Cycle Factor Measurements ............................................................................................. .. 7 4.2.1 Procedures .............................................................................................................................. 7 4.2.2 Results..................................................................................................................................... 7 4.3 Radiated Measurements ............................................................................................................. 8 4.3.1 Computer Peripheral Device ................................................................................................... 8 4.3.1.1 Requirements ................................................................................................................. 8 4.3.1.2 Procedures ..................................................................................................................... 8 4.3.1.3 Results ....…

Text truncated - open the document above for the full version.

Engineering Test Report No. 38183-01 Page 14 of 57 Figure 2 Test Item Setup Engineering Test Report No. 38183-01 Page 15 of 57 Figure 3 Test Setup for Conducted Emissions Engineering Test Report No. 38183-01 Page 16 of 57 Figure 4 Test Setup for Radiated Emissions, 30MHz to 1 GHz – Horizontal Polarization Test Setup for Radiated Emissions, 30MHz to 1 GHz – Vertical Polarization Engineering Test Report No. 38183-01 Page 17 of 57 Figure 5 Test Setup for Radiated Emissions, 1 GHz to 2GHz – Horizontal Polarization Test Setup for Radiated Emissions, 1 GHz to 2GHz – Vertical Polarization Engineering Test Report No. 38183-01 Page 18 of 57 Figure 6 Test Setup for Radiated Emissions, 2GHz to 18GHz – Horizontal Polarization Test Setup for Radiated Emissions, 2GHz to 18GHz – Vertical Polarization
