R4WRCXR02Response Card XR02

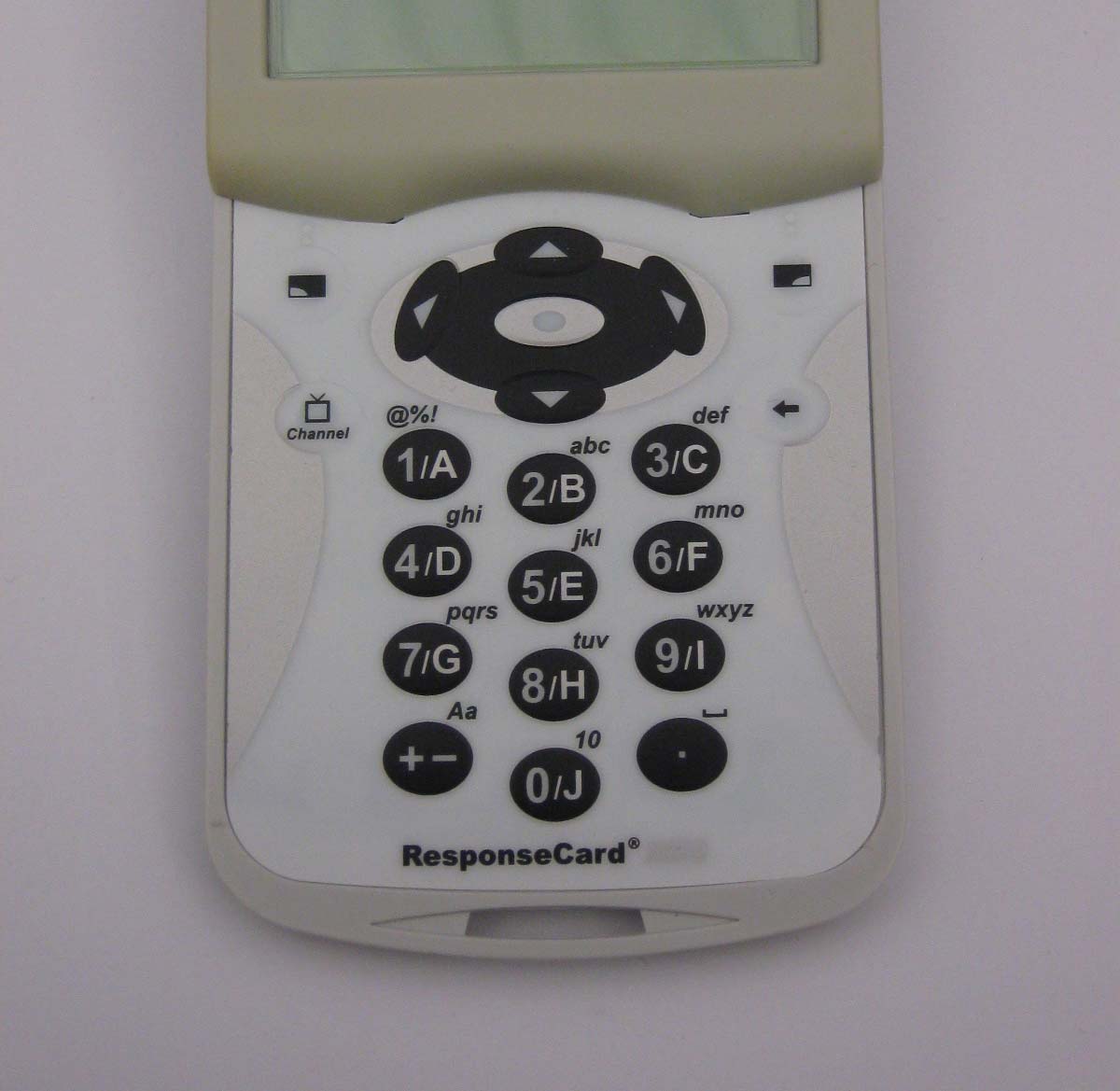

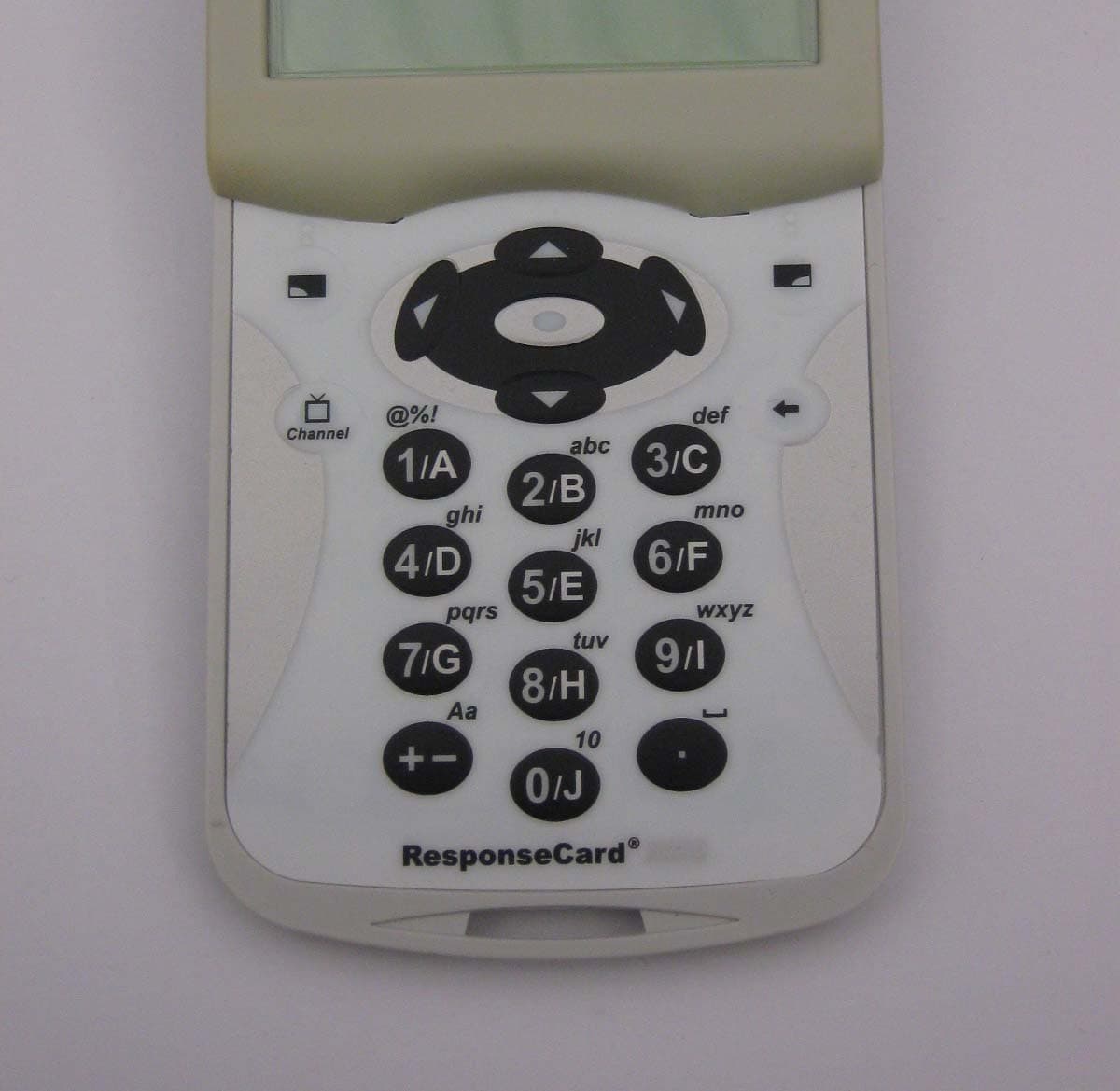

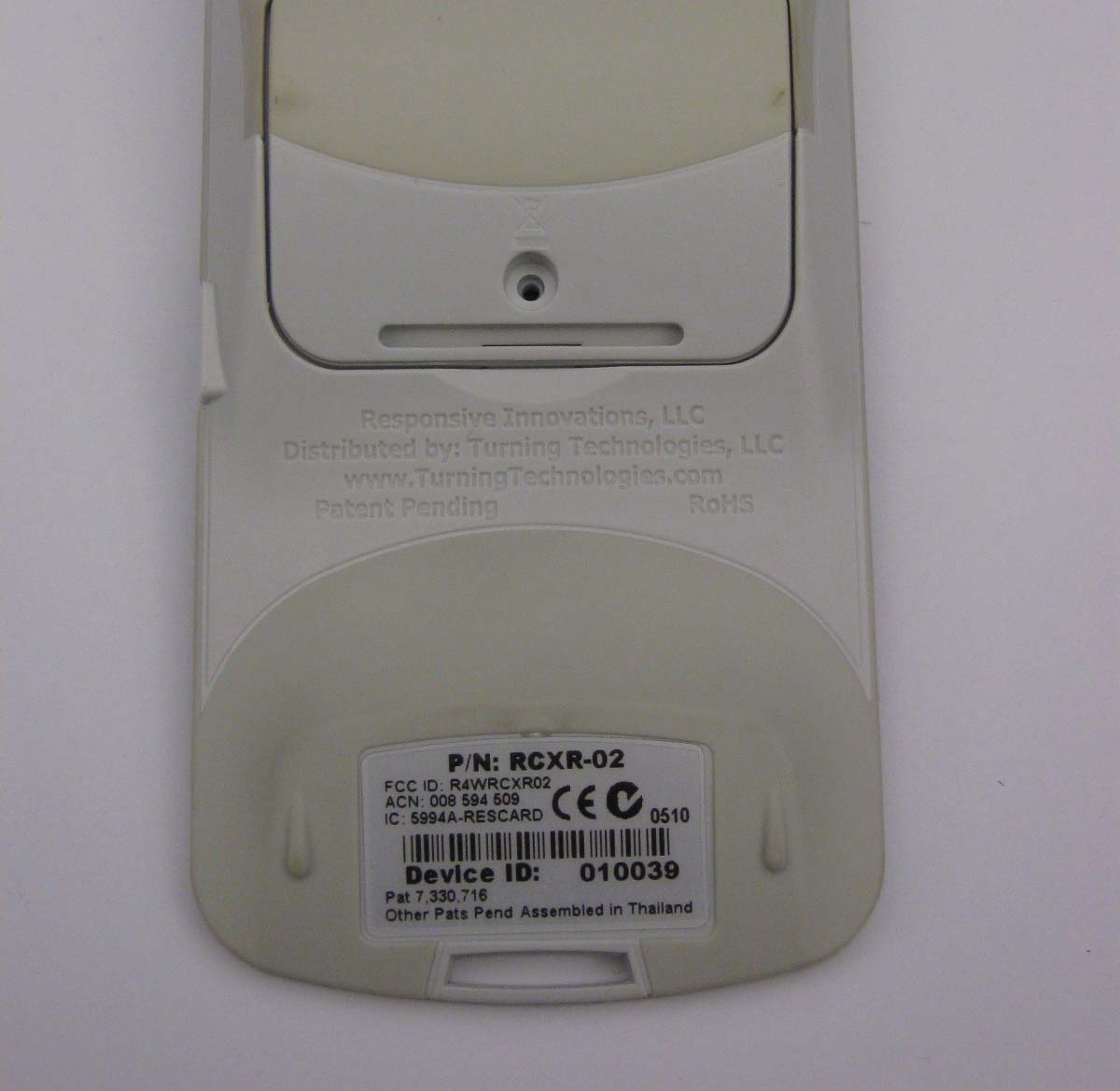

REGULATORY INFORMATION FCC Statement This product has been tested and found to comply with Part 15 of the FCC Rules. Operation it subject to the following conditions: it may not cause harmful interference and must be accept interference received, in cluding interference that may cause undesired operations. Changes or modifications not expressly approved by the party responsible fo r compliance could void the user’s authority to operate the equipment. Canada Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This devices should not be connected to a PC with a USB cable exceeding 3 meters in length. Turning Technologies ResponseCard XR User’s Manual RCXR-02 User’s Manual Ver. Preliminary Overview: The RI XR-02 Keypad is designed to be used with the RI RF & LR Receiver(s) connected to a PC. The keypad transmits key presses via radio frequency to the RF receiver for accumulation by the PC. The keypad consists of 30 data and control keys (0-9, +/-, ., CLR, Channel, Up Arrow, Down Arrow, Left Arrow, Right Arrow, Center Navigation button, Left So ft Key and Right Soft Key) and an LCD. In Idle state, the LCD is OFF. The keypad returns to idle state after completion and processing of a key press. Presentation Operation Mode: Initially the status LCD is OFF. Pressing a single key will cause the key to be transmitted to the receiver. After pressing a key the status LCD shows status. Test Mode: The XR-02 has a test mode which can be used to batch user responses and answers for later transmission. Setup Modes: Active at any time the keyboard is ready for input. Set RF Channel Press Menu and Change Channel from user menu. The current RF channel is displayed. The requested RF channel (1-74) can be entered. Valid keys are ‘0’ through ‘9’. Valid RF Channels are ‘000’ through ‘74’.

Engineering Test Report No. 0903330-01 Measurement of RF Interference from a Model RCXR-02 Transceiver For : Turning Technologies 241 Federal Plaza West Youngstown, OH 44503 P.O. No. : 6977 Date Tested : January 25 - 29, 2010 Test Personnel : Mark Longinotti Specification : FCC "Code of Federal Regulations" Title 47 Part 15, Subpart C, Section 15.249 : Industry Canada RSS-210 : Industry Canada RSS-GEN Test Report By : Mark E. Longinotti Senior EMC Engineer Witnessed by : Josh Blackann Steve Nelson Turning Technologies Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 0903330-01 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 57 1 INTRODUCTION..........................................................................................................................................4 1.1 Scope of Tests..................................................................................................................................... 4 1.2 Purpose ............................................................................................................................................... 4 1.3 Deviations, Additions and Exclusions.................................................................................................. 4 1.4 EMC Laboratory Identification ............................................................................................................. 4 1.5 Laboratory Conditions ......................................................................................................................... 4 2 APPLICABLE DOCUMENTS .......................................................................................................................4 3 TEST ITEM SETUP AND OPERATION.......................................................................................................5 3.1 General Description ............................................................................................................................. 5 3.1.1 Power Input ..................................................................................................................................... 5 3.1.2 Peripheral Equipment...................................................................................................................... 5 3.1.3 Interconnect Cables ........................................................................................................................ 5 3.1.4 Grounding........................................................................................................................................ 5 3.2 Operational Mode ................................................................................................................................ 5 3.3 Test Item Modifications........................................................................................................................ 5 4 TEST FACILITY AND TEST INSTRUMENTATION.....................................................................................5 4.1 Shielded Enclosure.............................................................................................................................. 5 4.2 Test Instrumentation ............................................................................................................................ 5 4.3 Calibration Traceability ........................................................................................................................ 5 4.4 Measurement Uncertainty ................................................................................................................... 5 5 TEST PROCEDURES..................................................................................................................................6 5.1 Powerline Conducted Emissions ......................................................................................................... 6 5.1.1 Receiver .......................................................................................................................................... 6 5.1.1.1 Requirements ......................................................................................................................... 6 5.1.2 Transmitter ...................................................................................................................................... 6 5.1.2.1 Requirements ......................................................................................................................... 6 5.2 Duty Cycle Factor Measurements ....................................................................................................... 6 5.2.1 Procedures ...................................................................................................................................... 6 5.2.2 Results ............................................................................................................................................ 6 5.3 Radiated Measurements ..................................................................................................................... 7 5.3.1 Receiver .......................................................................................................................................... 7 5.3.1.1 Requirements ......................................................................................................................... 7 5.3.1.2 Procedures ............................................................................................................................. 7 5.3.1.3 Results............................................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 0903330-01 Page 20 of 57 1MAX Ref Lvl 72 dB  V Ref Lvl 72 dB  V RBW 1 MHz VBW 1 MHz RF Att 0 dB A IN1 1MA Unit dB  V TRG P20 SWT 10 ms Center 2.44102004 GHz1 ms/ SGL -20 -10 0 10 20 30 40 50 60 -28 72 1 1 Delta 1 [T1] -0.25 dB 7.448898 ms Date: 25.JAN.2010 22:15:48 FCC DUTY CYCLE CORRECTION FACTOR MANUFACTURER : Turning Technologies MODEL NUMBER : RCRX-02 SERIAL NUMBER : 15 TEST MODE : Tx @ 2441MHz Large Packets TEST DATE : January 25, 2010 TEST PARAMETERS : Pulse width is 274.55usec. The fastest repetition rate is 1 pulse every : 7.45 msec. : Duty cycle correction factor = 20 log (word on time/total word length) : Duty cycle correction factor = 20 log (0.27456msec/7.45msec) : Duty cycle correction factor = -29.6dB NOTES : EQUIPMENT USED : RBB0, NWI0 Engineering Test Report No. 0903330-01 Page 21 of 57 Engineering Test Report No. 0903330-01 Page 22 of 57 Engineering Test Report No. 0903330-01 Page 23 of 57 Engineering Test Report No. 0903330-01 Page 24 of 57 Engineering Test Report No. 0903330-01 Page 25 of 57 Manufacturer : Turning Technologies Model No. : RCXR-02 Transceiver Serial No. : 15 Mode : receive at 2441MHz Test Specification : Industry Canada RSS-Gen, Section 7.2.3, for receivers Date : January 26, 2010 Test Distance : 3 meters Freq (MHz) Ant Pol Meter Readin g (dBuV) Amb CBL Fac (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit at 3m Margin (dB) 2792.0 0 H 53.6 4.0 31.6 -37.3 51.9 393.7 500.0 -2.1 2792.0 0 V 43.1 4.0 31.6 -37.3 41.4 117.5 500.0 -12.6 5584.0 0 H 30.7 Amb 6.3 35.9 -35.9 37.0 71.2 500.0 -16.9 5584.0 0 V 30.7 Amb 6.3 35.9 -35.9 37.0 71.2 500.0 -16.9 8376.0 0 H 31.0 Amb 8.2 38.7 -35.5 42.5 133.1 500.0 -11.5 8376.0 0 V 30.9 Amb 8.2 38.7 -35.5 42.4 131.5 500.0 -11.6 Total (dBuv/m) = Meter reading + Cbl Factor + Ant Fac + Pre Amp Checked By: Mark E. Longinotti Engineering Test Report No. 0903330-01 Page 26 of 57 Engineering Test Report No. 0903330-01 Page 27 of 57 Engineering Test Report No. 0903330-01 Page 28 of 57 Engineering Test Report No. 0903330-01 Page 29 of 57 Engineering Test Report No. 0903330-01 Page 30 of 57 Engineering Test Report No. 0903330-01 Page 31 of 57 Engineering Test Report No. 0903330-01 Page 32 of 57 Engineering Test Report No. 0903330-01 Page 33 of 57 Engineering Test Report No. 0903330-01 Page 34 of 57 Manufacturer : Turning Technologies Model No. : Transceiver RCXR-02 Serial No. : 15 Mode : Transmit at 2401MHz, small data packets Test Specification : FCC 15.249 and Industry Canada RSS-210 Annex 2, section A2.9 Date : January 25, 2010 through January 27, 2010 Test Distance : 3 meters Note : Peak readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 2401.00 H 68.4 3.8 31.5 0.0 103.7 152870.9 500000.0 -10.3 2401.00 V 60.3 3.8 31.5 0.0 95.6 60162.3 500000.0 -18.4 4802.00 H 45.6 Amb 5.7 34.8 -35.9 50.2 323.7 5000.0 -23.8 4802.00 V 46.5 Amb 5.7 34.8 -35.9 51.1 359.0 5000.0 -22.9 7203.00 H 59.1 7.6 38.0 -35.5 69.3 2916.4 5000.0 -4.7 7203.00 V 54.0 7.6 38.0 -35.5 64.2 1621.3 5000.0 -9.8 9604.00 H 46.8 Amb 8.6 39.7 -35.0 60.1 1013.1 5000.0 -13.9 9604.00 V 44.7 Amb 8.6 39.7 -35.0 58.0 795.5 5000.0 -16.0 12005.00 H 43.6 Amb 9.8 41.2 -34.4 60.3 1030.5 5000.0 -13.7 12005.00 V 44.1 Amb 9.8 41.2 -34.4 60.8 1091.6 5000.0 -13.2 14406.00 H 43.2 Amb 10.9 42.3 -34.0 62.5 1327.2 5000.0 -11.5 14406.00 V 42.8 Amb 10.9 42.3 -34.0 62.1 1267.4 5000.0 -11.9 16807.00 H 41.8 Amb 11.6 41.2 -33.9 60.7 1087.8 5000.0 -13.2 16807.00 V 42.4 Amb 11.6 41.2 -33.9 61.3 1165.6 5000.0 -12.6 19208.00 H 35.7 Amb 2.2 40.4 -27.5 50.8 347.0 5000.0 -23.2 19208.00 V 35.2 Amb 2.2 40.4 -27.5 50.3 327.5 5000.0 -23.7 21609.00 H 36.0 Amb 2.2 40.6 -26.1 52.7 430.7 5000.0 -21.3 21609.00 V 37.1 Amb 2.2 40.6 -26.1 53.8 488.9 5000.0 -20.2 24010.00 H 36.8 Amb 2.2 40.6 -27.4 52.3 410.1 5000.0 -21.7 24010.00 V 36.8 Amb 2.2 40.6 -27.4 52.3 410.1 5000.0 -21.7 Amb = Ambient Total (dBuV/m) = Meter Reading + CBL FAC + Ant Fac + Pre Amp Checked By: Mark E. Longinotti Engineering Test Report No. 0903330-01 Page 35 of 57 Manufacturer : Turning Technologies Model No. : Transceiver RCXR-02 Serial No. : 15 Mode : Transmit at 2401MHz, small data packets Test Specification : FCC 15.249 and Industry Canada RSS-210 Annex 2, section A2.9 Date : January 25, 2010 through January 27, 2010 Test Distance : 3 meters Note : Average readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Duty Cycle (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 2401.0 H 68.4 3.8 31.5 0.0 -34.8 68.9 2781.8 50000.0 -25.1 2401.0 V 60.3 3.8 31.5 0.0 -34.8 60.8 1094.8 50000.0 -33.2 4802.0 H 45.6 Amb 5.7 34.8 -35.9 -34.8 15.4 5.9 500.0 -38.6 4802.0 V 46.5 Amb 5.7 34.8 -35.9 -34.8 16.3 6.5 500.0 -37.7 7203.0 H 59.1 7.6 38.0 -35.5 -34.8 34.5 53.1 500.0 -19.5 7203.0 V 54.0 7.6 38.0 -35.5 -34.8 29.4 29.5 500.0 -24.6 9604.0 H 46.8 Amb 8.6 39.7 -35.0 -34.8 25.3 18.4 500.0 -28.7 9604.0 V 44.7 Amb 8.6 39.7 -35.0 -34.8 23.2 14.5 500.0 -30.8 12005.0 H 43.6 Amb 9.8 41.2 -34.4 -34.8 25.5 18.8 500.0 -28.5 12005.0 V 44.1 Amb 9.8 41.2 -34.4 -34.8 26.0 19.9 500.0 -28.0 14406.0 H 43.2 Amb 10.9 42.3 -34.0 -34.8 27.7 24.2 500.0 -26.3 14406.0 V 42.8 Amb 10.9 42.3 -34.0 -34.8 27.3 23.1 500.0 -26.7 16807.0 H 41.8 Amb 11.6 41.2 -33.9 -34.8 25.9 19.8 500.0 -28.0 16807.0 V 42.4 Amb 11.6 41.2 -33.9 -34.8 26.5 21.2 500.0 -27.4 19208.0 H 35.7 Amb 2.2 40.4 -27.5 -34.8 16.0 6.3 500.0 -38.0 19208.0 V 35.2 Amb 2.2 40.4 -27.5 -34.8 15.5 6.0 500.0 -38.5 21609.0 H 36.0 Amb 2.2 40.6 -26.1 -34.8 17.9 7.8 500.0 -36.1 21609.0 V 37.1 Amb 2.2 40.6 -26.1 -34.8 19.0 8.9 500.0 -35.0 24010.0 H 36.8 Amb 2.2 40.6 -27.4 -34.8 17.5 7.5 500.0 -36.5 24010.0 V 36.8 Amb 2.2 40.6 -27.4 -34.8 17.5 7.5 500.0 -36.5 Amb = Ambient Total (dBuV/m) = Meter Reading + CBL FAC + Ant Fac + Pre Amp + Duty Cycle Checked By: Mark E. Longinotti Engineering Test Report No. 0903330-01 Page 36 of 57 En…

Text truncated - open the document above for the full version.

Engineering Test Report No. 0903330-01 Page 39 of 57 Engineering Test Report No. 0903330-01 Page 40 of 57 Engineering Test Report No. 0903330-01 Page 41 of 57 Engineering Test Report No. 0903330-01 Page 42 of 57 Engineering Test Report No. 0903330-01 Page 43 of 57 Engineering Test Report No. 0903330-01 Page 44 of 57 Manufacturer : Turning Technologies Model No. : Transceiver RCXR-02 Serial No. : 15 Mode : Transmit at 2441MHz, large data packets Test Specification : FCC 15.249 and Industry Canada RSS-210 Annex 2, section A2.9 Date : January 25, 2010 through January 27, 2010 Test Distance : 3 meters Note : Peak readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 2441.00 H 67.5 3.8 31.5 0.0 102.8 138358.0 500000.0 -11.2 2441.00 V 62.7 3.8 31.5 0.0 98.0 79616.7 500000.0 -16.0 4882.00 H 45.3 Amb 5.8 34.8 -35.9 50.0 316.1 5000.0 -24.0 4882.00 V 45.2 Amb 5.8 34.8 -35.9 49.9 312.5 5000.0 -24.1 7323.00 H 53.8 Amb 7.7 38.1 -35.5 64.1 1604.3 5000.0 -9.9 7323.00 V 59.4 Amb 7.7 38.1 -35.5 69.7 3057.0 5000.0 -4.3 9764.00 H 44.3 Amb 8.6 39.9 -35.0 57.7 769.6 5000.0 -16.3 9764.00 V 43.6 Amb 8.6 39.9 -35.0 57.0 710.0 5000.0 -17.0 12205.00 H 45.1 Amb 9.9 41.3 -34.4 61.9 1249.0 5000.0 -12.0 12205.00 V 44.4 Amb 9.9 41.3 -34.4 61.2 1152.3 5000.0 -12.7 14646.00 H 43.1 Amb 11.0 42.4 -34.0 62.5 1336.4 5000.0 -11.5 14646.00 V 42.9 Amb 11.0 42.4 -34.0 62.3 1306.0 5000.0 -11.7 17087.00 H 41.4 Amb 11.7 40.7 -33.9 60.0 997.8 5000.0 -14.0 17087.00 V 41.6 Amb 11.7 40.7 -33.9 60.2 1021.0 5000.0 -13.8 19528.00 H 35.7 Amb 2.2 40.4 -27.2 51.1 360.5 5000.0 -22.8 19528.00 V 35.5 Amb 2.2 40.4 -27.2 50.9 352.3 5000.0 -23.0 21969.00 H 38.1 Amb 2.2 40.6 -27.2 53.7 485.8 5000.0 -20.2 21969.00 V 37.1 Amb 2.2 40.6 -27.2 52.7 433.0 5000.0 -21.2 24410.00 H 36.2 Amb 2.2 40.6 -27.2 51.9 392.2 5000.0 -22.1 24410.00 V 36.6 Amb 2.2 40.6 -27.2 52.3 410.7 5000.0 -21.7 Amb = Ambient Total (dBuV/m) = Meter Reading + CBL FAC + Ant Fac + Pre Amp Checked By: Mark E. Longinotti Engineering Test Report No. 0903330-01 Page 45 of 57 Manufacturer : Turning Technologies Model No. : Transceiver RCXR-02 Serial No. : 15 Mode : Transmit at 2441MHz, large data packets Test Specification : FCC 15.249 and Industry Canada RSS-210 Annex 2, section A2.9 Date : January 25, 2010 through January 27, 2010 Test Distance : 3 meters Note : Average readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Duty Cycle (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 2441.0 H 67.5 3.8 31.5 0.0 -29.6 73.2 4581.5 50000.0 -20.8 2441.0 V 62.7 3.8 31.5 0.0 -29.6 68.4 2636.4 50000.0 -25.6 4882.0 H 45.3 Amb 5.8 34.8 -35.9 -29.6 20.4 10.5 500.0 -33.6 4882.0 V 45.2 Amb 5.8 34.8 -35.9 -29.6 20.3 10.3 500.0 -33.7 7323.0 H 53.8 7.7 38.1 -35.5 -29.6 34.5 53.1 500.0 -19.5 7323.0 V 59.4 7.7 38.1 -35.5 -29.6 40.1 101.2 500.0 -13.9 9764.0 H 44.3 Amb 8.6 39.9 -35.0 -29.6 28.1 25.5 500.0 -25.9 9764.0 V 43.6 Amb 8.6 39.9 -35.0 -29.6 27.4 23.5 500.0 -26.6 12205.0 H 45.1 Amb 9.9 41.3 -34.4 -29.6 32.3 41.4 500.0 -21.6 12205.0 V 44.4 Amb 9.9 41.3 -34.4 -29.6 31.6 38.2 500.0 -22.3 14646.0 H 43.1 Amb 11.0 42.4 -34.0 -29.6 32.9 44.3 500.0 -21.1 14646.0 V 42.9 Amb 11.0 42.4 -34.0 -29.6 32.7 43.2 500.0 -21.3 17087.0 H 41.4 Amb 11.7 40.7 -33.9 -29.6 30.4 33.0 500.0 -23.6 17087.0 V 41.6 Amb 11.7 40.7 -33.9 -29.6 30.6 33.8 500.0 -23.4 19528.0 H 35.7 Amb 2.2 40.4 -27.2 -29.6 21.5 11.9 500.0 -32.4 19528.0 V 35.5 Amb 2.2 40.4 -27.2 -29.6 21.3 11.7 500.0 -32.6 21969.0 H 38.1 Amb 2.2 40.6 -27.2 -29.6 24.1 16.1 500.0 -29.8 21969.0 V 37.1 Amb 2.2 40.6 -27.2 -29.6 23.1 14.3 500.0 -30.8 24410.0 H 36.2 Amb 2.2 40.6 -27.2 -29.6 22.3 13.0 500.0 -31.7 24410.0 V 36.6 Amb 2.2 40.6 -27.2 -29.6 22.7 13.6 500.0 -31.3 Amb = Ambient Total (dBuV/m) = Meter Reading + CBL FAC + Ant Fac + Pre Amp + Duty Cycle Checked By: Mark E. Longinotti Engineering Test Report No. 0903330-01 Page 46 of 57 Engineering Test Report No. 0903330-01 Page 47 of 57 Engineering Test Report No. 0903330-01 Page 48 of 57 Engineering Test Report No. 0903330-01 Page 49 of 57 Engineering Test Report No. 0903330-01 Page 50 of 57 Engineering Test Report No. 0903330-01 Page 51 of 57 Engineering Test Report No. 0903330-01 Page 52 of 57 Engineering Test Report No. 0903330-01 Page 53 of 57 Engineering Test Report No. 0903330-01 Page 54 of 57 Manufacturer : Turning Technologies Model No. : Transceiver RCXR-02 Serial No. : 15 Mode : Transmit at 2482MHz, large data packets Test Specification : FCC 15.249 and Industry Canada RSS-210 Annex 2, section A2.9 Date : January 25, 2010 through January 27, 2010 Test Distance : 3 meters Note : Peak readings Freq (MHz) Ant Pol Meter Reading (dBuV) Amb CBL FAC (dB) Ant Fac (dB) Pre Amp (dB) Total dBuV/m at 3 m Total uV/m at 3m Limit uV/m at 3m Margin (dB) 2482.00 H 67.8 3.8 31.5 0.0 103.2 143779.6 500000.0 -10.8 2482.00 V 62.1 3.8 31.5 0.0 97.5 74592.9 500000.0 -16.5 4964.00 H 44.6 Amb 5.8 34.9 -35.9 49.4 294.9 5000.0 -24.6 4964.00 V 44.6 Amb 5.8 34.9 -35.9 49.4 294.9 5000.0 -24.6 7446.00 H 57.5 7.7 38.2 -35.5 67.9 2487.6 5000.0 -6.1 7446.00 V 51.9 7.7 38.2 -35.5 62.3 1305.5 5000.0 -11.7 9928.00 H 46.2 8.5 40.0 -35.0 59.7 970.3 5000.0 -14.2 9928.00 V 44.2 Amb 8.5 40.0 -35.0 57.7 770.7 5000.0 -16.2 12410.00 H 46.2 9.9 41.5 -34.4 63.2 1446.0 5000.0 -10.8 12410.00 V 44.1 Amb 9.9 41.5 -34.4 61.1 1135.4 5000.0 -12.9 14892.00 H 42.9 Amb 11.2 42.4 -34.0 62.5 1330.6 5000.0 -11.5 14892.00 V 42.6 Amb 11.2 42.4 -34.0 62.2 1285.4 5000.0 -11.8 17374.00 H 42.4 Amb 11.9 39.5 -33.9 60.0 997.0 5000.0 -14.0 17374.00 V 42.7 Amb 11.9 39.5 -33.9 60.3 1032.0 5000.0 -13.7 19856.00 H 36.6 Amb 2.2 40.4 -26.8 52.4 415.9 5000.0 -21.6 19856.00 V 35.4 Amb 2.2 40.4 -26.8 51.2 362.2 5000.0 -22.8 22338.00 H 37.3 Amb 2.2 40.6 -27.1 53.0 448.7 5000.0 -20.9 22338.00 V 36.9 Amb 2.2 40.6 -27.1 52.6 428.5 5000.0 -21.3 24820.00 H 36.8 Amb 2.2 40.6 -27.2 52.4 419.2 5000.0 -21.5 24820.00 V 37.3 Amb 2.2 40.6…

Text truncated - open the document above for the full version.

Engineering Test Report No. 0903330-01 Page 15 of 57 Figure 3 Test Setup for Radiated Emissions – 2GHz to 18GHz, Vertical Polarization Test Setup for Radiated Emissions – 2GHz to 18GHz, Horizontal Polarization Engineering Test Report No. 0903330-01 Page 16 of 57 Figure 4 Test Setup for Radiated Emissions – 18GHz to 25GHz, Horizontal Polararization Test Setup for Radiated Emissions – 18GHz to 25GHz, Vertical Polarization
