Turning Technologies RCRF-03 ResponseCard RF LCD and RRRF-03 USB HID RF Receiver User’s Manual RCRF-03 & RRRF-03 User’s Manual Ver. Preliminary Overview: The RCRF-03 Keypad is designed to be used with the RRRF-03 Receiver connected to a PC. The keypad transmits key presses via radio frequency to the RF receiver for accumulation by the PC. The keypad consists of 12 data keys (0-9, Channel, ?), a single status LED, and a small LCD. ResponseCard RF LCD (RCRF-03) The ResponseCard RF LCD keypad is handheld designed to send responses over RF to a receiver. In Idle state, the LED and LCD are OFF. The keypad returns to idle state after completion of a key press. Standard Operation Mode: Initially the status LED and LCD are OFF. Pressing a single key will cause the key to be transmitted to the receiver. After pressing a key the status LED and LCD will display the status as follows: Quick Yellow Blink then OFF/LCD with Circle with Slash- Receiver is not accepting data at this time Blinking Yellow - key is being transmitted (up to 8 seconds) Solid Green/LCD with Response pressed - key transmit successful - ready for input Solid Red/LCD with Ch and Slash- key transmit failed – ready for input Blinking Green/LCD with Response pressed - Receiver indicated correct answer Blinking Red - Receiver indicated incorrect answer Blinking Green and Blinking Red will only occur if the Receiver is configured to indicate a correct or incorrect answer (CORRECT POLLING mode). Set RF Channel Press Channel Button Set RF Channel mode is indicated by the status LED flashing a RED then GREEN pattern. Set RF Channel mode exits automatically after three valid keys are pressed, if no valid key is pressed for 8 seconds, or at any time an invalid key is pressed. Valid keys are ‘0’ through ‘9’. Valid RF Channels are ‘01’ through ‘82’. While in Set RF Channel mode pressing a valid key will cause the status LED to briefly flash YELLOW. When Set RF Channel Mode exits, the status LED indicates the result as follows: Solid Green - Set RF Channel successful Solid Red - Set RF Channel failed HID RF Receiver (RRRF-03) The RRRF-03 needs to be plugged into a USB port on a computer to ensure proper operation. Once the RRRF-03 is plugged in and recognized by the operating system, the appropriate software from Turning Technologies must be launched to enable the polling solution. Additionally, the RRRF-03 has the ability of a mass storage device once recognized by the operating system. REGULATORY INFORMATION FCC Statement This product has been tested and found to comply with Part 15 of the FCC Rules. Operation it subject to the following conditions: it may not cause harmful interference and must be accept interference received, including interference that may cause undesired operations. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canada Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This digital apparatus should not be connected to a PC with a USB cable exceeding 3 meters in length.

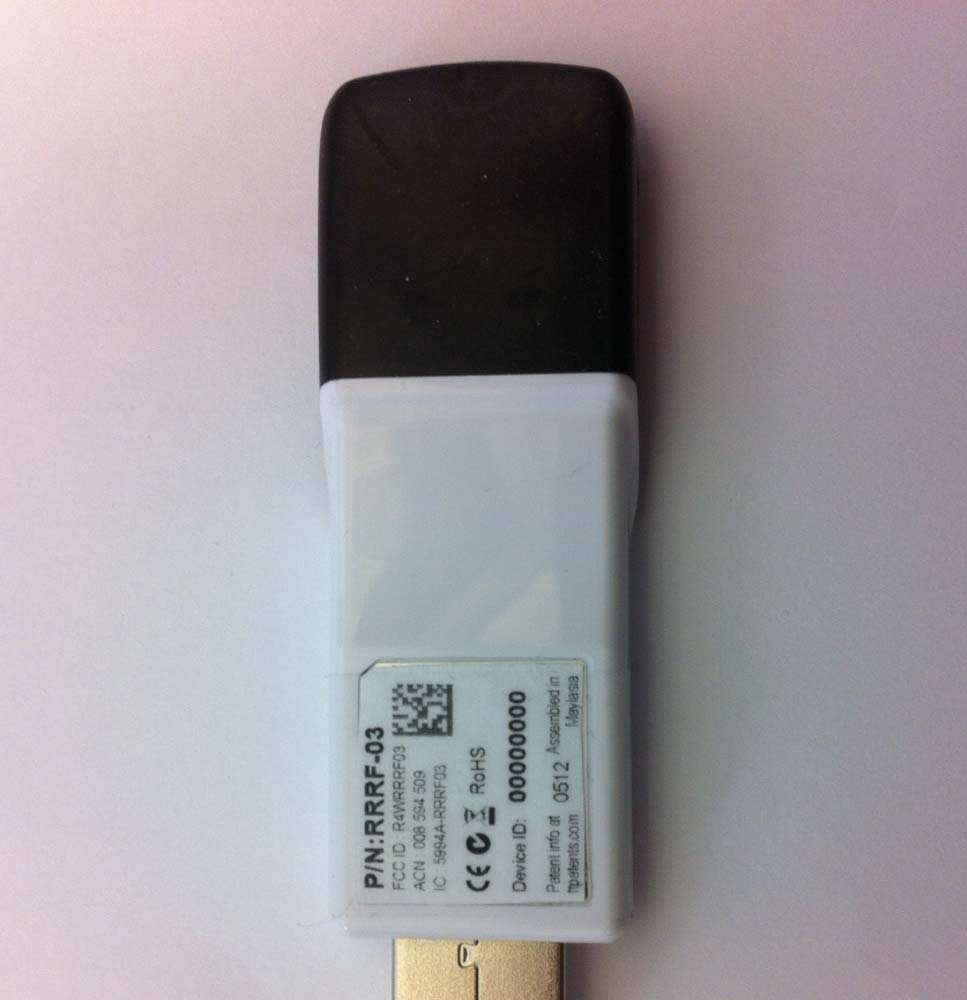

P/N:RRRF-03 Device ID: 0512 00000000 Maylasia Patent info at ttpatents.com RoHS FCC ID : R4WRRRF03 ACN : 008 594 509 IC : 5994A-RRRF03 SCALE 1:1 Assembled in R 004WWA0499 Image Placeholder

Engineering Test Report No. 1102235-01 Rev. A Measurement of RF Emissions from a RRRF-03 USB Dongle Transceiver For Turning Technologies, LLC. 255 W Federal Street Youngstown, OH 44503 P.O. Number Date Tested April 2 through 24, 2012 Test Personnel Richard E. King Test Specification FCC "Code of Federal Regulations” Title 47 Part15, Subpart C Industry Canada RSS-GEN Industry Canada RSS-210 Test Report By: Richard E. King EMC Engineer Requested By: Josh Blackann and Hugo Mendez Turning Technologies, LLC. Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1102235-01 Rev. A TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 59 1. Introduction ................................................................................................................................................... 4 1.1. Scope of Tests ..................................................................................................................................... 4 1.2. Purpose ............................................................................................................................................... 4 1.3. Deviations, Additions and Exclusions .................................................................................................. 4 1.4. EMC Laboratory Identification ............................................................................................................. 4 1.5. Laboratory Conditions.......................................................................................................................... 4 2. Applicable Documents .................................................................................................................................. 4 3. EUT Setup and Operation ............................................................................................................................ 4 3.1. General Description ............................................................................................................................. 4 3.1.1. Power Input ................................................................................................................................. 5 3.1.2. Peripheral Equipment ................................................................................................................. 5 3.1.3. Signal Input/Output Leads .......................................................................................................... 5 3.1.4. Grounding ................................................................................................................................... 5 3.2. Operational Mode ................................................................................................................................ 5 3.3. EUT Modifications ................................................................................................................................ 5 4. Test Facility and Test Instrumentation ......................................................................................................... 5 4.1. Shielded Enclosure .............................................................................................................................. 5 4.2. Test Instrumentation ............................................................................................................................ 5 4.3. Calibration Traceability ........................................................................................................................ 5 4.4. Measurement Uncertainty ................................................................................................................... 5 5. Test Procedures ........................................................................................................................................... 6 5.1. Powerline Conducted Emissions ......................................................................................................... 6 5.1.1. Requirements .............................................................................................................................. 6 5.1.2. Procedures .................................................................................................................................. 6 5.1.3. Results ........................................................................................................................................ 7 5.2. Duty Cycle Factor Measurements ....................................................................................................... 7 5.2.1. Procedures .................................................................................................................................. 7 5.2.2. Results ........................................................................................................................................ 7 5.3. Radiated Measurements ..................................................................................................................... 7 5.3.1. Requirements .............................................................................................................................. 7 5.3.2. Procedures .................................................................................................................................. 7 5.3.3. Results ........................................................................................................................................ 8 5.4. Bandedge Compliance ........................................................................................................................ 8 5.4.1. Requirement.............…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1102235-01 Page 15 of 59 Figure 3 Test Setup for Radiated Emissions, 30MHz to 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, 30MHz to 1GHz – Vertical Polarization Engineering Test Report No. 1102235-01 Page 16 of 59 Figure 4 Test Setup for Radiated Emissions, above 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, above 1GHz – Vertical Polarization
