R55KS3159Handheld Walkie Talkies

1 2 3 4 5 6 • Instructions • Mode d’emploi • Bedienungsanleitung • Instrucciones • Instruções • Istruzioni • Instrukcja obsługi • Aanwijzingen Walkie Talkies 5F5F6BE 1. Antenna 2. Push-to-talk button 3. Volume/ON/OFF 4. Speaker/Microphone 5. Belt clip (Rear of Unit) 6. Battery compartment (Rear of Unut) Contents and overview CAUTION EN Mfr# 5F5F6BE EPL-12-B3-163-A Vendor: Kids Station SIZE: A4 DATE: 22/05/2012 2 1 5 9 7 0 6 4 3 8 TALK OPERATION 1. Rotate the VOLUME ON/ OFF on each Walkie Talkie handset clockwise until a click is heard to turn the unit ON. 2. Rotate the VOLUME ON / OFF control on each Walkie Talkie handset clockwise to increase volume from LOW to HI as desired. 3. To transmit, press and hold the PUSH-TO-TALK button and speak into the Speaker / Microphone grill. Release the button when you have finished speaking. NOTE: The range is approximately 100 feet. If message are not transmitted / received properly, move closer together. 4. To turn the unit OFF, rotate the VOLUME ON / OFF control counter- clockwise until a click is heard. NOTES: • Take care when using these Walkie Talkies. Do not play around automobiles or near street while using Walkie Talkies. • If you place any of the unit too close to each other, you will hear feedback. If this occurs, move the unit away from each other. • After use, make sure all units are in the OFF position or the batteries will drain quickly. INSTALLING THE BATTERIES 1. Open the battery compartment on each handset by removing the screw with the screwdriver. (not included) 2. Attach the 9 V battery (not included) following the diagram in the battery compartment. Insert the battery into the battery compart- ment. 3. Replace the battery compartment cover and the screw with the screw driver and make sure it snaps shut securely. IMPORTANT BATTERY INFORMATION CAUTION: As with all batteries, the batteries used with this toy should be kept away from small children who still put things in their mouths. If swallowed, promptly seek medical attention at the nearest doctor or hospital, and have them call the poison control canter immediately. Make sure batteries are inserted properly and follow all toy and battery manufacturer’s instructions. • Battery installation should be done only by an adult. • When replacing batteries, replace all batteries at the same time. • Do not mix old and new batteries. • Do not mix alkaline, standard or rechargeable batteries. • Do not dispose of used batteries in a fire. This could cause the batteries to explode. • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are only to be charged by an adult or under adult supervision (if removable). • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity – refer to battery installation diagram for proper position. Always install the batteries correctly according to the positive (+) and negative (-) signs on the batteries • Exhausted batteries are to be removed from the toy and disposed of in accordance with local regulations. • The supply terminals are not to be short-circuited. • Replace batteries at the first sign of erratic operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” This category II radio communication device complies with Industry Canada Standard RSS-310. The field strength is 76.6dBuV/m @ 3m The carries freq. is 49.860MHz Instructions 1. Antenne 2. Bouton Push-to-talk (Appuyer pour émettre) 3. Volume/ON (MARCHE)/OFF (ARRÊT) 4. Haut-parleur/Microphone 5. Clip ceinture (dos de l’appareil) 6. Compartiment à piles (dos de l’appareil) Contenu et présentation générale MISE EN GARDE FR FONCTIONNEMENT 1. Faites tourner le bouton du VOLUME ON (MARCHE)/ OFF (ARRÊT) de chaque talkie-walkie dans le sens des aiguilles d’une montre jusqu’à ce qu’un clic se fasse entendre pour allumer l’appareil. 2. Tournez le bouton de réglage du VOLUME ON (MARCHE) / OFF (ARRÊT) de chaque talkie-walkie dans le sens des aiguilles d’une montre pour augmenter le volume de LOW (FAIBLE) à HI (FORT) à votre gré. 3. Pour émettre, appuyez en maintenant enfoncé le bouton PUSH-TO-TALK (APPUYER-POUR-ÉMETTRE) et parlez dans la grille du haut-parleur / Microphone. Relâchez le bouton lorsque vous avez fini de parler. REMARQUE : La portée est d’environ 100 pieds (30,5 mètres). Si les messages ne sont pas émis / reçus correctement, rapprochez-vous. 4. Pour éteindre l’appareil, tournez le bouton de réglage du VOLUME ON (MARCHE) / OFF (ARRÊT) dans le sens inverse des aiguilles d’une montre jusqu’à ce qu’un clic …

Text truncated - open the document above for the full version.

Product Name Model Number Design Page Confirm Issue Date Applicant IMC Toys HK LTD784130-11 (40MHz) Block Diagram WALKIE TALKIE BARBIE 784130-11 1of 1 22-Jun-11 RX TX Speaker / mic Microphone Antenna T R T R T R 49.860MHz Amplifier RX TX Crystal OSC 40.685MHz 4 9.860 MHz ( X 1) (Q2, IC1 ) (Q1) KS3159 Block Diagram

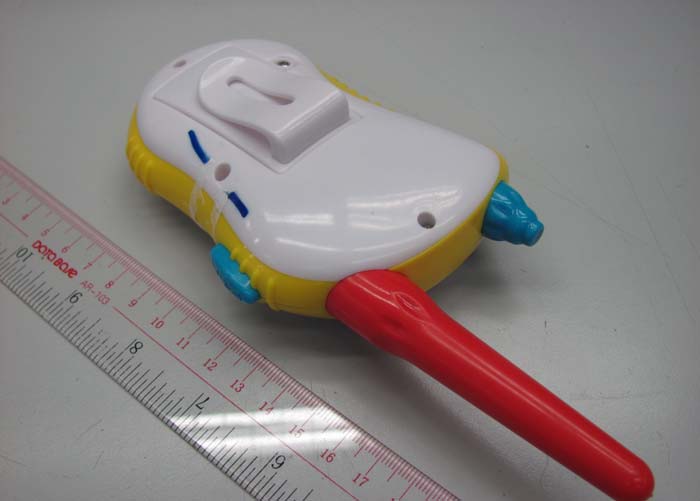

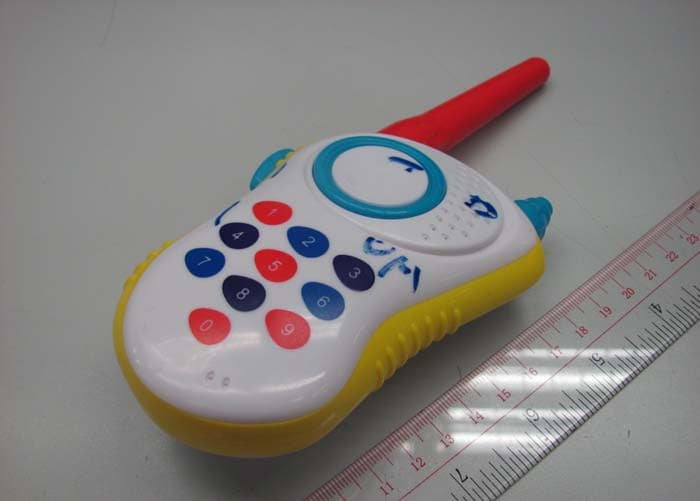

INTERTEK TESTING SERVICE Report No.: HK12050712-1 FCC ID: R55KS3159 Equipment Photographs Model : KS3159 (External)

INTERTEK TESTING SERVICE Report No.: HK12050712-1 FCC ID: R55KS3159 Equipment Photographs Model: KS3159 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050712-1 FCC ID: R55KS3159 Equipment Photographs Model: KS3159 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050712-1 FCC ID: R55KS3159 Equipment Photographs Model: KS3159 (Internal) INTERTEK TESTING SERVICE Report No.: HK12050712-1 FCC ID: R55KS3159 Equipment Photographs Model: KS3159 (Internal)

Technical Description: The brief circuit description is listed as follows: X1 and associated circuit act as 49.860MHz oscillator Q1 and associated circuit act as modulator / super-regenerative receiver. Q2, IC1 and associated circuit act as signal amplifier. L1, L2 and associated circuit act as antenna matching circuit. Antenna Used: An external, integral antenna has been used.

L1 3.3UH ANT 49.860MHz L2 5UH KB-2509 R1 15K R24R7 R4 6.8K R315K R1012K R11 6.8K R71M C110PF C3 39PF C5 202PF C2 103PF C6 10PF C9 104PF C8102PF C10 403PF C11 103PF C12104PF 1 2 X1 49.860MHZ Q2 C9014 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 IC1 LM386 R810K C7 104PF R63.9K C13 104PF ON/OFF 1 2 DC9V T R R T T R R T SP / mic 8R 0.25W SW1A SW1B SW1C SW1D 1 2 3 Q1C9018 KS3159 SCH EMATIC R5 100R VOL10K C4 NC R9 1R C15100UF C14 100UF C16 403PF

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12050712-1 Kids Station Toys Incorporated Application For Certification (Original Grant) (FCC ID: R55KS3159) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 31, 2012 INTERTEK TESTING SERVICES Report No.: HK12050712-1 FCC ID: R55KS3159 i GENERAL INFORMATION Kids Station Toys Incorporated BRAND NAME: Kids Station Toys Incorporated, MODEL: KS3159 FCC ID: R55KS3159 Grantee: Kids Station Toys Incorporated Grantee Address: Room 804, 8/F., Empire Centre, No. 68 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Kathy Lee Tel: (852) 2723 3308 Fax: (852) 2723 8110 e-mail: [email protected] [email protected] [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: Kids Station Toys Incorporated Model: KS3159 Additional Model: 5F5F6BE Type of EUT: Transciever Description of EUT: Handheld Walkie Talkies Serial Number: N/A FCC ID: R55KS3159 Date of Sample Submitted: May 11, 2012 Date of Test: May 17, 2012 Report No.: HK12050712-1 Report Date: May 31, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12050712-1 FCC ID: R55KS3159 ii SUMMARY OF TEST RESULT Kids Station Toys Incorporated BRAND NAME: Kids Station Toys Incorporated, MODEL: KS3159 FCC ID: R55KS3159 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12050712-1 FCC ID: R55KS3159 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12050712-1 Sample No.: 8/8 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.: HK12050712-1 Sample No.: 8/8 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12050712-1 FCC ID: R55KS3159 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: KS3159 INTERTEK TESTING SERVICE Report No: HK12050712-1 FCC ID: R55KS3159 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: KS3159
