FCC ID: R55KSE120A Model: KSE120 Block Diagram of Transceiver WHIP ANTENNA AU DIO AMP SPEAK ER & MICCROPHONE BLO CK DIAGRAM MODEL NO.SM-KSE120 FCC STANDARD MODE IN CHINA RX TX TX RX RF OSCIL AT O R & SUPPER RE GEN ERA T ED DETECTOR 49.860MHZ PRE-AMP D. C. 9 V POWER SUP P L Y 49.860 MHz (X1, Q1) (Q2) (IC1) (SP)

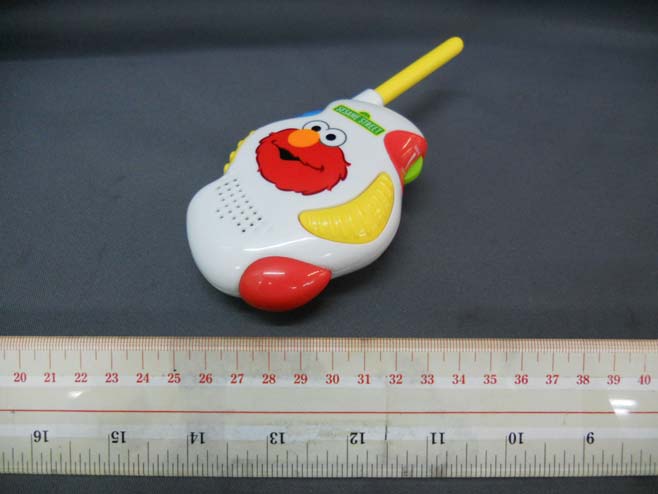

INTERTEK TESTING SERVICE Report No.: HK11060004-1 FCC ID: R55KSE120A Equipment Photographs Model : KSE120 (External)

FCC ID: R55KSE120A Model: KSE120 Labeling Artwork 2.9 cm 1.2 cm 2.6 cm x 0.1 cm 2cm 0.5 cm

INTERTEK TESTING SERVICE Report No.: HK11060004-1 FCC ID: R55KSE120A Equipment Photographs Model: KSE120 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060004-1 FCC ID: R55KSE120A Equipment Photographs Model: KSE120 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060004-1 FCC ID: R55KSE120A Equipment Photographs Model: KSE120 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060004-1 FCC ID: R55KSE120A Equipment Photographs Model: KSE120 (Internal)

FCC ID: R55KSE120A Model: KSE120 Technical Description of Transceiver The transceiver operates at 49.860 MHz, and able to transmit and receive speech and sound. The circuit of the transceiver comprises of, 1. An RF Amplifier and Super-regenerative receiver consisting: Q1 2. A Crystal Oscillator consisting: X1 (49.860 MHz) 3. An Antenna Matching Network consisting: L1 4. An Audio Amplifier for voice amplification consisting: IC1 (LM368N) 5. A Dynamic Transducer (acts as loudspeaker and microphone) consisting: SP1 6. A Power Supply consisting: one 9.0V battery The transceiver uses an external, integral and non-detachable antenna.

FCC ID: R55KSE120A Model: KSE120 Circuit Diagram of Transceiver 1 2 3 4 56 A BC D 6 5 4 3 2 1 D CB A L1 3.3UH ANT L2 KB-2509 R2 15K R310R R4 6.8K R115K R1 012K R1 1 4.7K R1 21.8K R71M C310PF C4 39PF C2 202PF C5 103PF C1 10PF C1 5 104PF C1 3102PF C1 4 403PF C1 1 502PF C1 2104PF Q2 S9014 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 IC1 LM386N R810K C1 7 104PF R63.9K C1 8 104PF SW3 12 DC 9V T R R R R T T R R R R T SP 16R 0.25W SW1A SW1B SW1C SW1D 1 23 Q1S9018 KSE120 SCH R181k X1 49.860MHZ VO L10K C1 6 2.2UF C1 0 100UF C6100UF C7100UF R5100R R1 8 1R J1 10K 49.860 MHz

INTERTEK TESTING SERVICES Report No. : HK11060004-1 Sample No. : 1/4 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement INTERTEK TESTING SERVICES Report No. : HK11060004-1 Sample No. : 1/4 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement INTERTEK TESTING SERVICES Report No. : HK11060004-1 Sample No. : 1/4 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement
