R68MPBGPROWireless Device Server

TRANSMITTER MODULAR APPROVAL ATTESTATION February 26, 2008 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: R68MPBGPRO Gentlemen: The following attestation addresses the eight requirements to support modular approval as required by the FCC Public Notice DA00‐1407 “Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding and does not rely upon the shielding provided by the device into which it is installed in order to comply with Part 15 limits. 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. 3 The modular transmitter has its own power supply regulator. 4 The modular transmitter has an antenna that complies with section 15.203 and 15.204(c) of the FCC rules. It has a Reverse Polarity‐SMA type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). The antenna used with the module was tested with the module. 5 The modular transmitter was tested in a stand‐alone configuration without a chassis during testing to show compliance with Part 15 emission limits. The transmitter module complies with the AC line conducted requirements found in Section 15.207. AC power lines. 6 The modular transmitter will be labeled with its own FCC ID. Also, the OEM host manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains Transmitter Module FCC ID: R68MPBGPRO” or “Contains FCC ID: R68MPBGPRO”. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1). If there are any additional questions or if further information is needed, please contact us at your earliest convenience at (949) 454‐8295. Sincerely, Rick Candelas Aegis Labs, Inc. Lab / Quality Manager

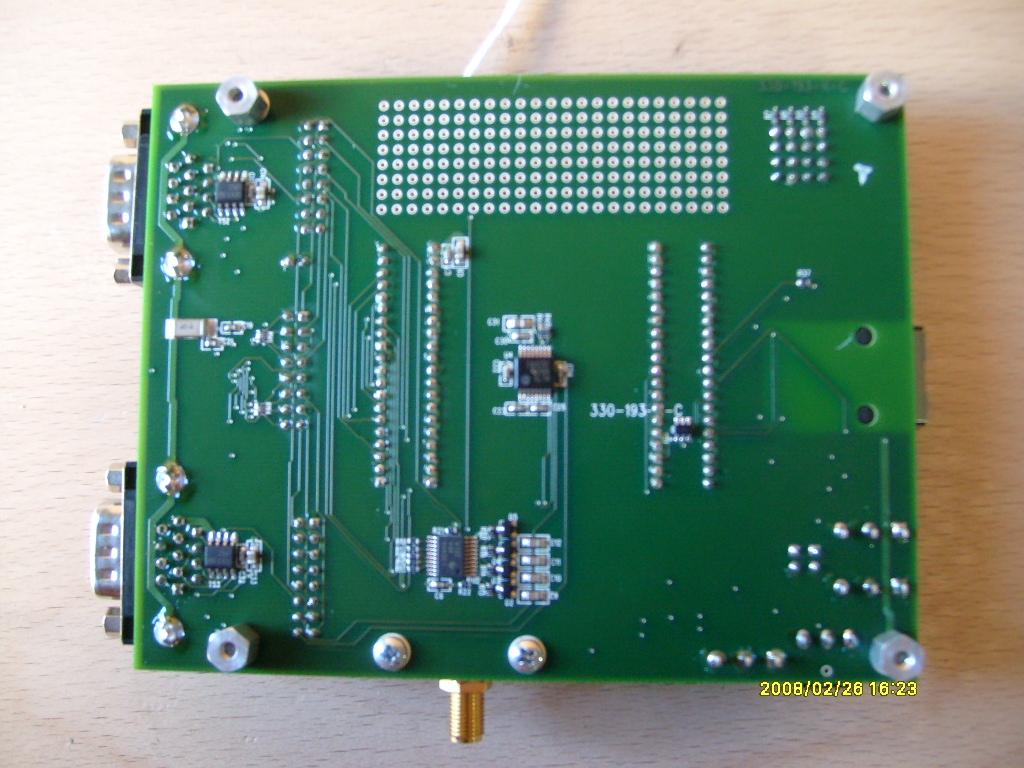

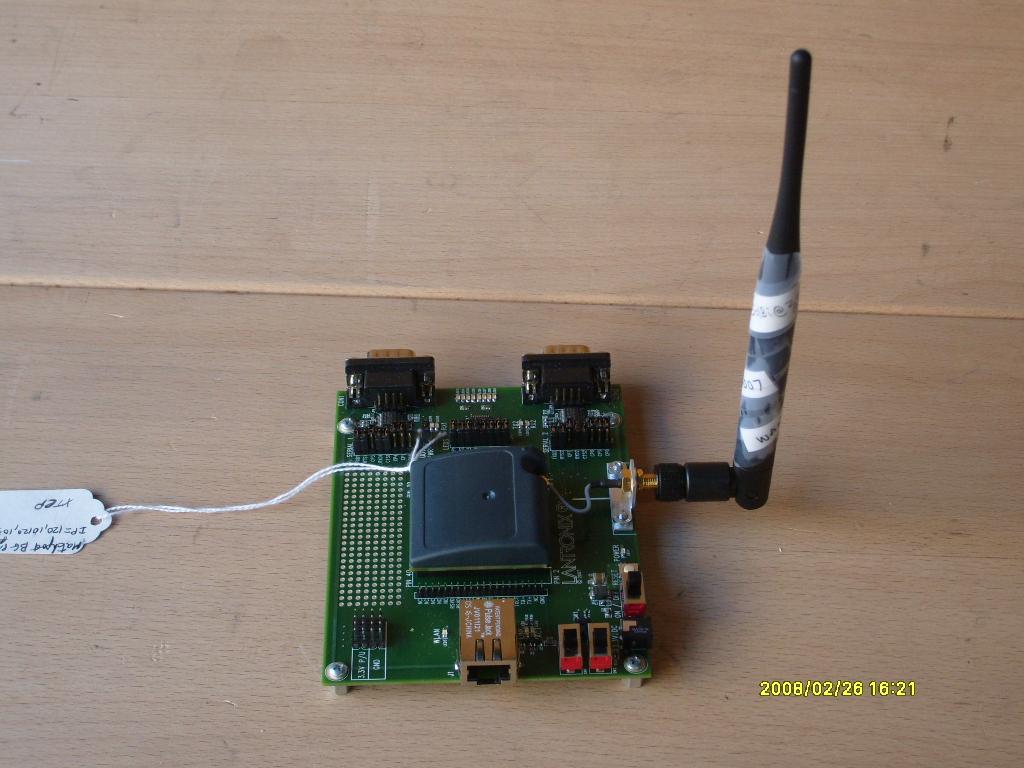

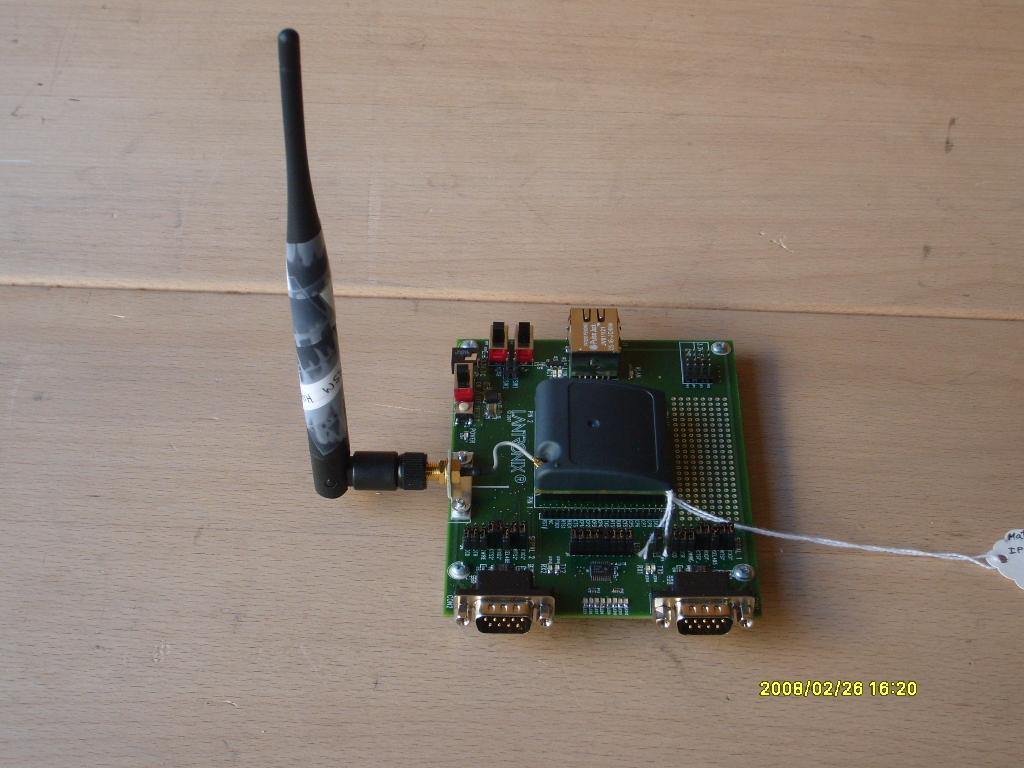

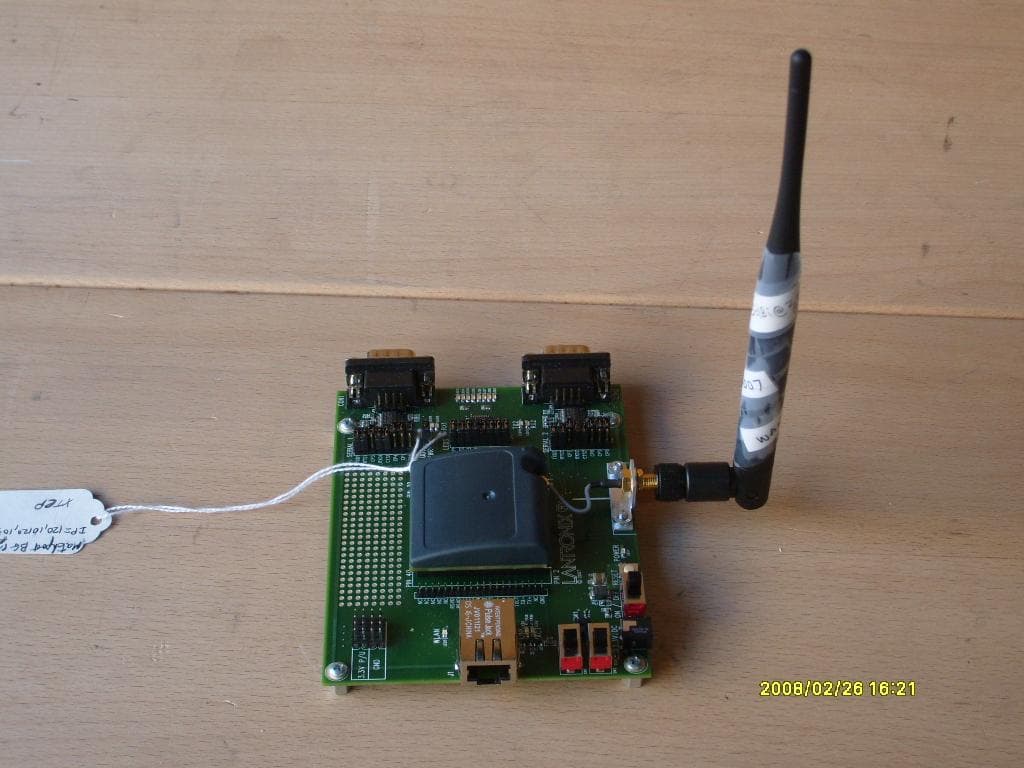

Top View – Test Board Serial Ports Top View – Test Board Ethernet Port Top View – Test Board Bottom View – Test Board

Notes:1. Text shown in parenthesis () are variable data, barcodes, or graphics.2. All print text, style, graphics, and data are printed approximately as shown.3. Barcodes are Code 128 Standards. 461-098 Sheet 1 of 1 A Original issue 01/18/08 DRAWN BY: DATE: 07.12.07 Caroline Lé Ele 1:1 461-098.ai 1.1 in +/- .01 1.48 in +/- .01 R .125 LABEL SPEC., ETHERNET,MATCHPORT BG PRO W/FCC LOGO A A 15353 Barranca ParkwayIrvine, CA 92618(949) 453-3990 Rev: DWG No. Size Revision History Rev. Description Date Scale Filename LANTRONIX MatchPort b/g Pro (00-20-4A-82-53-FF) (MP1001000G-01) Pat. 4,972,470 Made in (Country) (04W51) Rev. (A11) FCC ID: R68MPBGPROIC: 3867A - MPBGPRO Part number printed on label Product MPP3002000G-01 MPP3002000G-01 Example:

Top View – Test Board with Tx Module Removed Top View – Tx Module with Cover Bottom View – Tx Module Top View – Tx Module with Cover Removed Top View – Tx Module with Shield Removed

MPE Calculations Systems operating under the provision of 47 CFR 1.1307(b)(1) shall be operated in a manor that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The MPE calculation for this exposure is shown below. Using the Antennas with highest output power: The peak radiated output power (EIRP) is calculated as follows: Antenna Frequency (GHz) Power input to the antenna (P) (dBm) Power gain of the antenna (G) (dBi) EIRP (P+G) (dBm) EIRP Log -1(dBm/10) (mW) Wanshih (PN: WSS007) 2.4 20.37 5.00 25.37 344.35 EIRP = P + G Where P = Power input to the antenna (mW). G = Power gain of the antenna (dBi) The numeric gain (G) of the antenna with a gain specified in dB is determined by: Antenna Frequency (GHz) Antenna Gain (G) (dBi) Numeric Antenna Gain Log -1(dBm/10) (dB) Wanshih (PN: WSS007) 2.4 5.00 3.16 G = Log -1 (dB antenna gain/10) Power density at the specific separation: Antenna Frequency (GHz) Power input to the antenna (P) (mW) Numeric Power Gain of the Antenna (G) (dB) Maximum Power Spectral Density S=PG/(4R 2 π) (mW/cm 2 ) Maximum Power Spectral Density Limit (mW/cm 2 ) Wanshih (PN: WSS007) 2.4 108.89 3.16 0.069 1.00 S = PG/(4R 2 π) Where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1mW/cm 2 . The power density at 20cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Page 1 of 14 Report Number: LANTR-080115F Revision Number: A1 FCC ID: R68MPBGPRO Modular Approval Test Report And Application for Grant of Equipment Authorization TEST REPORT PERTAINING TO: Equipment Under Test Model Number(s) FCC ID Wireless Device Server MatchPort B/G Pro R68MPBGPRO MEASUREMENTS PERFORMED IN ACCORDANCE WITH THE FOLLOWING STANDARD (S) Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio‐Noise Emissions from Low‐Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz PREPARED FOR: PREPARED BY: Lantronix Inc. Aegis Labs, Inc. 15353 Barranca Parkway 8 Rancho Circle Irvine, California 92618 Lake Forest, CA 92630 Contact(s): Mr. Daryl Miller Agent(s):Mr. Po‐wen Cheng Mr. Rick Candelas Test Report #: LANTR‐080115F Test Report Revision: A1 REPORT BODY APPENDICES TOTAL PAGES A B PAGES 14 45 1 60 The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. The Lantronix Inc. logo is used for identification purposes only and is a registered trademark of Lantronix Inc. Testing Cert #1111.01 Page 2 of 14 Report Number: LANTR-080115F Revision Number: A1 FCC ID: R68MPBGPRO TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET..................................................................................................................... 01 TABLE OF CONTENTS................................................................................................02 1.0 REGULATORY COMPLIANCE GUIDELINES........................................................................03 1.1 Guidelines For Testing To Emissions Standards....................................................................03 2.0 SUMMARY OF REGULATORY LIMITS............................................................................04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.............................................................06 4.0 DESCRIPTION OF EUT CONFIGURATION.........................................................................07 4.1 EUT Description .......................................................................................................................07 4.2 EUT Configuration............................................................................................................08 4.3 List of EUT Sub‐Assemblies and Host Equipment.............................................................09 4.4 I/O Cabling Diagram and Description ....................................................................................10 4.5 EMC Test Hardware and Software Measurement Equipment........................................12 5.0 CONDITIONS DURING EMISSIONS MEASUREMENTS.................................................... 13 5.1 General........................................................................................................................................13 5.2 Conducted Emissions Test Setup....................................................................................13 5.3 Radiated Emissions Test Setup................................................................................................14 APPENDICES A Test Data B Modifications Page 3 of 14 Report Number: LANTR-080115F Revision Number: A1 FCC ID: R68MPBGPRO 1.0 REGULATORY COMPLIANCE GUIDELINES Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs were furnished by RF technicians and engineers with accredited qualifications and training credentials to carry out their duties. The object of this report was to publish verifiable test results of an EUT subjected to the tests outlined in the standard listed on the cover page of this report. 1.1 Guidelines For Testing To Emissions Standards This standard for EMC emission requirements apply to electrical equipment for Information Technology Equipment (ITE). Compliance to these standards and in combination with the other standards listed in this test report can be used to demonstrate presumption of compliance with the protection requirements of the appropriate agency standard. The purpose of this standard is to specify minimum requirements for emissions regarding electromagnetic compatibility (EMC) and protect the radio frequency spectrum 9 kHz. – 400 GHz. from unwanted interference generated from electrical/digital systems that intentionally or unintentionally generated RF energy. The emissions standards, normative documents and/or publications were used to conduct all tests performed on the equipment herein referred to as “Equipment Under Test”. Page 4 of 14 Report Number: LANTR-080115F Revision Number: A1 FCC ID: R68MPBGPRO 2.0 SUMMARY OF TEST RESULTS 802.11b Mode (2400‐2483.5 MHz) EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz.PASSED 2412 MHz = 10.00MHz 2437 MHz = 10.17 MHz 2462 MHz = 10.25 MHz 15.247(b)(3) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED 2412 MHz = 17.08 dBm = 51.05mW 2437 MHz = 16.47 dBm = 44.36 mW 2462 MHz = 16.25 dBm = 42.17 mW 15.247(b)(5) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to MPE Calculations Exhibit 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power. PASSED See Data Sheets 15.247(c) Radiated emissions, which fall in the restricted bands, as defined …

Text truncated - open the document above for the full version.

Maximum Peak Output Power Measurement Setup Conducted Emissions at Antenna Terminal Setup AC Conducted Emissions Measurement Setup (Front View) AC Conducted Emissions Measurement Setup (Side View) Radiated Emissions Measurement Setup (Front View) Radiated Emissions Measurement Setup (Rear View)
