R68MTCHDRCTWireless Device Server

MatchPort™ b/g User Guide Part Number 900-484 Revision A March 2007 MatchPort b/g™ User Guide 2 Copyright and Trademark © 2007, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. MatchPort, with its patent-pending technology, is a trademark of Lantronix. Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The Open Group. Windows 95, Windows 98, Windows 2000, Windows NT, and Windows XP are trademarks of Microsoft Corp. Netscape is a trademark of Netscape Communications Corporation. Contacts Lantronix Corporate Headquarters 15353 Barranca Parkway Irvine, CA 92618, USA Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: www.lantronix.com/support Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at http://www.lantronix.com/about/contact/ MatchPort b/g™ User Guide 3 Disclaimer This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‹ Reorient or relocate the receiving antenna. ‹ Increase the separation between the equipment and receiver. ‹ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‹ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is intended only for OEM Integrators. The OEM integrator should be aware of the following important issues. Labeling of the End Product The label of the end product integrating this module must clearly indicate that the end product contains an FCC approved RF module. The format of such statement could be "Contains Transmitter with FCC ID: R68MTCHDRCT" or something similar. RSS-GEN Sections 7.1.4 and 7.1.5 Statement for Devices with Detachable Antennas This device has been designed to operate with the antennas listed in the Certificate, and having a maximum gain of 5 dBi. Antennas not included in this list or having a gain greater than 5 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Integration Note a) This module is authorized under limited module approval specified to mobile host equipment. So, the antenna must be installed such that 20cm is maintained between the antenna and users. b) The transmitter module may not be co-located with any other transmitter or antenna. As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emission, PC peripheral requirements, etc.) Note: In the event that these conditions cannot be met (for example certain laptop configurations, general purpose PCMCIA or similar cards, or co- MatchPort b/g™ User Guide 4 location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product (including the transmitter) and obtaining a separate FCC authorization. Note: Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device. MatchPort b/g™ User Guide 5 Contents Copyright and Trademark _________________________________________________2 Contacts ______________________________________________________________2 Disclaimer _____________________________________________________________3 1: Using This Guide 8 Purpose and Audience ___________________________________________________8 Chapter Summary _______________________________________________________8 Additional Documentation _________________________________________________9 2: Introduction 10 Capabilities ___________________________________________________________10 Applications ___________________________________________________________11 Protocol Support _______________________________________________________11 Configuration Methods __________________________________________________11 Addresses and Port Numbers _____________________________________________12 Hardware Address __________________________________________________________12 IP Address_________________________________________________________________12 Port Numbers ______________________________________________________________12 3: Using DeviceInstaller 13 Accessing MatchPort b/g using DeviceInstaller________________________________13 Viewing the MatchPort b/g’s Current Configuration_____________________________13 4: Configuration Using Web-Manager 16 Accessing Web-Manager using DeviceInstaller _______________________________16 Network Configuration ___________________________…

Text truncated - open the document above for the full version.

TRANSMITTER MODULAR APPROVAL ATTESTATION June 5, 2007 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: R68MTCHDRCT Gentlemen: The following attestation addresses the eight requirements to support modular approval as required by the FCC Public Notice DA00-1407 “Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding and does not rely upon the shielding provided by the device into which it is installed in order to comply with Part 15 limits. 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. 3 The modular transmitter has its own power supply regulator. 4 The modular transmitter has an antenna that complies with section 15.203 and 15.204(c) of the FCC rules. It has a Reverse Polarity-SMA type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). The antenna used with the module was tested with the module. 5 The modular transmitter was tested in a stand-alone configuration without a chassis during testing to show compliance with Part 15 emission limits. The transmitter module complies with the AC line conducted requirements found in Section 15.207. AC power lines. 6 The modular transmitter will be labeled with its own FCC ID. Also, the OEM host manufacturer will be informed to display a label referring to the enclosed module. The exterior label will read as follows: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1”. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1). If there are any additional questions or if further information is needed, please contact us at your earliest convenience at (949) 454-8295. Sincerely, Brian Mueller Aegis Labs, Inc. Test Technician

May 23, 2007 TIMCO Engineering Inc. 849 NW State Road 45 Newberry, Florida 32669 Gentlemen: The attached documentation is provided in support of a formal submission to your organization for a mobile approval of an intentional unlicensed transmitter. On behalf of our client, Aegis Labs has included an application for a Grant of Equipment Authorization pursuant to Subpart C of part 15 of FCC Rules (47 CFR) regarding intentional radiators. The data within the test report demonstrates the equipment was tested in a manner described under Part 2 and 15 of the Code of Federal Regulations. This is a submittal for modular approval of the Matchport B/G (FCC ID: R68MTCHDRCT), which is a Wireless Device Server that provides a network-enabling solution based on the IEEE 802.11b/g wireless standard. It was tested as a standalone device with a U.S. Robotics 5.00dBi Antenna (PN: USR5481) continuously transmitting and receiving form the antenna port. If there are any additional questions or if further information is needed, please contact us at your earliest convenience. Sincerely, Brian Mueller Aegis Labs, Inc. Test Technician Enclosure (1 Emissions Test Report + Exhibits)

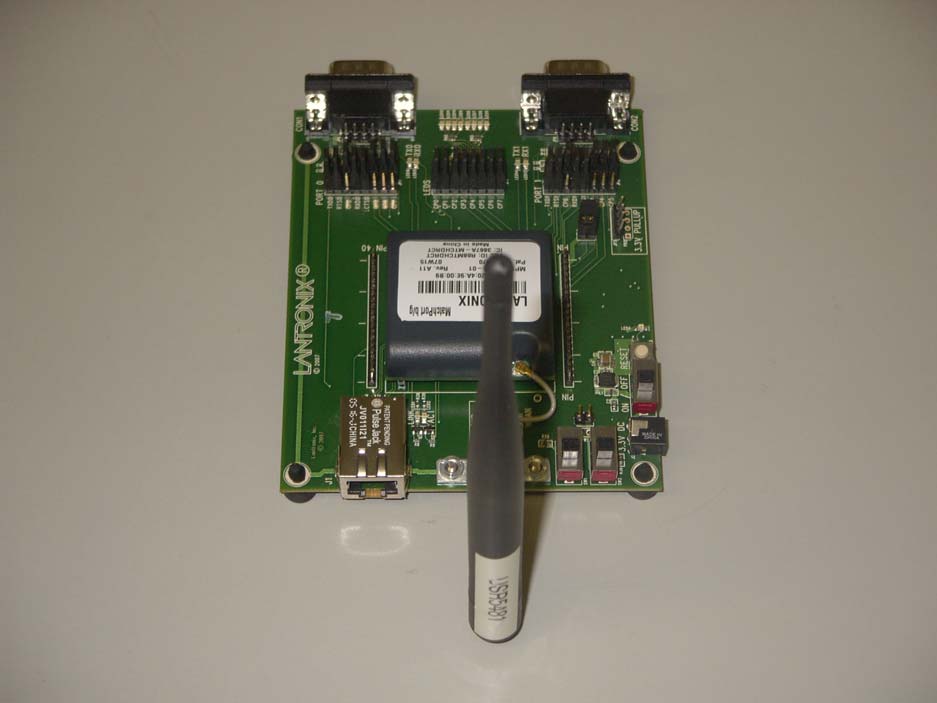

Front View Back View Front View (Ant Removed)

Top View “Module”

Notes:1. Text shown in parenthesis () are variable data, barcodes, or graphics.2. All print text, style, graphics, and data are printed approximately as shown.3. Barcodes are Code 128 Standards. 461-089 Sheet 1 of 1 A B Original issue Update Dimensions 01/12/07 03/08/07 DRAWN BY: DATE: 01.12.07 Caroline Lé Ele 1:1 461-089.ai 1.1 in +/- .01 1.48 in +/- .01 R .125 LABEL SPEC., ETHERNET, FLEXPORT DIRECT W/FCC LOGO A B 15353 Barranca ParkwayIrvine, CA 92618(949) 453-3990 Rev: DWG No. Size Revision History Rev. Description Date Scale Filename LANTRONIX MatchPort b/g Direct (00-20-4A-82-53-FF) (FD1001000G-01) Pat. 4,972,470 Made in (Country) (04W51) Rev. (A11) FCC ID: R68MTCHDRCTIC: 3867A - MTCHDRCT Part number printed on label Product FD1001000G-01 FD1001000G-01 Example:

Board Top View Board Bottom View Board Top View “Antenna Port Removed” Board Bottom View “Antenna Port Removed” Board Top View “Module Removed Antenna Port Removed” Top View “Module” Bottom View “Module” Top View “Module Shield Removed” Top View “Module’s Transmitter”

Antenna Specifications USR5484 Key Applications - Connecting to 802.11b/802.11g wireless PCI cards to enhance range and to position the antenna away from the typically noisy behind-the-desktop location. Specifications & Standards: •Gain: 5dBi •Nominal Impedance: 50 Ohms •Frequency Range: 2.4 - 2.5 GHz •VSWR: 1.92 max. •Omni-directional •Desktop or magnetic base for vertical attachment •SMA straight plug reverse connector USR5481 Key Applications - Replacement antenna to extend the range of 802.11b/802.11g wireless routers, access points, and desktop adapters. Specifications & Standards: •Gain: 5dBi •Nominal Impedance: 50 Ohms •Frequency Range: 2.4 - 2.5 GHz •VSWR: 1.92 max. •Omni-directional •Direct swivel attachment •SMA plug reverse connector USR5482A Key Applications - Provides broad, focused coverage for 802.11b/802.11g wireless routers and access points in buildings with large coverage areas and wireless hot spots. Also for outdoor applications (e.g. building-to- building connections). Allows direct path with better pattern coverage. Specifications & Standards: •Gain: 9dBi •Nominal Impedance: 50 Ohms •Frequency Range: 2.4 - 2.5 GHz •VSWR: 1.92 max. •Polarization - Linear •Directional antenna •Wall or pole mountable •SMA plug reverse connector part number: R24.0527.00 U.S. Robotics and the U.S. Robotics logo are registered trademarks of U.S. Robotics Corporation. All rights reserved. USR5484 Scan Patterns USR5481 Scan Patterns USR5482A Scan Patterns

MPE Calculations Systems operating under the provision of 47 CFR 1.1307(b)(1) shall be operated in a manor that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The MPE calculation for this exposure is shown below. Using the Antennas with highest output power: The peak radiated output power (EIRP) is calculated as follows: Antenna Frequency (GHz) Power input to the antenna (P) (dBm) Power gain of the antenna (G) (dBi) EIRP (P+G) (dBm) EIRP Log -1(dBm/10) (mW) U.S. Robotics (PN: USR5481) 2.4 19.82 5.00 24.82 303.39 EIRP = P + G Where P = Power input to the antenna (mW). G = Power gain of the antenna (dBi) The numeric gain (G) of the antenna with a gain specified in dB is determined by: Antenna Frequency (GHz) Antenna Gain (G) (dBi) Numeric Antenna Gain Log -1(dBm/10) (dB) U.S. Robotics (PN: USR5481) 2.4 5.00 3.16 G = Log -1 (dB antenna gain/10) Power density at the specific separation: Antenna Frequency (GHz) Power input to the antenna (P) (mW) Numeric Power Gain of the Antenna (G) (dB) Maximum Power Spectral Density S=PG/(4R 2 π) (mW/cm 2 ) Maximum Power Spectral Density Limit (mW/cm 2 ) U.S. Robotics (PN: USR5481) 2.4 95.94 3.16 0.060 1.00 S = PG/(4R 2 π) Where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW). G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1mW/cm 2 . The power density at 20cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Page 1 of 14 Report Number: LANTR-070125F Revision Number: NONE FCC ID: R68MTCHDRCT Modular Approval Test Report And Application for Grant of Equipment Authorization TEST REPORT PERTAINING TO: Equipment Under Test Model Number(s) FCC ID Wireless Device Server Matchport B/G R68MTCHDRCT CONFIGURATION 802.11b & 802.11g module with a U.S. Robotics 5dBi Reverse SMA Antenna (MN: USR5481) MEASUREMENTS PERFORMED IN ACCORDANCE WITH THE FOLLOWING STANDARD (S) Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz PREPARED FOR: PREPARED BY: Lantronix Inc. Aegis Labs, Inc. 15353 Barranca Parkway 8 Rancho Circle Irvine, California 92618 Lake Forest, CA 92630 Contact(s): Mr. Michael Simonsen Agent(s): Mr. Rick Candelas Mr. Brian Mueller Mr. Johnny Candelas Test Report #: LANTR-070125F Test Report Revision: NONE APPENDICES REPORT BODY A B TOTAL PAGES PAGES 14 45 1 60 The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. The Lantronix Inc. logo is used for identification purposes only and is a registered trademark of Lantronix Inc. Certificate Number: 1111.01 Page 2 of 14 Report Number: LANTR-070125F Revision Number: NONE FCC ID: R68MTCHDRCT TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET......................................................................................................... 01 TABLE OF CONTENTS.................................................................................................................... 02 1.0 REGULATORY COMPLIANCE GUIDELINES................................................................ 03 1.1 Guidelines For Testing To Emissions Standards..................................................................... 03 2.0 SUMMARY OF REGULATORY LIMITS.................................................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION..................................................... 06 4.0 DESCRIPTION OF EUT CONFIGURATION....................................................................... 07 4.1 EUT Description ......................................................................................................... 07 4.2 EUT Configuration......................................................................................................................... 08 4.3 List of EUT Sub-Assemblies and Host Equipment........................................................................... 09 4.4 I/O Cabling Diagram and Description ................................................................................. 10 4.5 EMC Test Hardware and Software Measurement Equipment.............................................................. 12 5.0 CONDITIONS DURING EMISSIONS MEASUREMENTS................................................... 13 5.1 General..................................................................................................................... 13 5.2 Conducted Emissions Test Setup.......................................................................................................... 13 5.3 Radiated Emissions Test Setup......................................................................................... 14 APPENDICES A Test Data B Modifications And Recommendations Page 3 of 14 Report Number: LANTR-070125F Revision Number: NONE FCC ID: R68MTCHDRCT 1.0 REGULATORY COMPLIANCE GUIDELINES Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs were furnished by RF technicians and engineers with accredited qualifications and training credentials to carry out their duties. The object of this report was to publish verifiable test results of an EUT subjected to the tests outlined in the standard listed on the cover page of this report. 1.1 Guidelines For Testing To Emissions Standards This standard for EMC emission requirements apply to electrical equipment for Information Technology Equipment (ITE). Compliance to these standards and in combination with the other standards listed in this test report can be used to demonstrate presumption of compliance with the protection requirements of the appropriate agency standard. The purpose of this standard is to specify minimum requirements for emissions regarding electromagnetic compatibility (EMC) and protect the radio frequency spectrum 9 kHz. – 400 GHz. from unwanted interference generated from electrical/digital systems that intentionally or unintentionally generated RF energy. The emissions standards, normative documents and/or publications were used to conduct all tests performed on the equipment herein referred to as “Equipment Under Test”. Page 4 of 14 Report Number: LANTR-070125F Revision Number: NONE FCC ID: R68MTCHDRCT 2.0 SUMMARY OF TEST RESULTS 802.11b Mode (2400-2483.5 MHz) EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED 2412 MHz = 10.08 MHz 2437 MHz = 10.17 MHz 2462 MHz = 10.33 MHz 15.247(b)(3) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED 2412 MHz = 16.80 dBm = 47.86 mW 2437 MHz = 16.40 dBm = 43.65 mW 2462 MHz = 16.64 dBm = 46.13 mW 15.247(b)(5) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to MPE Calculations Exhibit 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB be…

Text truncated - open the document above for the full version.

Page 1 of 14 Report Number: LANTR-070125F Revision Number: A1 FCC ID: R68MTCHDRCT Modular Approval Test Report And Application for Grant of Equipment Authorization TEST REPORT PERTAINING TO: Equipment Under Test Model Number(s) FCC ID Wireless Device Server Matchport B/G R68MTCHDRCT CONFIGURATION 802.11b & 802.11g module with a U.S. Robotics 5dBi Reverse SMA Antenna (MN: USR5481) MEASUREMENTS PERFORMED IN ACCORDANCE WITH THE FOLLOWING STANDARD (S) Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz PREPARED FOR: PREPARED BY: Lantronix Inc. Aegis Labs, Inc. 15353 Barranca Parkway 8 Rancho Circle Irvine, California 92618 Lake Forest, CA 92630 Contact(s): Mr. Michael Simonsen Agent(s): Mr. Rick Candelas Mr. Brian Mueller Mr. Johnny Candelas Test Report #: LANTR-070125F Test Report Revision: A1 APPENDICES REPORT BODY A B TOTAL PAGES PAGES 14 45 1 60 The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. The Lantronix Inc. logo is used for identification purposes only and is a registered trademark of Lantronix Inc. Certificate Number: 1111.01 Page 2 of 14 Report Number: LANTR-070125F Revision Number: A1 FCC ID: R68MTCHDRCT TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET......................................................................................................... 01 TABLE OF CONTENTS.................................................................................................................... 02 1.0 REGULATORY COMPLIANCE GUIDELINES................................................................ 03 1.1 Guidelines For Testing To Emissions Standards..................................................................... 03 2.0 SUMMARY OF REGULATORY LIMITS.................................................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION..................................................... 06 4.0 DESCRIPTION OF EUT CONFIGURATION....................................................................... 07 4.1 EUT Description ......................................................................................................... 07 4.2 EUT Configuration......................................................................................................................... 08 4.3 List of EUT Sub-Assemblies and Host Equipment........................................................................... 09 4.4 I/O Cabling Diagram and Description ................................................................................. 10 4.5 EMC Test Hardware and Software Measurement Equipment.............................................................. 12 5.0 CONDITIONS DURING EMISSIONS MEASUREMENTS................................................... 13 5.1 General..................................................................................................................... 13 5.2 Conducted Emissions Test Setup.......................................................................................................... 13 5.3 Radiated Emissions Test Setup......................................................................................... 14 APPENDICES A Test Data B Modifications And Recommendations Page 3 of 14 Report Number: LANTR-070125F Revision Number: A1 FCC ID: R68MTCHDRCT 1.0 REGULATORY COMPLIANCE GUIDELINES Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs were furnished by RF technicians and engineers with accredited qualifications and training credentials to carry out their duties. The object of this report was to publish verifiable test results of an EUT subjected to the tests outlined in the standard listed on the cover page of this report. 1.1 Guidelines For Testing To Emissions Standards This standard for EMC emission requirements apply to electrical equipment for Information Technology Equipment (ITE). Compliance to these standards and in combination with the other standards listed in this test report can be used to demonstrate presumption of compliance with the protection requirements of the appropriate agency standard. The purpose of this standard is to specify minimum requirements for emissions regarding electromagnetic compatibility (EMC) and protect the radio frequency spectrum 9 kHz. – 400 GHz. from unwanted interference generated from electrical/digital systems that intentionally or unintentionally generated RF energy. The emissions standards, normative documents and/or publications were used to conduct all tests performed on the equipment herein referred to as “Equipment Under Test”. Page 4 of 14 Report Number: LANTR-070125F Revision Number: A1 FCC ID: R68MTCHDRCT 2.0 SUMMARY OF TEST RESULTS 802.11b Mode (2400-2483.5 MHz) EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED 2412 MHz = 10.08 MHz 2437 MHz = 10.17 MHz 2462 MHz = 10.33 MHz 15.247(b)(3) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED 2412 MHz = 16.80 dBm = 47.86 mW 2437 MHz = 16.40 dBm = 43.65 mW 2462 MHz = 16.64 dBm = 46.13 mW 15.247(b)(5) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to MPE Calculations Exhibit 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that i…

Text truncated - open the document above for the full version.

Maximum Peak Output Power Measurement Setup Conducted Emissions at Antenna Terminal Setup AC Conducted Emissions Measurement (Front View) Setup AC Conducted Emissions Measurement (Side View) Setup Radiated Emissions Measurement (Front View) Setup Radiated Emissions Measurement (Rear View) Setup
