R68WIBATTWireless Device Server

DataLink ® Connection Guide December 2005 ethernet.book Page 1 Friday, December 2, 2005 4:28 PM Copyright© 2005 LifeScan, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in retrieval systems, or translated into any language or computer language, in any form, or by any means: electronic, mechanical, magnetic, optical, or otherwise, without the prior written permission of LifeScan, Inc, 1000 Gibraltar Drive, Milpitas, California, 95035, United States of America. DisclaimerLifeScan reserves the right to change its products and services at any time to incorporate the latest technological developments. This guide is subject to change without notice. TrademarksOneTouch, DataLink, SureStepFlexx, and SureStepPro are registered trademarks of LifeScan, Inc. MeterLink is a trademark of LifeScan, Inc. Lantronix is a registered trademark of Lantronix. Windows is a registered trademark of Microsoft Corporation. InstallAnywhere is a registered trademark of Zero G Software, Inc. ethernet.book Page 2 Friday, December 2, 2005 4:28 PM i DataLink ® Connection Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Modem Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Using This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 DataLink Sync Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Installing DataLink Sync Software on a PC Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Connecting a DataLink Connection Module to the PC Server . . . . . . . . . . . . . . . . . . . . . 6 Using DataLink Sync Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Modem-to-Modem Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connecting a DataLink Connection Module to a Sending Modem . . . . . . . . . . . . . . . . . 9 Serial Server/Client-to-Ethernet Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Connecting a DataLink Connection Module to a Serial Server/Client . . . . . . . . . . . . . . 10 Serial Server/Client-to-Ethernet Configuration Using Modems . . . . . . . . . . . . . . . . . . . . . 11 Connecting a Receiving Modem to a Serial Server/Client . . . . . . . . . . . . . . . . . . . . . . . 12 Terminal Server-to-Ethernet Configuration Using Multiple Receiving Modems . . . . . . . . 13 Connecting a Receiving Modem to a Terminal Server . . . . . . . . . . . . . . . . . . . . . . . . . 13 Connecting to the Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Connecting a DataLink Connection Module to the Workstation . . . . . . . . . . . . . . . . . 14 Connecting a Receiving Modem to the Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Wireless Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Setting Up the Wireless Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Charging the Wireless Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Cleaning the Wireless Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Establishing Connectivity Using MeterLink™ Software . . . . . . . . . . . . . . . . . . . . . . . . . . 20 MeterLink Application Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Establishing a Connection with a Serial Server, Terminal Server, or Serial Client . . . . . 23 Establishing a Connection with a PC Server/Client . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Establishing a Connection with the Workstation Serial Port . . . . . . . . . . . . . . . . . . . . 26 Table of Contents ethernet.book Page i Friday, December 2, 2005 4:28 PM ii Transferring Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 SureStepPro Bedside Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 SureStepFlexx Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 MeterLink Event Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Meter Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Wireless Unit LED Error Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Ethernet Connection from the PC Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Ethernet Connection from the Meter Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Ethernet Connection from the Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Connection Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Wireless Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Glossary . . . . . . . . . …

Text truncated - open the document above for the full version.

WiPort™ User Guide Part Number 900-332 Revision F November 2005 WiPort™ User Guide 2 Copyright and Trademark © 2005, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. WiPort, with its patent-pending technology, is a trademark of Lantronix. Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The Open Group. Windows 95, Windows 98, Windows 2000, Windows NT, and Windows XP are trademarks of Microsoft Corp. Netscape is a trademark of Netscape Communications Corporation. Contacts Lantronix Corporate Headquarters 15353 Barranca Parkway Irvine, CA 92618, USA Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Phone: 800-422-7044 or 949-453-7198 Fax: 949-450-7226 Online: www.lantronix.com/support Email [email protected] Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at http://www.lantronix.com/about/contact/ WiPort™ User Guide 3 Disclaimer and Revisions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‹ Reorient or relocate the receiving antenna. ‹ Increase the separation between the equipment and receiver. ‹ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‹ Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is intended only for OEM Integrators of Mobile Equipment. The OEM integrators should be aware of the following important issues. Labeling of the End Product The end product to integrate this module has to be clearly identified on the label that this end product contains an FCC approved RF module. The format of such statement could be "Contains Transmitter with FCC ID: R68WIPORT" or similar. Integration Note a) This module is authorized under limited module approval specified to mobile host equipment. So, the antenna must be installed such that a minimum of 20cm is maintained between the antenna and users. b) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emission, PC peripheral requirements, etc.) Note 2: In the event that these conditions can not be met (for example certain laptop configurations, general purpose PCMCIA or similar cards, or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product (including the transmitter) and obtaining a separate FCC authorization. Note 3: Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device. WiPort™ User Guide 4 Contents Copyright and Trademark _________________________________________________2 Contacts ______________________________________________________________2 Disclaimer and Revisions _________________________________________________3 1: Using This Guide 8 Purpose and Audience ___________________________________________________8 Chapter Summary _______________________________________________________8 Additional Documentation _________________________________________________9 2: Introduction 10 Capabilities ___________________________________________________________10 Applications ___________________________________________________________10 Protocol Support _______________________________________________________11 Configuration Methods __________________________________________________11 Addresses and Port Numbers _____________________________________________11 Hardware Address __________________________________________________________11 IP Address_________________________________________________________________12 Port Numbers ______________________________________________________________12 3: Using DeviceInstaller 13 Accessing WiPort using DeviceInstaller _____________________________________13 Viewing the WiPort’s Current Configuration __________________________________13 4: Configuration Using Web-Manager 16 Accessing WiPort Web-Manager using DeviceInstaller__________________________16 Network Configuration ___________________________________________________17 Automatic IP Address Configuration _____________________________________________18 Static IP Address Configuration ________________________________________________19 Server Configuration ____________________________________________________19 Host List Configuration __________________________________________________20 Channel 1 and Channel 2 Configuration _____________________________________21 Serial Settings ______________________________________________________________21 Connecti…

Text truncated - open the document above for the full version.

December 30, 2005 RE: Lantronix ATCB003033 | R68WIBATT | 3867A - WIBATT Answers to the ATCB comments on the above referenced Application. 1. Provide diagram and/or statement showing how the wireless device is considered a portable device. Refer to “WBX2100 in Tote Photo” exhibit. This shows how the end user will install the wireless device. A medical technician can place the tote in one place or carry the tote around. The cover on the tote can be open during wireless transmission and the user can be closer than 20cm from the transmitting antenna. In this configuration there is a possibility that the antenna can be touched by the end user even though the user’s guide suggest not to do this.

December 13, 2005 American TCB 6731 Whittier Ave., Suite C110 McLean, VA 22101 Gentlemen: The attached documentation is provided in support of a formal submission to your organization for a limited modular approval of a “Portable” intentional unlicensed transmitter. On behalf of our client, Aegis Labs has included an application for a Grant of Equipment Authorization pursuant to Subpart C of part 15 of FCC Rules (47 CFR) regarding intentional radiators. The data within the test report demonstrates the equipment was tested in a manner described under Part 2 and 15 of the Code of Federal Regulations. This approval is for a Wireless Device Server (MN: WBX2100, FCC ID: R68WIIBATT), which is a Wireless Embedded Device Server that provides a network-enabling solution based on the IEEE 802.11b wireless standard. WiBatt allows Original Equipment Manufacturers (OEMs) to add wireless connectivity to their products by incorporating it onto a circuit board. For this submission the end product will be installed in a manner in which the transmitting antenna may be any distance from the human body. The configuration tested for this submission was with a Wanshih (PN: WSS002) antenna continuously transmitting and receiving from the antenna port. If there are any additional questions or if further information is needed, please contact us at your earliest convenience. Sincerely, Rick Candelas Aegis Labs, Inc. Lab Manager Enclosure (1 Emissions Test Report + Exhibits) AEGIS LABS, INC 22431 Antonio Parkway B160-417, Rancho Santa Margarita, CA 92688 949-459-7886 TEL 949-459-7869 FAX www.aegislabsinc.com

Top View Bottom View

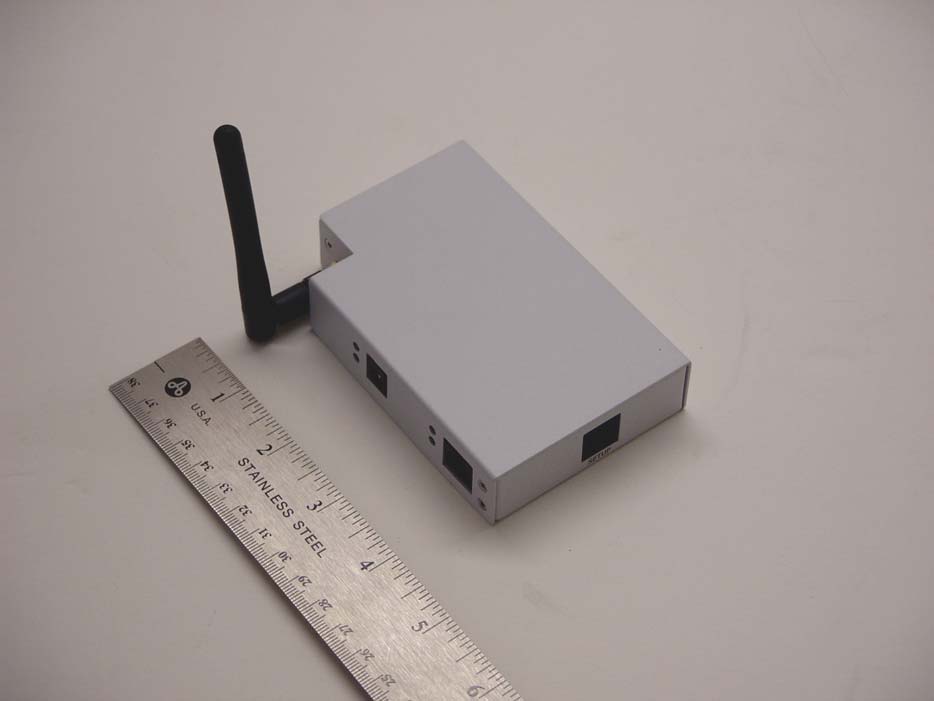

Bottom View of Circuit Board “Top Cover Removed” Top View of Circuit Board “Bottom Cover Removed” Top View of Circuit Board “Battery Removed” Top View of Circuit Board “Transmitter Module Top Shield Removed” Top View of Circuit Board “Transmitter Module Removed” Top View “Transmitter Close-up with Top Shield Removed” Bottom View “Transmitter Close-up” Top View “Transmitter Board” Top View “Transmitter Board, Shield Removed” Bottom View “Transmitter Board With Insulation” Bottom View “Transmitter Board Without Insulation” Top View “Transmitter Daughter Board” Bottom View “Transmitter Daughter Board With Insulation” Bottom View “Transmitter Daughter Board Without Insulation” Top View “Lower Shield” Bottom View “Upper Shield”

2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Lantronix Dates of Test: November 23, 2005 15353 Barranca Parkway Test Report Number: SAR.20051102 Irvine, CA 92618 Revision A FCC ID: R68WIBATT IC Certificate: 3867A-WIBATT Model(s): WiBatt Test Sample: Pre-Production Unit same as Production Serial No.: ENG002 Equipment Type: Wireless Embedded Device Server Classification: Portable Transmitter Next to Body TX Frequency Range: 2400 – 2483.5 MHz Frequency Tolerance: ± 120 kHz Maximum RF Output: 13 dBm Conducted Signal Modulation: DBPSK, DQPSK, CCK Antenna Type (Length): External (98 mm x 8 mm), P/N WSS002, 2.15 dBi Battery: P/N HR8AU-F3PW-3 Battery Pack Application Type: Certification FCC Rule Parts: Part 15.247 IC Specification: RSS-102 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 © 2005 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. FCC ID: R68WIBATT © 2005 RF Exposure Lab, LLC Page 2 of 72 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction........................................................................................................................... 3 SAR Definition [5]...................................................................................................................... 3 2. SAR Measurement Setup..................................................................................................... 4 Robotic System ......................................................................................................................... 4 System Hardware..................................................................................................................... 4 System Description................................................................................................................... 4 E-Field Probe ALS-E-020......................................................................................................... 5 3. Robot Specifications............................................................................................................. 7 4. Probe and Dipole Calibration................................................................................................ 8 5. Phantom & Simulating Tissue Specifications........................................................................ 9 SAM Phantom........................................................................................................................... 9 Brain & Muscle Simulating Mixture Characterization................................................................ 9 Device Holder........................................................................................................................... 9 6. Definition of Reference Points............................................................................................. 10 Ear Reference Point................................................................................................................ 10 Device Reference Points ........................................................................................................ 10 7. Test Configuration Positions............................................................................................... 11 Positioning for Cheek/Touch [5].............................................................................................. 11 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................ 12 Body Worn Configurations...................................................................................................... 13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]............................................................... 14 Uncontrolled Environment....................................................................................................... 14 Controlled Environment.......................................................................................................... 14 9. Measurement Uncertainty................................................................................................... 15 10. System Validation........................................................................................................... 16 Tissue Verification................................................................................................................... 16 Test System Verification......................................................................................................... 16 11. SAR Test Data Summary................................................................................................ 17 Procedures Used To Establish Test Signal............................................................................. 17 Device Test Condition........................................................................................…

Text truncated - open the document above for the full version.

Antenna

Frequency range 2.9 GHz 10 dB/ -80 dB 20 dB MAGdB CH210 dB/REF 0 dB START2 GHzSTOP3 GHz100 MHz/ FIL 10k10k FIL 10k10k S22 1 2 3 2: -22.99 dB 2.45 GHz 1: -15.26 dB 2.4 GHz 3: -13.85 dB 2.5 GHz 〈 0 dB Date: 27.MAY.03 10:57:25

Page 1 of 16 Report Number: LANTR-050818F FCC ID: R68WIBATT Portable Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: EUT FCC ID: Wireless Device Server, Model: WBX2100 R68WIBATT Configuration With a 2.15dBi Wanshih Antenna MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Lantronix, Inc. Aegis Labs, Inc. 15353 Barranca Parkway 22431 Antonio Parkway B160-417 Irvine, California 92618 Rancho S. Margarita, CA 92688 Contact(s): Daryl Miller Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Mr. Ralph Jimenez Test Report #: LANTR-050818F APPENDICES REPORT BODY A TOTAL PAGES PAGES 16 31 47 Test Report Revision: None The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 16 Report Number: LANTR-050818F FCC ID: R68WIBATT TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 05 4.0 DESCRIPTION OF EUT..................................................................................... 06 4.1 EUT Description..................................................................................... 06 4.1.1 Channel Number and Frequencies................................................................ 07 4.2 EUT Configuration.................................................................................. 08 4.3 List of EUT Sub-Assemblies and Host Equipment...................................................... 09 4.4 I/O Cabling Diagram and Description............................................................................. 10 5.0 TEST EQUIPMENT AND TEST SETUPS............................................................... 11 5.1 AC Power Line Conducted Emissions............................................................ 11 5.2 Spurious Radiated Emissions...................................................................... 12 5.3 Conducted Emissions At The Antenna Port.................................................................... 12 5.4 Test and Measurement Equipment Used......................................................... 13 6.0 SAMPLE CALCULATIONS.......................................................................................... 14 7.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 16 APPENDICES A Test Data Page 3 of 16 Report Number: LANTR-050818F FCC ID: R68WIBATT 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished through the use of part-time, full-time or consulting engineers with the appropriate qualifications to carry out their duties. The intended purpose of this test report is to describe the measurement procedure and to determine whether the equipment under test “EUT” complies with both the conducted and radiated limits. Limits for emissions testing are described under Subpart C of Part 15 of the FCC rules. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the emissions standard as described below. The test results contained in this report are only representative of the test sample tested as described in Section 3.0 of this report. Certification of the EUT is required as a prerequisite to marketing as defined in Part 2 of the FCC Rules. Report Prepared By: ________________________12/13/05 Rick Candelas Date: Lab Manager Aegis Labs, Inc. Report Approved By: ________________________12/13/05 Steve J. Kuiper Date: Quality Assurance Manager Aegis Labs, Inc. Page 4 of 16 Report Number: LANTR-050818F FCC ID: R68WIBATT 2.0 SUMMARY OF TEST RESULTS The test results provided within this report, indicate that the EUT has been found to be in COMPLIANCE with the test specifications based upon the following RF compliance standards: Pass/Fail determination is based upon the nominal values of the test data. 802.11b Mode (2400-2483.5 MHz) EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED 2412 MHz = 9.92 MHz 2437 MHz = 10.17 MHz 2462 MHz = 10.08 MHz 15.247(b)(3) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED 2412 MHz = 13.57 dBm = 22.75 mW 2437 MHz = 13.52 dBm = 22.49 mW 2462 MHz = 13.50 dBm = 22.39 mW 15.247(b)(5) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to SAR Test Report 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power. PASSED See Data Sheets 15.247(c) Radiated emissions, which fall in the restricted bands, as defined in Sec. 15.205(a), must also comply with the radiate…

Text truncated - open the document above for the full version.

Maximum Peak Output Power Measurement Setup Conducted Emissions at Antenna Terminal Setup AC Conducted Emissions Measurement (Front View) Setup AC Conducted Emissions Measurement (Rear View) Setup Radiated Emissions Measurement (Front View) Setup Radiated Emissions Measurement (Rear View) Setup
