R6U-T9B-49MToy - R/C Micro Car

CRYSTAL: 49MHz

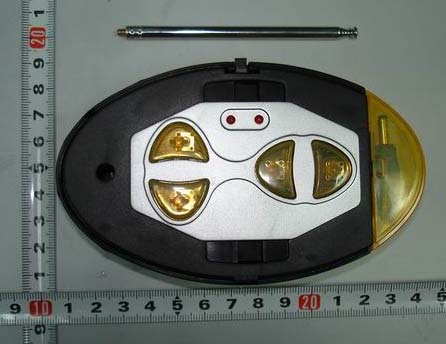

External Photograph EUT – Front View EUT- Rear View EUT- Side View EUT- Top View

FCC ID Label Sample for FCCID: R6U-T9B-49M_ FCCID: R6U-T9B-49M

Internal Photograph EUT- Uncover View EUT- PCB View

DESCRIPTION OF OPERATION The Equipment Under Test (EUT) is TOY-R/C MICRO CAR operating at 49.8 60 MHz. The EUT is powered by 4x“AA” alkaline battery. The transmitter is a 4 button transmitter, and pulse-Modulated by IC. The EUT is able to continuously to transmit while button is being pressed. The antenna is a 35cm long telescoping chrome over brass tubing. There is no external ground connection except in the printed circuit board.

Test Report of FCC Part 15 C for FCC Certificate On Behalf of YINRUN PLASTIC CRAFTS CO.,LTD Product description: TOY-R/C MICRO CAR Model No.: T9B FCC ID: R6U-T9B-49M Prepared for: YINRUN PLASTIC CRAFTS CO.,LTD Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Prepared by: Bontek Compliance Laboratory Ltd Rm 802~804, 8/F, Jinmin Bld., Zizhu 6 th Rd.,Zhuzi Lin, Futian, Shenzhen 518040, P.R. China. Tel: 86-755-82871080 Fax: 86-755-82871368 Issue Date: February 5, 2006 Test Date: January 8 ~ February 3, 2006 Test by: Reviewed By: Kendy Wang Tony Wu TABLE OF CONTENTS 1. GENERAL INFORMATION............................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ............................................................ 3 1.2 Related Submittal(s) / Grant (s) .............................................................................................. 3 1.3 Test Methodology................................................................................................................... 3 1.4 Test Facility............................................................................................................................. 4 2. SYSTEM TEST CONFIGURATION.................................................................................................. 5 2.1 EUT Configuration.................................................................................................................. 5 2.2 EUT Exercise.......................................................................................................................... 5 2.3 General Test Procedures........................................................................................................ 5 2.4 List of Measuring Equipments Used....................................................................................... 5 3. SUMMARY OF TEST RESULTS...................................................................................................... 7 4. TEST OF CONDUCTED EMISSION................................................................................................. 8 4.1 Applicable Standard................................................................................................................ 8 4.2 Test Setup Diagram................................................................................................................ 8 5- RADIATED EMISSIONS................................................................................................................... 9 5.1 Limit of Radiated Emissions.................................................................................................. 9 5.2 Test Equipment Used............................................................................................................. 9 5.3 EUT Setup............................................................................................................................ 10 5.4 Test Procedure..................................................................................................................... 10 5.5 Test Result............................................................................................................................ 11 6- OCCUPIED BANDWIDTH.............................................................................................................. 14 6.1 Limit of Occupied Bandwidth................................................................................................ 14 6.2 Test Equipment Used........................................................................................................... 14 6.3 Test Procedure..................................................................................................................... 14 6.4 Occupied Bandwidth Test Result.......................................................................................... 14 Report No.: BCT07AR-033E Page 2 of 15 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: YINRUN PLASTIC CRAFTS CO., LTD Address of applicant: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Manufacturer: YINRUN PLASTIC CRAFTS CO., LTD Address of manufacturer: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China EUT Description: TOY-R/C MICRO CAR Trade Name: N/A Model No.: T9B Rated Voltage DC 6V (4 x1.5VAA alkaline battery) for Transmitter Frequency range 49.87MHz Number of channels 1 Channel Separation None Product Class: Low Power Communication Device Transmitter Measurement Procedure ANSI C63.4-2003 Remark: * The test data gathered are from the production sample provided by the manufacturer. 1.2 Related Submittal(s) / Grant (s) This submittal(s) is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 - 2003. The tests were performed in order to determine compliance with FCC Part 15, Subpart C, section 15.235 rules. 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4 - 2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. Radiated testing was performed at an antenna to EUT distance 3 meters. Report No.: BCT07AR-033E Page 3 of 15 1.4 Test Facility All measurement required was performed at laboratory of Shenzhen Huatongwei International Inspection Co., Ltd at Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China and Solid Industrial (Shenzhen) Co., Ltd. at 333 Bulong Highway, Buji, Longgang, Shenzhen, Guangdong, China. The test facility is recognized, certified, or accredited by the following organizations: FCC – Registration No.: 662850 Shenzhen Huatongwei International Inspection Co., Ltd, EMC Laboratory has been…
