R6U8008-27MTOY-R/C SAVAGE

Block Diagram (27.145M) SURGE （ 27.145MHz ） （ 27.145MHz ）震荡器 CODING 、 RELIEF 编码、调制器 F/B INSTRUCTION 前进 / 后退 指令 L/R INSTRUCTION 左转 / 右转 指令 POWER BLOWUP 功率放大 ANTENNA BEAMING 天线

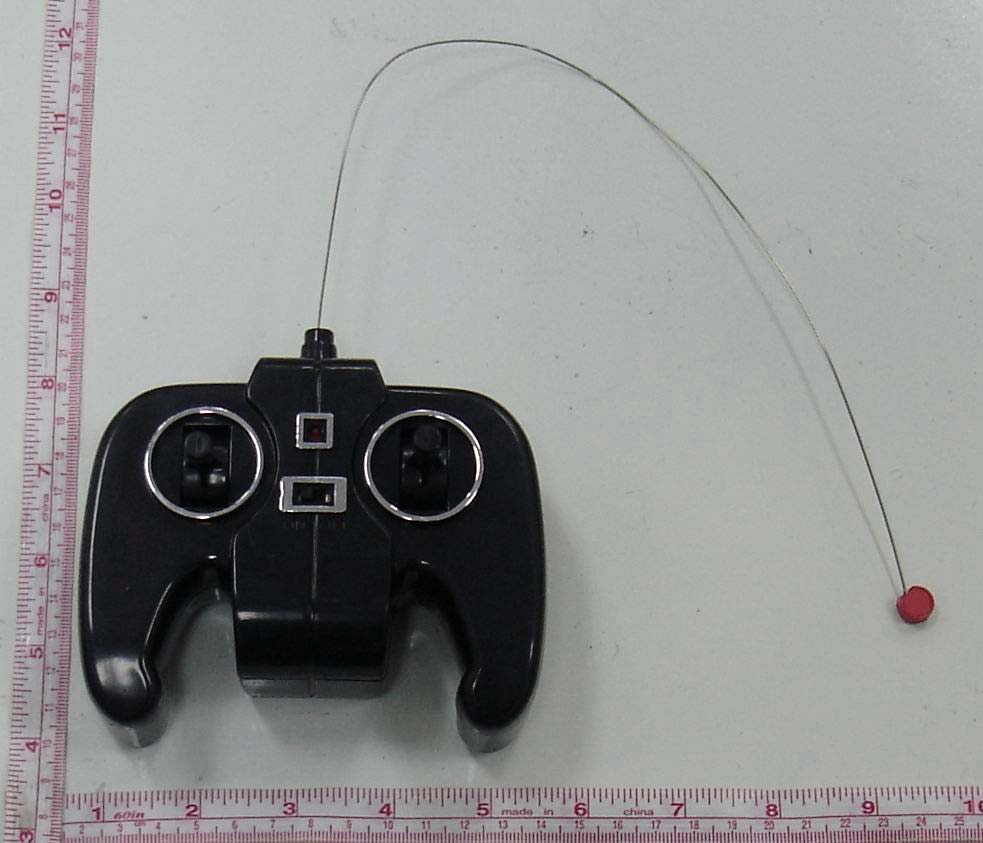

External Photographs EUT - Front View EUT - Rear View

Internal Photographs EUT – PCB View

PRODUCT DESCRIPTION The Equipment Under Test (EUT) is a R/C Airplane operation at 27.145 MHz. The EUT is supplied source by a new 9V laminated battery. The transmitter is a 2 buttons transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. And type is pulse modulation. The antenna consists of a 36cm long telescoping chrome over brass wire . There is no external ground connection. The ground is only that of the printed circuit board.

Schematic Diagram (27.145M) 1 2 34 A BC D 4 3 2 1 D CB A Title Number Revision Size A4 Date: 12-Jan-2008 Sheet of File: F:\FCC\ÒøÈó\471F27M.SCH Drawn By: 111314 7654321 121098 IC-1 TX-2 K1 K2 K3 K4 R2 200K R7 3.3K R6 330 DW4.7V C3 0.01uF ANT XTAL 27.145MHz L3 2.2uH L2 2.2uH L1 6.8uH BG1 C945 BG2 C945 R1 10 R3 22K R4 100 R5 68K C5 47P C1 68P C6 82P C4 47P LED TP-471F-TX-4WAY TX-27.145MHz VDD 9V TPKJ.TECH. SW 45 C20.01 GND GND

Test Report of FCC Part 15 C for FCC Certificate On Behalf of YINRUN PLASTIC CRAFTS CO.,LTD Product description: TOY-R/C SAVAGE Model No.: 8008 FCC ID: R6U8008-27M Prepared for: YINRUN PLASTIC CRAFTS CO.,LTD Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China. Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT08DC-194E Issue Date: March 31, 2008 Test Date: March 25~28, 2008 Test by: Reviewed By: Kendy Wang Tony Wu TABLE OF CONTENTS 1. GENERAL INFORMATION............................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ............................................................ 3 1.2 Related Submittal(s) / Grant (s) .............................................................................................. 3 1.3 Test Methodology................................................................................................................... 3 1.4 Test Facility............................................................................................................................. 4 2. SYSTEM TEST CONFIGURATION.................................................................................................. 5 2.1 EUT Configuration.................................................................................................................. 5 2.2 EUT Exercise.......................................................................................................................... 5 2.3 General Test Procedures........................................................................................................ 5 2.4 List of Measuring Equipments Used....................................................................................... 6 3. SUMMARY OF TEST RESULTS...................................................................................................... 7 4. TEST OF CONDUCTED EMISSION................................................................................................. 8 4.1 Applicable Standard................................................................................................................ 8 4.2 Test Setup Diagram................................................................................................................ 8 5- RADIATED EMISSIONS................................................................................................................... 9 5.1 Limit of Radiated Emissions.................................................................................................. 9 5.2 Test Equipment Used............................................................................................................. 9 5.3 EUT Setup............................................................................................................................ 10 5.4 Test Procedure..................................................................................................................... 11 5.5 Test Result............................................................................................................................ 11 6- EMISSIONS WITHIN BAND EDGES.............................................................................................. 16 6.1 Limit of Emissions within Band Edges.................................................................................. 16 6.2 Test Equipment Used........................................................................................................... 16 6.3 Test Procedure..................................................................................................................... 16 6.4 Emissions within Band Edges Test Result............................................................................ 16 Report No.: BCT08DC-194E Page 2 of 17 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: YINRUN PLASTIC CRAFTS CO., LTD Address of applicant: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Manufacturer: YINRUN PLASTIC CRAFTS CO., LTD Address of manufacturer: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China EUT Description: TOY-R/C SAVAGE Trade Name: N/A Model No.: 8008 Rated Voltage DC 9V laminated battery for Transmitter Frequency range 27.145MHz Number of channels 1 Channel Separation None Product Class: Low Power Communication Device Transmitter Measurement Procedure ANSI C63.4-2003 Remark: * The test data gathered are from the production sample provided by the manufacturer. 1.2 Related Submittal(s) / Grant (s) This submittal(s) is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 - 2003. The tests were performed in order to determine compliance with FCC Part 15, Subpart C, section 15.227 rules. 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4 - 2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. Radiated testing was performed at an antenna to EUT distance 3 meters. Report No.: BCT08DC-194E Page 3 of 17 1.4 Test Facility All measurement required was performed at laboratory of Bontek Compliance Testing Laboratory Ltd at 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China. The test facility is recognized, certified, or accredited by the following organizations: FCC – Registration No.: 338263 Bontek Compliance Testing Laboratory Ltd EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The accep…

Text truncated - open the document above for the full version.

Test Setup Photo
