R6UMC4016-R49MToy-R/C Monster Spin Car

49.860MHz Super-regenerative Receiver BG1 Decoder IC1 RX-2 Motor Driver BG2-BG13 ANT 49.860MHZ MODEL NO.: 4016 Motor Flashing LED Control BG14,BG15 LED

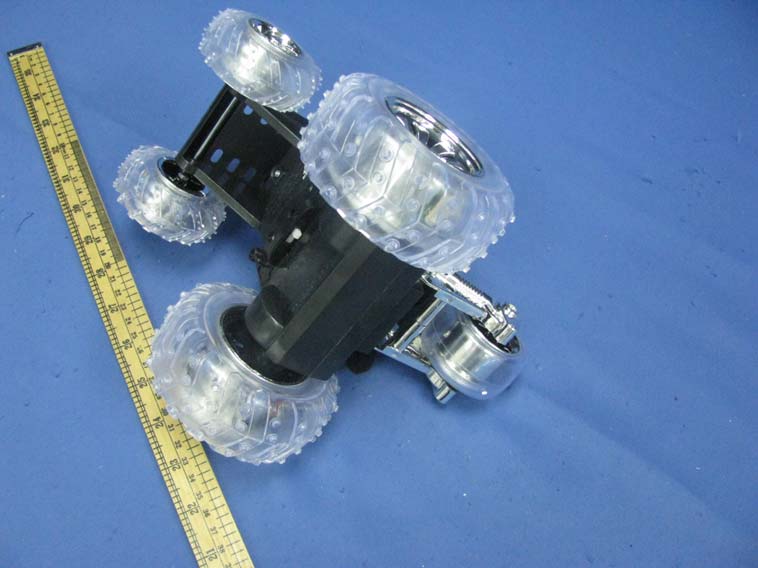

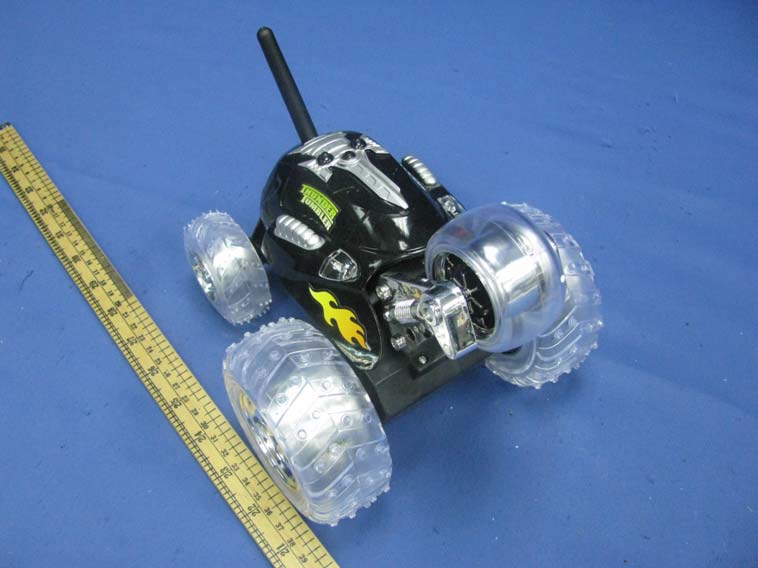

FCC ID: R6UMC4016-R49M Ophoto1 Ophoto2 FCC ID: R6UMC4016-R49M Ophoto3 Ophoto4

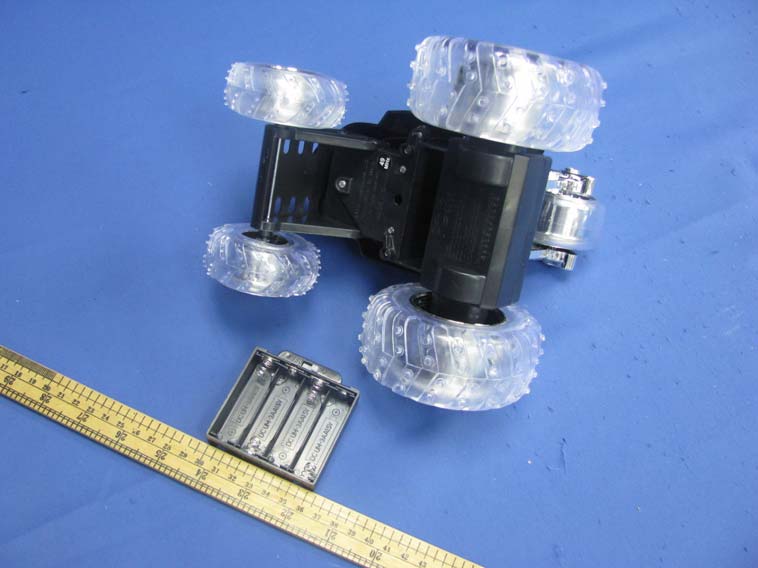

FCC ID: R6UMC4016-R49M Iphoto1 Iphoto2 FCC ID: R6UMC4016-R49M Iphoto3 Iphoto4 FCC ID: R6UMC4016-R49M Iphoto5

FCC ID: R6UMC4016-R49M Technical Description : The brief circuit description is listed as follows : - BG1 and associated circuit act as 49.860 MHz Super- regenerative receiver. - IC1 RX-2 and associated circuit act as Decoder. - BG15, BG16 and associated circuit act as Flashing LED Control. - BG2-BG13 and associated circuit act as Motor Driver. Antenna Used : An integral antenna (non-extendable) has been used.
