R6UMC4016-T27MToy-R/C Monster Spin Car

Control Keys K1-K4 Encoder IC-1 TX-2 RF Amplifier and Modulator BG1 27.145MHz Oscillator BG2, XTAL ANT 27.145MHZ MODEL NO.: 4016

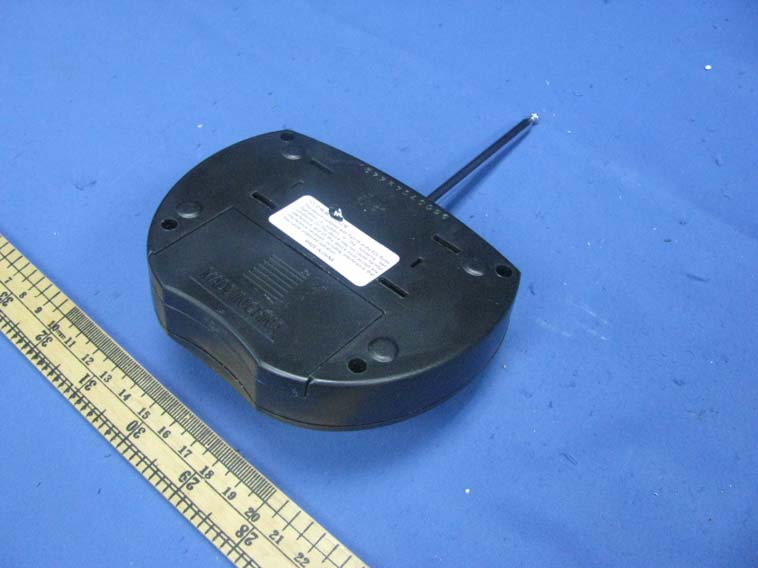

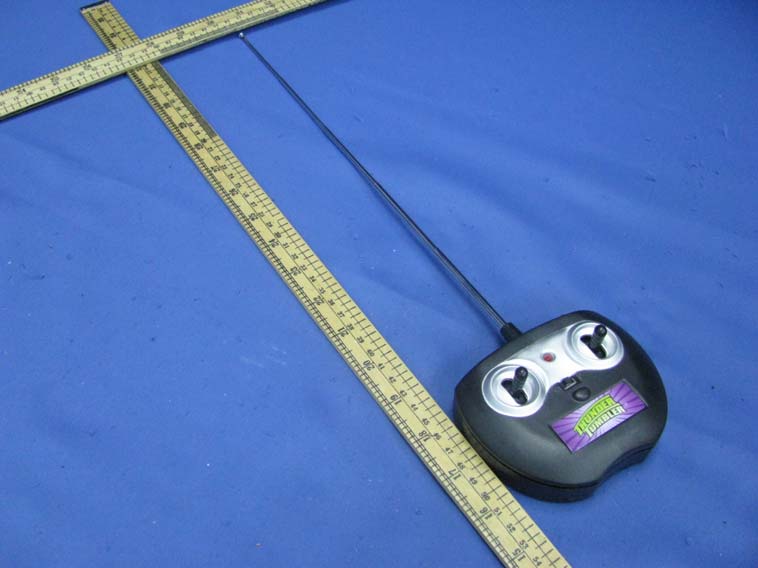

FCC ID: R6UMC4016-T27M Ophoto1 Ophoto2 FCC ID: R6UMC4016-T27M Ophoto3 Ophoto4

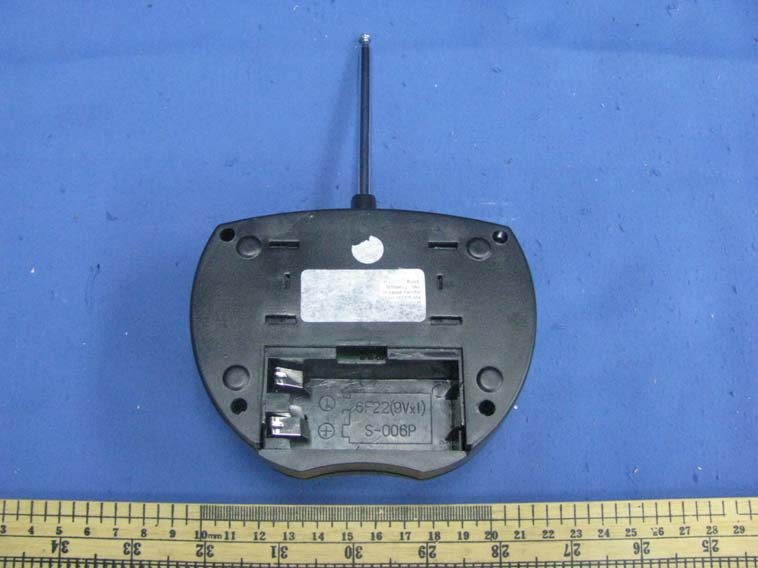

FCC ID: R6UMC4016-T27M Iphoto1 Iphoto2 FCC ID: R6UMC4016-T27M Iphoto3 Iphoto4

FCC ID: R6UMC4016-T27M Technical Description : The brief circuit description is listed as follows : - BG1 and associated circuit act as RF Amplifier. - IC1 TX-2 and associated circuit act as Encoder. - K1-K4 and associated circuit act as Control Keys. - BG2, XTAL and associated circuit act as 27.145MHz Oscillator. Antenna Used : An external, Telescope-type antenna has been used.

27.145MHz Model No.: 4016

Ref 10 dBmAtt 30 dB * A TDF 3DB RBW 3 MHz * VBW 3 MHz Center 27.145 MHz5 ms/ SWT 50 ms CLRWR SGL 1 AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -32.13 dBm 5.900000 ms 2 Delta 2 [T1 ] 0.34 dB 19.800000 ms Date: 7.APR.2010 20:02:36 Ref 10 dBmAtt 30 dB * A TDF 3DB RBW 3 MHz * VBW 3 MHz CLRWR Center 27.145 MHz2.5 ms/ SWT 25 ms SGL 1 AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -31.50 dBm 2.350000 ms 2 Delta 2 [T1 ] 0.24 dB 19.750000 ms Date: 7.APR.2010 20:03:50 Ref 10 dBmAtt 30 dB * A TDF 3DB RBW 3 MHz * VBW 3 MHz CLRWR Center 27.145 MHz2.5 ms/ SWT 25 ms SGL 1 AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -29.84 dBm 2.900000 ms 2 Delta 2 [T1 ] -1.48 dB 550.000000 μs Date: 7.APR.2010 20:04:19 Ref 10 dBmAtt 30 dB * A TDF 3DB RBW 3 MHz * VBW 3 MHz CLRWR Center 27.145 MHz2.5 ms/ SWT 25 ms SGL 1 AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -29.75 dBm 13.900000 ms 2 Delta 2 [T1 ] -1.68 dB 1.600000 ms Date: 7.APR.2010 20:04:40
