R6U6006-27MR/C SPINNING CAR

FCC NOTE: THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

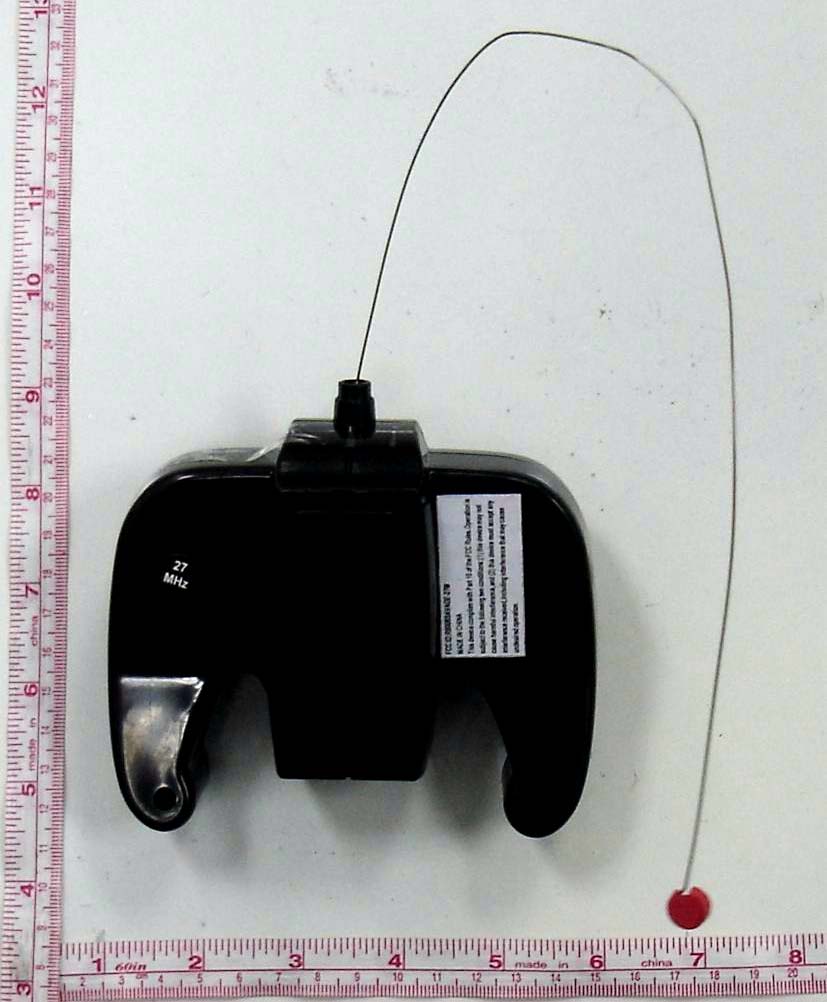

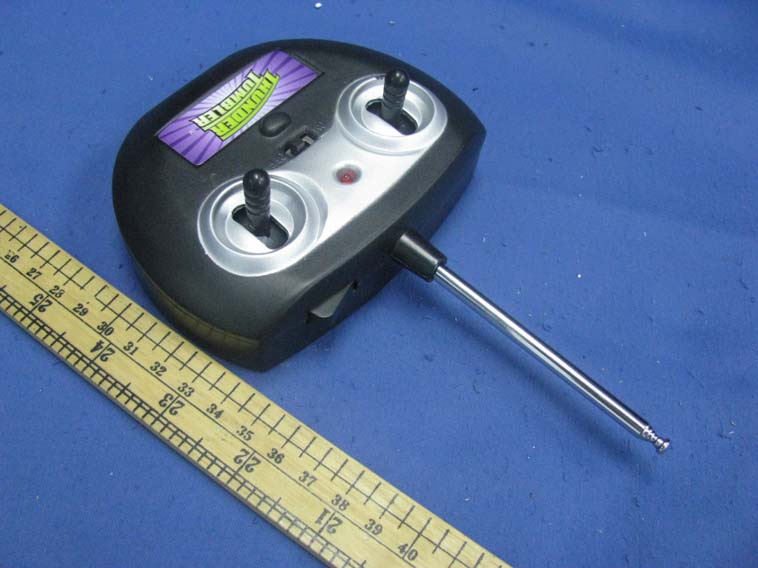

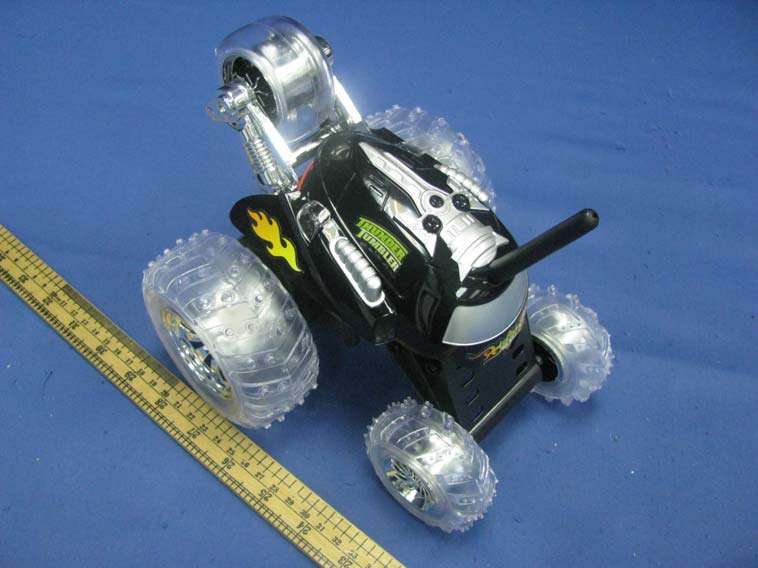

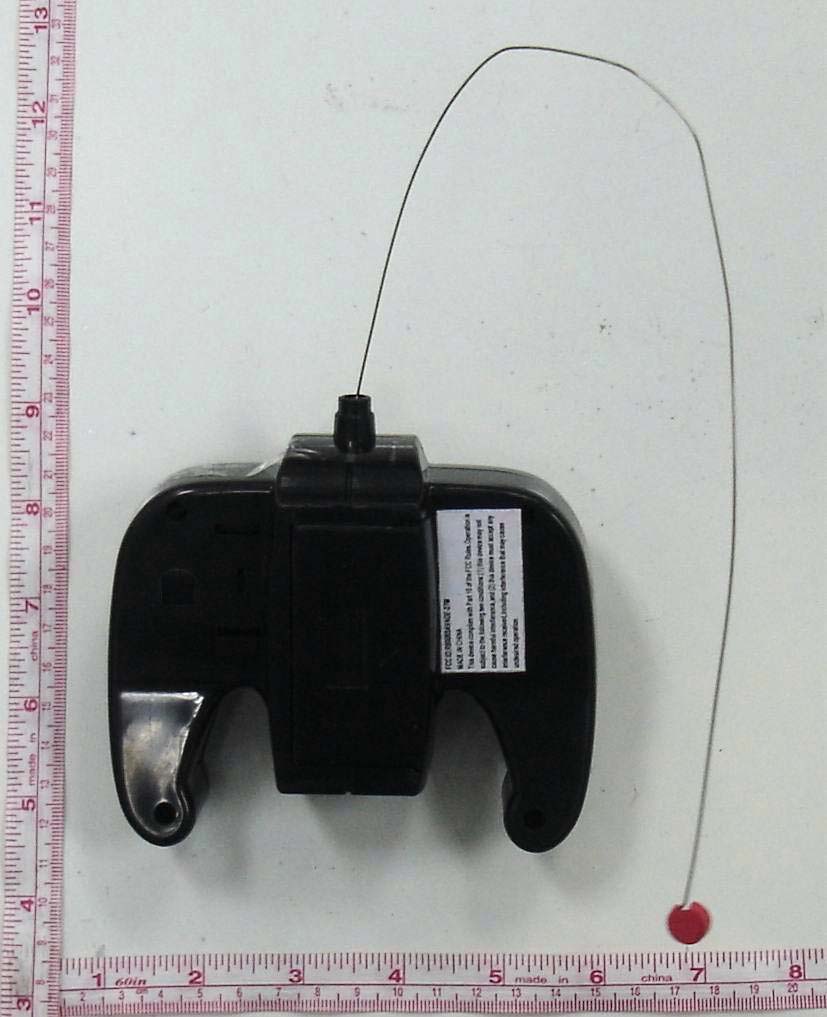

EUT - Front View EUT - Rear View EUT - Top View EUT - Right View EUT - Left View

FCC ID Label Sample for FCCID: R6U6006-27M R6U6006-49M

PRODUCT DESCRIPTION The Equipment Under Test (EUT) is a Spinning Car operation at 27.14MHz. The EUT is supplied source by new 1X9V alkaline battery. The transmitter is a 2 buttons transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. And type is pulse modulation. The antenna consists of a 44cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board.

FCC PART 15 C MEASUREMENT AND TEST REPORT For YINRUN PLASTIC CRAFTS CO.,LTD Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China FCC ID: R6U6006-27M February 18, 2006 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of S&E Technologies Laboratory Ltd. This Report Concerns: Original Report Equipment Type: R/C Spinning Car Test Engineer: Tony Wu Report Number: SE06B-050E Test Date: Feb 07~Feb 16 , 2006 Reviewed By: Prepared By: S&E Technologies Laboratory Ltd Room407,Block A Shennan Garden,Hi-Tech Industrial Park, Shenzhen 518057, P.R. China. Tel: 86-755-26636573, 26630631 Fax: 86-755-26630557 YINRUN PLASTIC CRAFTS CO., LTD FCC ID: R6U6006-27M TABLE OF CONTENTS 1 - GENERAL INFORMATION..............................................................................................................3 1.1 Product Description for Equipment Under Test (EUT)............................................................3 1.2 Test Standards........................................................................................................................4 1.3 Test Summary.........................................................................................................................4 1.4 Test Methodology...................................................................................................................4 1.5 Test Facility.............................................................................................................................5 1.6 Test Equipment List and Details.............................................................................................5 2 - SYSTEM TEST CONFIGURATION.................................................................................................6 2.1 Justification.............................................................................................................................6 2.2 EUT Exercise Software...........................................................................................................6 2.3 Special Accessories................................................................................................................6 2.4 Equipment Modifications.........................................................................................................6 2.5 Basic Test Setup Block Diagram............................................................................................6 3 – DISTURBANCE VOLTAGE AT THE MAINS TERMINALS............................................................8 3.1 Measurement Uncertainty....................................................................................................... 8 3.2 Applicable Standard................................................................................................................8 3.3 Test Description......................................................................................................................8 4- RADIATED EMISSIONS ...................................................................................................................9 4.1 Measurement Uncertainty....................................................................................................... 9 4.2 Limit of Radiated Emissions..................................................................................................9 4.3 Test Equipment Used.............................................................................................................9 4.4 Test Procedure.....................................................................................................................10 4.5 Corrected Amplitude & Margin Calculation ...........................................................................10 4.6 Radiated Emissions Test Result...........................................................................................10 5- EMISSIONS WITHIN BAND EDGES..............................................................................................14 5.1 Measurement Uncertainty.....................................................................................................14 5.2 Limit of Emissions within Band Edges..................................................................................14 5.3 Test Equipment Used........................................................................................................... 14 5.4 Test Procedure.....................................................................................................................14 5.5 Emissions within Band Edges Test Result............................................................................15 Report No. SE06B-050E Page 2 of 15 FCC PART 15 C Report YINRUN PLASTIC CRAFTS CO., LTD FCC ID: R6U6006-27M 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: YINRUN PLASTIC CRAFTS CO., LTD Address of applicant: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Tel: 86-754-5509841 Fax: 86-754-5509840 Manufacturer: YINRUN PLASTIC CRAFTS CO., LTD Address of manufacturer: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Tel: 86-754-5509841 Fax: 86-754-5509840 General Description of E.U.T The YINRUN PLASTIC CRAFTS CO., LTD.’s product, model number: 6006 or the "EUT" as referred to in this report is a tramsmitter of R/C Spinning Car. The EUT is measured approximately 85mm L x 45mm W x 88mm H. The technical data has been listed following: Items Description EUT Description: R/C Spinning Car Trade Name: N/A Model No.: 6006 Rated Voltage DC 9V for Transmitter Frequency range 27.146MHz Number of channels 1 Channel Separation None Product Class: Low Power Communication Device Transmitter Measurement Procedure ANSI C63.4-2003 * The test data gathered are from the production sample provided by the manufacturer. Report No. SE06B-050E Page 3 …
