R6U6012-49MR/C PROGRAM CAR WITH SOUND

Block Dia g ram ( 49.86MHz ) RF OSC 49.86 MHz

External Photo EUT – Front View EUT- Rear View EUT- Side View EUT- Top View EUT- Bottom View

FCC ID Label Sample for FCCID: R6U6012-49M R6U6012-49M

Internal Photos EUT- Uncover View EUT- PCB View

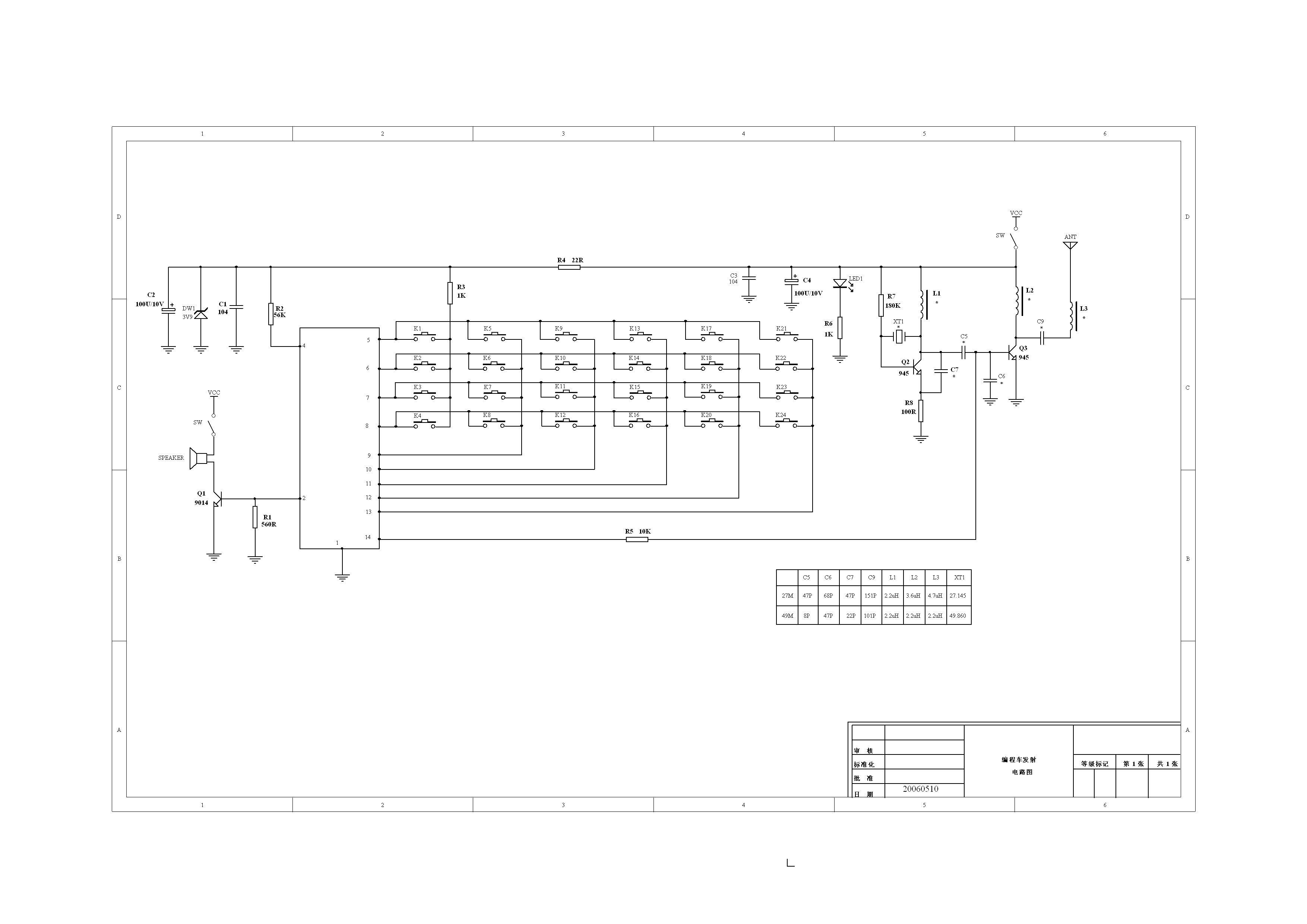

Operation Description The Equipment Under Test (EUT) is a Program Car operation at 49.86MHz. The EUT is supplied source by new 1X9V alkaline battery. The transmitter is a 2 buttons transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. And type is pulse modulation. The 49MHz crystal oscillator drives the base of Q2 the high frequency amplifier. The modulated frequency provided by IC . The output of Q2 has the matching network consisting of C6, L2, L3 and C9 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. The antenna consists of a 34cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board.

FCC PART 15 C MEASUREMENT AND TEST REPORT For YINRUN PLASTIC CRAFTS CO.,LTD Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China FCC ID:R6U6012-49M June 04, 2006 This Report Concerns: Original Report Equipment Type: R/C Program Car with Sound Test Engineer: Tony Wu Report Number: SE06E-175E Test Date: May 11~28 , 2006 Reviewed By: Prepared By: S&E Technologies Laboratory Ltd Room407,Block A Shennan Garden,Hi-Tech Industrial Park, Shenzhen 518057, P.R. China. Tel: 86-755-26636573, 26630631 Fax: 86-755-26630557 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of S&E Technologies Laboratory Ltd. YINRUN PLASTIC CRAFTS CO.,LTD FCC ID: R6U6012-49M TABLE OF CONTENTS 1 - GENERAL INFORMATION..............................................................................................................3 1.1 Product Description for Equipment Under Test (EUT)............................................................3 1.2 Test Standards........................................................................................................................4 1.3 Test Summary.........................................................................................................................4 1.4 Test Methodology...................................................................................................................4 1.5 Test Facility.............................................................................................................................5 1.6 Test Equipment List and Details.............................................................................................5 2 - SYSTEM TEST CONFIGURATION.................................................................................................6 2.1 Justification.............................................................................................................................6 2.2 EUT Exercise Software...........................................................................................................6 2.3 Special Accessories................................................................................................................6 2.4 Equipment Modifications.........................................................................................................6 2.5 Basic Test Setup Block Diagram............................................................................................6 3 – DISTURBANCE VOLTAGE AT THE MAINS TERMINALS............................................................7 3.1 Measurement Uncertainty.......................................................................................................7 3.2 Applicable Standard................................................................................................................7 3.3 Test Description......................................................................................................................7 4- RADIATED DISTURBANCES..........................................................................................................8 4.1 Measurement Uncertainty.......................................................................................................8 4.2 EUT Setup..............................................................................................................................8 4.3 Test Equipment Used.............................................................................................................8 4.4 Test Receiver Setup...............................................................................................................8 4.5 Test Procedure.......................................................................................................................9 4.6 Corrected Amplitude & Margin Calculation.............................................................................9 4.7 Radiated Emissions Test Result...........................................................................................10 5- OCCUPIED BANDWIDTH..............................................................................................................12 5.1 Measurement Uncertainty.....................................................................................................12 5.2 Limit of Occupied Bandwidth................................................................................................12 5.3 Test Equipment Used...........................................................................................................12 5.4 Occupied Bandwidth Test Result..........................................................................................12 Report No. SE06E-175E Page 2 of 13 FCC PART 15 C Report YINRUN PLASTIC CRAFTS CO.,LTD FCC ID: R6U6012-49M 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: YINRUN PLASTIC CRAFTS CO.,LTD Address of applicant: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Tel: 86-754-5509841 Fax: 86-754-5509840 Manufacturer: YINRUN PLASTIC CRAFTS CO.,LTD Address of manufacturer: Yinrun Ind, Garden, Laimei, Zone,Chenghai,Shantou City, Guangdong, China Tel: 86-754-5509841 Fax: 86-754-5509840 General Description of E.U.T The YINRUN PLASTIC CRAFTS CO.,LTD.’s product, model number: 6012 or the "EUT" as referred to in this report is a tramsmitter of R/C Program Car with Sound. The technical data has been listed following: Items Description EUT Description: R/C Program Car with Sound Trade Name: N/A Model No.: 6012 Rated Voltage DC 4.5V for Transmitter Frequency range 49.86MHz Number of channels 1 Channel Separation None Product Class: Low Power Communication Device Transmitter Measurement Procedure ANSI C63.4-2003 * The test data gathered are from the production sample provided by the manufacturer. Report No. SE06E-175E Page 3 of 13 FCC PART 15 C Report …

Text truncated - open the document above for the full version.

Test Setup Photo
