R73HPB-24G-12.4GHz FHSS TRANSCEIVER

OEM MANUAL August 2013 2.433-2.449 GHz Frequency Hopping Transceiver Module Model: D-CCA-HPB-24G-1 FCC ID: R73HPB-24G-1 REV 1 Page 2 of 8 OEM INTEGRATOR ATTESTATION a. This module is for OEM installation only. b. The OEM is responsible for ensuring that the end-user has no manual instructions to remove or install module. c. The module is limited to installation in mobile or fixed applications, according to Part 2.1091(b). d. Separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations. e. This module may only be used with antennas with a maximum gain of 2.15 dBi, including any replacement antennas, to maintain compliance and satisfying RF exposure compliance. f. Labeling instructions of finished products must be in accordance with the requirements outlined in KDB784748 D01 v07, section 8. Page 6/7 last two paragraphs which include the required instructions; example: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1” and described herein. g. The instructions/statements required per Part 15.19 and 15.21must be included in the host user’s manual (i.e. end product). Robert A. Bongiorno Chief Engineer The Sapling Company [email protected] (215) 322 – 6063 x1114 Page 3 of 8 Introduction This module is only authorized to be installed in fixed mount installation and may not be installed in a mobile or portable device. The HPB-24G-1 module is to be used in Sapling Master Clocks such as the SMA- 3000 or SMA Repeater and equivalent models. The module is only to be connected to and installed in other Sapling products. Specifications The antenna gain is +2.15dBi maximum. The maximum output power will be 30 dBm. The transmit cycle is a sequence of 80 data strings on 76 different frequencies, each transmitted for 3 msec. Every transmit cycle is 240 msec in duration (80 x 3ms). The frequency hopping pattern is proprietary to Sapling and covers the range from 2.433 to 2.449 GHz. Connections The picture shows the HPB-24G-1 RF module, connectors, and FCC ID label. HPB-24G-1 P1 FCC ID: R73 HPB - 24G - 1 P2 P1 POWER & DATA P2 PROGRAMMING Page 4 of 8 HPB-24G-1 Connectors Installed The picture on the next page shows the HPB-24G-1 RF module in a repeater. It shows the SMA-1SR-G0000-1 and the connectors to the rest of the Sapling Wireless Clock System. P1 OPERATING CONNECTOR PIN 1 5 VOLTS PIN 2 GROUND PIN 3 PPS OUT PIN 4 TXD PIN 5 RXD PIN 6 MSTR/SLV PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. P2 PROGRAMMING CONNECTOR PIN 1 TDO/TDI PIN 2 3.3 VOLTS PIN 3 TDI PIN 4 3.3 VOLTS PIN 5 TMS PIN 6 NO CONNECTION PIN 7 TCLK PIN 8 TEST PIN 9 GROUND PIN 10 NO CONNECTION PIN 11 RST PIN 12 TXD PIN 13 SHIELD PIN 14 RXD * PIN 1 IS SQUARE PAD. P2 PROGRAMMING P1 POWER & DATA Page 5 of 8 SMA-1SR-G000-1 P1 OPERATING CONNECTOR PIN 1 5 VOLTS RED WIRE PIN 2 GROUND BLACK WIRE PIN 3 PPS OUT PIN 4 TXD ORANGE WIRE PIN 5 RXD VIOLET WIRE PIN 6 MSTR/SLV WHITE WIRE PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. FCC ID: R73HPB - 24G - 1 P1 P1 POWER & DATA HPB-24G-1 5 VOLT POWER SUPPLY 5 VOLT POWER & DATA BOARD Page 6 of 8 The picture below shows the top of the SMA-1SR-G000-1 with HPB-24G-1 RF module antenna connector and the FCC ID and the Compliance Label. SMA-1SR-G000-1 SMA-1SR-G000-1 Label The label below is an example of the FCC ID and the Compliance Label. Page 7 of 8 Installed The picture below shows the HPB-24G-1 RF module in a master clock. It shows the SMA-3S0-G008-1 and the connectors to the rest of the Sapling Wireless Clock System. SMA-3S0-G008-1 The picture below shows the top of the SMA-3S0-G008-1 with HPB-24G-1 RF module antenna connector and the FCC ID and the Compliance Label. SMA-3S0-G008-1 FCC ID: R73HPB - 24G - 1 HPB-24G-1 P1 P1 OPERATING CONNECTOR PIN 1 5 VOLTS RED WIRE PIN 2 GROUND BLACK WIRE PIN 3 PPS OUT PIN 4 TXD ORANGE WIRE PIN 5 RXD VIOLET WIRE PIN 6 MSTR/SLV WHITE WIRE PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. P1 POWER & DATA 5 VOLT POWER SUPPLY RELAY & CONTROL BOARD Page 8 of 8 SMA-3S0-G008-1 Label The label below is an example of the FCC ID and the Compliance Label. Operation 1. The HPB-24G-1 RF module, as a repeater transceiver, will receive time from another transmitter or clock and re-transmit the time. 2. The HPB-24G-1 RF module, as a master clock transceiver, will transmit the time for 240 msec and receive the time for up to 20 seconds once a minute. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. “Changes Or Modifications Not Expressly Approved By The Party Responsible For Compliance Could Void The User's Authority To Operate The Equipment.”

USER MANUAL May 2013 2.433-2.449 GHz Frequency Hopping Transceiver Module Model: D-CCA-HPB-24G-1 FCC ID: R73HPB-24G-1 REV 2 Page 2 of 7 Introduction This module is only authorized to be installed in fixed mount installation and may not be installed in a mobile or portable device. The HPB-24G-1 module is to be used in Sapling Master Clocks such as the SMA- 3000 or SMA Repeater and equivalent models. The module is only to be connected to and installed in other Sapling products. Specifications The antenna gain is +2.15dBi. The maximum output power will be 30 dBm. The transmit cycle is a sequence of 80 data strings on 76 different frequencies, each transmitted for 3 msec. Every transmit cycle is 240 msec in duration (80 x 3ms). The frequency hopping pattern is proprietary to Sapling and covers the range from 2.433 to 2.449 GHz. Connections The picture shows the HPB-24G-1 RF module, connectors, and FCC ID label. HPB-24G-1 P1 FCC ID: R73 HPB - 24G - 1 P2 P1 POWER & DATA P2 PROGRAMMING Page 3 of 7 HPB-24G-1 Connectors Installed The picture on the next page shows the HPB-24G-1 RF module in a repeater. It shows the SMA-1SR-G0000-1 and the connectors to the rest of the Sapling Wireless Clock System. P1 OPERATING CONNECTOR PIN 1 5 VOLTS PIN 2 GROUND PIN 3 PPS OUT PIN 4 TXD PIN 5 RXD PIN 6 MSTR/SLV PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. P2 PROGRAMMING CONNECTOR PIN 1 TDO/TDI PIN 2 3.3 VOLTS PIN 3 TDI PIN 4 3.3 VOLTS PIN 5 TMS PIN 6 NO CONNECTION PIN 7 TCLK PIN 8 TEST PIN 9 GROUND PIN 10 NO CONNECTION PIN 11 RST PIN 12 TXD PIN 13 SHIELD PIN 14 RXD * PIN 1 IS SQUARE PAD. P2 PROGRAMMING P1 POWER & DATA Page 4 of 7 SMA-1SR-G000-1 P1 OPERATING CONNECTOR PIN 1 5 VOLTS RED WIRE PIN 2 GROUND BLACK WIRE PIN 3 PPS OUT PIN 4 TXD ORANGE WIRE PIN 5 RXD VIOLET WIRE PIN 6 MSTR/SLV WHITE WIRE PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. FCC ID: R73HPB - 24G - 1 P1 P1 POWER & DATA HPB-24G-1 5 VOLT POWER SUPPLY 5 VOLT POWER & DATA BOARD Page 5 of 7 The picture below shows the top of the SMA-1SR-G000-1 with HPB-24G-1 RF module antenna connector and the FCC ID and the Compliance Label. SMA-1SR-G000-1 SMA-1SR-G000-1 Label The label below is an example of the FCC ID and the Compliance Label. Page 6 of 7 Installed The picture below shows the HPB-24G-1 RF module in a master clock. It shows the SMA-3S0-G008-1 and the connectors to the rest of the Sapling Wireless Clock System. SMA-3S0-G008-1 The picture below shows the top of the SMA-3S0-G008-1 with HPB-24G-1 RF module antenna connector and the FCC ID and the Compliance Label. SMA-3S0-G008-1 FCC ID: R73HPB - 24G - 1 HPB-24G-1 P1 P1 OPERATING CONNECTOR PIN 1 5 VOLTS RED WIRE PIN 2 GROUND BLACK WIRE PIN 3 PPS OUT PIN 4 TXD ORANGE WIRE PIN 5 RXD VIOLET WIRE PIN 6 MSTR/SLV WHITE WIRE PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. P1 POWER & DATA 5 VOLT POWER SUPPLY RELAY & CONTROL BOARD Page 7 of 7 SMA-3S0-G008-1 Label The label below is an example of the FCC ID and the Compliance Label. Operation 1. The HPB-24G-1 RF module, as a repeater transceiver, will receive time from another transmitter or clock and re-transmit the time. 2. The HPB-24G-1 RF module, as a master clock transceiver, will transmit the time for 240 msec and receive the time for up to 20 seconds once a minute. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. “Changes Or Modifications Not Expressly Approved By The Party Responsible For Compliance Could Void The User's Authority To Operate The Equipment.”

55 44 33 22 11 D D C C B B A A 5V 3.3V 3.3V 3.3V 5V 3.3V TitleSize Document Number Rev Date: Sheet of <Doc> 2.0 <Title> A 11 Wednesday, August 14, 2013 TitleSize Document Number Rev Date: Sheet of <Doc> 2.0 <Title> A 11 Wednesday, August 14, 2013 TitleSize Document Number Rev Date: Sheet of <Doc> 2.0 <Title> A 11 Wednesday, August 14, 2013 MOSIMISOCLKENABLE MSP430TEXAS INSTRUMENTS PROCESSOR CC2500TEXAS INSTRUMENTS RF TRANSCEIVER IC MATCHINGNETWORK SPI SERIAL COMMUNICATIONS TO / FROM THE PROCESSOR HALF-WAVE, CENTER FED DIPOLE 2.4GHz HIGH-POWER-BOARD / BLOCK DIAGRAM ALM-31222 AVAGO 2.4GHz POWER AMPLIFIER IC +30 DBm OUTPUT @ 50 OHM +18 DBm OUTPUT @ 50 OHM CC2591TEXAS INSTRUMENTS RF FRONT-END IC 0 DBm OUTPUT @ 50 OHM HARMONIC FILTER #2 HARMONIC FILTER #3 HARMONIC FILTER #1 5V TO 3.3V VOLTAGE REGULATOR 110VAC / 220VAC TO 5V POWER SUPPLY 110VAC / 220VAC LINE ANT1 2.4GHz FREQUENCY / SMA BASE ANT1 2.4GHz FREQUENCY / SMA BASE Y226.000 MHzY226.000 MHz 43 12 J1 SMA CONN J1 SMA CONN 1 2 Y1 32.768KHZ Y1 32.768KHZ

The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Date: June 13, 2013 To: Federal Communications Commission Authorization and Evaluation Division From: Lars Jorgensen Subject: Agent Authorization for certification of FCC ID: R73HPB-24G-1 The Sapling Co Inc herby appoints Richard Reitz of Retlif Testing Laboratories to act as our agent in the matter of FCC filings for the certification of FCC ID: R73HPB-24G-1 The Sapling Co Inc further attests that no party to the application is subject to denial of federal benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 USA 853(a). Sincerely, Lars Jorgensen Lars Jorgensen QA Supervisor

The Sapling Company, Inc. 215.322.6063 P. 1633 Republic Road 215.322.8498 F. Huntingdon Valley, PA 19006 www.sapling-inc.com Date: June 13, 2013 To: Federal Communications Commission Authorization and Evaluation Division From: Lars Jorgensen Subject: Confidentiality Request regarding application for certification of FCC ID: R73HPB-24G-1 Pursuant to Sections 0.457 and 0.459 of the Commission’s rules, we hereby request confidential treatment of information accompanying this application as out lined below: Permanent Confidentiality Exhibit Type File Name Schematics R73HPB-24G-1Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Lars Jorgensen Lars JorgensenLars Jorgensen Lars Jorgensen Lars Jorgensen QA Supervisor The Sapling Co Inc

Page 4 of 7 SMA-1SR-G000-1 P1 OPERATING CONNECTOR PIN 1 5 VOLTS RED WIRE PIN 2 GROUND BLACK WIRE PIN 3 PPS OUT PIN 4 TXD ORANGE WIRE PIN 5 RXD VIOLET WIRE PIN 6 MSTR/SLV WHITE WIRE PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. FCC ID: R73HPB - 24G - 1 P1 P1 POWER & DATA HPB-24G-1 5 VOLT POWER SUPPLY 5 VOLT POWER & DATA BOARD SMA-1SR-G000-1, Repeater, External Photographs FCC ID: R73HPB-24G-1 SMA-1SR-G000-1 with Antenna, Repeater, External Photographs Page 6 of 7 Installed The picture below shows the HPB-24G-1 RF module in a master clock. It shows the SMA-3S0-G008-1 and the connectors to the rest of the Sapling Wireless Clock System. SMA-3S0-G008-1 The picture below shows the top of the SMA-3S0-G008-1 with HPB-24G-1 RF module antenna connector and the FCC ID and the Compliance Label. SMA-3S0-G008-1 FCC ID: R73HPB - 24G - 1 HPB-24G-1 P1 P1 OPERATING CONNECTOR PIN 1 5 VOLTS RED WIRE PIN 2 GROUND BLACK WIRE PIN 3 PPS OUT PIN 4 TXD ORANGE WIRE PIN 5 RXD VIOLET WIRE PIN 6 MSTR/SLV WHITE WIRE PIN 7 STBY PIN 8 NO CONNECTION * PIN 1 IS SQUARE PAD. P1 POWER & DATA 5 VOLT POWER SUPPLY RELAY & CONTROL BOARD SMA-3S0-G008-1, Master Clock, External Photographs SMA-3S0-G008-1 with Antenna, Master Clock, External Photographs

SMA-1SR-G000-1, Repeater Label Sample SMA-3SO-G008-1, Master Clock Label Sample

SMA-1SR-G000-1, Repeater Label Location SMA-3SO-G008-1, Master Clock Label Location FCC ID: R73HPB-24G-1

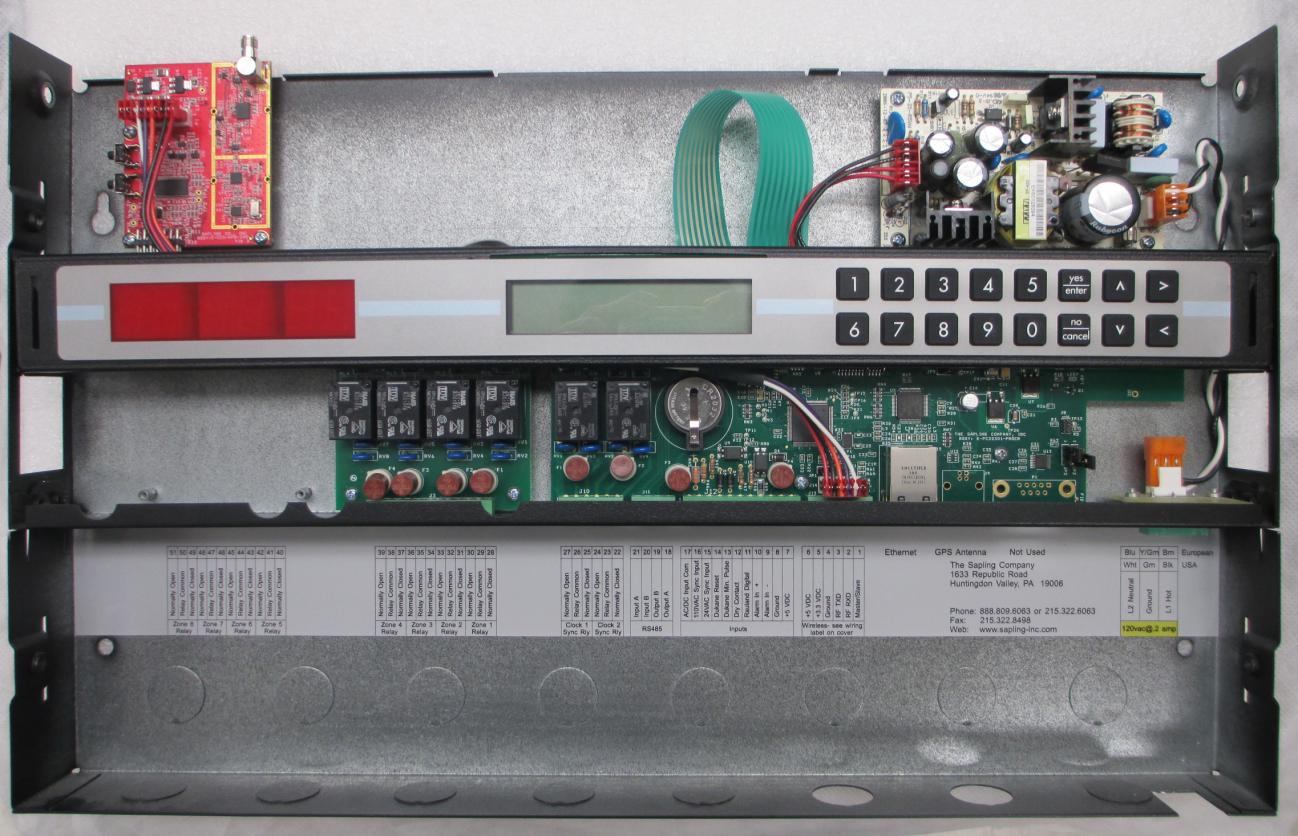

Model Number: D-CCA-HPB-24G-1, Internal Photograph, Top Model Number: D-CCA-HPB-24G-1, Internal Photograph, Bottom FCC ID: R73HPB-24G-1 Model Number: D-CCA-HPB-24G-1 installed in SMA-1SR-G000-1 (Repeater), Internal Photograph Model Number: D-CCA-HPB-24G-1 installed in SMA-3S0-G008-1 (Clock), Internal Photograph

HPB Operational Description August 9, 2013 This information contained in this document is Proprietary and Confidential information of The Sapling Company Inc. GENERAL DESCRIPTION The High Power Board (HPB) uses RF communications for building wide clock synchronization and is the "Master Transceiver" for the system. The HPM uses the 2.4 GHz ISM frequency band to provide communications clock to clock. The HPB uses the Texas Instruments CC2500 RF Transceiver, the Texas Instruments CC2591 RF Front End, the Avago ALM-31222 Power Amplifier (PA) and the Texas Instruments MSP430F2252 microcontroller. The antenna is external to the board. The antenna connector is an SMA type. The board shall meet all FCC requirements for license free operation in the 2.4GHz ISM band. The receiver input sensitivity shall be better than 104 dBm while transmitter output shall be up to +30dBm. 1.1 Overview The HPB is designed to connect to only Sapling Digital Systems. The HPB provides RF communications using the CC2500 RF transceiver chip as the basis for a complete RF transceiver. The CC2591 RF Front-End adds an LNA (Low-Noise-Amplifier) to improve receiver sensitivity and an output PA (Power-Amplifier) to increase the output power to +18dBm. The final power output of +30dBm is provided by the Avago ALM-31222 PA. The MSP430F2252 microcontroller controls the CC2500 through a SPI interface and also controls receiver and transmitter signal routing RF switches. 1.2 RF Section The CC2500 is the heart of the RF section. It contains the input LNA, mixer, synthesizer, demodulator, IF amplifier, RSSI circuitry, and transmit PA in one chip. The CC2591 provides an additional receiver LNA and transmit PA while the Avago ALM- 31222 boosts the transmit output power. The required external antenna is a half-duplex, center-fed type, optimized for the 2.4GHz ISM frequency band. The antenna is provided by Sapling for the customer's use. 1.2.1 Receive The input sensitivity of the CC2500 is typically -104 dBm. The antenna input is filtered and matched to the CC2500 input. The CC2591 provides additional signal gain by use of its LNA. RF Network The receiver turns ON 5 seconds before the estimated receive time and waits for up to 15 seconds to get the signal. During this time the receiver changes frequency every 3 ms. The receiver is on once a minute. 1.2.2 Transmit The output of the CC2500 is matched and filtered to the CC2591. The maximum output power of the CC2500 is 0 dBm. This signal is amplified by the CC2591 and has a maximum output, after filtering, of 18 dBm and is presented to the ALM-31222. The ALM-31222 output of up to +30dBm is fed through RF switches to the antenna connector. The ALM-31222 is further filtered and matched ahead of the SMA antenna connector/antenna. The transmit cycle is a sequence of 80 data strings on 76 different frequencies, each transmitted for 3 msec. Every transmit cycle is 240 msec in duration (80 x 3ms) and this occurs once each minute. The frequency hopping pattern is proprietary to Sapling but covers the range from 2.433 Ghz to 2.449 Ghz. The transmitter’s pseudorandom hoping sequence table is attached at the bottom of this document. 1. Detailed Operational Description: There are 76 discrete channels used. There is a 200Khz separation between adjacent channels but due to the hopping table, the closest carrier frequencies are 400 KHz apart. At each transmission cycle (once every minute), 80 channels are transmitted. Assume the transmitter begins at line #1 in the table (channel 43). Channels associated with lines 1 through 76 are transmitted, followed by transmitting channels associated with lines 1 through 4, for a total of 80 channels. After one minute, channels associated with lines 5-76 are transmitted, followed by transmitting channels associated with lines 1-8, for a total of 80 channels. After another minute, channels associated with lines 9-76 are transmitted, followed by transmitting channels associated with lines 1-12, again for a total of 80 channels. And so on. For example, after stopping at line 8 (channel 7), the next sequence starts at line 9 (channel 27). To be clear, Sapling’s clocks do not require receiving the time signal consistently because only a time correction is required. Each clock has an internal Real-Time-Clock that is reasonably accurate. Hence, the receivers are not synched to the transmitter in the normal use of frequency hopping systems. Any successfully received channel updates the internal Real-Time-Clock for the exact time. The system is much more random in terms of when the signal is received than standard hopping systems because so little data is exchanged (Time) and only one channel needs be successful in matching the receiver to the transmitter. The receiver and transmitter have the same bandwidth. The receiver is open for a maximum of 7 seconds or until the data is received. The Receiver hops every 100ms. Sapling Proprietary Psedo-Random Hopping Table 2.4GHz Channel Frequencies and Sequencing Line # Start Frequency Step Next Channel Channel Frequency 1 2433 0.2 43 2441.6 2 2433 0.2 16 2436.2 3 2433 0.2 46 2442.2 4 2433 0.2 33 2439.6 5 2433 0.2 30 2439.0 6 2433 0.2 13 2435.6 7 2433 0.2 25 2438.0 8 2433 0.2 7 2434.4 9 2433 0.2 27 2438.4 10 2433 0.2 5 2434.0 11 2433 0.2 17 2436.4 12 2433 0.2 10 2435.0 13 2433 0.2 24 2437.8 14 2433 0.2 31 2439.2 15 2433 0.2 37 2440.4 16 2433 0.2 6 2434.2 17 2433 0.2 47 2442.4 18 2433 0.2 29 2438.8 19 2433 0.2 2 2433.4 20 2433 0.2 15 2436.0 21 2433 0.2 12 2435.4 22 2433 0.2 32 2439.4 23 2433 0.2 51 2443.2 24 2433 0.2 9 2434.8 25 2433 0.2 26 2438.2 26 2433 0.2 22 2437.4 Line # Start Frequency Step Next Channel Channel Frequency 27 2433 0.2 49 2442.8 28 2433 0.2 39 2440.8 29 2433 0.2 42 2441.4 30 2433 0.2 44 2441.8 31 2433 0.2 1 2433.2 32 2433 0.2 69 2446.8 33 2433 0.2 21 2437.2 34 2433 0.2 57 2444.4 35 2433 0.2 75 2448.0 36 2433 0.2 35 2440.0 37 2433 0.2 3 2433.6 38 2433 0.2 41 2441.2 39 2433 0.2 50 2443.0 40 2433 0.2 36 2440.2 41 2…

Text truncated - open the document above for the full version.

The Sapling Company, Inc. (SAP) E-CCA-HPB-24G-1 Rev 2c Circuit Card Assy, HPB 2.4GHz for Wireless Digital Clocks 5/23/2013 D-PCB-HPB-24G-1PCB For High Power 2.4GHz BD F 1.00 Item: 1 LINECOMPONENTDESCRIPTION U/MLOCATION PART NUMBERMANUFACTURER 1 E-CR26MHZ-16PFCRYSTAL, 4-PIN, 26 MHZ, 16PF, 1.00 Y2ABMM2-26.000HMZ--1-B1-TAbracon Corporation 2 E-ICSN74LVC1G17Single Schmitt-Trigger Buffer 2.00 U3,U5SN74LVC1G17DBVRTexas Instruments 3 E-DO-NOT-POPDo Not Populate Component 5.00 FL1,SB1,SB2,SW1,SW2 XXXXXXXXXX 4 E-DSMA6J10A-TRDIODE, TRANSIL 600W 10V UNIDIR 1.00 D1SMA6J10A-TRSTMicroelectronics 5 E-DFBAV99LT1DIODE, SOT23, BAV99-TP, DUAL S 1.00 D2BAV99LT1GON Semiconductor 6 E-LEDS1005CGCKLED, GREEN, SMT, 1X0.5MM(0402) 1.00 LED1APHHS1005CGCKKingbright Corp 7 E-LEDS1005SECKLED, ORANGE, SMT, 1X0.5MM(0402), 1.00 LED2APHHS1005SECKKingbright Corp 8 E-CR32.7-ABS25Crystal, 32.768KHZ, 4-PIN, 6pf 1.00 Y1ABS25-32.768KHZ-6-1-TAbracon Corporation 9 E-ICMSP430F2252IC,TSOP38,MSP430F2252,MICROCON 1.00 U2MSP430F2252IDARTexas Instruments 10E-ICNC7SZ04P5XIC INVERTER UHS SINGLE SC70-5 1.00 U8NC7SZ04P5XFairchild Semiconductor 11E-Q2222LT1SOT23Transistor NPN SOT23, 2N2222A 2.00 Q1,Q2MMBT2222AFairchild Semiconductor 12E-CC.1UF16V0402CAP CER 0.1UF 16V 20% 0402 Y5V 8.00 C2,C4,C6,C12,C16,C18,C22,C23C0402C104M4VACTUKemet 13E-CCHF27PF50V42CER CAP, High-Freq 27 PF 50V+/13C13,C14,C15,C17,C20,C21,C25,C26500R07S270JV4TJOHANSON TECHNOLOGY INC (VA) C27,C29,C53,C66,C69 14E-CCHF220PF50V4CER CAP, High-Freq 220 PF 50V+ 3.00 C34,C35,C65GRM155R71H221KA01DMurata Electronics North America 15E-CCHF9.1PF50V4CER CAP, High-Freq, 9.1 PF 50V 2.00 C49,C59GJM1555C1H9R1CB01DMurata Electronics North America 16E-CCHF6.8PF50V4CER CAP, High-Freq 6.8 PF 50V+ 2.00 C45,C52CBR04C689D5GACMurata Electronics North America 17E-CCHF.1UF10V42CER CAP, High-Freq 0.1 UF 10V 8.00 C10,C32,C42,C46,C57,C58,C60,C72C0402C104K8RACTUKemet 18E-CCHF1.5PF50V4CER CAP, High-Freq, 1.5 PF 50V 1.00 C51GJM1555C1H1R5CB01DMurata Electronics North America 19E-CCHF2.7PF50V4CER CAP, High-Freq 2.7 PF 50V+ 1.00 C53GJM1555C1H2R7CB01DMurata Electronics North America 20E-CCHF1UF16V805CER CAP, High-Freq 1 UF 16V+/- 1.00 C28GRM21BR71C105KA01LMurata Electronics North America 21E-CCHF100PF50V4CER CAP, High-Freq 100 PF 50V+ 15.00 C1,C33,C38,C40,C47,C54,C55,C56 GRM1555C1H101JZ01DMurata Electronics North America C62,C63,C67,C71,C74,C75,C76 22E-CONMR2X7TH0.1CON,RM,2X7,0.1 1.00 P2TSW-107-08-T-D-RASamtec Inc 23E-CON22232081THCON,0.1" SP MOLEX (8PIN) MALE 1.00 P122-23-2081Molex Inc 24E-INLQW15AN4N3CINDUCTOR,0402, 4.3NH,750mA,+/- 2.00 L2,L4LQW15AN4N3C00DMurata Electronics North America 25E-INLQW15AN1N5BINDUCTOR,0402, 1.5NH,1000mA,+/ 1.00 L3LQW15AN1N5B00DMurata Electronics North America 26E-INLQG15HS2N7SINDUCTOR,0402, 2.7NH,300mA,+/-0.3 1.00L5LQG15HS2N7S02DMurata 27E-INBLM15HB221SChip Ferrite Bead, 220 OHM 250 2.00 L6,L7BLM15HB221SN1DMurata Electronics North America 28E-R47K5%0402RES 47K OHM 5% 1/16W 0402 SMD 1.00 R2RC0402JR-0747KLYageo 29E-INLQG15HS3N3SINDUCTOR,0402, 3.3NH,300mA,+/-0.3 1.00 L10LQG15HS3N3S02DMurata 30E-R0-5%0402RES 0 OHM 5% 1/16W 0402 SMD 3.00 R10,R11,R25RC0402JR-070RLYageo 31E-R4.3K1%0402RES 4.3K OHM 1/10W 1% 0402 SMD 1.00 R22RC0402FR-074K3LYageo 32E-R220-5%0402RES 220 OHM 5% 1/16W 0402 SMD 1.00 R16RC0402JR-07220RLYageo 33E-R10K5%0402RES 10K OHM 5% 1/16W 0402 SMD 5.00 R3,R6,R20,R23,R24RC0402JR-0710KLYageo 34E-R100K5%0402RES 100K OHM 5% 1/16W 0402 SMD 1.00 R13RC0402FR-07100KLYageo 35E-R100-5%0402RES 100 OHM 5% 1/10W 0402 SMD 10.00 R7,R8,R9,R12,R14,R15,R17,R18,R19,R26RC0402JR-07100RLYageo 36E-R680-5%0402RES 680 OHM 5% 1/10W 0402 SMD 2.00 R4,R5RC0402JR-07680RLYageo 37E-R56K1%0402RES 56K OHM 1% 1/10W 0402 SMD 1.00 R21RC0402FR-0756KLYageo 38E-CON1X1TH0.1Connector, TSW-101-07-G-S Samt 1.00 TP3TSW-101-07-G-SSamtec Inc 39E-ICCC2500RTKRIC RF TXRX SNGL-CHIP LP 20-QFN 1.00 U9CC2500RTKRTexas Instruments 40E-ICCC2591RGVIC RF FRONT END 2.4GHZ 16QFN 1.00 U10CC2591RGVRTexas Instruments 41 E-CCHF10UF10V12CER CAP, High-Freq 10 UF 10V+8 3.00 C3,C7,C9GRM329F51A106ZA01DMurata 42E-CCHF20PF50V42CER CAP, High-Freq 20 PF 50V+/ 2.00 C19,C24GJM1555C1H200JB01DMurata 43E-CC2.2UF10V402CER CAP, Multilayer 2.2 UF 10V 2.00 C48,C70C1005X5R1A225KTTDK 44E-CCHF.01UF25V4CAP CER, High-Freq 0.01 UF 25V 4.00 C30,C31,C41,C68C1005X7R1E103JTTDK 45E-CONCONSMA002RF Connectors SMA Female Right 1.00 J1CONSMA002-SMDLinx Technologies 46E-INBLM15AX700SChip Ferrite Bead, 70 OHM 780m 1.00 L1BLM15AX700SN1DMurata 47E-Q2907LT1SOT23Transistor PNP, T2-SOT23 1.00 Q3MMBT2907AFairchild Semiconductor 48E-ICLM1117MPX-3IC-800MA- Low Dropout Linear R 1.00U1LM1117MPX-3.3/NOPBNational Semiconductor 49E-ICLD1117AS33TIC REG LDO 3.3V 1.2A SOT-223 1.00 U4LD1117AS33TRSTMicroelectronics 50E-ICHMC544ESwitch, GaAs MMIC T/R, DC-4.0 2.00 SW3,SW4HMC544EHITTITE 51E-ICALM-31222-BIC AMP 1W PA 2GHZ 22MCOB 1.00 U11ALM-31222-BLKGAvago Technologies 52E-CCHF1000PF50VCER CAP, High-Freq,1000 PF 50V 4.00 C11,C36,C37,C43GRM1555C1H102JA01DMurata 53E-CCHF15PF50V42CER CAP, High-Freq 15 PF 50V+/ 1.00 C61GJM1555C1H150JB01DMurata 54E-CCHF2.2UF6.3VCER CAP, High-Freq 2.2 UF 6.3V 2.00 C64,C73GRM155R60J225ME15DMurata 55E-INLQG15HS5N1SINDUCTOR,0402, 5.1NH,300mA,+/- 1.00 L8LQG15HS5N1S02DMurata 56E-INLQG15SH1N1SINDUCTOR,0402, 1.1NH,300mA,+/- 1.00 L9LQG15HS1N1S02DMurata 57E-IC74LVC1G17DCBuffers & Line Drivers Single Schmitt-Trgr SC-70-5 2.00 U7,U12SN74LVC1G17DCKRG4Texas Instruments 58E-CC2.2PF50V402CER CAP 2.2PF 50V+/-.25PF 0402 2.00C5,C8GRM1555C1H2R2CZ01DMurata 59E-CCHF1PF50V402CER CAP, Hi-Freq 1.0 PF 50V+/-.1PF 0402 Multilayer 2.00C39,C44GJM1555C1H1R0BB01DMurata 60E-CCHF0.7PF50V4 CER CAP,Hi-Freq, 0.7 PF 50V+/-0.05pF 0402 Multila1.00C50GJM1555C1HR70WB1DMurata 61E-R1K5%0402RES 1K OHM 5% 1/16W 0402 SMD 1.00R1RC0402FR-071KLYageo 62E-FL748112024RF Filter, Low Pass WE-LPF 2.00 FL2,FL3 748112024WURTH ELECTRONICS 63E-ICSN74LVC1G07IC BUFF/DVR NON-INVERT SOT23-5 1.00 U6SN74LVC1G07DBVRTI

Retlif Testing Laboratories R Report No. R-1861P-1 Page 2 of 50 Technical Information Report Number: R-1861P-1 Customer: The Sapling Company, Inc. Address: 1633 Republic Road Huntingdon, PA 19006 Manufacturer: The Sapling Company, Inc. Manufacturer Address: 1633 Republic Road Huntingdon, PA 19006 Test Sample: FHSS Transceiver Module Model Number: D-CCA-HPB-24G-1 FCC ID: R73HPB-24G-1 Type: 2.433 to 2.449 GHz Frequency Hopping Spread Spectrum Transceiver Power Requirements: 5 VDC Derived from the Host Frequency of Operation: 2.433 to 2.449 GHz Equipment Class: DSS Equipment Use: Fixed Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.247 Radio Standards Specification, RSS-210, Issue 8, June, 2010 Test Procedure: ANSI C63.4:2003 RSS-GEN, Issue 3, December 2010 Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems, FCC: DA 00-705 Retlif Testing Laboratories R Report No. R-1861P-1 Page 3 of 50 Tests Performed The test methods performed on the FHSS Transceiver Module are shown below. All testing was performed with the Transceiver Module installed in the Repeater. Spurious Radiated Emissions testing was also performed with the Transceiver installed in the Master Clock. These two (2) enclosures are representative of all configurations in which the Transceiver Module will be marketed. Table 1 - Test Methods Performed FCC Part 15, Subpart C Test Method 15.247(a)(1) Channel Separation 15.247(a)(1) 20 dB Bandwidth 15.247(a)(1)(iii) Number of Channels and Occupancy Time 15.247(b)(1) and (4) Peak Conducted Output Power 15.247(d) Spurious Emissions, 30 MHz to 25 GHz 15.247(d)/15.209(a) Field Strength of Spurious Emissions 15.207(a) Conducted Emissions, Power Leads, 150 kHz to 30 MHz Retlif Testing Laboratories R Report No. R-1861P-1 Page 5 of 50 Requirements and Test Results Requirement: FCC Section 15.247 (a)(1) Channel Separation and 20 dB Bandwidth Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals.  Results: The carrier frequencies were separated by 200 kHz which complied with the requirements specified above. FCC Section 15.247 (a)(1)(iii) Number of Channels and Occupancy Time Frequency hopping systems operating in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used.  The test sample utilized 75 channels. The average Time of Occupancy was not greater than 0.4 seconds with a period of 30 seconds. Retlif Testing Laboratories R Report No. R-1861P-1 Page 6 of 50 Requirements and Test Results (con’t) FCC Section 15.247 (b)(1) and (4) Peak Conducted Output Power (1) For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band: 0.125 watts. (4) The conducted output power limit specified in Paragraph (b) of Section 15.247 is based on the use of antenna with directional gains that do not exceed 6 dBi. Except as shown in Paragraph (c) of Section 15.247, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in Paragraph (b)(1), (b)(2) and (b)(3) of Section 15.247, as…

Text truncated - open the document above for the full version.
