R8H-BTS-03Bluetooth Speaker

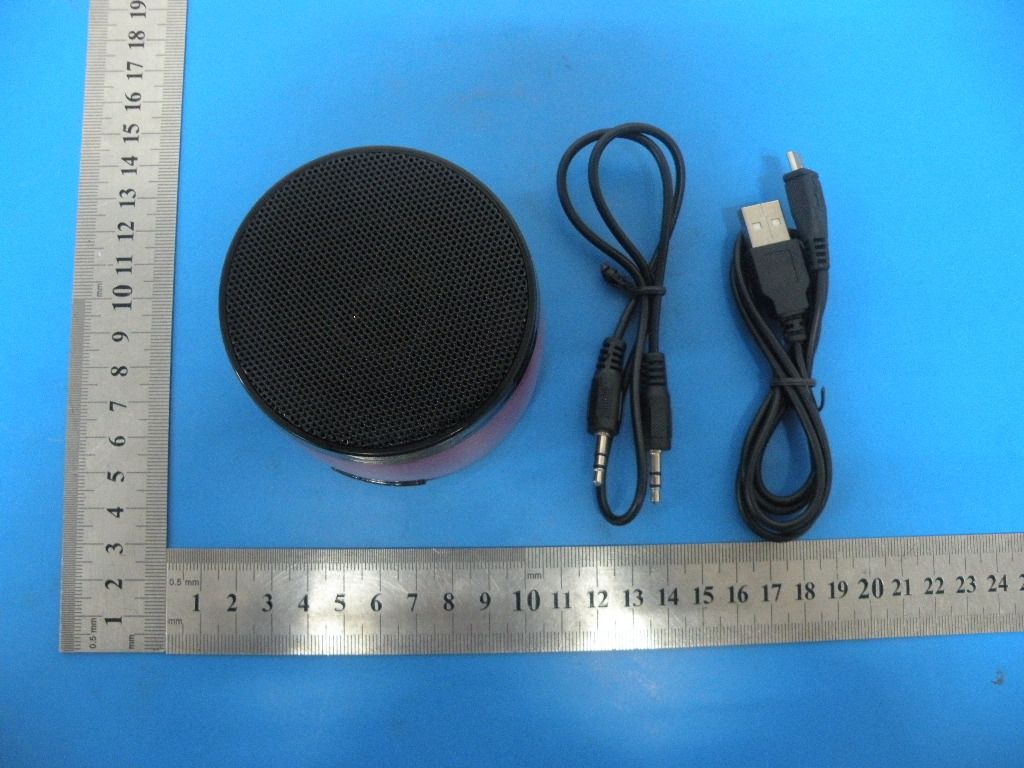

Thank you for choosing our product. You Product overviewAccessories included will enjoy its sound and form. 1. Line-in cable 2. USB charging cable BLUETOOTH SPEAKER Safety instructions Charge Integrated Battery BTS-03 Read this manual carefully before putting the appliance into operation and keep this This Bluetooth speaker is powered by manual for future reference. USER MANAL integrated rechargeable lithium battery. Charge the battery as follows: ŸDo not use the device with wet hands. 1. Insert the Micro USB plug into the DC ŸTo minimize the risk of fire or 5V socket on the unit. Connect the USB electrical shock, subject the device plug into a PC or AC/DC adaptor. The neither to rain nor to humidity. Do not DC 5V AUX LED indicator LED indicator turns red and the battery operate the device in the direct is being charged. proximity of water (e.g. bathroom, 2. When the battery is fully charged, the swimming pool, etc.). red LED indicator goes out. ŸKeep the device away from heat, direct sunlight and sharp edges. Pairing BTS-03 to mobile phone ŸKeep the device away from naked or other device flames. ŸDo not insert any metal object into the device. Risk of short circuit! ŸDo not use device in an extremely humid or muggy environment. ŸTo avoid a static charge, do not use the device in an extremely dry climate. ŸDo not repair the unit yourself but On/Off switch contact an authorised specialist. 1. Switch on the speaker. 2. Turn on your mobile phone and activate the Bluetooth function. 3. Search for Bluetooth devices. BTS-03 will show up. 4. Pair your device with BTS-03. If password is needed, type in “0000". After BTS-03 is paired with your device, connect it to your device. Once this speaker is paired and connected TroubleshootingTechnical Specifications to your mobile phone, next time when you switch on this speaker, it will connect to Audio connection: Bluetooth, and 3.5mm your mobile phone automatically as long stereo jack plug as the Bluetooth in your mobile phone is Bluetooth version: 3.0 on. Range: 10 meters Transmitting frequency: 2.4G Hz Power supply: DC5v/100-120mA Button description Battery: 3.7v 400mAh lithium Charging time: approx. 3 hours Operating time: approx. 6 hours Unit weight: approx. 0.229kg Notes & tips: 1. When using line-in (AUX) function, the volume control on the speaker has no function. - Volume down + Volume up 1. To pick up a phone call, press this button quickly. 2. To reject a call, press and hold this button for about 2 seconds. 3. To redial the latest phone phone number, press this button twice quickly. SymptomsCausesSolutions Can not switch the speaker on Battery empty Charge the battery No sound when playback via Bluetooth AUX cable is connected Remove the AUX cable Volume control no function You are using speaker via AUX Control the volume through the audio source Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment。 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. FCC ID: R8H-BTS-03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Shenzhen XinHuaMei Electronics Limited Company December 10, 2012 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ Shenzhen XinHuaMei Electronics Limited Company _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: R8H-BTS-03 Product name: Bluetooth Speaker Model: BTS-03 We affirm that between SIEMIC and __ Shenzhen XinHuaMei Electronics Limited Company__, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Linda Zou /Merchandiser Adress : Bldg 5, Taifeng Industrial Park, No.10, Jianan Road, Shajing Sub-district, Baoan District Tel. : (86) 755-33675121 Fax : (86) 755-33675299 Email : [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen XinHuaMei Electronics Limited Company December 10, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: R8H-BTS-03 We hereby request confidential treatment of information accompanying this application as outlined below: - Block diagram - Schematic - Operating description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature : Client’s name / title : Linda Zou /Merchandiser Adress : Bldg 5, Taifeng Industrial Park, No.10, Jianan Road, Shajing Sub-district, Baoan District Tel. : (86) 755-33675121 Fax : (86) 755-33675299 Email : [email protected]

20mm 20mm FCC ID: R8H-BTS-03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

ANTENNA

RF EXPOSURE STATEMENT FCC ID: R8H-BTS-03 According to KDB616217, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Rang Low Frequency (MHz) High Frequency (MHz) Center Frequency (MHz) 60/f SAR Limitation 2402 2480 2441 24.19 Maximum average measured transmitter power of this device is: Maximum average output power(mW) Max Antenna Gain(dBi) EIRP(mW) 1.68 2 2.67 Threshold at which no SAR required is 24.19 mW. Maximum Tx power is 2.67 mW EIRP. Conclusion: No SAR is required.

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: R8H-BTS-03 Page 1 of 60 TEST REPORT FCC ID: R8H-BTS-03 Applicant : Shenzhen XinHuaMei Electronics Limited Company Address : Bldg 5, Taifeng Industrial Park, No.10, Jianan Road, Shajing Sub-district, Baoan District, Shenzhen, China Equipment Under Test (EUT): Name : Bluetooth Speaker Model : BTS-03 In Accordance with: FCC PART 15.247 Report No : STE121121664 Date of Test : December 3-10, 2012 Date of Issue : December 10, 2012 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE121121664 FCC ID: R8H-BTS-03 Page 2 of 60 Contents 1. General Information ...................................................................................................4 1.1. Description of Device (EUT) ...............................................................................4 1.2. Accessories of device (EUT) ...............................................................................4 1.3. Test Lab information ............................................................................................4 2. Summary of test ..........................................................................................................5 2.1. Summary of test result .........................................................................................5 2.2. Assistant equipment used for test.........................................................................5 2.3. Block Diagram .....................................................................................................5 2.4. Test mode .............................................................................................................6 2.5. Test Conditions.....................................................................................................6 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................6 2.7. Test Equipment.....................................................................................................7 3. Maximum Peak Output power ..................................................................................8 3.1. Limit .....................................................................................................................8 3.2. Test Procedure ......................................................................................................8 3.3. Test Result ............................................................................................................8 4. 20dB bandwidth ..........................................................................................................9 4.1. Limit .....................................................................................................................9 4.2. Test Procedure ......................................................................................................9 4.3. Test Result ............................................................................................................9 5. Carrier Frequency Separation.................................................................................12 5.1. Limit ...................................................................................................................12 5.2. Test Procedure ....................................................................................................12 5.3. Test Result ..........................................................................................................12 6. Number Of Hopping Channel..................................................................................14 6.1. Limit ...................................................................................................................14 6.2. Test Procedure ....................................................................................................14 6.3. Test Result ..........................................................................................................14 7. Dwell Time .................................................................................................................17 7.1. Test limit ............................................................................................................17 7.2. Test Procedure....................................................................................................17 7.3. Test Results ........................................................................................................17 8. Radiated emissions....................................................................................................28 8.1. Limit ...................................................................................................................28 8.2. Block Diagram of Test setup ..............................................................................29 8.3. Test Procedure ....................................................................................................29 8.4. Test Result ..........................................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup Radiated Emission Test Setup in Chamber
