WATERPROOF HYRID BLUETOOTH® SHOWER SPEAKER AUTO FM SHOWER RADIO BTS-19 USER MANAL Product Overview Thank you for choosing our product. We hope you will enjoy it very much. Safety instructions Read this manual carefully before putting the appliance into operation and keep this manual for future reference. ﹒ Keep the device away from heat, direct sunlight and sharp edges. ﹒ Keep the device away from naked flames. ﹒ Do not insert any metal object into the device. Risk of short circuit! ﹒ To avoid a static charge, do not use the device in an extremely dry climate. ﹒ Do not repair the unit yourself but contact an authorised specialist. Accessories included 1pc USB charging cable Charge Integrated Battery This shower speaker is powered by integrated rechargeable polymer lithium battery. Charge the battery as follows: 1 Insert the charging cable into the DC 5V socket on the unit. Connect the USB plug into a PC or AC /DC adaptor. The LED indicator turns red and the battery is being charged. 2 When the battery is fully charged, the red LED indicator goes out. Tips: Our speaker support to show remain battery capacity in iOS devices.When Bluetooth conected, please check remain battery on top of the iOS devices: Our speaker also support Siri talking in iOS devices, please quickly press phone button twice to active Siri and talk via our speaker microphone: Pairing BTS-19 to mobile phone or other device 1. please press power button to turn on the speaker, you a tinkle sound and see red|&pink&blue LED twinkling. 2. now you can search and find the shower speaker name BTS-19 on your mobilephone, pair your device with BTS-19 (if password is needed please tpye in “0000”. 3. After BTS-19 is paired with your device, play music and enjoy it in wireless Tips: Once this speaker is paired and connected to your mobile phone, next time when you switch on this speaker, it will connect to your mobile phone automatically as long as the Bluetooth in your mobile phone is on Button description 1. LED indicator: shows working status. 2. Multi button: power on/off, Bluetooth/FM switch 3. Phone button: music play/pause, phone answer/hangup/redial/active Siri 4. Micrphone: speak towards the microphone 5. Previous button: previous music, volume down, frquency down search. 6. Next Button: next music, volume up, frequency up search. FM radio function: When the speaker in power on, please press multi function button to switch on FM radio function and hold press on previous/next button to select local broadcasting. You may onect with accessory USB cable to improve FM effect. Troubleshooting Symptoms Causes Solutions Cannot power on the speaker Battery empty Recharge the battery Unable to pair the speaker Speaker is paird with other device Trun other device Bluetooth off then repair No FM radio FM signal is too weak Connect with accessory USB charge cable to increase signal Cannot active Siri Siri is not turn on at iOS device Turn on iOS Siri function No music sound Volume is too small Turn volume up by hold and press Technical Specifications Bluetooth support: 3.0+EDR Range: 10 meters Bluetooth frequency: 2.4G Hz FM Frequency: 87.8-108.0MHz Power supply: DC5V/100-120mA Battery: 3.7V 500mAh polymer lithium Charging time: approx. 3 hours Operating time: approx. 8 hour IP grade: IPx4 Unit weight: approx. 0.16kg FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.

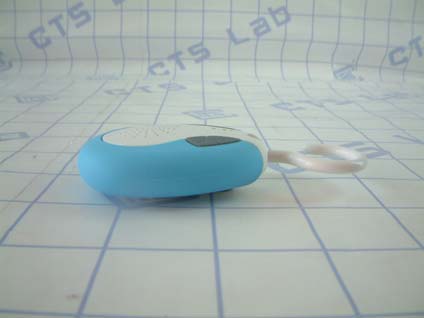

FCC ID: R8HBTS-19 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3131125-01064-E Page 1 of 2 1.External Photos of the EUT External view-1 External view-2 External view-3 FCC ID: R8HBTS-19 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3131125-01064-E Page 2 of 2 External view-4 External view-5 External view-6
