1 Bluetooth Water Resistant Speaker Model #: NV-03304 INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 2 Getting started • Remove the Bluetooth speaker & accessories from the box. • Remove all packaging from the Bluetooth speaker. • Retain instructions for future reference • Place the packaging inside the box to either store or dispose of safely. In the Package • Bluetooth Wireless Speaker • AUX Cable • USB Charging Cord • Instruction Manual Features • Enjoy music wirelessly • IPX4 water resistant • Easy to switch between calls and music • Answer and end a call at click of a button. • Volume Control • Every time the speaker is turned on, it connects to last connected device automatically • Built-in rechargeable battery • Clear sound with bass effect • Work Time up to 10 hours • Standby time up to 230 hours Safety Instructions Keep the unit away from heat sources, direct sunlight. Do not use the unit if it has been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. Do not put objects into any of the openings. Keep the unit free from dust, lint etc. Do not use this unit for anything other than its intended use. Keep the unit out of reach of children. This product is not a toy. 3 Description of Parts INSTRUCTIONS FOR USE Charging Instructions The speaker comes with a built in rechargeable battery. Before using it for the first time it is recommended you charge the battery fully. Connect the USB cable to a computer USB port and the Micro USB plug to the charging slot of the speaker. The Red LED illuminates while the speaker is being charged. It takes around 4-5 hours for the unit to fully charge. When the battery is fully charged the red LED will turn off. When the battery is low, you can hear “No battery, please re-charge” form speaker every 1 minutes. When this occurs, please charge the speaker. 1 Micro USB charging slot 2 Battery Charging Indicator 3 on/off switch 4 Line in 3.5mm jack 5 Bluetooth LED Indicator 6 “-” button: Decrease Volume 7 “+“ button: Increase Volume 8 Previous track button 9 Next track button 10 Multi-function button (MFB): answer a call/end a call/reject a call/Pause/Play 11 Built-in Microphone 4 Turning on/off the speaker There is an on/off switch at the bottom of the speaker. You can turn on/off the speaker with this switch. In order to save power, put the switch to off position when the speaker is not in use. Pairing the speaker with Bluetooth devices (phone or music device) Switch on the speaker, you can hear “Bluetooth model has been open” from Speaker Place the speaker and Bluetooth device (phone or music device) so that they are no further than 3 feet apart; Activate the Bluetooth function on your Bluetooth device (phone or music device). Please refer to the manufacturer’s instructions for instructions on enabling Bluetooth on your device. Once you have activated Bluetooth on your device, select the speaker “NV-03304” from the list of available Bluetooth devices. If required, enter the password ‘0000’ to confirm & finalize pairing. Once paired successfully, the blue LED flashes one times every one seconds, and you can hear “Paired” from speaker. You can now start to use the speaker. If pairing is unsuccessful, turn off the speaker first and then re-pair following the above steps. Once you have paired the speaker with a device, the speaker will remember this device and will pair automatically when the device’s Bluetooth is activated and in range. You do not need to re-pair any previously connected devices. The speaker will attempt to automatically connect to the last device it was paired with when switched on. If you want to pair it with a new device please a long press on the MFB button and you can hear “waiting for a Pair” from Speaker. Once the speaker is paired with your device the music will transmit directly to the speaker. Please refer to your device’s user manual for further information. Function Summary Listening to Music Once the speakers are paired with your device you can stream music wirelessly through the speaker. Select the track you wish to listen to and it will be streamed to your Bluetooth speaker. Should you encounter any problems while streaming please refer your device’s user manual for further information. Control Function If your Bluetooth device supports AVCRP (Audio/Video Remote Control Profile) you can use the Bluetooth speakers to perform basic remote functions once paired while listening to music. The functions in the below table may differ depending on your device. Please refer to your device’s user manual for further information. 5 Function Operation Button Increase Volume Playing music A short press on the + button once will increase the volume Decrease Volume Playing music A short press on the - button once will decrease the volume Previous track Playing music A short press on the << button once will turn to the Previous track Next track Playing music A short press on the >> button once will turn to the next track Please note that your Bluetooth device must support AVCRP (Audio/Video Remote Control Profile) in order to operate the above functions. Making a call with the speaker Basic operation Function Operation Button Answer A Call Incoming Call Press the MFB once to answer an incoming call. Cancel calling Calling A short press on the MFB button Reject a call Incoming Call Press and hold the MFB button for 2-3 seconds End a call Incoming Call Short press the MFB button Increase Volume During a call A short press on the + button once will increase the volume Decrease Volume During a call A short press on the - button once will decrease the volume Please Note • Not all mobile phones support all the functions listed above. Please refer to your cell phone’s user’s manual for further information. • Certain functions and indication tones maybe vary depending on your mobile phone. • Whe…

Text truncated - open the document above for the full version.

Product Name: Master Model: Additional Model 列名型号 Figure 外观 Component 元件 Color 颜色 PCB 线路板 Structure 结构 Remark 备注 DP-912 Same Same Blue Same Same NV-03304 Same Same Black Same Same Differences Among These Models ( 产品差异说明 ) Wireless Bluetooth Speaker YM-306

Letter of Authorization Company: Shenzhen XinHuaMei Electronics Co., Ltd. Address: Bldg. 5, TaiFeng Industrial Park, JianAn Road, FuYong, BaoAn District , Shenzhen, China Product Name: Wireless Bluetooth Speaker Model Number: YM-306 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Linda Zou Date: 2014-7-24 Title: Merchandiser Signature of applicant: Linda

7/24/2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Shenzhen XinHuaMei Electronics Co., Ltd. FCC ID: R8HYM-306 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Shenzhen XinHuaMei Electronics Limited Company hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Block Diagram Block Diagram Block Diagram Operational Description Operational Description Operational Description Schematics Schematics Schematics Parts / BOM Parts / BOM Parts / BOM Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Shenzhen XinHuaMei Electronics Limited Company considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Shenzhen XinHuaMei Electronics Limited Company considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Signature: Linda Name: Linda Zou Company: Shenzhen XinHuaMei Electronics Co., Ltd. Title: Merchandiser Date: 2014-7-24

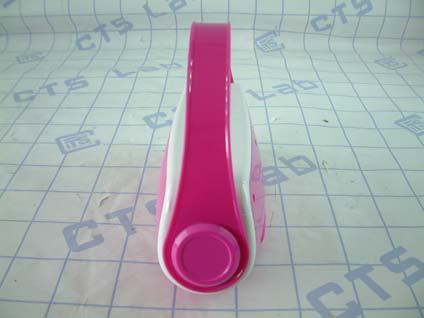

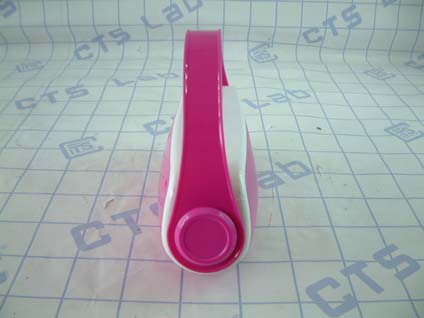

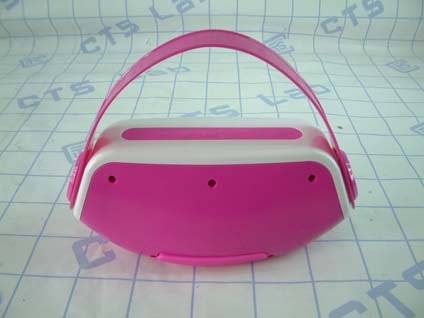

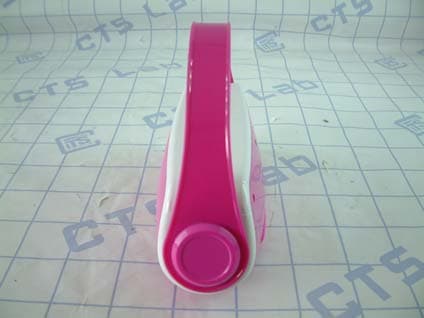

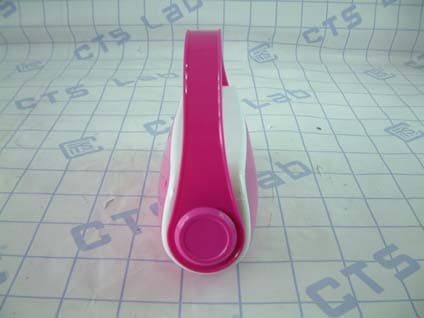

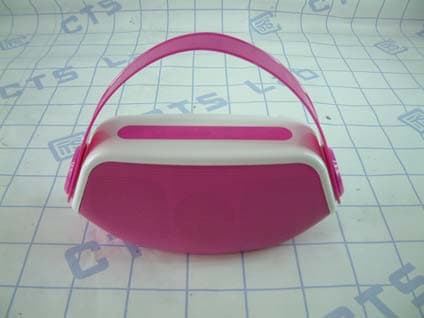

FCC ID:R8HYM-306 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140722-00791-EF Page 1 of 3 1.External Photos of the EUT External view-1 External view-2 External view-3 FCC ID:R8HYM-306 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140722-00791-EF Page 2 of 3 External view-4 External view-5 External view-6 FCC ID:R8HYM-306 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140722-00791-EF Page 3 of 3 External view-7
