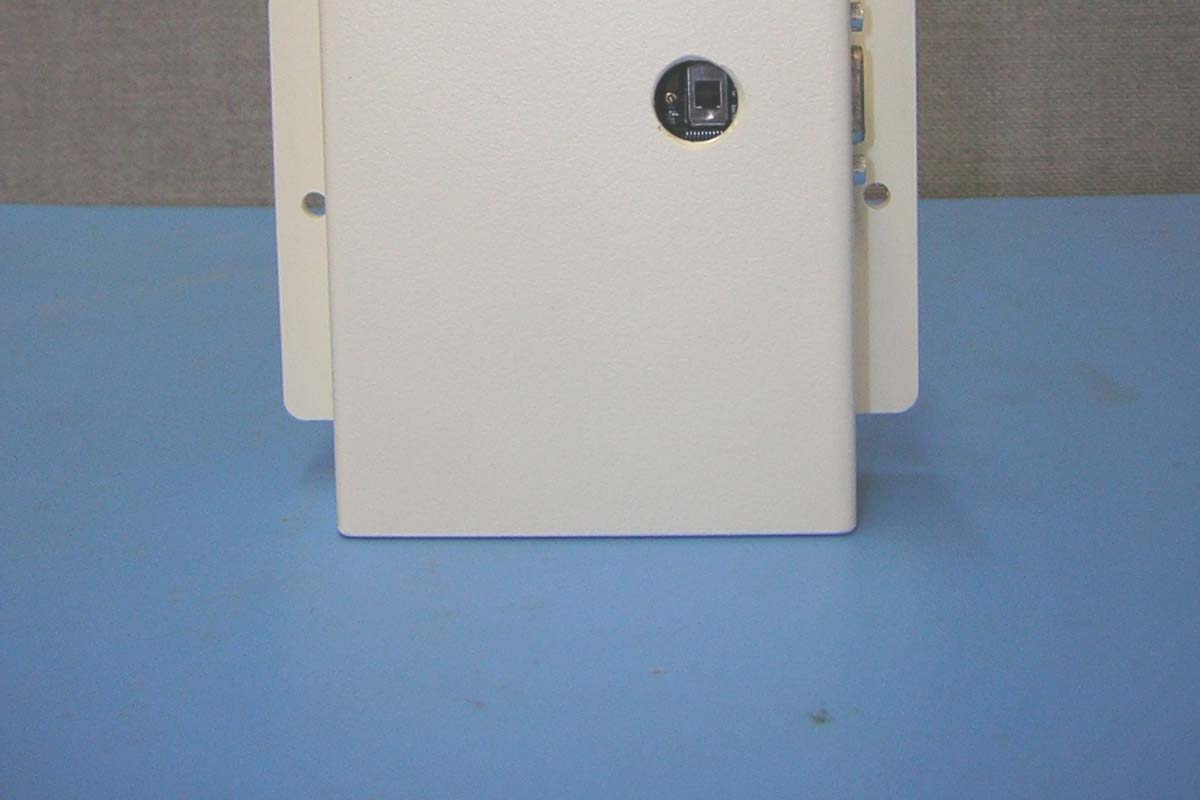

R8N-GW-5209Wireless Sensor Networking Device

Document Number:DOC-0005 Revision:01 Released:July 2004 EK-5209-5 Evaluation Kit i-Bean ® 916 MHz Wireless Sensor Network User’s Guide COPYRIGHT This manual is produced and copyrighted by Millennial Net, Inc. Any use or reproduction of the contents of this manual without the prior written consent of Millennial Net, Inc. is strictly prohibited. NOTICE All title and copyrights to this document are owned by Millennial Net, Inc. No part of the contents of this document may be reproduced or transmitted in any form or by any means without the written permission of Millennial Net, Inc. Millennial Net, Inc. shall not be liable for errors contained herein. Millennial Net, Inc. shall not be liable for any damages whatsoever, including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss arising out of the use of this documentation even if Millennial Net, Inc. has been made aware of the possibility of such damages. Information contained in this document is subject to change without notice. While every effort is made to ensure that the information is accurate as of the publication date, users are reminded to update their use of this document with documents published by Millennial Net, Inc. subsequent to this date. Third-party product information is for informational purposes only, and constitutes neither an endorsement nor a recommendation. Millennial Net, Inc. expressly disclaims any responsibility with respect to the performance of the third-party products. Copyright 2000, 2001, 2003, 2004 by Millennial Net, Inc. ALL RIGHTS RESERVED Printed in U.S.A. Millennial Net, Inc. 24 th Avenue Burlington, MA 01803-3304 USA 781.222.1030 EK-5209-5 Evaluation Kit User’s Guidev CAUTION All device installation, configuration, and reconfiguration must be performed only by qualified service personnel. Initialization of the product should be performed only by a qualified systems administrator. Compliance Statement FCC compliance for Millennial Net’s EK-5209-5 Evaluation Kit (916MHz, 5-3-1) consisting of the following models/components: •iB-5209 Endpoint •GW-5209 Gateway •RT-5209 Router Compliance Statement (Part 15.19) The Millennial Net EK-5209-5 Evaluation Kit complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Trademarks © 2000, 2001, 2002, 2003, 2004 Millennial Net, Inc. All rights reserved. Millennial Net TM is a trademark and i-Bean ® is a registered trademark of Millennial Net. All other trademarks are the property of their respective owners. Information subject to change. viEK-5209-5 Evaluation Kit User’s Guide EK-5209-5 Evaluation Kit User’s Guidevii Table of Contents About This Guide Audience ....................................................................................................................xiv How to Use This Guide ...............................................................................................xiv Symbols and Conventions ........................................................................................... xv Contacting Millennial Net ...........................................................................................xvi World Wide Web.................................................................................................. xvi Customer Support ................................................................................................ xvi Technical Publications........................................................................................... xvi 1 Introduction Product Overview........................................................................................................1-2 Major Features ................................................................................................... 1-2 i-Bean Network Overview............................................................................................1-3 Evaluation Kit Contents...............................................................................................1-5 Host PC Requirements ................................................................................................1-5 2 Kit Installation Installing the i-Bean Wireless Network.........................................................................2-2 Hardware Installation ..................................................................................................2-3 i-Bean Gateway Setup (GW-5209) ...................................................................... 2-3 i-Bean Router Setup (RT-5209)............................................................................ 2-6 i-Bean Endpoint Setup (iB-5209) ......................................................................... 2-9 iB-5209 Network Monitor Installation .......................................................................2-10 Installing contents of Millennial Net’s iB-5209 CD-ROM .................................... 2-10 Launching iB-5209 Network Monitor................................................................ 2-12 3 iB-5209 Network Monitor Operations iB-5209 Network Monitor Overview ............................................................................3-2 Menu Bar ........................................................................................................... 3-3 Gateway............................................................................................................. 3-4 Device Counts .................................................................................................... 3-4 Node Details.......…

Text truncated - open the document above for the full version.

2 Fourth Avenue, Burlington, MA 01803 ∑ USA ∑ 781-222-1030 ∑ 781-222-1039 FAX ∑ www.millennial.net Request for Confidentiality July 24, 2004 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB 527 Great Rd Littleton, MA 02702 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Millennial Net requests that the following documents regarding this submission for FCC ID #: R8N-GW-5209 be kept confidential: 1. Schematics 2. Block Diagram 3. Circuit/Technical Description The material above contains technical data, which would customarily be guarded from competitors. Sincerely, Jason S. Xiao Principle RF System Engineer Millennial Net, Inc July 24, 2004

Work Order: E0452 FCC ID: R8N-GW-5209 IC: 5127A-GW5209 Work Order: E0452 FCC ID: R8N-GW-5209 IC: 5127A-GW5209 Work Order: E0452 FCC ID: R8N-GW-5209 IC: 5127A-GW5209

FCC Label 2.5" 1" 0.67" 1.12"

FCC, IC Identification Labels FCC and IC Identification A single label will be used for both FCC and ISC (Industry Canada) identification numbers. The label is shown below. Material: Polycarbonate Adhesive: SCOTCH - 3M 486MP High Performance Adhesive. Color: The actual label will be Black lettering on a White background. The diagram below shows the label. The size is 2.50 inches by 1.00 inches. The thickness is 0.05 inch. FCC and ISC Identification Label Placement Both identification labels are placed on the front of enclosure as indicated in the actual drawing in a separate PDF file. Millennial Net, Inc Model: GW-5209 FCC ID: R8N-GW-5209 IC: 5172A-GW5209 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

ZONEREVDESCRIPTIONDATE APPROVED LINX TECHNOLOGIES 575 S.E. Ashley, Pl. Grants Pass, OR 97526 PHONE: 541-471-6256 FAX: 541-471-6251 www.linxtechnologies.com SIZE A FSCM NO.DWG NO. DESIGN: DRAWING: Chris APPROVED: SERIES NUMBER STATUS: DRAFT/APPROVED DATE: 5/15/98 PAT H PART NUMBER SHEET SCALE Covers Part #s 2.03" (52) Ø0.30" (7.8) 0.50" (13) 6.94" (178) - 418 MHz 6.75" (173) - 433 MHz 868 MHz 1 3.13" (80) - 916 MHz End View 0.18" (4.5) 0.57" (14.5) 0.25" (6.4) RPSMA 315 MHz = ANT-315-CW-QW 418 MHz = ANT-418-CW-QW 433 MHz = ANT-433-CW-QW Threads common to ground CONNECTORIZED 1/4-WAVE WHIP ANTENNAS CH1 S 11 SWR1 / REF 1 SPAN = 650 MHz 1 MARKER 1 hp 1: 1.0363 Marker 1 = Specified Frequency 1 -5.3926 Ω 70.607 pF CH1 S 11 1: 51.189 Ω SPAN = 50 MHz Marker 1 = Specified Center Frequency

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No . EE0452-3 Client Millennial Net Phone 781-222-1030 Fax 781-222-1039 FRN 0011054871 Models GW-5209 FCC ID R8N-GW-5209 Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by Mairaj Hussain – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date 8/20/04 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this REPORT:EE0452-3 FCC ID:R8N-GW-5209 Page 2 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary ...........................................................................................................3 Test Methodology..............................................................................................3 EUT Configuration.............................................................................................4 Statement of Conformity....................................................................................5 Test Data and Plots...........................................................................................6 Band Edges ...................................................................................................6 Section 15.249...............................................................................................7 Section 15.249 (d and e): Spurious Emissions ..............................................8 Section 15.207: AC Line Conducted Emission Measurements......................9 Section 15.31(e): Voltage Variations ..........................................................10 Test Equipment Used......................................................................................11 Terms And Conditions .....................................................................................13 A2LA Accreditation..........................................................................................15 REPORT:EE0452-3 FCC ID:R8N-GW-5209 Page 3 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary This report is an application for certification of a transmitter operating under 47 CFR 15.249 of the FCC rules provided for operation in the frequency band of 902-928MHz. The product covered by this report is GW-5209. The manufacturer requires the following antenna to be used with GW-5209: i) ANT-916-CW-QW A detailed description of the above-mentioned antenna can be found in the antenna exhibit. Test Methodology All testing was performed according to the procedures specified in ANSI C63.4 (2003). The product was tested with modulation on. Peak readings were compared against the average limit presented in section CFR 15.249. Frequency range investigated: 0.15MHz – 10GHz Measurement Distance: Frequency (MHz) Distance (m) Comments Fundamental (916.6MHz) 3m Radiated 30MHz – 10GHz except 902-928MHz band 3m Radiated Spurious Measurements 0.15-30MHz Conducted CEMI The EUT was fully maximized. The EUT antenna can not be maximized separately. The product only has one channel of operation and was evaluated at that channel. The product was powered using an ac adapter for testing purposes. Please note that the product can also be powered using a battery. A representative ac adapter was used for testing; an ac adapter will not be sold with the product, a 50ohm/50μH LISN was used. All readings are peak unless otherwise noted. REPORT:EE0452-3 FCC ID:R8N-GW-5209 Page 4 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 EUT Configuration EUT Configuration Work Order: E0452 Company: Millenial Net Company Address: 201 Broadway Cambridge, MA 02139 Contact: Jason Xiao Person Present: Jason Xiao MNSN EUT: GW5209 14122034 (RX version) EUT Description: Gateway EUT Max Fre quency: 916.6MHz Support Equipment: MNSN Unifiue AC AdapterUL305-3315Not Labeled EUT Cables: QtyShielded?LengthFerrites DB9 Serial Cable1Yes3mNo AC Adapter Cable 1No3mNo Unpopulated EUT Ports: none Software / Operating Mode Description: Tested in continuous Tx and Rx modes (separate samples). 14122068 REPORT:EE0452-3 FCC ID:R8N-GW-5209 Page 5 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Statement of Conformity The GW-5209 has been found to conform with the following parts of the 47 CFR as detailed below: 47 CFR Part # 47 CFR Part # Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is displayed in the label exhibit. The label is permanently attached. 15.21 Information for the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.31(e) The output was measured at ±15% of nominal voltage. 15.203 The device utilizes antenna specific to the product. 15.204 See attached documentation describing the antenna. 15.205 15.209 The fundamental is not in a restricted band. The spurious comply with the general emission limits of 15.209. 15.207 The EUT meets the QP and average limits using representative ac/dc brick. 15.249 15.249 (a) The EUT meets the field strength limit of 50mV/m (94dBμV/m) at the fundamental. 15.249 (d) Spurious emissions meet the general radi…
