R8N-IB-5209ENCWireless Sensor Networking Device

Document Number:DOC-0005 Revision:01 Released:July 2004 EK-5209-5 Evaluation Kit i-Bean ® 916 MHz Wireless Sensor Network User’s Guide COPYRIGHT This manual is produced and copyrighted by Millennial Net, Inc. Any use or reproduction of the contents of this manual without the prior written consent of Millennial Net, Inc. is strictly prohibited. NOTICE All title and copyrights to this document are owned by Millennial Net, Inc. No part of the contents of this document may be reproduced or transmitted in any form or by any means without the written permission of Millennial Net, Inc. Millennial Net, Inc. shall not be liable for errors contained herein. Millennial Net, Inc. shall not be liable for any damages whatsoever, including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss arising out of the use of this documentation even if Millennial Net, Inc. has been made aware of the possibility of such damages. Information contained in this document is subject to change without notice. While every effort is made to ensure that the information is accurate as of the publication date, users are reminded to update their use of this document with documents published by Millennial Net, Inc. subsequent to this date. Third-party product information is for informational purposes only, and constitutes neither an endorsement nor a recommendation. Millennial Net, Inc. expressly disclaims any responsibility with respect to the performance of the third-party products. Copyright 2000, 2001, 2003, 2004 by Millennial Net, Inc. ALL RIGHTS RESERVED Printed in U.S.A. Millennial Net, Inc. 24 th Avenue Burlington, MA 01803-3304 USA 781.222.1030 EK-5209-5 Evaluation Kit User’s Guidev CAUTION All device installation, configuration, and reconfiguration must be performed only by qualified service personnel. Initialization of the product should be performed only by a qualified systems administrator. Compliance Statement FCC compliance for Millennial Net’s EK-5209-5 Evaluation Kit (916MHz, 5-3-1) consisting of the following models/components: •iB-5209 Endpoint •GW-5209 Gateway •RT-5209 Router Compliance Statement (Part 15.19) The Millennial Net EK-5209-5 Evaluation Kit complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Trademarks © 2000, 2001, 2002, 2003, 2004 Millennial Net, Inc. All rights reserved. Millennial Net TM is a trademark and i-Bean ® is a registered trademark of Millennial Net. All other trademarks are the property of their respective owners. Information subject to change. viEK-5209-5 Evaluation Kit User’s Guide EK-5209-5 Evaluation Kit User’s Guidevii Table of Contents About This Guide Audience ....................................................................................................................xiv How to Use This Guide ...............................................................................................xiv Symbols and Conventions ........................................................................................... xv Contacting Millennial Net ...........................................................................................xvi World Wide Web.................................................................................................. xvi Customer Support ................................................................................................ xvi Technical Publications........................................................................................... xvi 1 Introduction Product Overview........................................................................................................1-2 Major Features ................................................................................................... 1-2 i-Bean Network Overview............................................................................................1-3 Evaluation Kit Contents...............................................................................................1-5 Host PC Requirements ................................................................................................1-5 2 Kit Installation Installing the i-Bean Wireless Network.........................................................................2-2 Hardware Installation ..................................................................................................2-3 i-Bean Gateway Setup (GW-5209) ...................................................................... 2-3 i-Bean Router Setup (RT-5209)............................................................................ 2-6 i-Bean Endpoint Setup (iB-5209) ......................................................................... 2-9 iB-5209 Network Monitor Installation .......................................................................2-10 Installing contents of Millennial Net’s iB-5209 CD-ROM .................................... 2-10 Launching iB-5209 Network Monitor................................................................ 2-12 3 iB-5209 Network Monitor Operations iB-5209 Network Monitor Overview ............................................................................3-2 Menu Bar ........................................................................................................... 3-3 Gateway............................................................................................................. 3-4 Device Counts .................................................................................................... 3-4 Node Details.......…

Text truncated - open the document above for the full version.

Response to TCB Findings 1. Please supply an internal photo of the PCB side of the main board that the transmitter sits on. Attached. 2. Has a fresh battery been used throughout the entire testing and has the device been tested in 3 orthogonal planes? Please clarify. A fresh battery was used and the device was maximized in all orientations. Revised Report attached.

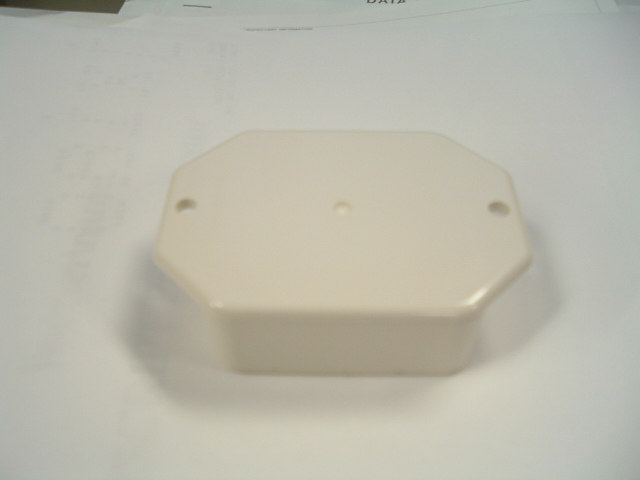

FCC ID: R8N-IB-5209ENC FCC ID: R8N-IB-5209ENC

FCC, ISC Identification Labels FCC and ISC Identification A single label will be used for both FCC and ISC (Industry Canada) identification numbers. The label is shown below. Material: Polycarbonate Adhesive: SCOTCH - 3M 486MP High Performance Adhesive. Color: The actual label will be Black lettering on a White background. The diagram below shows the label. The size is 2.50 inches by 1.00 inches. The thickness is 0.05 inch. FCC and ISC Identification Label Placement Both identification labels are placed on the front of enclosure as indicated in the actual drawing in a separate PDF file. Millennial Net, Inc Model: iB-5209-ENC FCC ID: R8N-IB-5209ENC IC: 5127A-IB5209ENC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. C L C L 2. 5051. 8652. 275 1. 865 2. 505 2. 275 T EXT URED F LUSH O RRECESSED SMOOTH0. 030" DEEP 0. 170 0. 107 0. 993** 0. 993** R EV D ESC R IPTIO N CHK BY D ATE YOUR PERFECT FIT TM TITLE:C U STO MER : APP. BY JOB NO: DRWN BY PR O D U C T: SC AL E: DATE: R.R. B.B. FULL 08/07/00 ---LP-11C PR OD U C T D ETAIL D R AW IN G Page 1 of 1 R0. 094 (8 PLCS.) FCC Label 0.75" 1" 2" 0.25"

QUICK DATA SHEET JJB Series Ultra-Compact Antenna DESCRIPTION The JJB-Series packs near the performance of a conventional monopole into an incredibly compact 7mm-diameter package. These antennas are ideal for any OEM application requiring a compact, cosmetically attractive, low-cost antenna solution. The antenna features a through-hole feedline which attaches directly to a user’s PCB. Internal or external mounting is possible. FEATURES SPECIFICATIONS PHYSICAL DIMENSIONS This is a preliminary data sheet. Recipient understands any or all of the above specifications are subject to change without notice and proceeds with integration at own risk. For additional information: Linx Technologies 1-800-736-6677 Revised 4/29/03 ■Ultra-Compact ■Very Low Cost ■High-Performance (-1dBi Typical) ■Low VSWR (<2.0) ■Good Usable Bandwidth (900-930MHz) ■Easily Concealed Internally ■Direct PCB Mount Ø 0.276" (7) Ø 0.059" (1.5) Ø 0.0393" (1) 0.354" (9) 0.216" (5.5) 0.216" (5.5) 0.570" (14.5) 0.33" (7.6) Ø 0.28" (7) Ø 0.06" (1.5) Ø 0.10" (2.5) Ø 0.04" (1) 0.35" (9) All measurements made using 1.5” x 3.5” groundplane counterpoise. TYPICAL SWRSMITH CHART Wavelength:1/4 Wave Designed for Match:50Ω Typical VSWR:Center <1.7 Over Bandwidth <2.1 Typical Center:916MHz Usable Bandwidth:30MHz (900-930MHz) Typical Gain -1dBi (Relative to Isotropic) Element:Precision Helical 1:1.8423 902MHz 2:1.2685 916MHz 3:1.4181 928MHz 1:26.69Ω -12.951Ω 902MHZ 2:40.971Ω -2.5352Ω 916MHz 3:65.828Ω -13.957Ω 928MHz NOTE:For hand application only.Flux Feed-Pin prior to soldering. Solder quickly to avoid damage. ANT-916-JJB-RA ANT-916-JJB-ST P ART #DESCRIPTION ANT-***-JJB-RAJJB Perm.Ultra-Miniature ANT-***-JJB-STStraight version of JJB ***= 868, 916-(902-928MHz) ORDERING INFORMATION ANT-***-JJB-STANT-***-JJB-RA Straight VersionRight-Angle Version

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC ∑ ∑∑ ∑ 527 Great Road ∑ ∑∑ ∑ Littleton, MA ∑ ∑∑ ∑ TEL (978) 486-8880 ∑ ∑∑ ∑ FAX (978) 486-8828 Test Report Report No EE0483-1 Client Millennial Net Phone 781-222-1030 Fax 781-222-1039 FRN 0011054871 Models iB-5209-ENC FCC ID R8N-IB-5209ENC Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by Mairaj Hussain – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this REPORT:EE0483-1 FCC ID:R8N-IB-5209ENC Page 2 of 16 _____________________________________________________________ Curtis-Straus LLC ∑ ∑∑ ∑ 527 Great Road ∑ ∑∑ ∑ Littleton, MA ∑ ∑∑ ∑ TEL (978) 486-8880 ∑ ∑∑ ∑ FAX (978) 486-8828 Summary ...........................................................................................................3 Test Methodology..............................................................................................3 EUT Configuration.............................................................................................4 Statement of Conformity....................................................................................5 Test Data and Plots...........................................................................................6 Band Edges ...................................................................................................6 Section 15.249...............................................................................................7 Section 15.249 (d) .........................................................................................8 AC Line Conducted Emission Measurements................................................9 Test Equipment Used......................................................................................10 Terms And Conditions.....................................................................................12 A2LA Accreditation..........................................................................................14 REPORT:EE0483-1 FCC ID:R8N-IB-5209ENC Page 3 of 16 _____________________________________________________________ Curtis-Straus LLC ∑ ∑∑ ∑ 527 Great Road ∑ ∑∑ ∑ Littleton, MA ∑ ∑∑ ∑ TEL (978) 486-8880 ∑ ∑∑ ∑ FAX (978) 486-8828 Summary This report is an application for certification of a transmitter operating under 47 CFR 15.249 of the FCC rules provided for operation in the frequency band of 902-928MHz. The products covered by this report is iB-5209-ENC. The manufacture requires the following antenna to be used with iB-5209-ENC: i) 916-JJB-RA by LINX Technologies A detailed description of the above-mentioned antenna can be found in the antenna exhibit. Test Methodology All testing was performed according to the procedures specified in ANSI C63.4 (2003). The product was tested with modulation on and peak readings were compared against the average limit presented in section CFR 15.249. Frequency range investigated: 30MHz – 10GHz Measurement Distance: Frequency (MHz) Distance (m) Comments Fundamental (916.6MHz) 3 m Radiated 30MHz – 10GHz except 902-928MHz band 3m Radiated Spurious Measurements The EUT was fully maximized. The EUT antenna can not be maximized separately. The product only has one channel of operation and was evaluated at that channel. Fresh battery was used during the testing. The product is DC powered and drives its power from a battery. All readings are peak unless otherwise noted. REPORT:EE0483-1 FCC ID:R8N-IB-5209ENC Page 4 of 16 _____________________________________________________________ Curtis-Straus LLC ∑ ∑∑ ∑ 527 Great Road ∑ ∑∑ ∑ Littleton, MA ∑ ∑∑ ∑ TEL (978) 486-8880 ∑ ∑∑ ∑ FAX (978) 486-8828 EUT Configuration EUT Configuration Work Order:E0483 Company:Millenial Net Company Address:201 Broadway Cambridge, MA 02139 Contact:Jason Xiao Person(s) Present:Jason Xiao MNSNFCC ID EUT:iB-5209-ENCSample 1R8N-IB-5209ENC EUT Description:916MHz wireless sensor network EUT Max Frequency: 916.6MHz Support Equipment: None EUT Cables: None Unpopulated EUT Ports: None Software / Operating Mode Description: Product was set to operate in continuous Tx and Rx modes. REPORT:EE0483-1 FCC ID:R8N-IB-5209ENC Page 5 of 16 _____________________________________________________________ Curtis-Straus LLC ∑ ∑∑ ∑ 527 Great Road ∑ ∑∑ ∑ Littleton, MA ∑ ∑∑ ∑ TEL (978) 486-8880 ∑ ∑∑ ∑ FAX (978) 486-8828 Statement of Conformity The iB-5209-ENC has been found to conform with the following parts of the 47 CFR as detailed below: 47 CFR Part # 47 CFR Part # Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. The label is permanently attached. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.31(e) Voltage variation test was not performed on the product because it drives power from a battery. 15.203 The device utilizes antenna specific to the product. 15.204 See attached documentation describing the antenna. 15.205 15.209 The fundamental is not in a Restricted band and the spurious comply with the general emission limits of 15.209. 15.207 Unit is DC powered and drives its power from a battery, therefore AC line conducted emissions testing was not done. 15.249 15.249 (a) The EUT meets the field strength limit of 50mV/m (94dBμV/m) at the fundamental. 15.249 (d) Spurious emissions meet the general radiated emissions limits of section 15.209. 15.249 (e) Spurious emissions found above 1GHz meet the FCC class B limits. …

Text truncated - open the document above for the full version.
