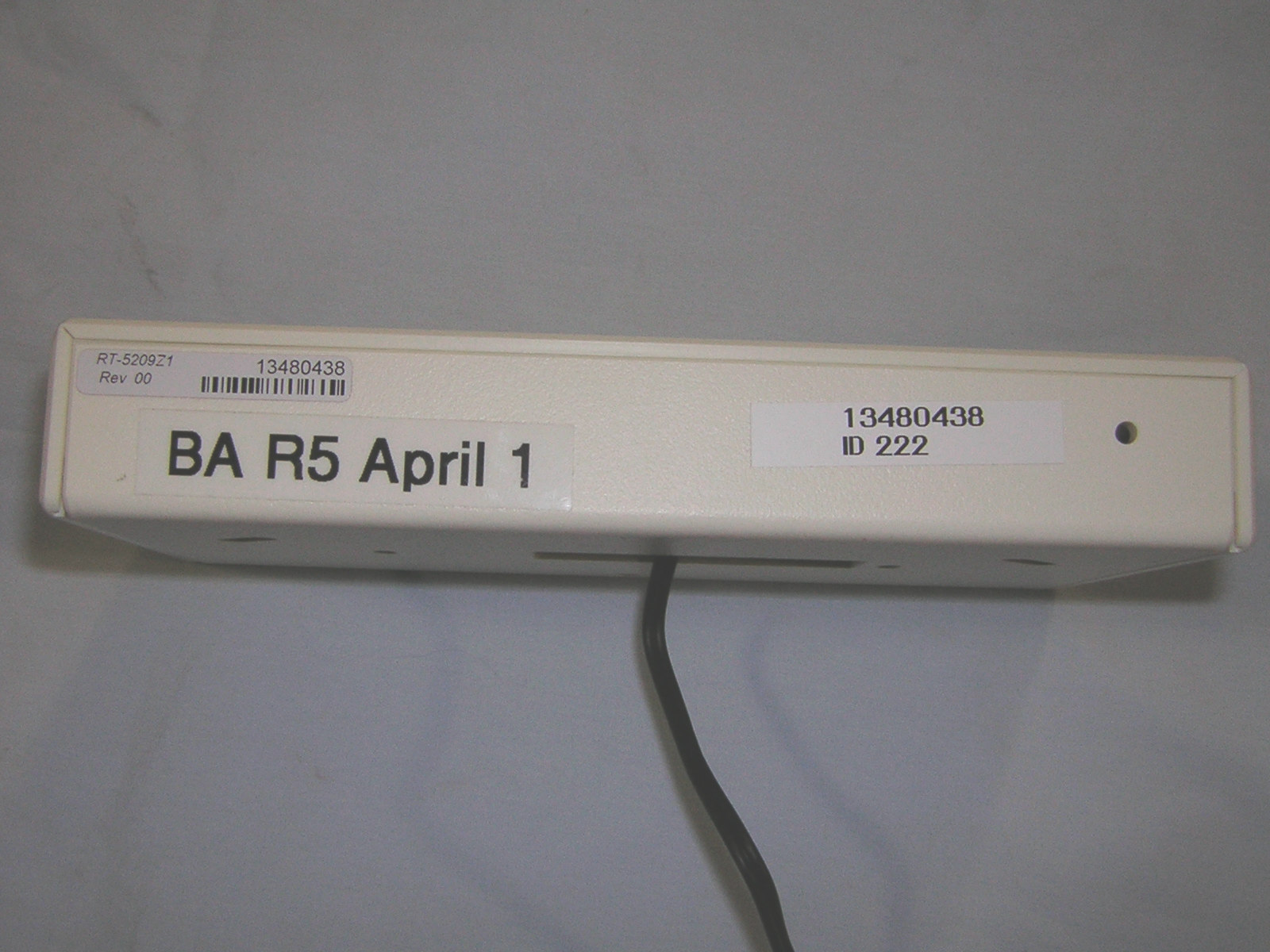

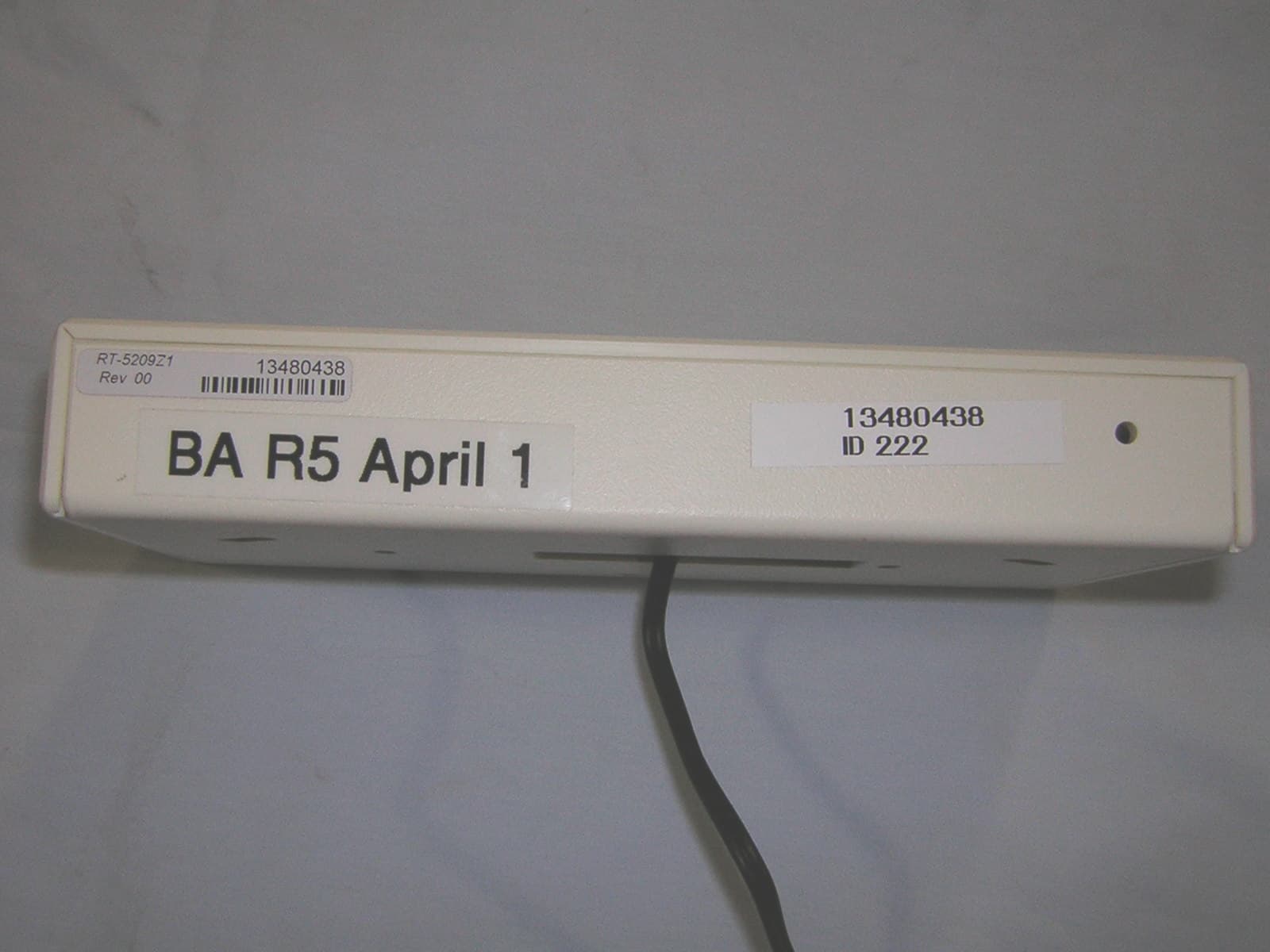

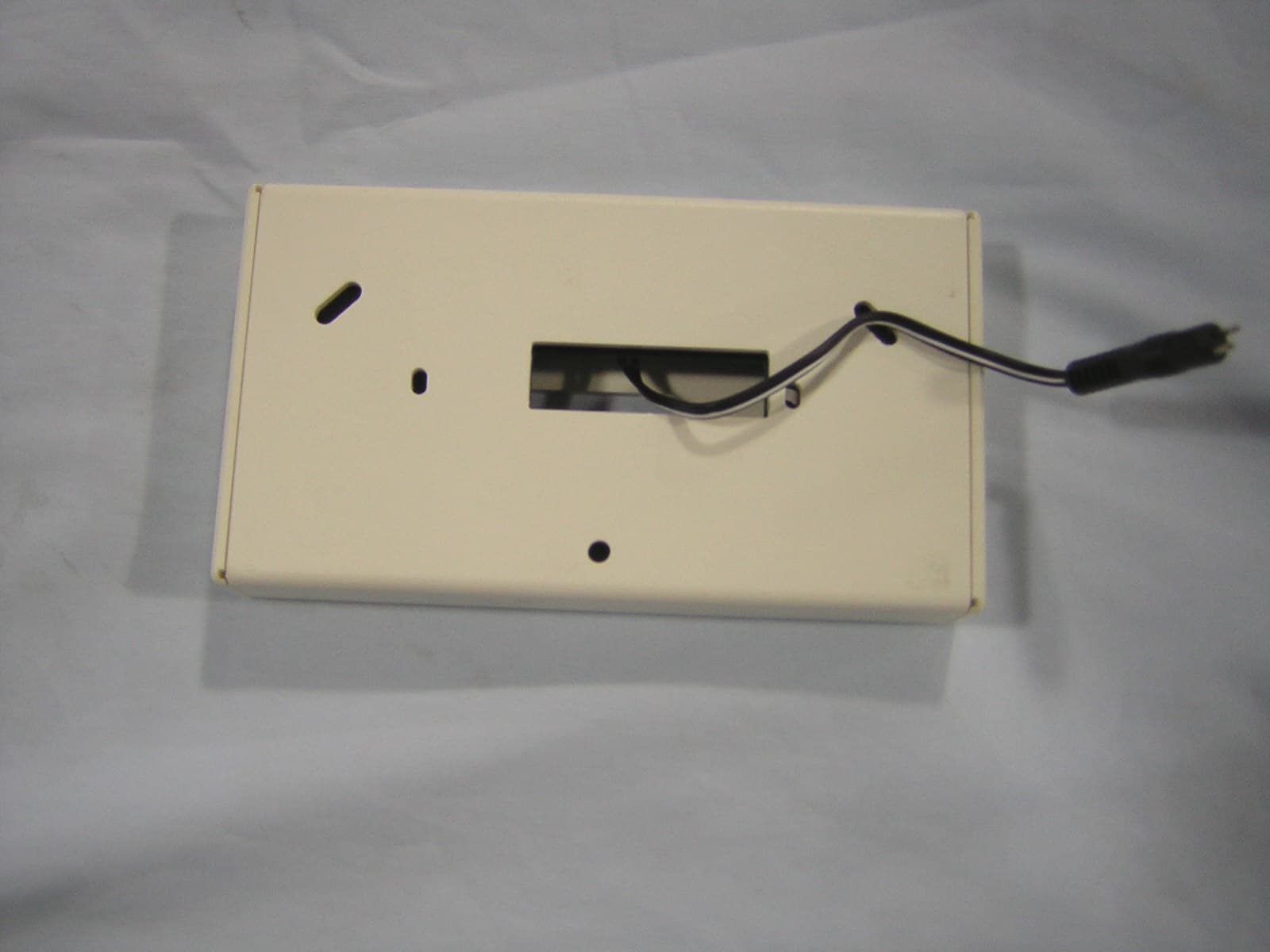

R8N-RT-5209Z1Wireless Sensor Network Router

201 Broadway ∑ Cambridge, MA 02139 ∑ USA ∑ +1.617.225.0100 ∑ +1.617.225.0770 FAX ∑ www.millennial.net Request for Confidentiality June 30, 2004 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB 527 Great Rd Littleton, MA 02702 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Millennial Net requests that the following documents regarding this submission for FCC ID #: R8N-RT-5209Z1 be kept confidential: 1. Schematics 2. Block Diagram 3. Circuit/Technical Description The material above contains technical data, which would customarily be guarded from competitors. Sincerely, Jason S. Xiao Principle RF System Engineer Millennial Net, Inc June 23, 2004

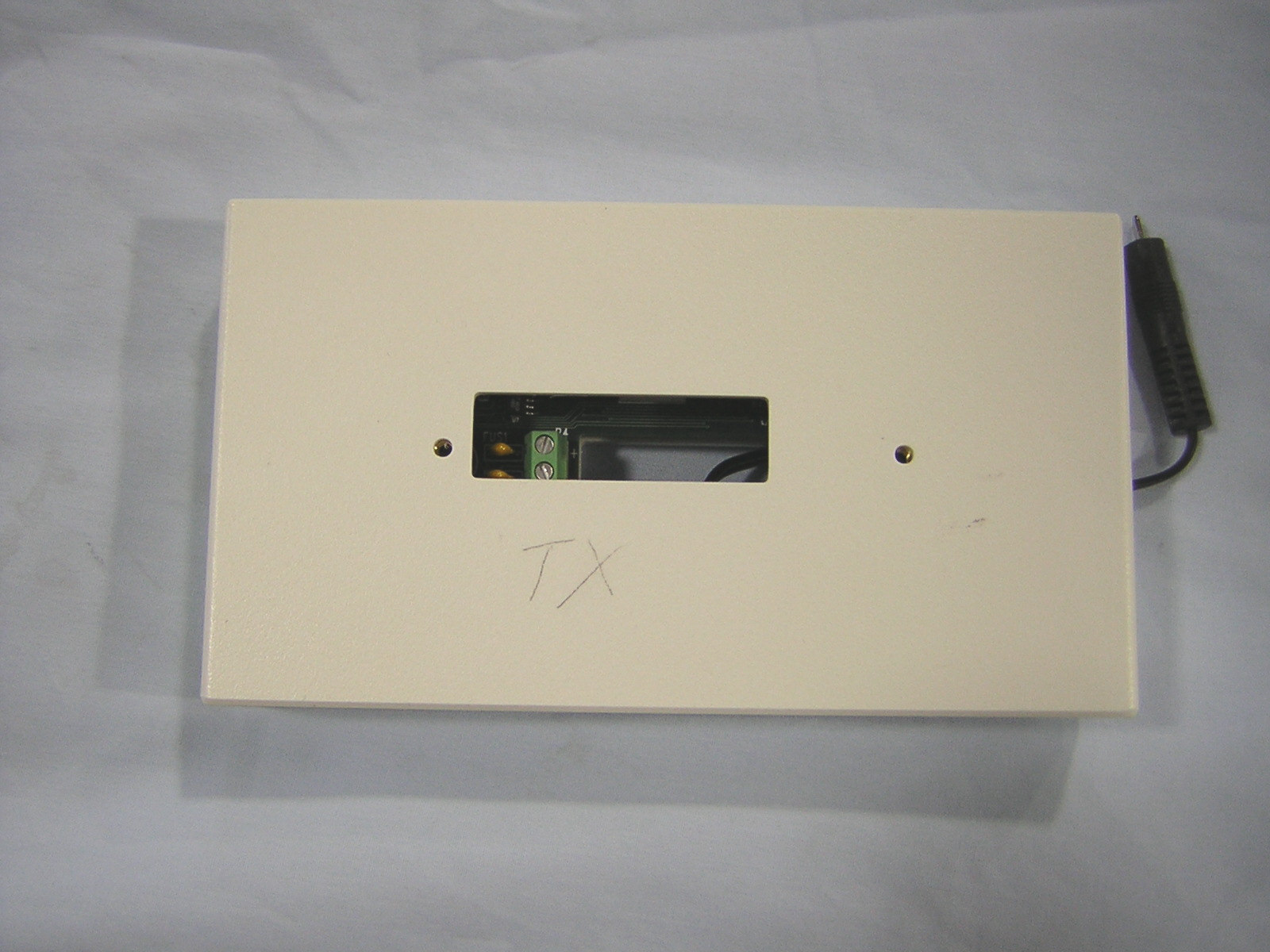

Response to TCB Findings 1. Has the device been tested in 3 orthogonal planes to maximize emissions as it does not seem to have a fixed orientation? Please clarify. The device was maximized in 3 orthogonal orientations and the worst-case reading at each frequency was listed in the report. 2. The label document needs to show the final label, including final color. The label sample makes a note for the label color stating that it's in "negative" form. New label exhibit attached. 3. From the AC line conducted emissions table it appears that the Tx and Rx units are separate. Are they different enclosures? Is this application intended to cover the Tx only? Please clarify. To facilitate testing, Millenial provided 2 samples, one programmed for TX only and the other programmed for RX only. The units are physically and electrically identical. 4. The user's manual mentions an external and an internal antenna for the device ( Sub-base Router (model RT-5209Z1) ). From the test data and internal pictures supplied it appears that the device has been tested with the internal antenna only. Please clarify the antenna options for the device. Please find attached an updated user manual that has the optional (external) antenna removed. Millennial will not be offering the optional antenna at this time

Work Order: E0524 FCC ID: R8N-RT-5209Z1 Work Order: E0524 FCC ID: R8N-RT-5209Z1 Work Order: E0524 FCC ID: R8N-RT-5209Z1 Work Order: E0524 FCC ID: R8N-RT-5209Z1

FCC, ISC Identification Labels FCC and ISC Identification A single label will be used for both FCC and ISC (Industry Canada) identification numbers. The label is shown below. Material: Polycarbonate Adhesive: SCOTCH - 3M 486MP High Performance Adhesive. Color: The actual label will be Black lettering on a White background. The diagram below shows the label. The size is 2.50 inches by 0.75 inches. The thickness is 0.05 inch. FCC and ISC Identification Label Placement Both identification labels are placed on the front of enclosure as indicated in the actual drawing in a separate PDF file. Millennial Net, Inc Model: RT-5209Z1 FCC ID: R8N-RT-5209Z1 IC: 5127A-RT-5209Z1 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, includin g interference that may cause undesired operation. FRONT C-BOX 2.12 0.63 1.10 in 0.15 0.15 Countersunk, type 4 places to align with corner braces in back C-BOX sized for 4-40 screw FCC Label 2.25 2.50 0.75 0.375 6.75 in 3.75

FCC ID: R8N-RT-5209Z1 FCC ID: R8N-RT-5209Z1

PRODUCT SUMMARY RCS Series Connectorized Right-Angle DescriptionPhysical Package The RCS Series is ideally suited for products requiring an attractive yet compact antenna in a right-angle form factor. The 1/4-wave antenna features an SMA (2.4GHz only) or Part 15-compliant RP-SMA connection which mates with all Linx PCB and chassis RP-SMA connectors. (click for larger image, requires Macromedia Flash) Features Reduced-height helical whip Very low VSWR (<1.9 typ.) Excellent performance Omni-directional pattern Rugged construction Right-Angle SMA or Part 15 RP-SMA Connector Use with plastic * or metal enclosures * Requires proximity groundplane Ordering Information PART # DESCRIPTION ANT-xxx-CW-RCS RCS Right-Angle Reduced-Height RP-SMA ANT-2.4-CW-RCS-SMA RCS Right-Angle Reduced-Height SMA xxx = 916-(902-928MHz), 2.4 GHz Documentation View CAD Drawing Support / Application Go to product support area (application notes, software, FCC info, etc.) (541) 471-6256 · LINXTECHNOLOGIES.COM · Fax: (541) 471-6251 Page 1 of 2m_rcs.php3 6/25/2004http://www.linxtechnologies.com/ldocs/antennas/m_rcs.php3 575 S.E. Ashley Pl. · Grants Pass · OR · 97526 · USA © Copyright 2001, Linx Technologies Corporation Page 2 of 2m_rcs.php3 6/25/2004http://www.linxtechnologies.com/ldocs/antennas/m_rcs.php3

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EE0454-1 Client Millennial Net Phone 617-225-0100 Fax 617-225-0770 FRN 0011054871 Model RT-5209Z1 FCC ID R8N-RT-5209Z1 Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by Mairaj Hussain – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date 7/8/04 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this REPORT:EE0454-1 FCC ID: R8N-RT-5209Z1 Page 2 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary ...........................................................................................................3 Test Methodology..............................................................................................3 EUT Configuration.............................................................................................4 Statement of Conformity....................................................................................5 Test Data and Plots...........................................................................................6 Band Edges ...................................................................................................6 Section 15.249...............................................................................................7 Section 15.249 (d) .........................................................................................8 AC Line Conducted Emission Measurements................................................9 Section 15.31(e) ..........................................................................................10 Test Equipment Used......................................................................................11 Terms And Conditions .....................................................................................13 A2LA Accreditation..........................................................................................15 REPORT:EE0454-1 FCC ID: R8N-RT-5209Z1 Page 3 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary This report is an application for certification of a transmitter operating under 47 CFR 15.249 of the FCC rules provided for operation in the frequency band of 902-928MHz. The product covered by this report is RT-5209Z1, which is a wireless subbase router system. The manufacture requires the following antenna to be used with RT-5209: i) RCS Right-Angle Reduced -Height RP-SMA A detailed description of the above-mentioned antenna can be found in the antenna exhibit. Test Methodology All testing was performed according to the procedures specified in ANSI C63.4 (2002). The product was tested with modulation on and peak readings were compared against the average limit presented in section CFR 15.249. Frequency range investigated: 30MHz – 10GHz Measurement Distance: Frequency (MHz) Distance (m) Comments Fundamental (916.6MHz) 3 m Radiated 30MHz – 10GHz except 902-928MHz band 3m Radiated Spurious Measurements The EUT was fully maximized. The EUT antenna can not be maximized separately. The product only has one channel of operation and was evaluated at that channel. The product was also tested in Rx mode for spurious emissions. The product is DC powered. The product was tested with an AC adaptor model Radioshack cat no. 273-1690. Line conducted emissions testing was performed with a 50Ω/50μH LISN. All readings are peak unless otherwise noted. REPORT:EE0454-1 FCC ID: R8N-RT-5209Z1 Page 4 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 EUT Configuration EUT Configuration Work Order: E0454 Company: Millennial Net Company Address: 201 Broadway Cambridge, MA 02319 Contact: Jason Xiao Person Present: None MNSN EUT:RT 5209 Z1 1 RadioShack ACadapter 273-16901 EUT Description: Subbase Router (Tx and Rx units) EUT Max Fre quency: 916.56 MHz Support Equipment: MNSN None EUT Cables: QtyShielded?LengthFerrites DC power1No1.5 mNone Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: Product was set to operate in continuous Tx and Rx modes. REPORT:EE0454-1 FCC ID: R8N-RT-5209Z1 Page 5 of 17 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Statement of Conformity The RT-5209Z1 has been found to conform with the following parts of the 47 CFR as detailed below: 47 CFR Part # 47 CFR Part # Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. The label is permanently attached. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.31(e) The input power was varied from its nominal value (120V) to 102V ac and 138V ac. The respective E field was measured see table 6. 15.203 The device utilizes reverse SMA type antenna connection. 15.204 See attached documentation describing the antenna. 15.205 15.209 The fundamental is not in a Restricted band and the spurious comply with the general emission limits of 15.209. 15.207 Unit is DC powered and drives its power from an AC adapter. Conducted EMI on AC side of the ad…
